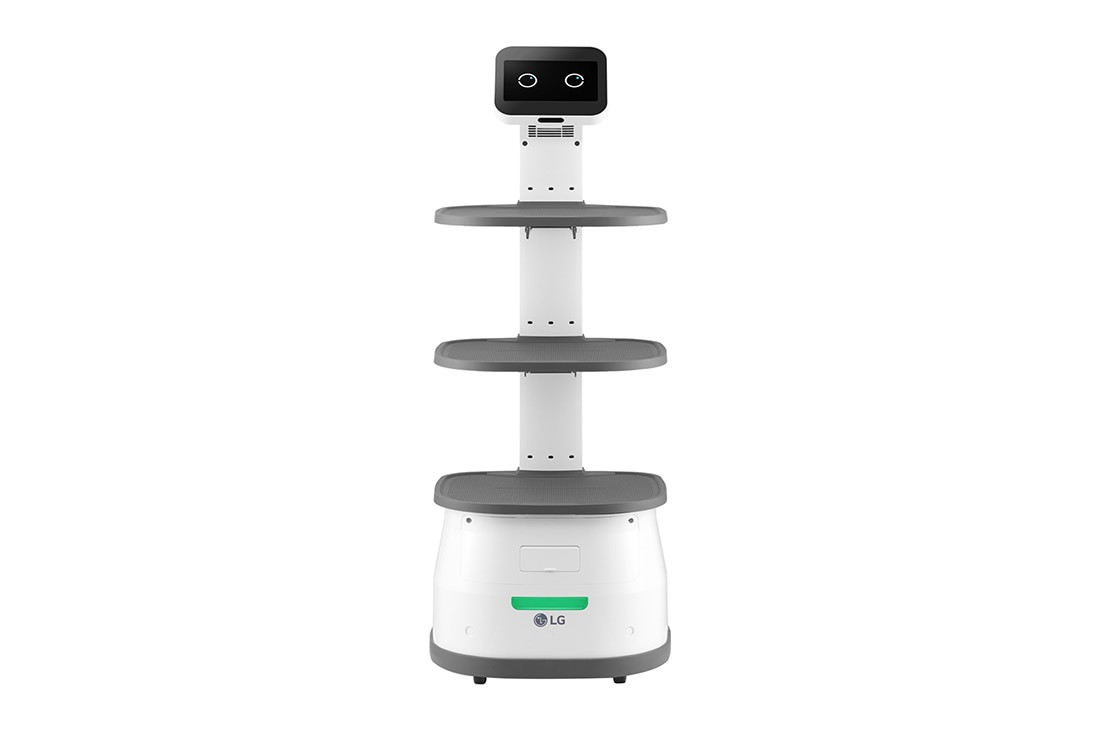

CLOi ServeBot (Shelf type)
CLOi ServeBot (Shelf type)
  • Smart multi-point serving
  • Fast installation without space constraints
  • FSALM autonomous driving
  • Cruise mode
  • 9.2-inch display intuitive control panel

component-OBScountrySelectDesc

CLOi ServeBot (Shelf type)
  • Serve multiple tables at the same time.

  • ToF sensor on each shelf detects food as they's unloaded, and automatically moves to the next table.

  • Users can change the promotional music or voice used during navigation directly as needed.

The 3D camera and LiDAR sensors guarantees optimal space recognition and eliminate the need to install separate ceiling markers. This allows the CLOi Servebot to move freely and precisely even in spaces with high ceilings, limited spaces, or complex paths.

Fast installation without space constraints

The 3D camera and LiDAR sensors guarantees optimal space recognition and eliminate the need to install separate ceiling markers. This allows the CLOi Servebot to move freely and precisely even in spaces with high ceilings, limited spaces, or complex paths.

FSALM autonomous driving FSALM autonomous driving Built to navigate using the Fusion SLAM method that recognizes space with a 3D camera and LiDAR sensor.

Fast installation FSALM autonomous driving Quick setup* without the need to install separate ceiling markers.

*1,000 square feet, based on PoI (10 tables + waiting/return/charging area)
- The minimum installation time for CLOi Servebot is 79 minutes
- Results based on internal engineering tests
The CLOi Servebot navigates safely with a 3D camera sensor that detects low-height obstacles and a close-range ToF sensor to avoid sudden obstructions or small obstacles.

Provide safe and secure services

The CLOi Servebot navigates safely with a 3D camera sensor that detects low-height obstacles and a close-range ToF sensor to avoid sudden obstructions or small obstacles.
- Front-view sensor (LiDAR / Obstacle detection 3D camera (RGBD) / Low obstacle detection ToF sensor / Bumper to minimize impact in case of collision
  • Smart multi-point serving

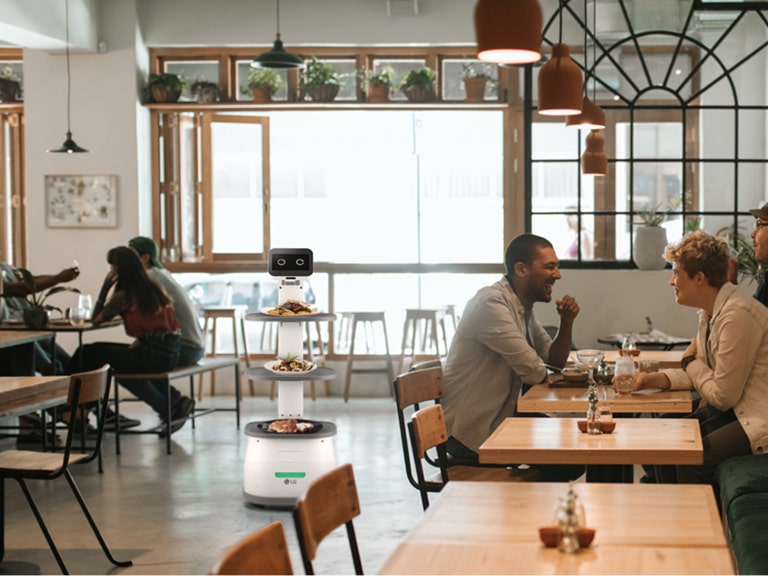

    The CLOi Servebot is able to serve multiple tables at once. It automatically detects the presence of food, and departs to the next table after a table is served.

Simply use the operating screen on the CLOi Servebot to change the desired cruise mode without engineer support.

Change the cruise mode as needed

Simply use the operating screen on the CLOi Servebot to change the desired cruise mode* without engineer support.
*Cruise mode: A function ideal for repetitive actions within a designated location. (convenient for serving frequently used dishes, napkins, and condiments).
  • 9.2-inch display intuitive control panel.

  • Call and operate from a distance using the dedicated app.

  • The perfect serving solution for a wide range of businesses

    Serving solution optimized for each vertical.

  • Improve employee productivity by automating serving and clearing tasks.

    Hotels / Resorts / Serviced residences

    The CLOi Servebot provides guests with safe and efficient services.

  • The CLOi Servebot provides guests with safe and efficient services.

    Community spaces

    Provide an enhanced community experience with a unique and efficiently-run shared facility.

  • Provide an enhanced community experience with a unique and efficiently-run shared facility.

    Restaurants

    Improve employee productivity by automating serving and clearing tasks.

Specification
  • Dimensions (WxHxD)
    51x130x51cm
    Weight
    60kg
  • Load capacity
    30kg (each drawer holds up to 10kg)
    Number of Shelves
    3
  • Shelf size (WxL)
    50x40cm
    Sensor
    LiDAR / 3D Camera / ToF / Bumper
  • Display
    9.2" Touch LCD Display
    Status LED (action/status alert)
    RED / BLUE / GREEN
  • Connectivity
    WiFi
Battery
  • Capacity
    23,000mAH
    Charging time
    5hours
  • Continuous operating time
    11hours
    Battery certification
    UL2271
  • Charging type
    Manual
Language
  • Voice/Display
    Korean / English / Spanish / French / Japanese
    Voice content
    Driving, Arrival notification (call/text)
  • Voice content phrases/music change
    Yes
Autonomous Driving
  • Driving mode
    General mode / Safe mode
    Obstacle recognition
    Automatic obstacle recognition
  • Obstacle avoidance
    Real-time route planning & driving
    Speed (max.)
    1.0m/s (adjustable)
  • Drive width (min.)
    70cm
    Surface compability
    Marble / Tile / Cement
  • Cruise driving path setting
    User-configurable
Certification
  • Safety/Electromagnetic wave
    KC
Others
  • Remote calling app.
    Yes
    Automatic detection of food unloading
    Yes
