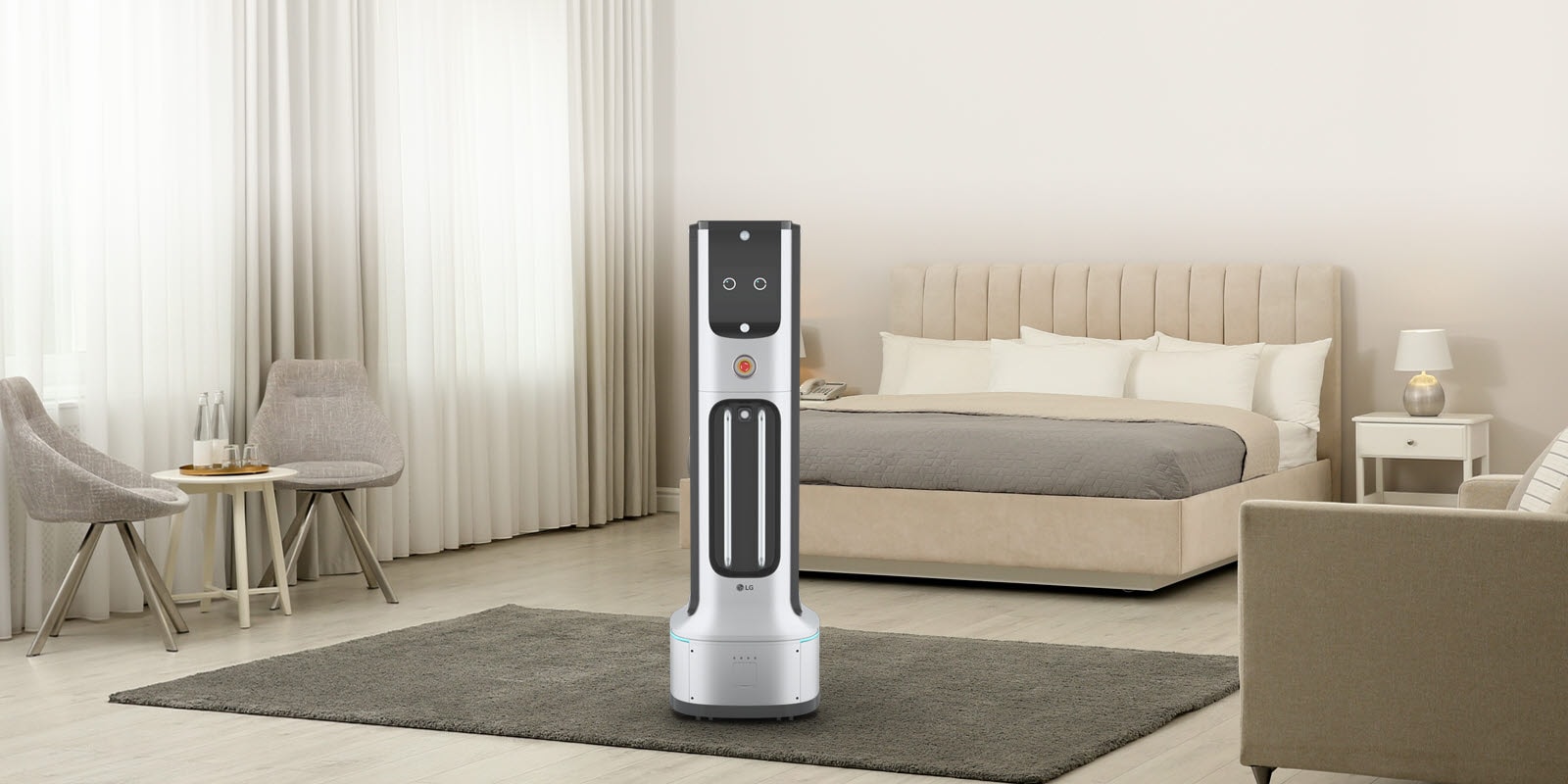

CLOi UV-C Bot
  • Powerfull Disinfection Capabillity (99.999%)
  • Up to 6 hours of continuous performance with 1,725W battery capacity.
  • Autonomous driving optimized for each space
  • Easily changeable disinfection path
  • Provides a dedicated app for easy remote monitoring

component-OBScountrySelectDesc

CLOi UV-C Bot
  • Powerful Disinfection Capability (99.999%)

  • UV-C* lamps (3 left and right each) provide 99.999%**of germs within 50cm

  • Complete disinfection of "high-touch zones" reaching up to 160cm from the ground.

  • Ensure disinfective power while moving as well as fixed.

*Ultraviolet-C: 254 nm in ultraviolet wavelength range of 100 to 280 nm
**Antibacterial 99.999% Elimination Test Conditions
>Test date : July 19, 2021 to August 10, 2021
>Testing agency : Intertek
>Test target : LG CLOi UV-C Bot
>Test conditions : 23 ± 5 °C, 65 ± 20% R.H.
>Test method : According to EPA Guide and Intertek Consulting
- Reduction rate (%) : Contrast with test piece. Comparison of probiotic water after 48 ± 4 hours of incubation of the test specimen
>Test strains : Staphyloccus aureus (ATCC 6538) / Klebsiella pneumoniae (ATCC 4352) / Pseudomonas aeruginosa (ATCC 15442)
>Test results : Antibacterial test 99.999% or higher compared to control group results
- 3cm/s robot moving conditions
1) Bacteria located vertically at a height of 100cm and 160cm can be reduced 99.999% when exposed to LG CLOi's UV-C lamp, which moves at a distance of 63.5cm.
2) Bacteria located horizontally at a height of 40cm and 70cm can be reduced 99.999% when exposed to LG CLOi's UV-C lamp, which moves at a distance of 100cm.
- Staphyloccus aureus / Pseudomonas aeruginosa : Metal, Glass
- Klebsiella pneumoniae : Fabric
>Laboratory measurements may vary in a room-use environment.
>Experimental results are a measure of the initial performance of the product and may vary depending on the time and frequency of use.
Up to 6 continuous hours operation with 1,725W battery capacity.

Up to 6 hours of continuous performance

Up to 6 continuous hours operation with 1,725W battery capacity.
  • Autonomous driving optimized for each space through advanced wall tracking and mapping.

    Halt the disinfection process upon detection of human presence.

  • The compact size of 60cm

    Compact enough to disinfect the limited space between twin beds if the gap is at least 74cm wide

  • Even pass the 2cm high threshold.

    Can pass the threshold of 2cm without any problem.

  • User Safety

    Automatically turn off the disinfection operation when human movement* is detected.

*Open door and human motion detection
(Sensor installation required for open door detection function)
  • Easily changeable disinfection path/global/images/business/LG-CLOI-UV-C-Bot/feature/robot-cloi-uv-c-bot-10-01-easily-changeable-desktop.jpg Easily changeable disinfection path/global/images/business/LG-CLOI-UV-C-Bot/feature/robot-cloi-uv-c-bot-10-01-easily-changeable-mobile.jpg

    A Course

  • Easily changeable disinfection path/global/images/business/LG-CLOI-UV-C-Bot/feature/robot-cloi-uv-c-bot-10-02-easily-changeable-desktop.jpg Easily changeable disinfection path/global/images/business/LG-CLOI-UV-C-Bot/feature/robot-cloi-uv-c-bot-10-02-easily-changeable-mobile.jpg

    B Course

Easily changeable disinfection path

The user can set the manual path as needed without the need for a separate engineer.
Through the mobile app, you can check the progress remotely and manage the site efficiently.

Provides a dedicated app for easy remote monitoring

Through the mobile app, you can check the progress remotely and manage the site efficiently.
  • Disinfection solutions for a wide range of businesses

    it provides an optimized disinfection solution for each vertical.

  • Creating a comfortable room environment for rest and sleep.

    Hotel

    Creating a comfortable room environment for rest and sleep.

  • Maintaining meticulous Disinfection for the vulnerable, such as pregnant women and the elderly.

    Hospital

    Maintaining meticulous Disinfection for the vulnerable, such as pregnant women and the elderly.

  • Providing a pleasant environment can increase customers' affinity for restaurants.

    Restaurant

    Providing a pleasant environment can increase customers' affinity for restaurants.

  • Create a safe environment for students to run around freely.

    Education

    Create a safe environment for students to run around freely.

  • There is no residue after Disinfection, which does not interfere with the operation.

    Company/Public

    There is no residue after Disinfection, which does not interfere with the operation.

Specification
  • Dimensions (WxHxD)
    51x161x53cm
    Weight
    75kg
  • Sensor
    LiDAR / Motion Detect / Ultrasonic / Bumper / Door
    Display
    7" Touch LCD Display
  • Connectivity
    WiFi
Lamp
  • Number of units
    6
    Length
    120cm
  • Intensity of radiation
    36W/1unit
    Estimated wavelength
    254nm
  • Disinfection
    99.999%* (High mode)
    Staphylococcus aureus / Klebsiella pneumoniae ATCC / Pseudomonas aeruginosa

    Certification company - Interteck
    Mercury(Hg) content
    Less than 2.0mg
Battery
  • Capacity
    1,725W (575W*3)
    Charging time
    5.5hours
  • Continuous usage time
    6hours
    Power supply
    100~240V 50/60Hz, 8A Max
  • Charging type
    Manual
Language
  • Voice/Display
    Korean / English, Spanish (Display Only)
    Voice content
    Notification of disinfection work and completion
Autonomous Driving
  • Driving mode
    Wall tracking / Path planning
    Obstacle recognition/avoidance
    Automatic obstacle recognition, Real-time route planning & driving
  • Speed (max.)
    5cm/s
    Drive width (min.)
    74cm
  • Surface compability
    Marble / Carpet / Wood / Tile
    Door step (max.)
    2cm
  • Manual driving
    Aided driving mode
    Mapping/path editing
    User-configurable
Certification
  • Safety/Electromagnetic wave
    KC / UL (Expected to acquire)
Others
  • Mobile alert
    Notification upon completion
