CLOi CarryBot that increase work efficiency

MCS Optimized order distribution and scheduling to achieve improvement in productivity

FMS Optimized driving solution with fleet management system

Optimal design Optimized display position Shelf size for different product sizes

*The images simulated to enhance feature understanding. It may differ from actual use.

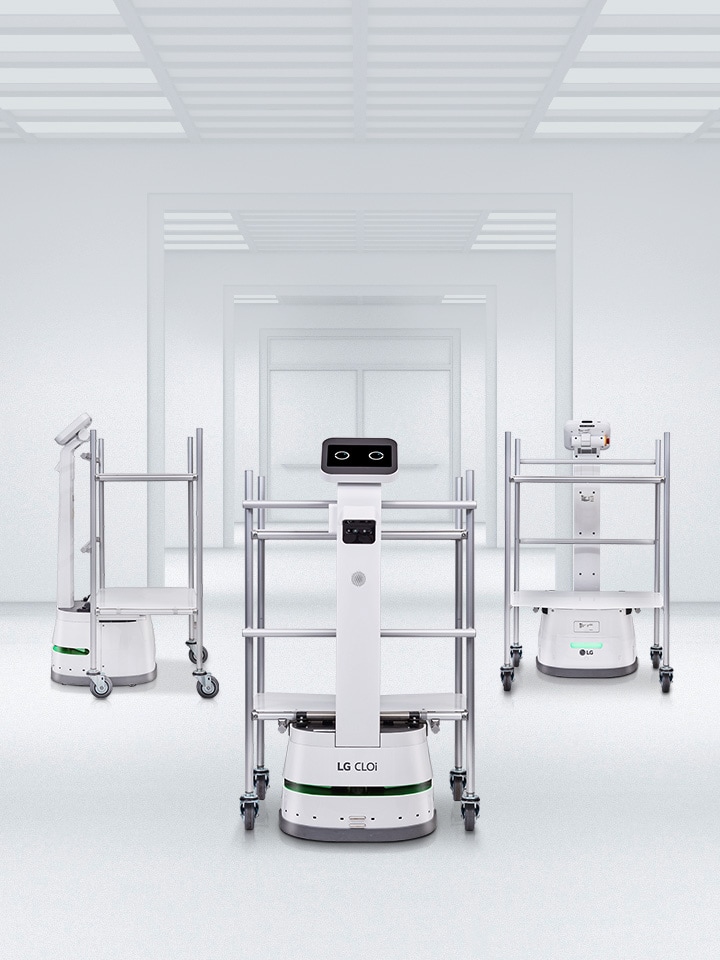

Warehouse Automation by LG CLOi CarryBot

Warehouse Automation by LG CLOi CarryBot

CarryBot supports the warehouse operation to improve efficiency and productivity with optimized solutions for various customer needs.
*The images simulated to enhance feature understanding. It may differ from actual use.
Reliable partner

Quick and convenient work

Our AMR can support operator by notifying the items to be picked and by delivering the items end-to-end while the operator can stay in the assigned zone only.

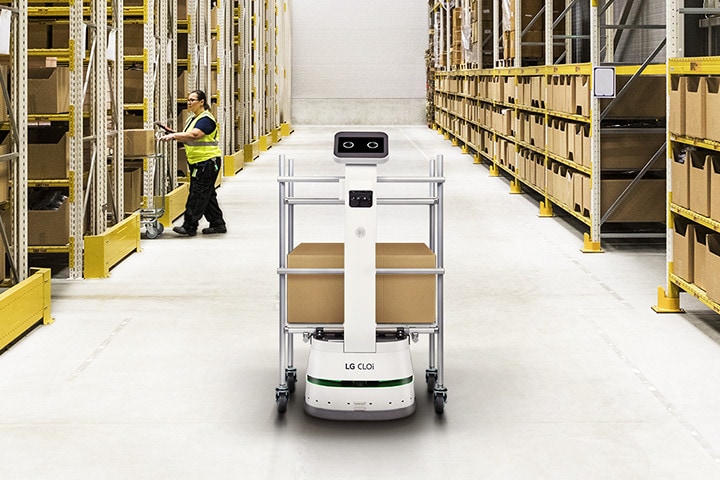

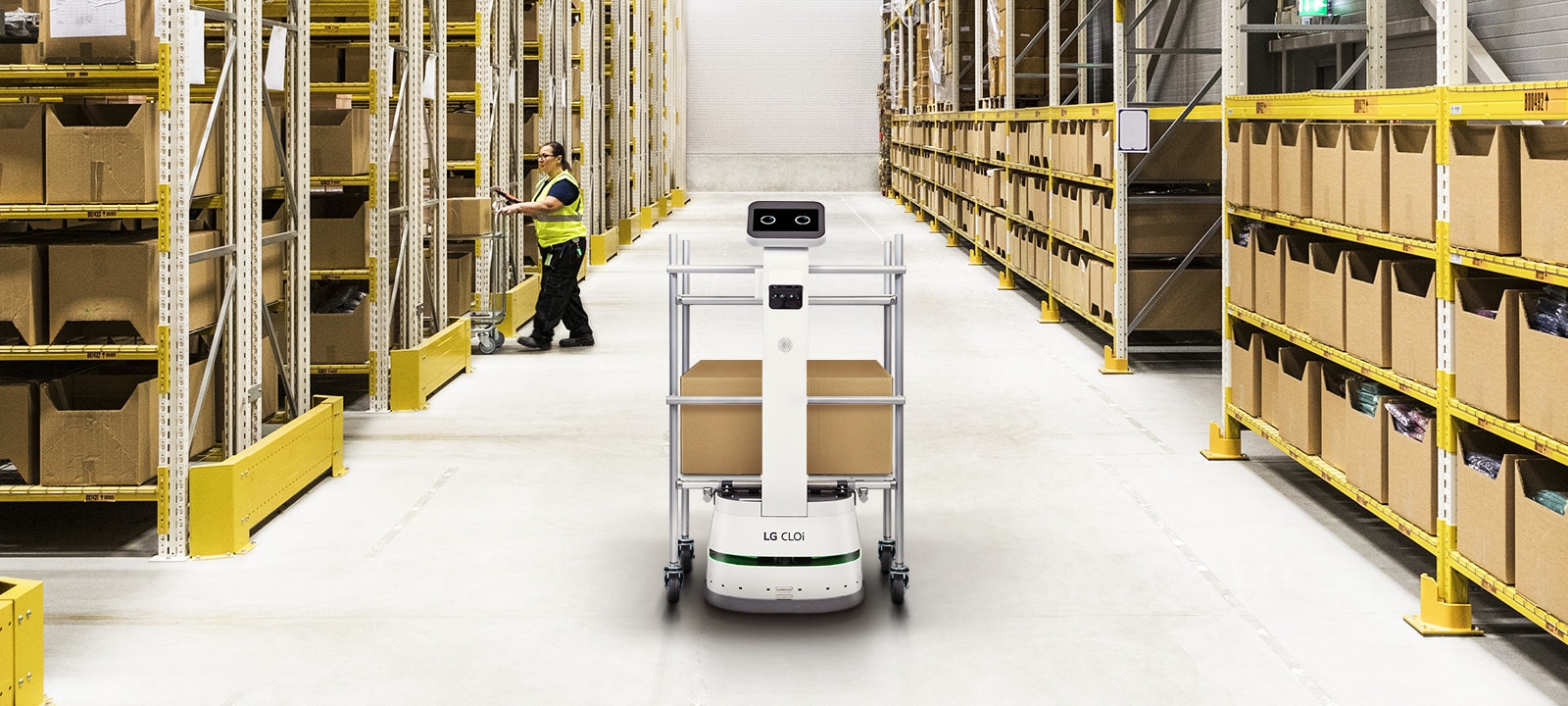

Quick and convenient work thru LG CLOi CarryBot	Quick and convenient work thru LG CLOi CarryBot
*The images simulated to enhance feature understanding. It may differ from actual use.

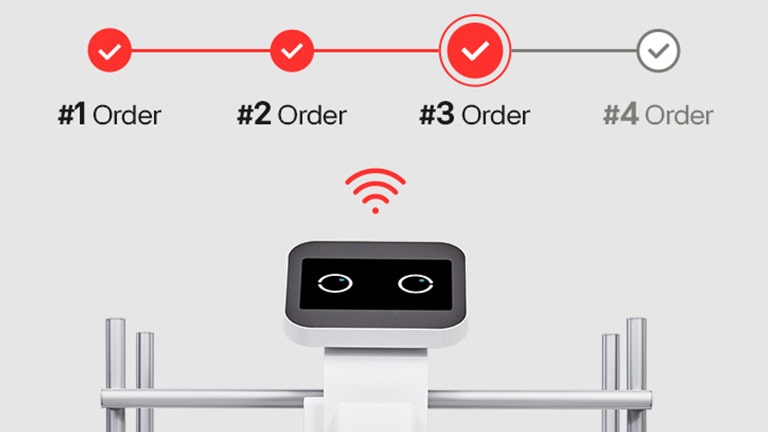

LG CLOi CarryBot uses smart ordering to rearrange up to 4 orders so they can be processed quickly.
Smart ordering

Work efficiency and productivity

By simple and clear work steps thru smart order grouping, operator is able to perform the required level of work regardless of the operators’ job experience or skills.
*The images simulated to enhance feature understanding. It may differ from actual use.

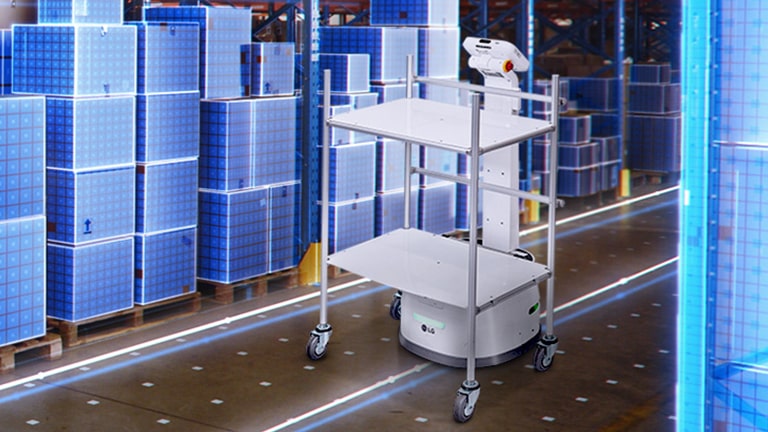

CarryBot optimizes order distribution and scheduling to achieve productivity improvement.
Material Control System (MCS)

WMS* interfacing

Optimized order distribution and scheduling to achieve improvement in productivity.
*WMS: Warehouse Management System.
*The images simulated to enhance feature understanding. It may differ from actual use.

Fleet Management System (FMS)

  • Optimized driving solution

    LG AMR driving algorithm with the Fleet Management System (FMS) enables an LG CLOi CarryBot to set the fastest route to the destination.

  • Safe & Stable autonomous driving

    LG CLOi CarryBot safely drive to destinations based on autonomous driving and obstacle avoidance technology.

*The images simulated to enhance feature understanding. It may differ from actual use.
User-friendly design

Easy and efficient AMR hardware

User-friendly HW design enhance operator convenience and productivity.

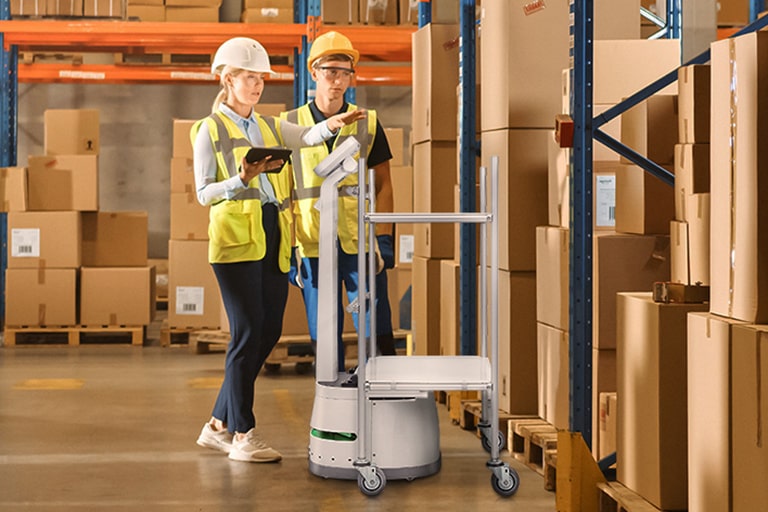

  • This image shows that the display has been located for the operator's convenience.

    Optimized display position

    Location of display considering operator convenience.

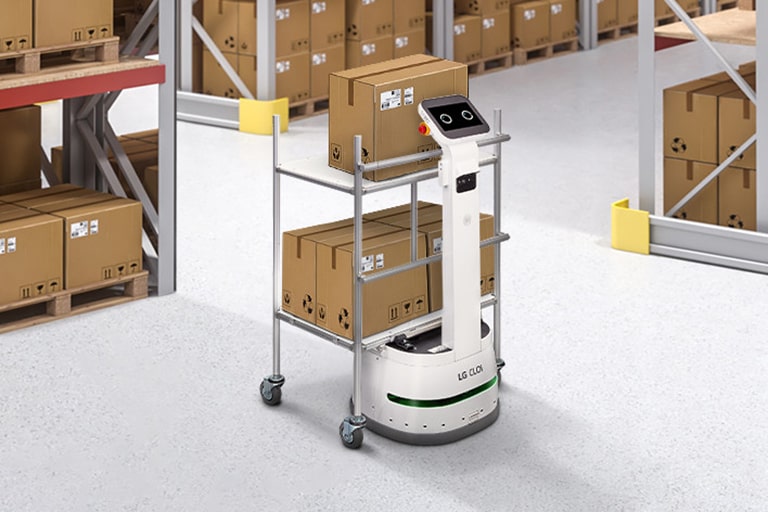

  • The animation shows shelves of various sizes being loaded onto CarryBot.

    Rolltainer shelf options

    Shelf options considering various sizes of picking items.

*The images simulated to enhance feature understanding. It may differ from actual use.

Robot Management System

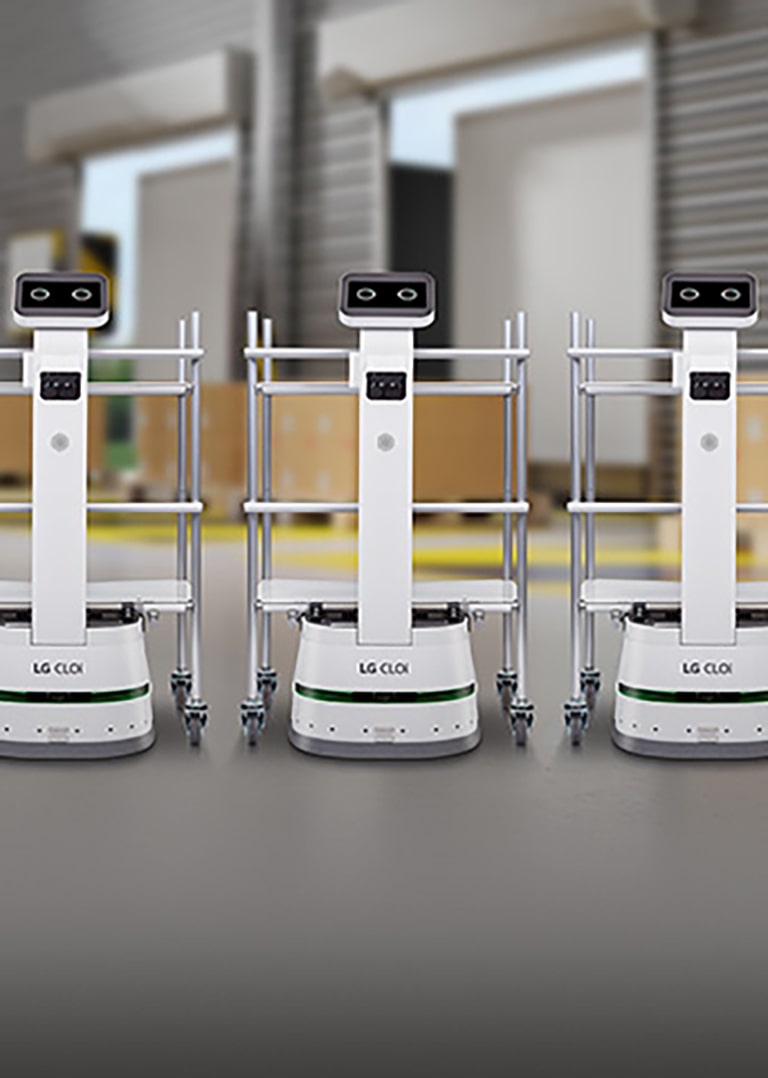

  • Multi-AMR can operate 24 hours a day.

    24 Hours

    24 Hours Multi-AMR operation

  • You can monitor the location of AMRs.

    Location

    Robot location information

  • The system will be notified if there is a problem with the AMR.

    Monitoring

    System alerts for abnormal AMR

  • You can gather statistics on operations and productivity.

    Analysis

    Logistics data analysis

*The images simulated to enhance feature understanding. It may differ from actual use.

LG CLOi CarryBot Lineup

Specification

Spec Detail
  LDLAXWT10 LDLAXRO10
LDLAXRO10
LDLAXRO10
Features
LG CLOi CarryBot (LDLAXWT10)
LG CLOi CarryBot (LDLAXRO10)
Payload 30 kg (66 lb) 65 kg (143 lb)
AMR Dimension (W x D x H) 510 x 510 x 1,480 mm 510 x 510 x 1,340 mm
Shelf / Rolltainer Dimension 760 x 417 x 657 mm 760 x 500 x 1,050 mm
Display Touch LCD ( 9.2”) Touch LCD ( 9.2”)
Charging 25 Ah x 2 25 Ah x 2
Speed (max.) 1.2 m/s 1.2 m/s
Sensor ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera
Charging Time 6 hrs / Auto Charging 6 hrs / Auto Charging
Continuous Operating Time Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs
Connectivity Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n)
Spec Detail


Features
Payload
AMR Dimension (W x D x H)
Shelf / Rolltainer Dimension
Display
Charging
Speed (max.)
Sensor
Charging Time
Continuous Operating Time
Connectivity
Spec Detail
LDLAXWT10 LDLAXRO10
LDLAXRO10
LDLAXRO10
LG CLOi CarryBot (LDLAXWT10)
LG CLOi CarryBot (LDLAXRO10)
30 kg (66 lb) 65 kg (143 lb)
510 x 510 x 1,480 mm 510 x 510 x 1,340 mm
760 x 417 x 657 mm 760 x 500 x 1,050 mm
Touch LCD ( 9.2”) Touch LCD ( 9.2”)
25 Ah x 2 25 Ah x 2
1.2 m/s 1.2 m/s
ToF / LiDAR / RGBD Camera ToF / LiDAR / RGBD Camera
6 hrs / Auto Charging 6 hrs / Auto Charging
Min: 18 hrs / Typ: 18.5 hrs Min: 18 hrs / Typ: 18.5 hrs
Wi-Fi (11 a/b/g/n) Wi-Fi (11 a/b/g/n)
Specification
  • Payload
    60 kg (132 lb)
    AMR Dimension (W x D x H)
    510 x 510 x 1,340 mm
    (20 x 20 x 53 inch)
  • AMR Shelf / Rolltainer Dimension
    760 x 500 x 1,050 mm
    (30 x 20 x 43.3 inch)
    Display
    Touch LCD ( 9.2 inch)
  • Connectivity
    Wi-Fi (11 a/b/g/n)
    Sensor
    ToF / LiDAR / RGBD Camera / Magnet
Battery
  • Charging
    25 Ah x 2
    Charging time
    6 hours / Auto Charging
  • Continuous operating time
    Min: 18 hours / Typ: 18 hours 30 min
Driving
  • Speed (max.)
    1.2 m/s
