Discontinued
65UT665H (ASIA)

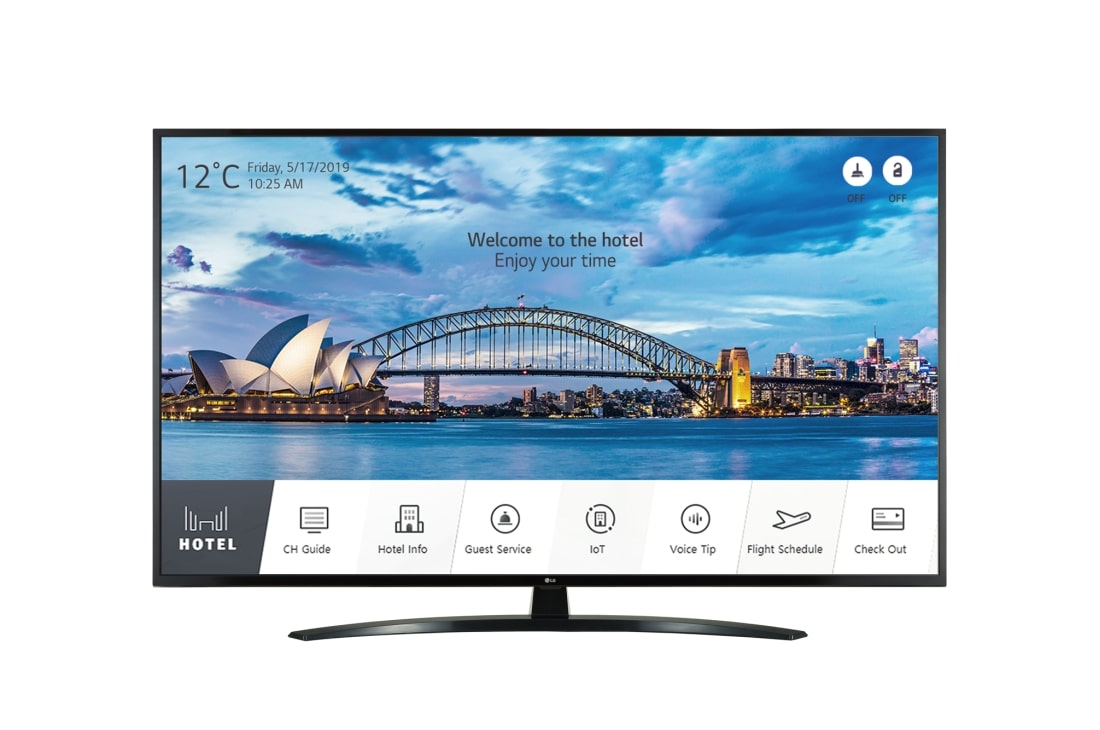

65'' Pro:Centric Hotel TV

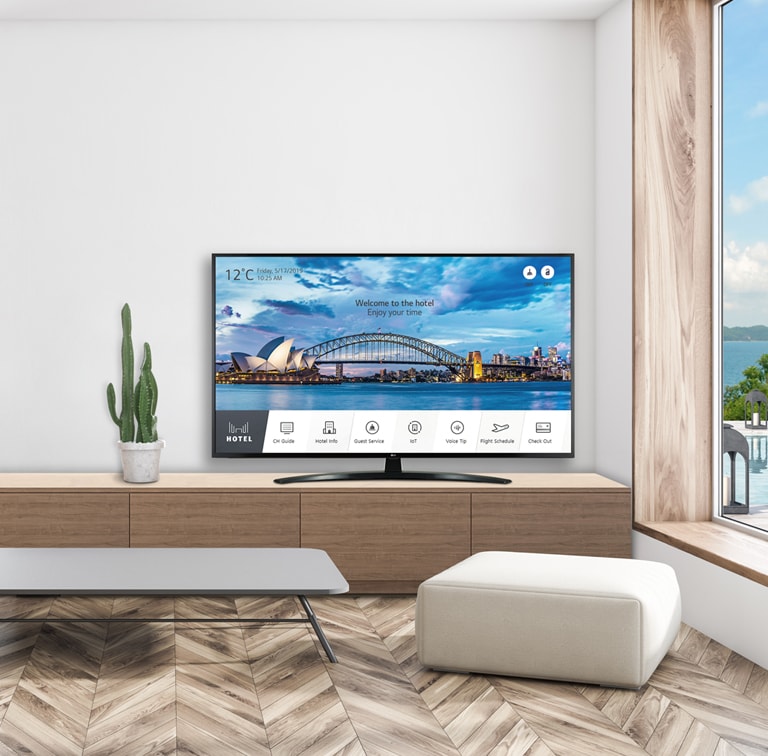

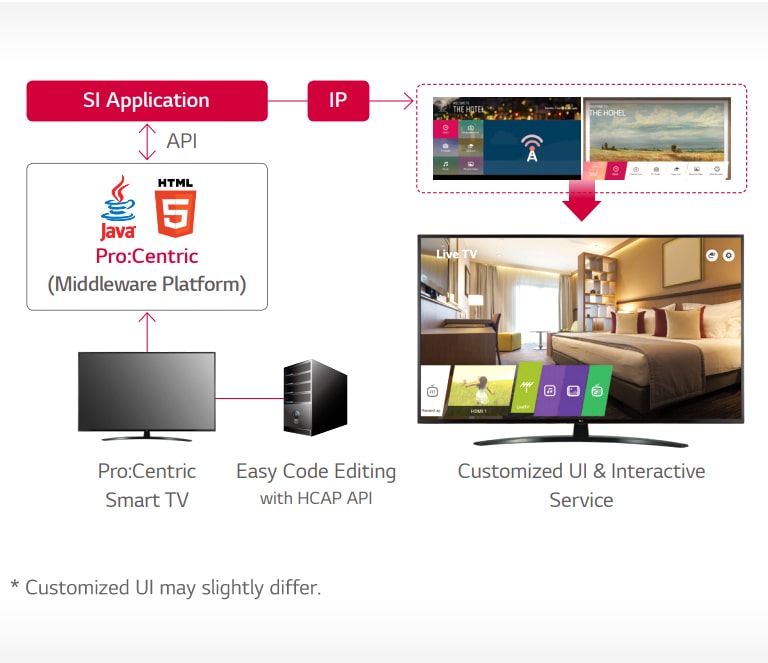

  • Pro:Centric Hotel Management Solution
  • Multi DRM

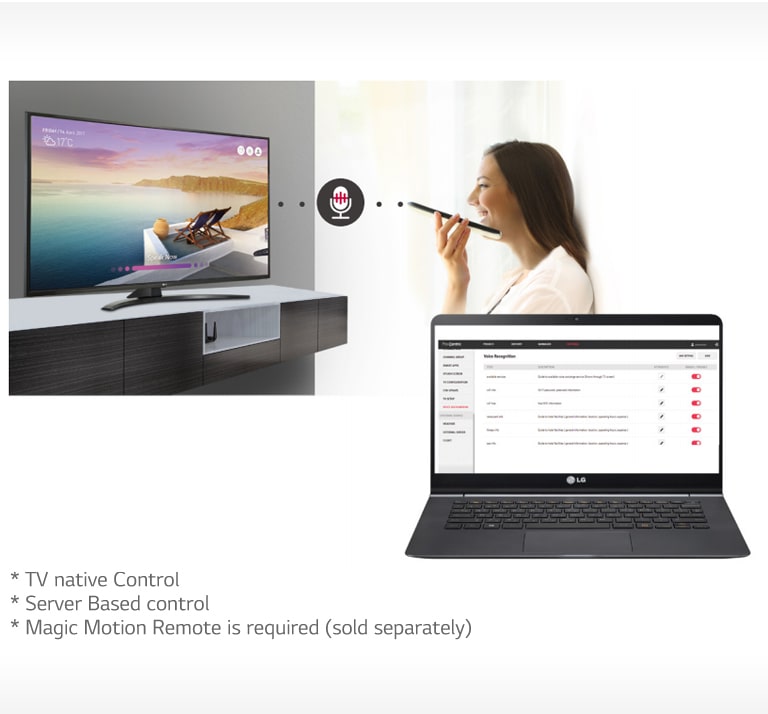

  • Voice Recognition

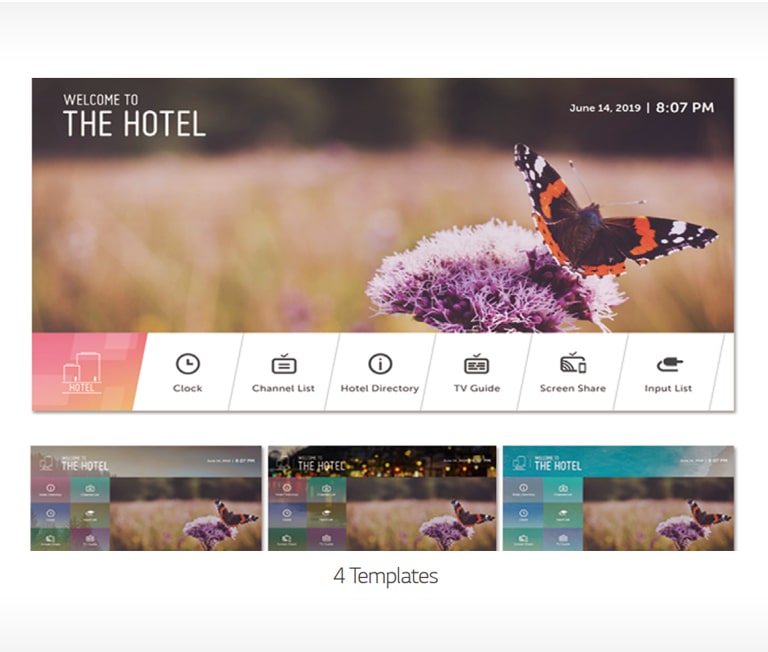

  • Quick Menu

component-OBScountrySelectDesc

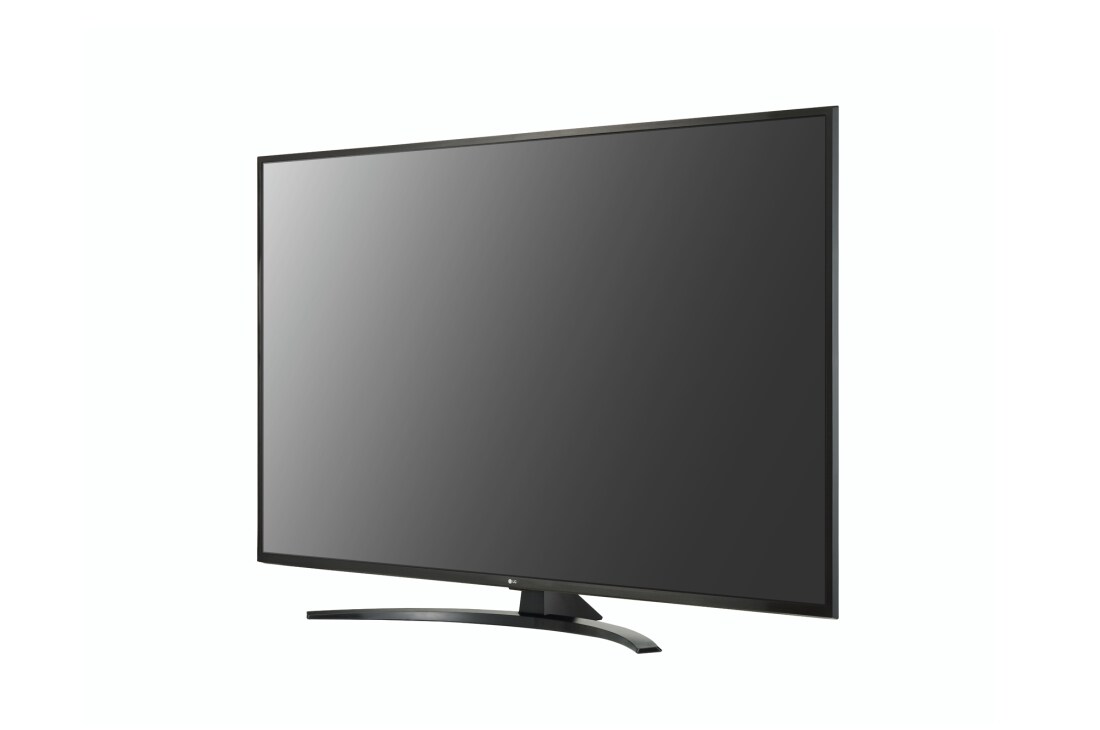

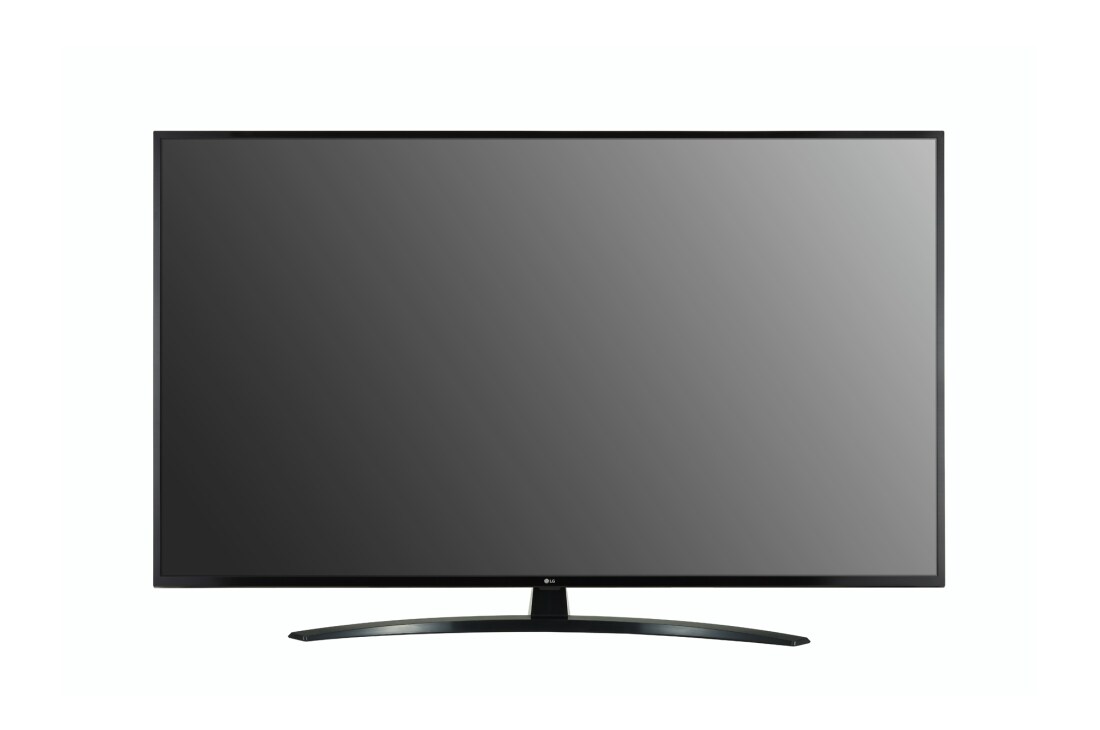

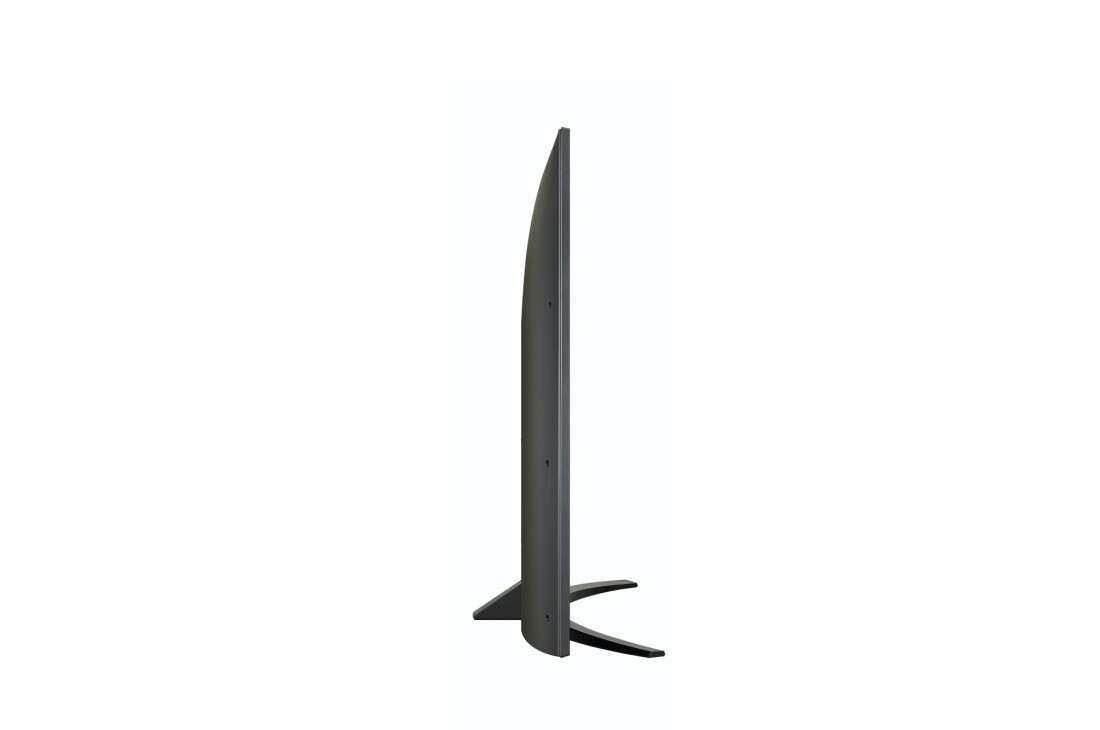

65" Pro:Centric Hotel TV

Display

  • Inch
    65
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Direct
    Brightness (cd/m²)
    400

Broadcasting System

  • Digital
    • (DVB-T2 / C / S2, Newzeland Saterlite)

Video

  • HDR (10 Pro / HLG)
    • / •

Audio

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    -
    One Touch Sound Tuning
    • (Ready)

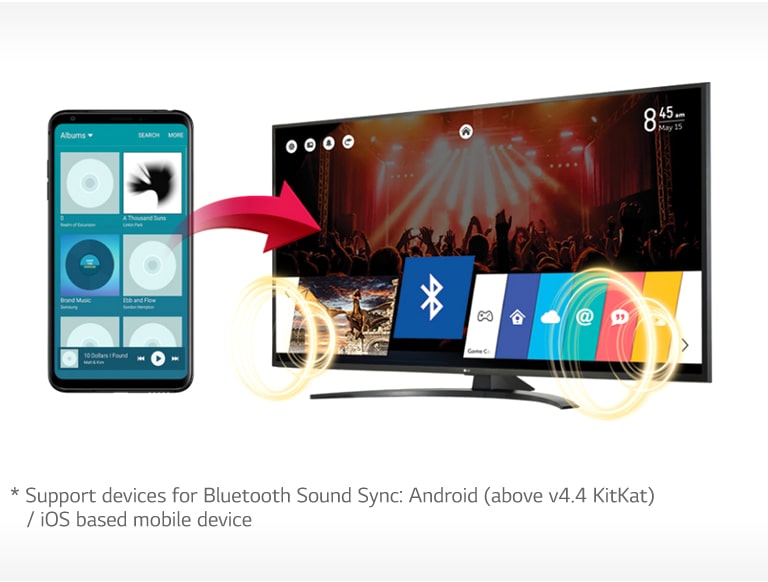

  • LG Sound Sync
    • (Bluetooth required)

Hospitality Solution

  • Solution Type

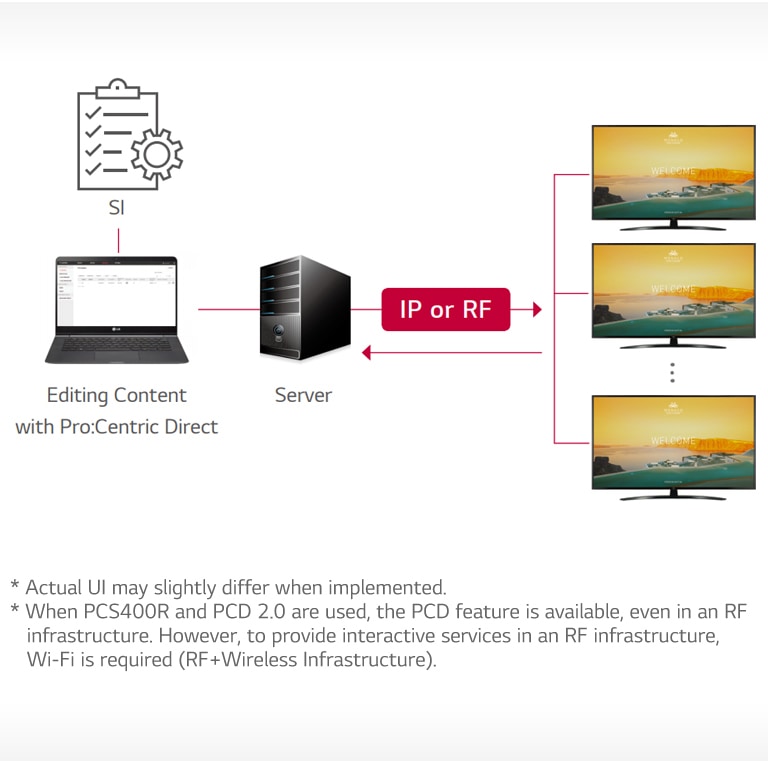

    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
  • Multicast / Unicast ready
    webRTC (Real Time Communication)
  • Pro:Centric Application (version)
    • (PCA3.8)
    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media, Verimatrix, Secure Media

FEATURES

  • Hospitality

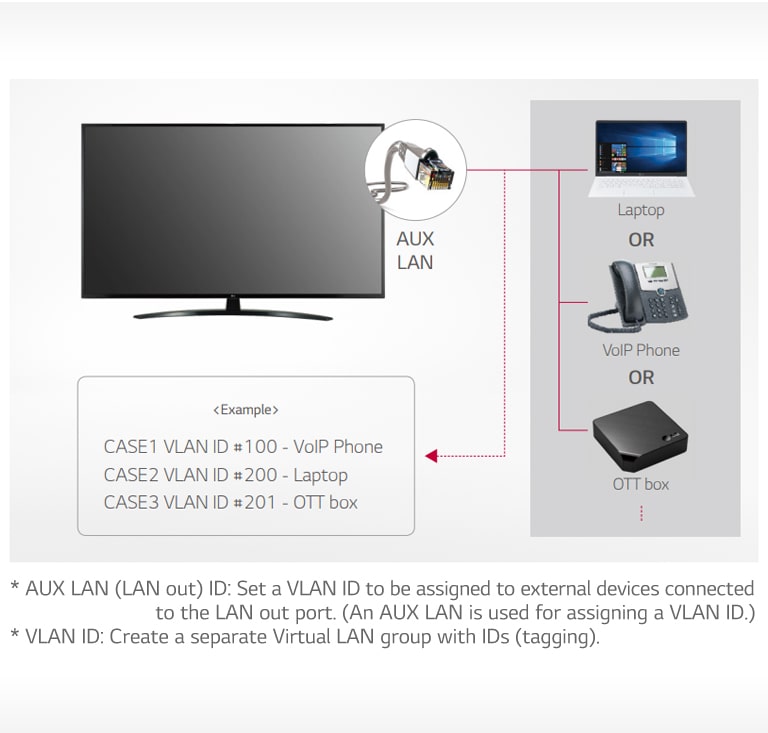

    Hotel Mode(Installer Menu), Lock mode (Limited), Welcome Video / Screen(Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON, External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, External Clock Compatibility (LEC-005), Moving Picture Playback (SD / HD / Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care

Jack Interface

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear
    HDMI In (HDCP, 2.0), Headphone Out, RF In (2), AV In (Phone Jack Type), Component in (Y, Pb, Pr-Video, Phone Jack Type), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)

Dimension(Unit: mm/kg)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,463 x 914 x 340 / 22.4
  • W x H x D / Weight (without stand)
    1,463 x 850 x 87.8 / 21.4
    W x H x D / Weight (Shipping)
    1,600 x 1,070 x 207 / 29.8

Power(Unit : Watts)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical
    177W
  • Stand-by
    0.5W

General

  • Region
    ASIA
  • Dimension
    • [Dimension] 65UT665H (ASIA).dwg
    • [Dimension] 65UT665H (ASIA).pdf
  • Datasheet
    • UT665H(ASIA)_Datasheet_Hotel TV_Commercial TV_ID_190701_low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
