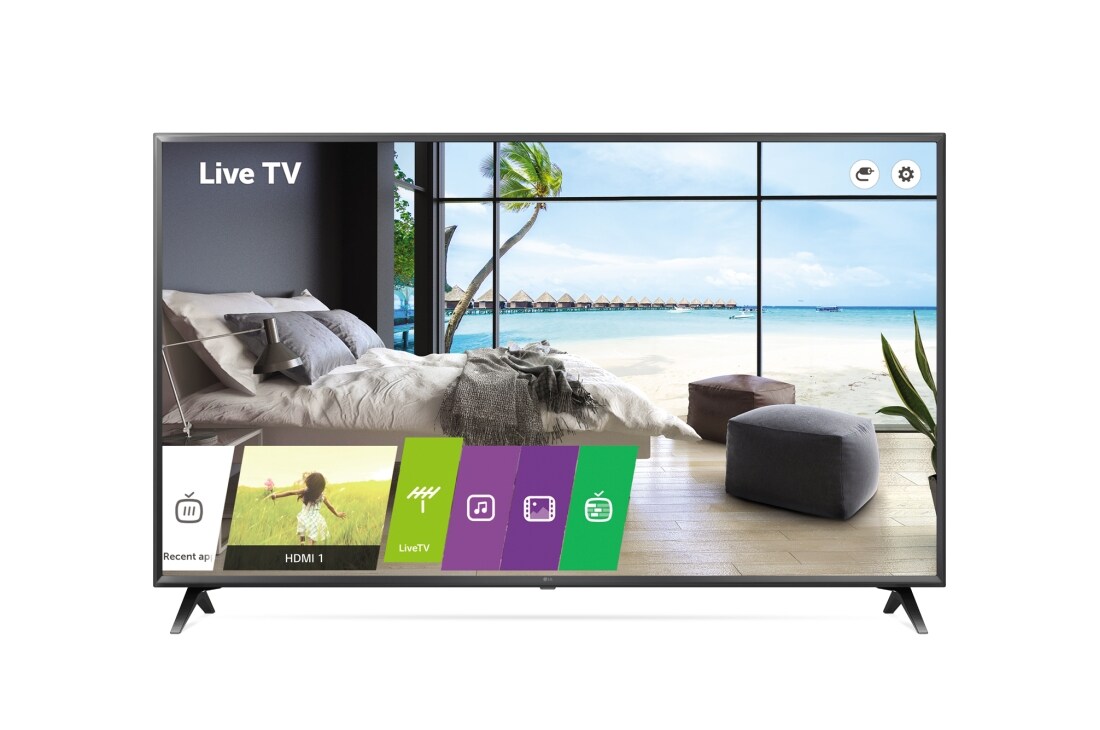

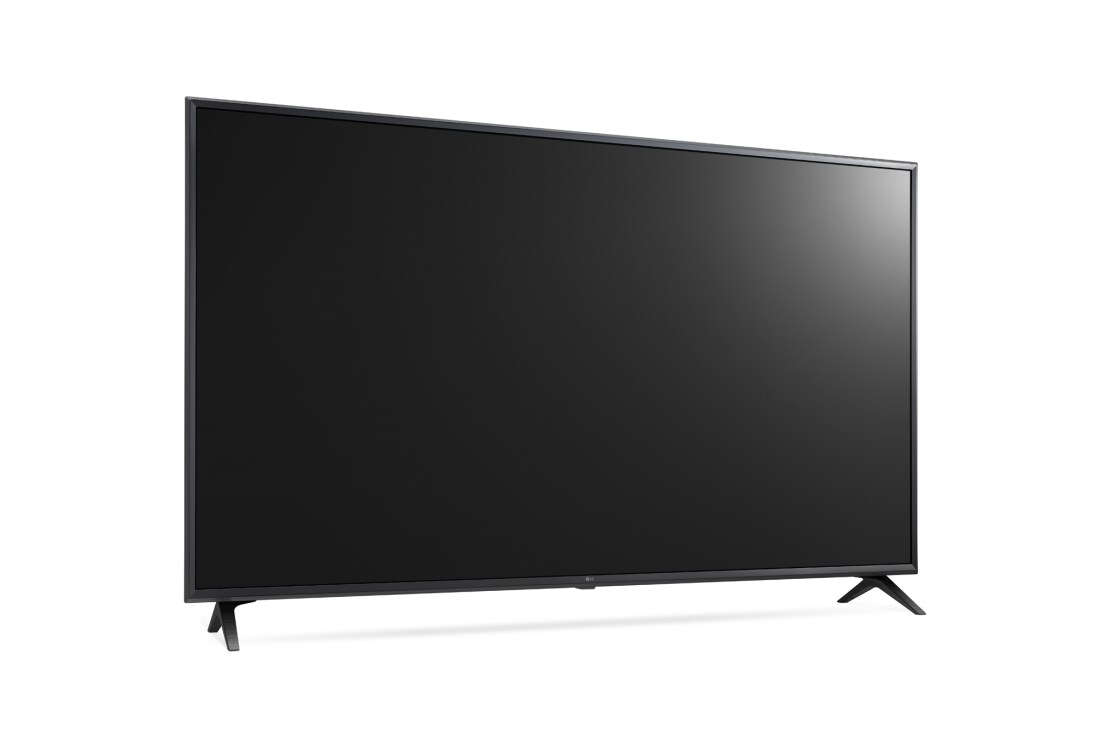

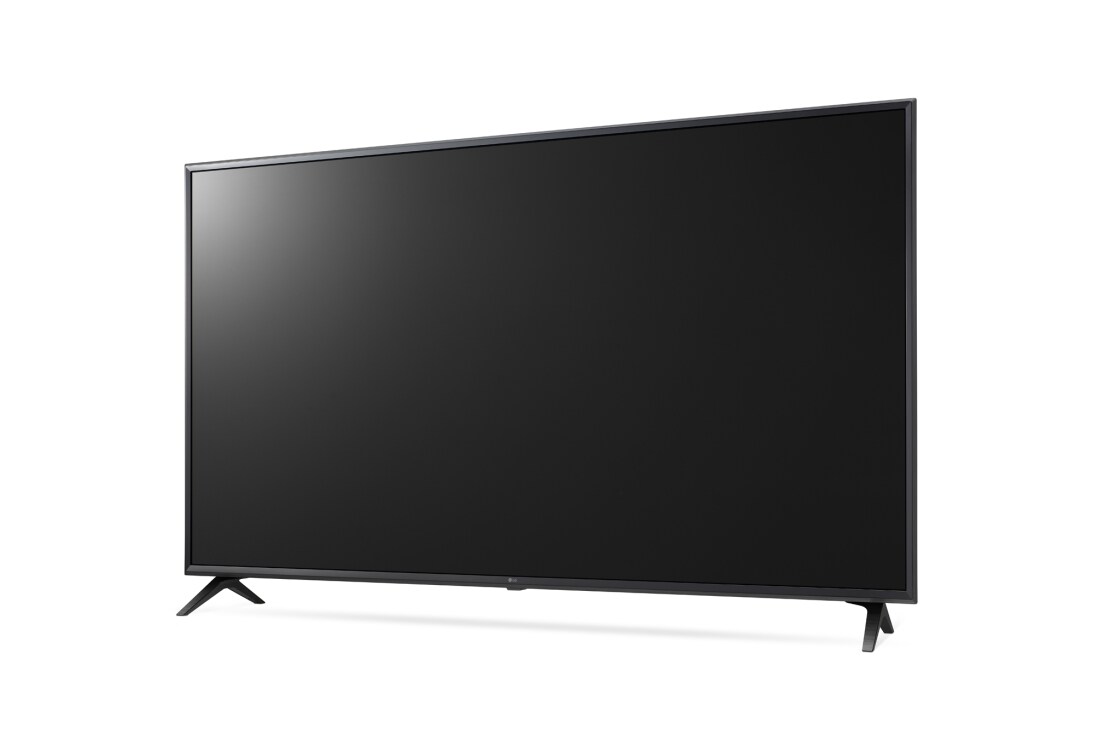

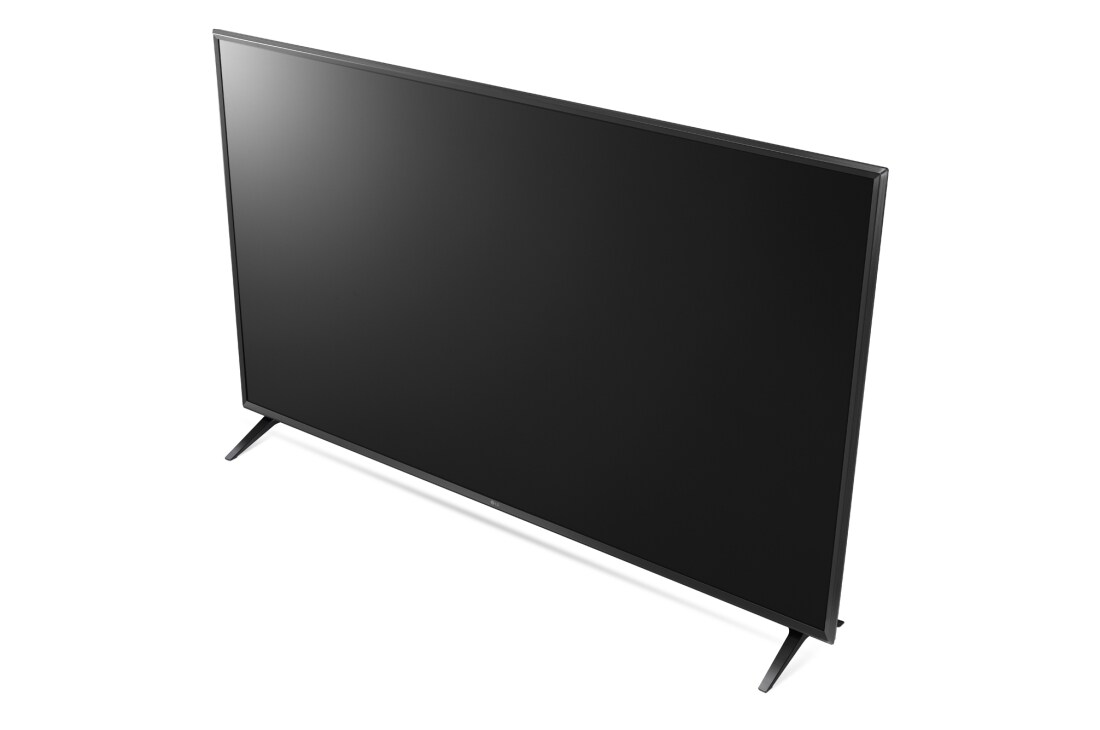

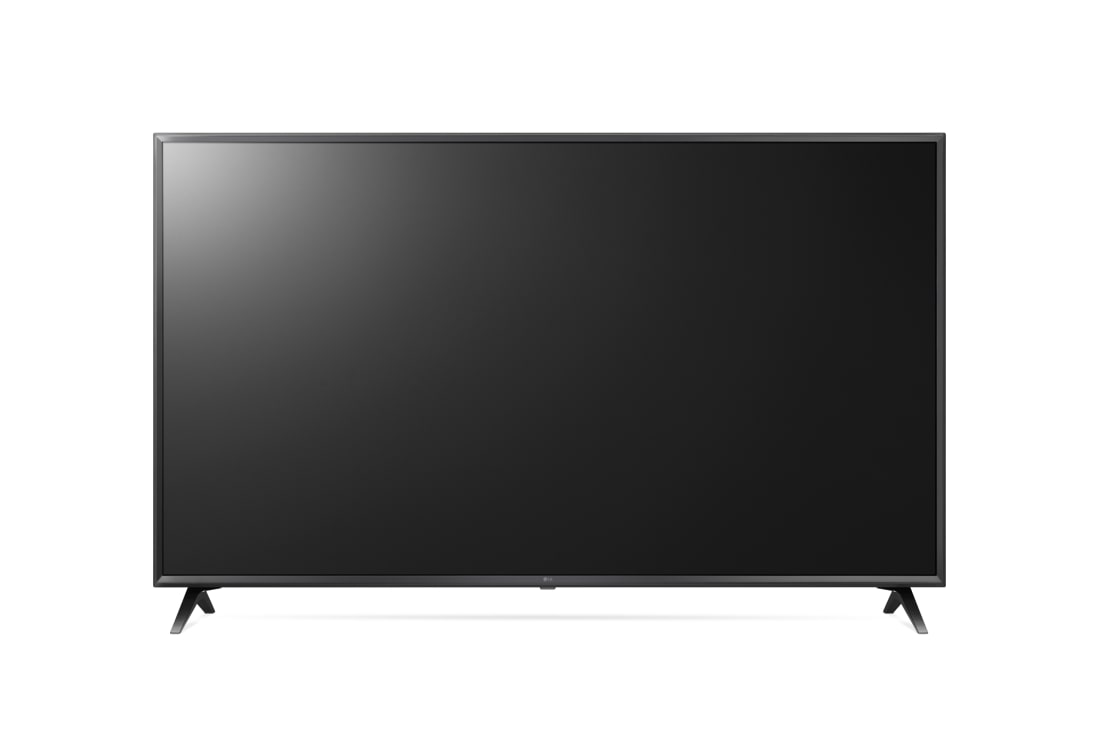

65UU660H (ASIA)
65'' UHD Commercial TV

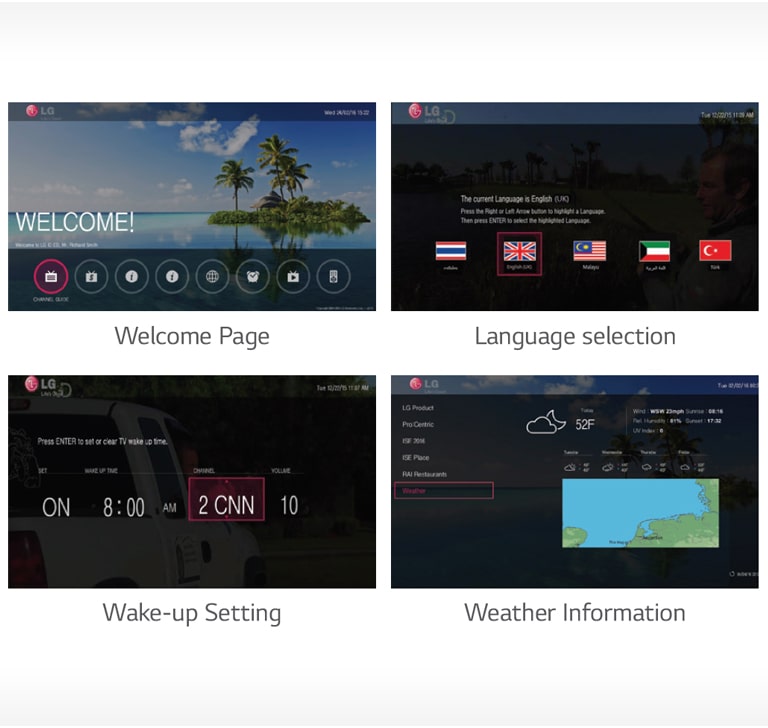

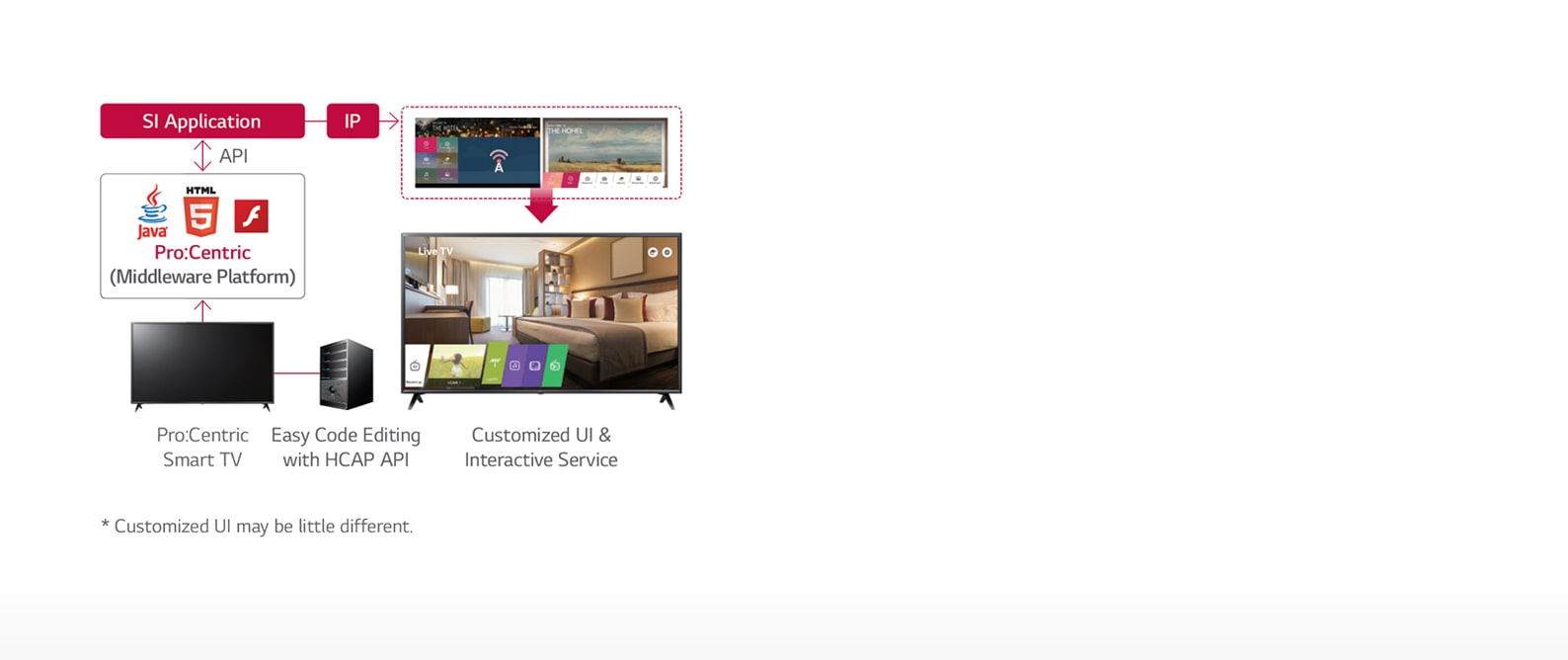

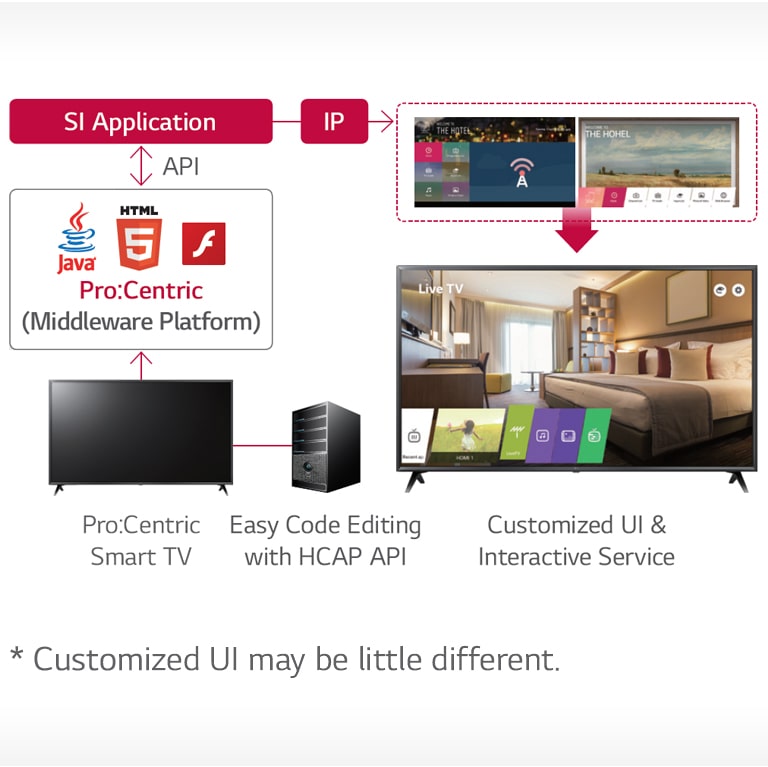

  • Pro:Centric Hotel Management Solution

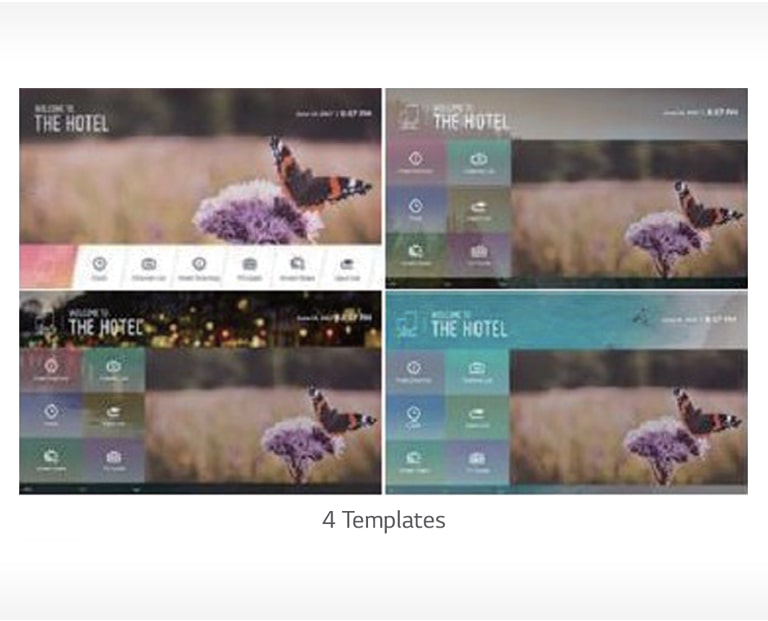

  • New Quick Menu(2.0)
  • Voice Recognition

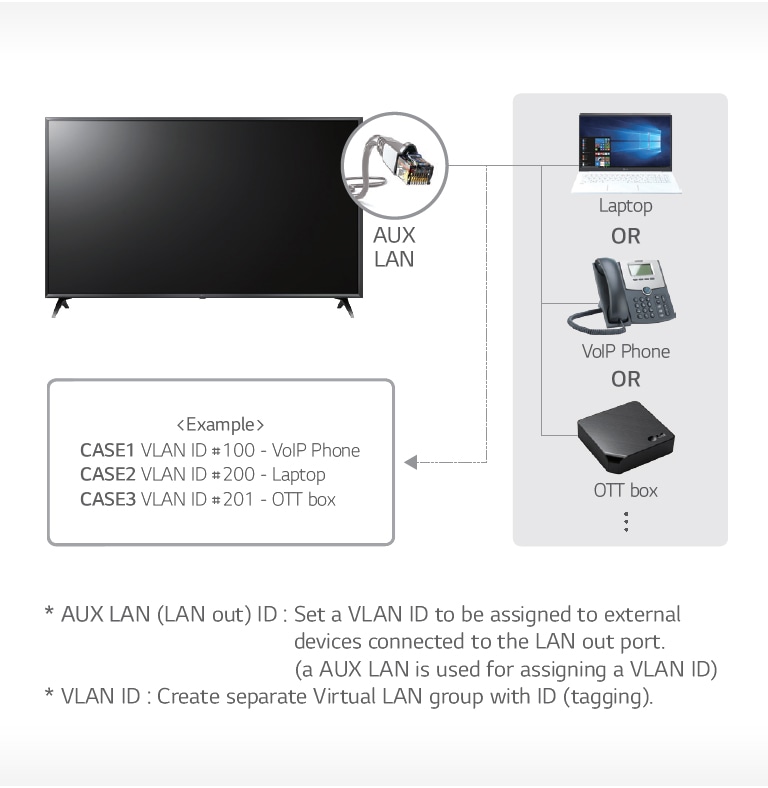

  • LAN out with VLAN(Virtual LAN) ID
65" UHD Commercial TV

Panel

  • Screen Size
    65"
    Backlight Type
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    500

Broadcasting System

  • Analog
    • (PAL/SECAM)
    Digital
    • (varied by countries)

Video

  • XD Engine
    Aspect Ratio
    • 5 modes
    (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / -

Audio

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    • 6 modes (Only for India, Sri Lanka) (Standard, Cinema, Clear Voice III, Cricket, Music, Game)
    Clear Voice
    • (Clear VoiceⅢ)

Hospitality Solution

  • Solution Type

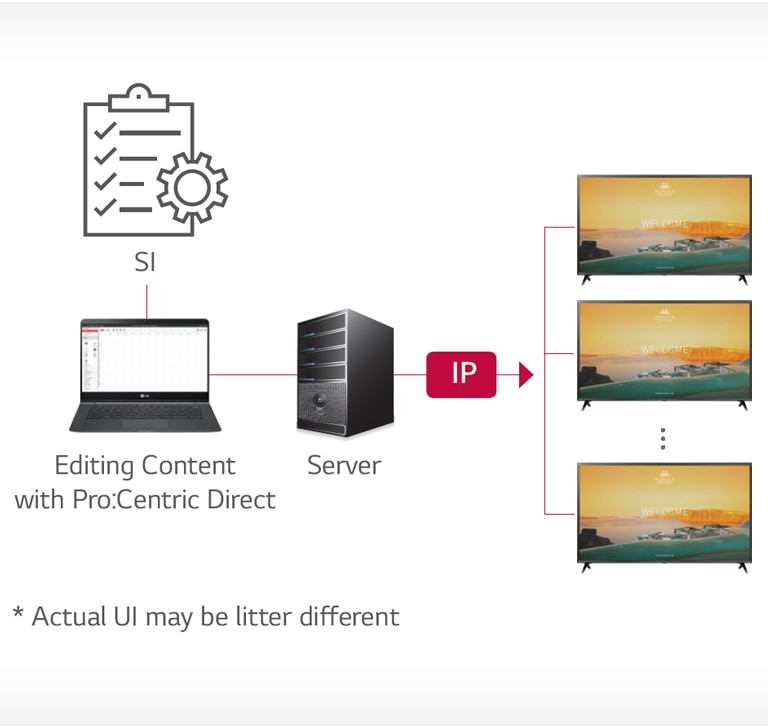

    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
  • RF
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5

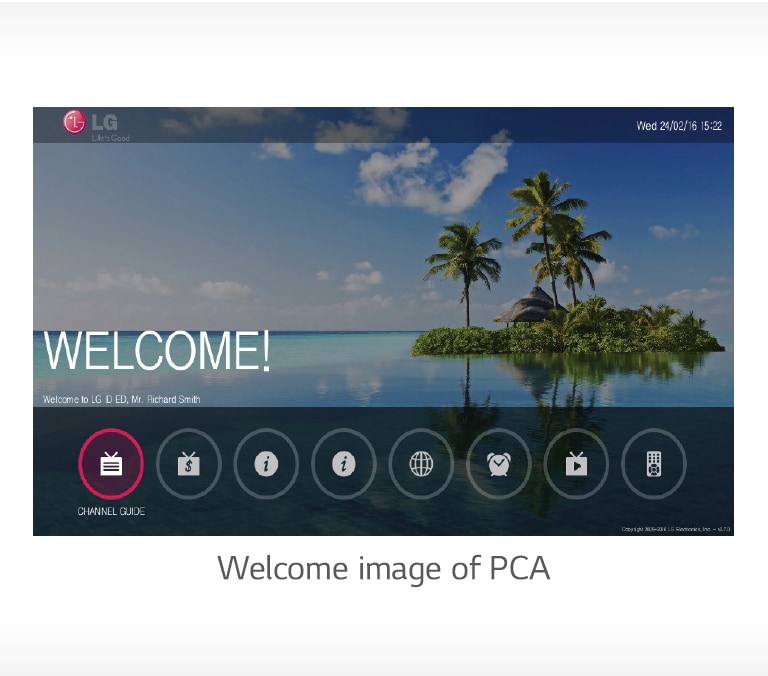

  • Pro:Centric Application
    PCA 3.8
    DRM
    Pro:Idiom (S/W Type)

Jack Interface

  • Set Side
    HDMI In, USB 2.0 (2), CI Slot

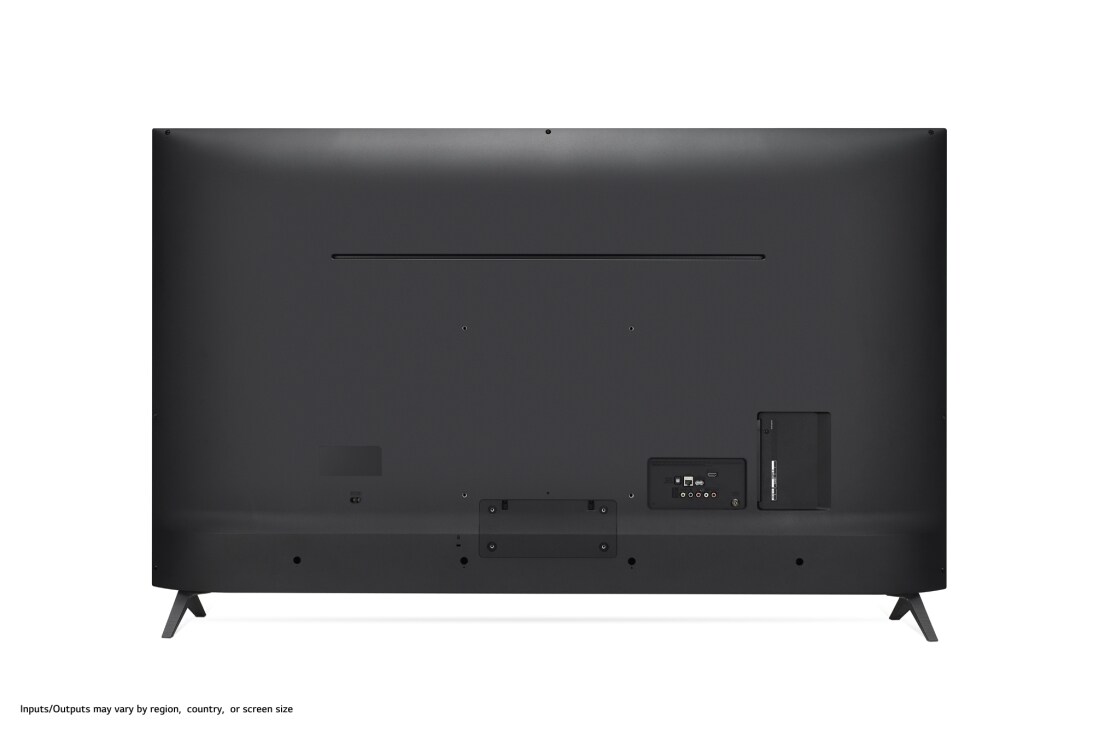

    Set Rear
    RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out (Optical), HDMI / HDCP Input (2.0), RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out

Mechanic

  • Vesa
    300 x 300 mm
    W x H x D / Weight (with stand)
    1,468 x 917 x 269 mm / 21.4 kg
  • W x H x D / Weight (without stand)
    1,468 x 854 x 79.3 mm (SPK: 89.9) / 21.0 kg
    W x H x D / Weight (Packing)
    1,600 x 970 x 190 mm / 28.6 kg

Power(Unit : Watts)

  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    174 W
  • Typical
    148.2 W
    Energy saving (Min / Med / Max)
    44.46 W / 81.51 W / 118.56 W
  • Stand-by
    0.5 W

General

  • Region
    ASIA
