65UU670H (NA) component-copyModelName

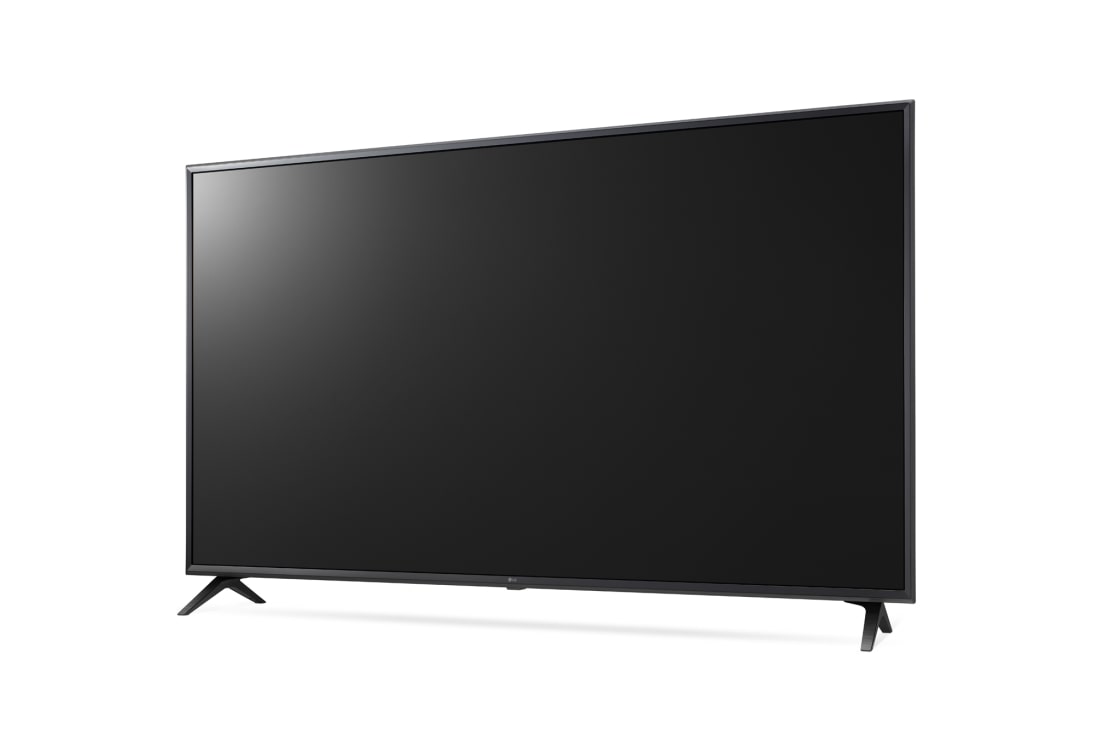

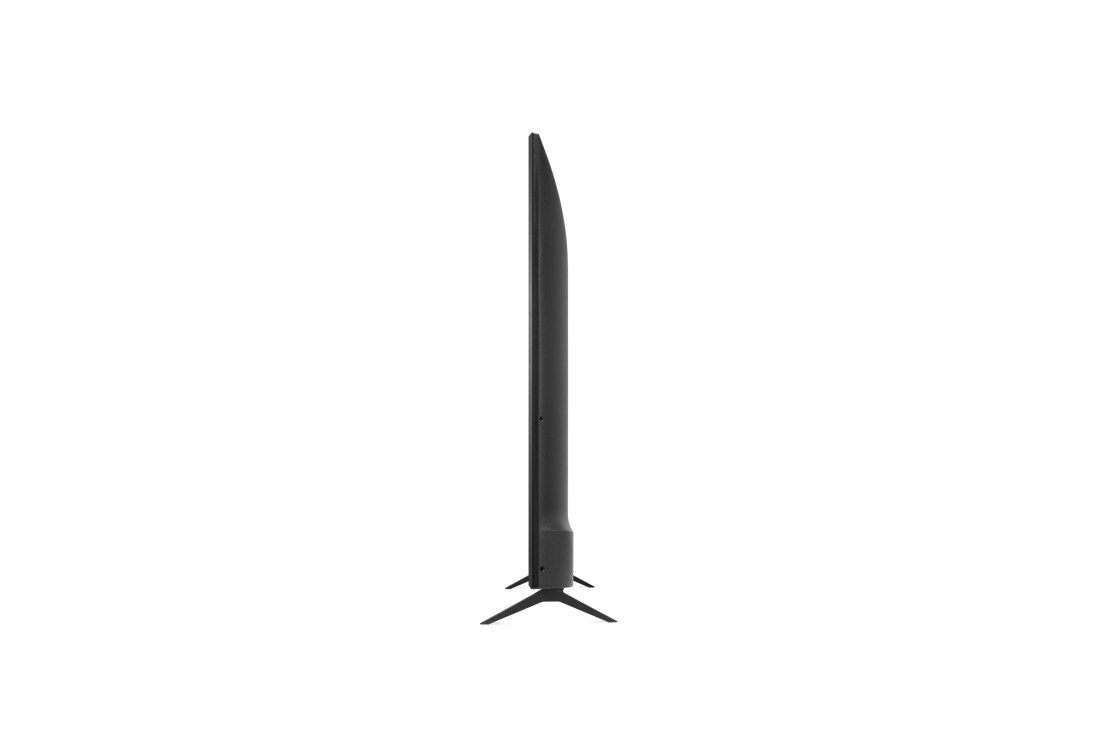

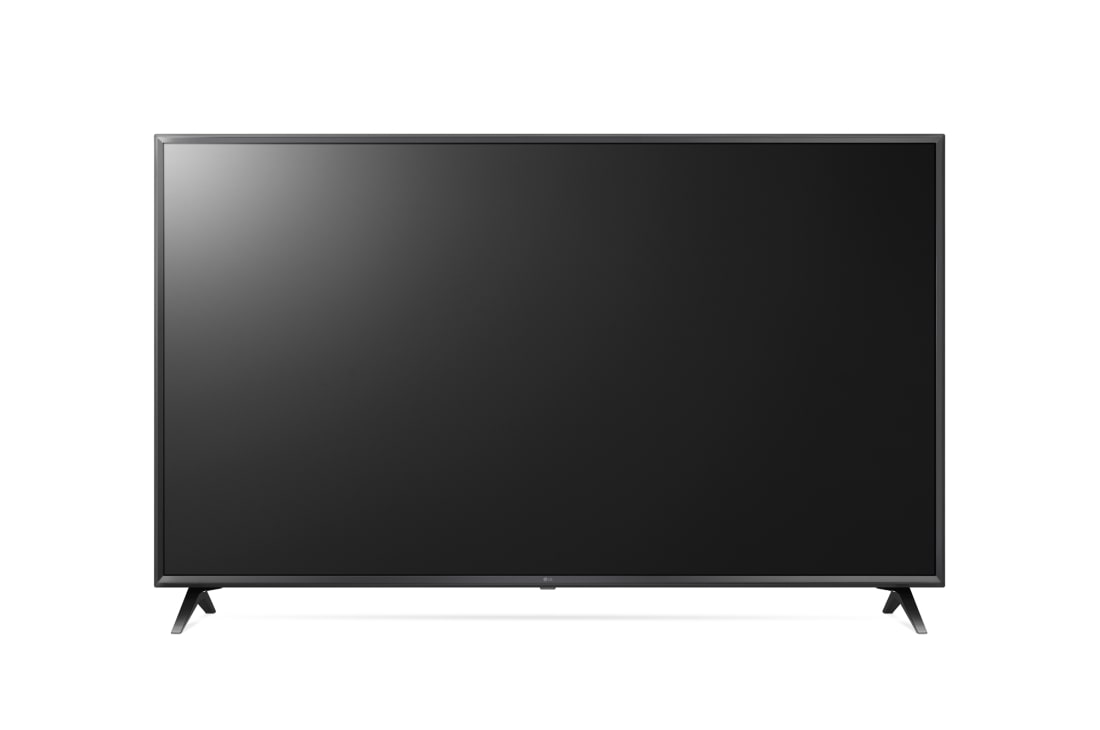

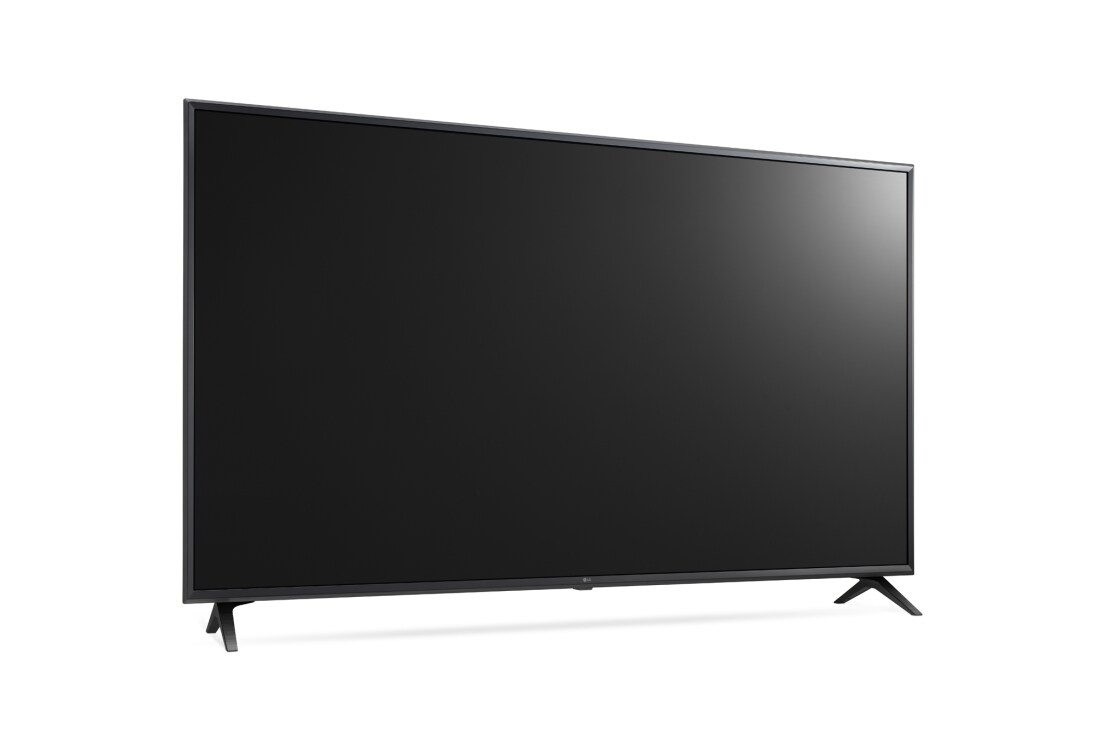

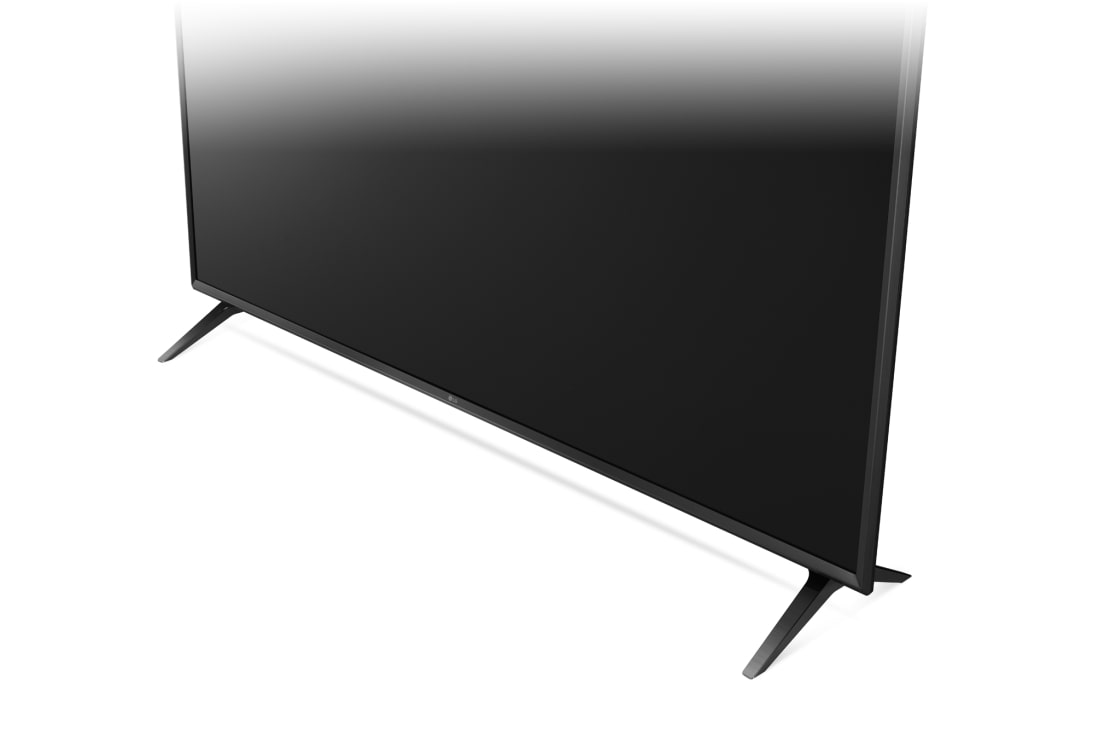

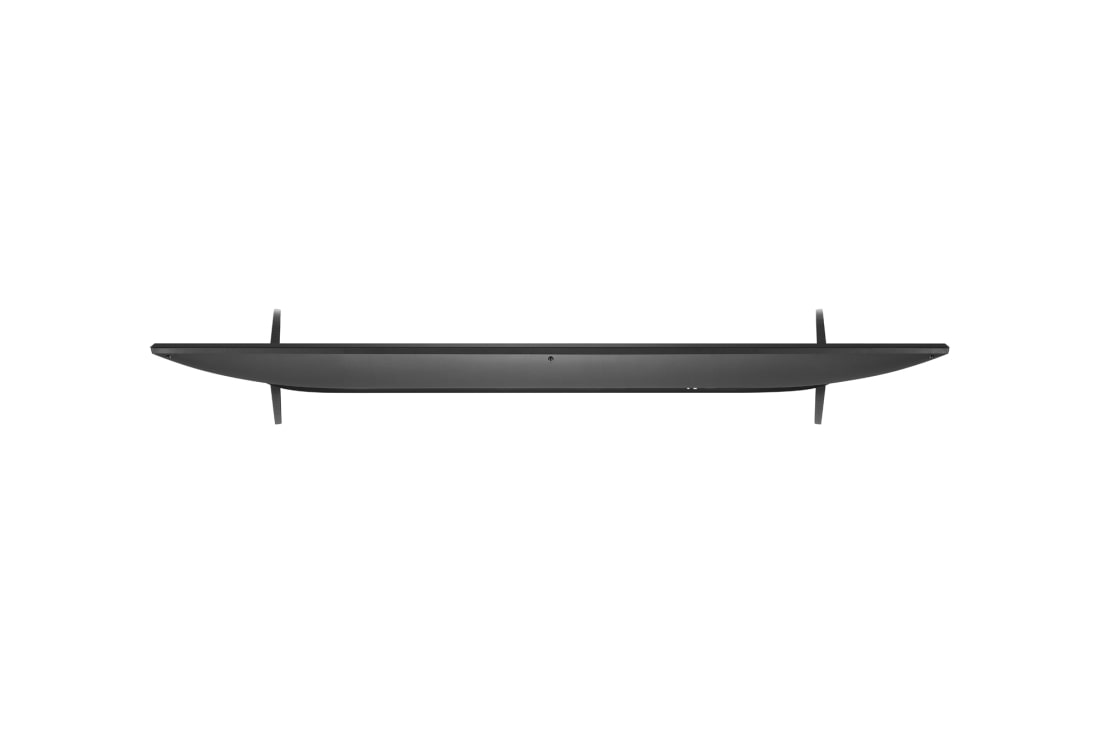

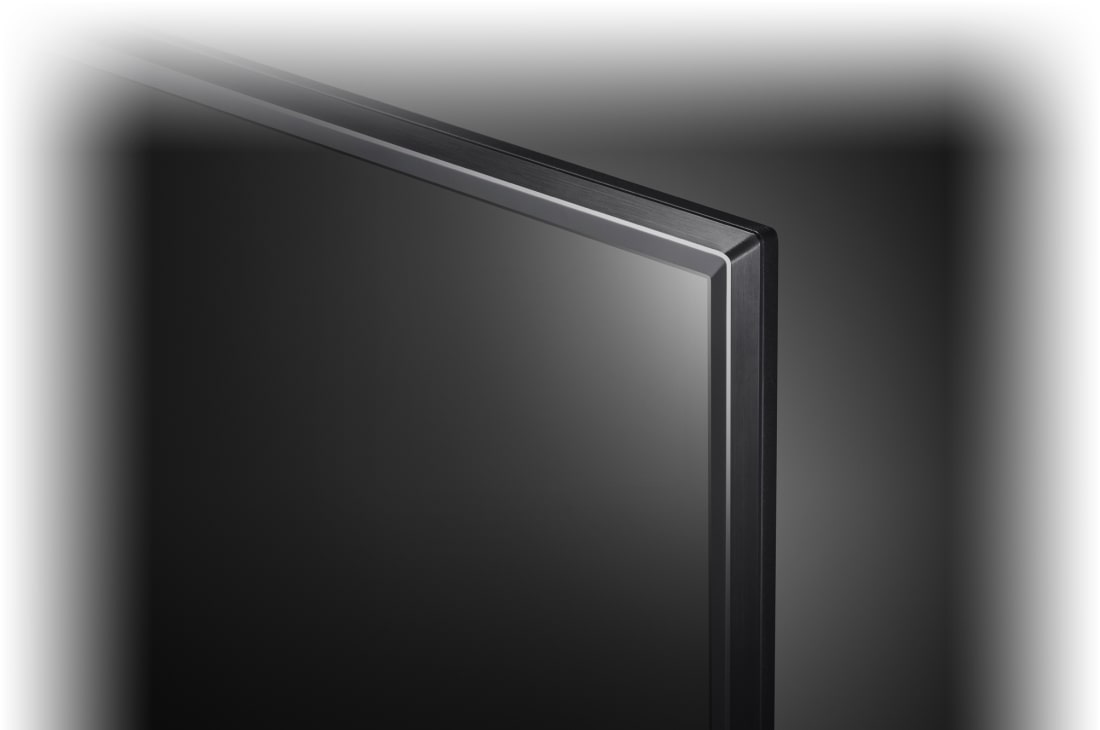

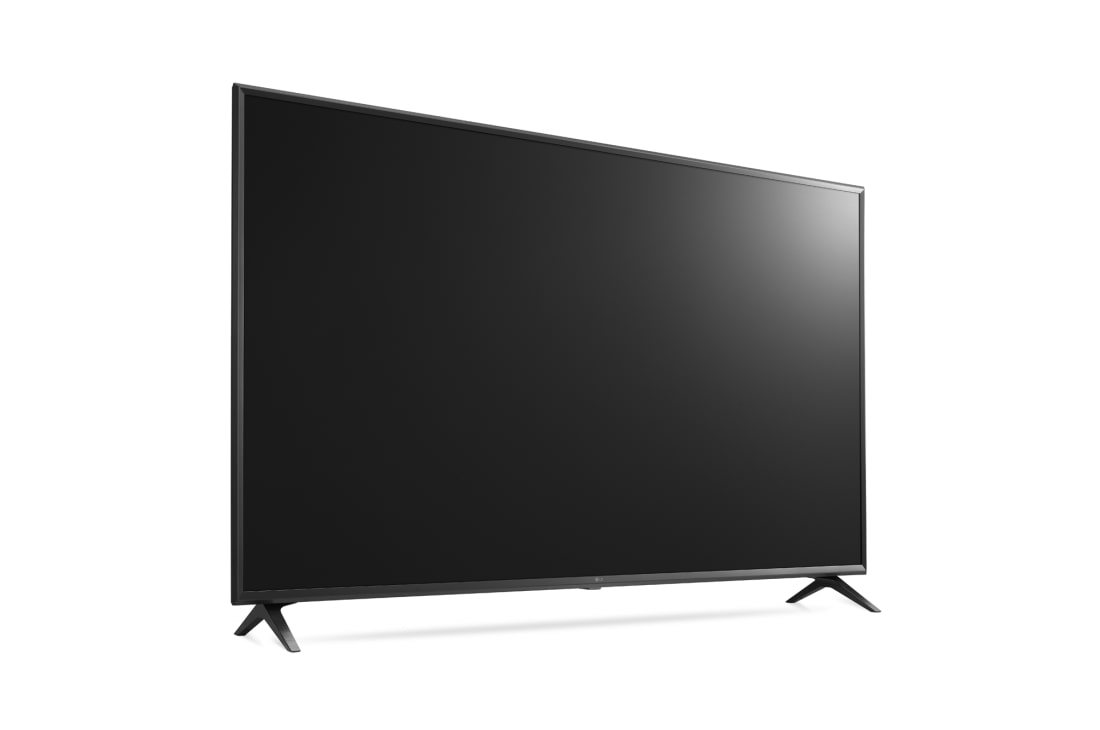

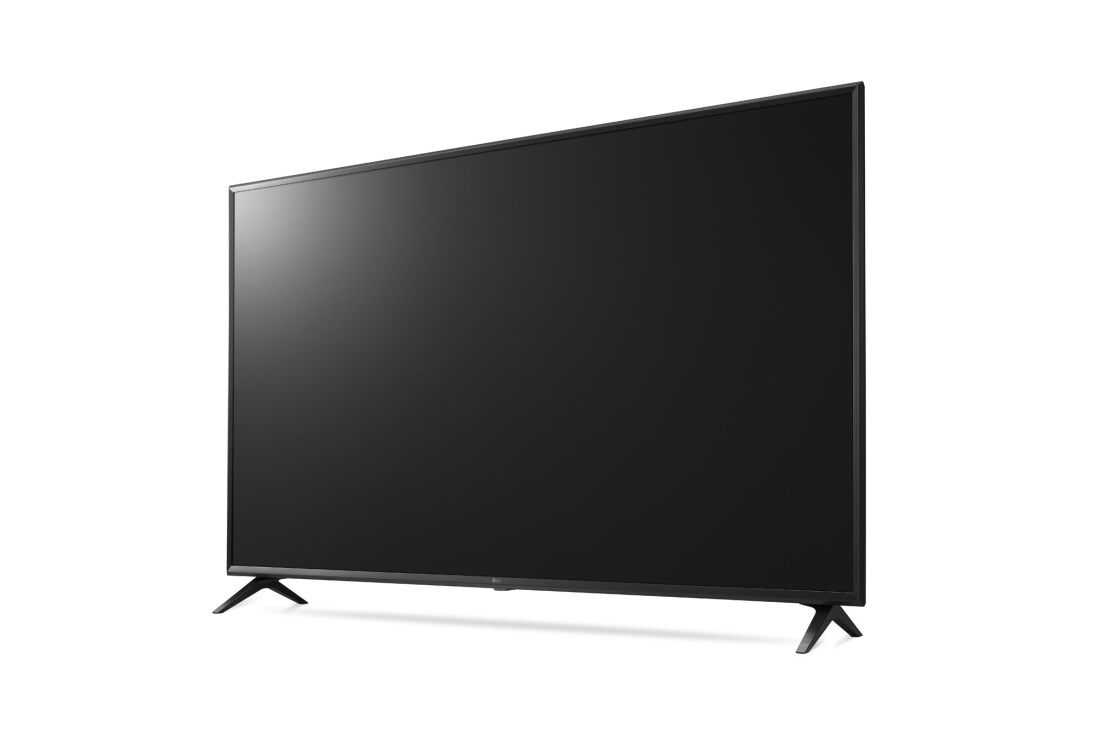

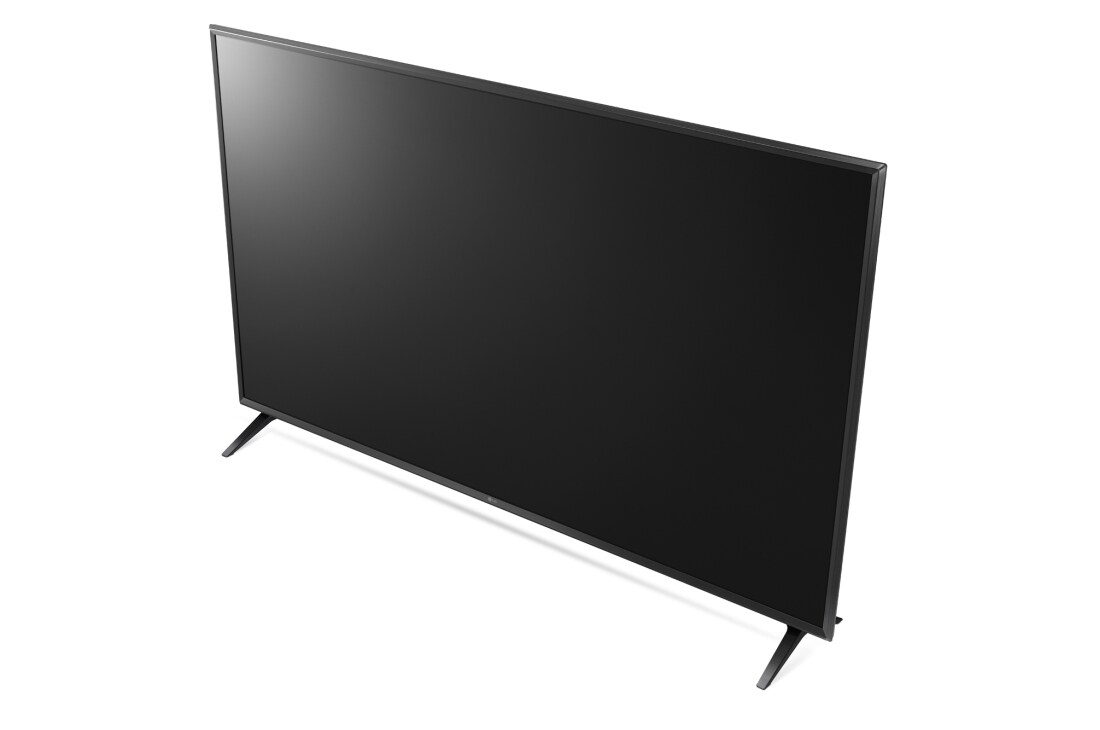

65'' UHD Commercial TV

Key Features

Choose your Size

component-OBScountrySelectDesc

65" UHD Commercial TV
Panel
  • Inch
    65"
    Panel Technology
    LED (Direct)
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    450
  • Viewing Angle (H x V)
    178 x 178
Broadcasting System
  • Analog
    • (NTSC)
    Digital
    • (ATSC)
Video
  • HDR
    HDR 10
    XD Engine
  • Aspect Ratio
    • 5 modes
    (16:9 / Original / 4:3 / Vertical Zoom / All-Direction Zoom)
Audio
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    • 6 modes
    (Standard / Cinema / Clear Voice Ⅲ / Sports / Music / Game)
    Clear Voice
    • (Clear VoiceⅢ)
Hospitality Solution
  • Solution Type
    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
  • RF
    • (2 Tuner)
    HCAP (SDK)
    GEM / Flash / HTML5
  • Pro:Centric Application
    PCA 3.7.5
    DRM
    Pro:Idiom
Feature
  • Hospitality
    Hotel Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant On, V-Lan Tag, RJP Interface, RJP Compatibility, Clock (World Clock / Alarm), 360 Viewer, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, b-LAN embedded, Ezmanager, USB Cloning, MPI Protocol
Jack Interface
  • Set Side
    HDMI In, USB 2.0 (2)

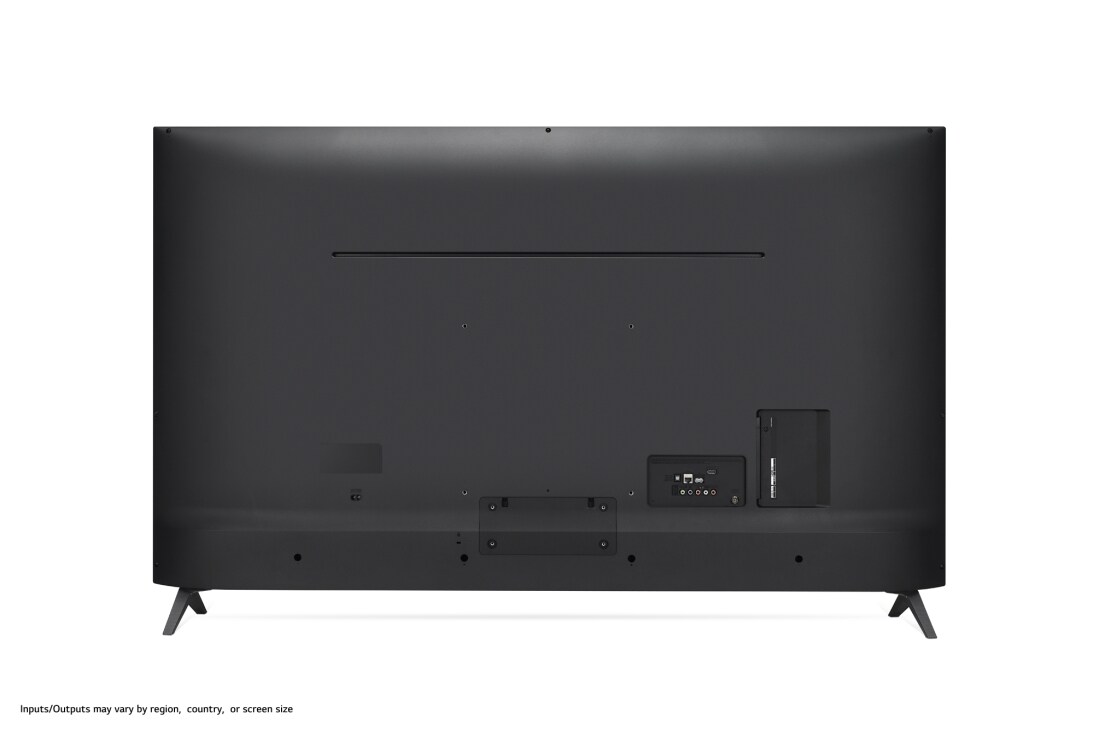

    Set Rear
    RF In, AV In, Digital Audio Out (Optical), HDMI / HDCP Input, RS-232C (Control), RJ45 (2), External Speaker Out, TV link Configuration (b -LAN Service), MPI Port, Debug
Dimension(Unit: mm)
  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,468 x 917 x 269 / 21 kg
  • W x H x D / Weight (without stand)
    1,468 x 854 x 79.3 (Speaker 89.9) / 20.6 kg
    W x H x D / Weight (Packing)
    1,600 x 970 x 190 / 28.2 kg
Power(Unit : Watts)
  • Voltage, Hz
    100~240V, 50 / 60 Hz
    Max
    179.2
  • Typical
    153.0
    Energy saving (Min / Med / Max)
    -
  • Stand-by
    0.5W↓
General
  • Region
    North America
  • Dimension
    • [Dimension] 65UU670H (NA).dwg
    • [Dimension] 65UU670H (NA).pdf
  • Datasheet
    • UU670H_NA Leaflet_low_181102.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
