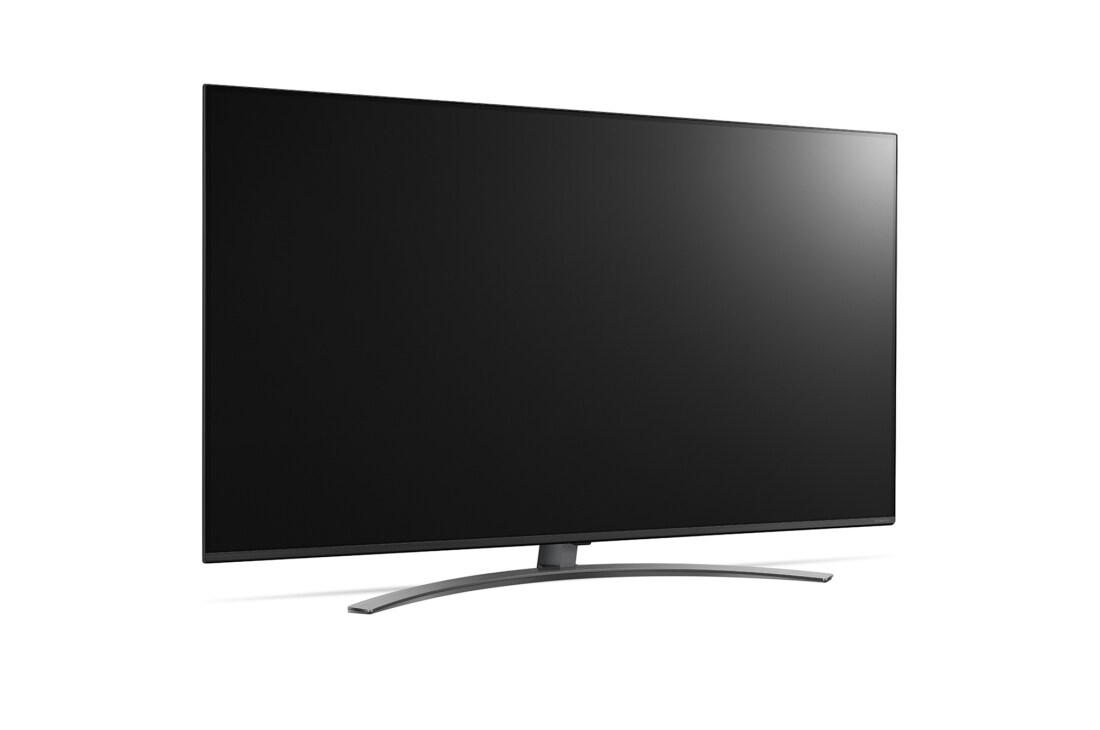

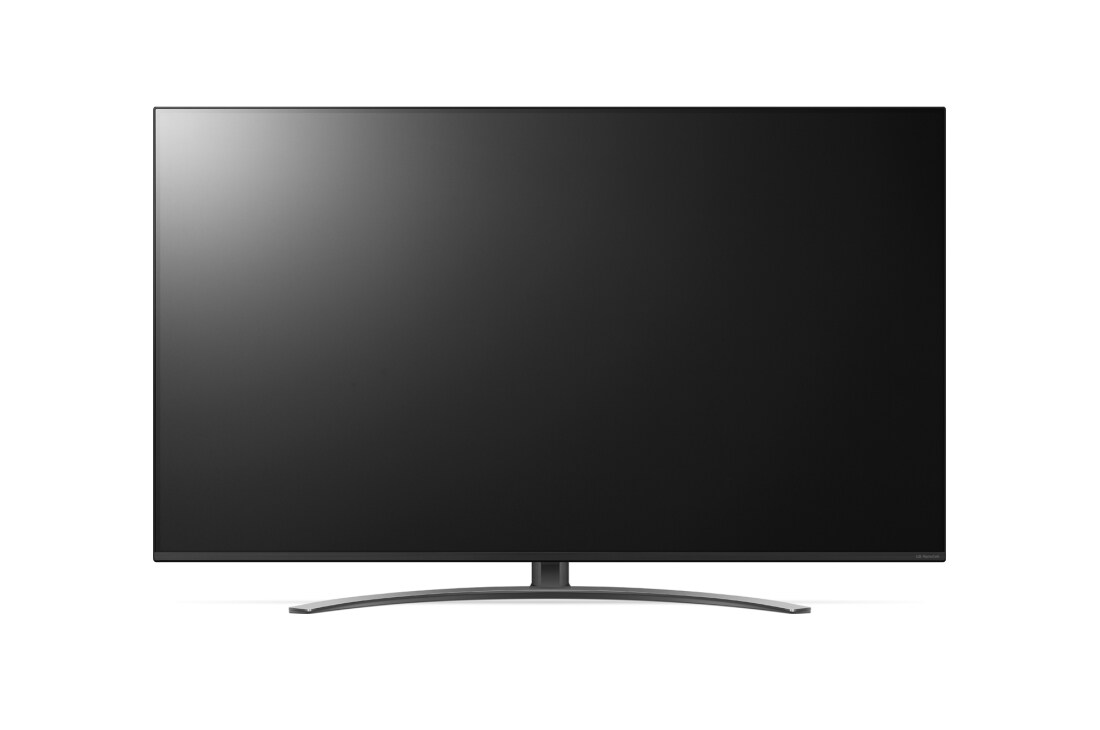

65US765H(ASIA) component-copyModelName
US765H Series

Key Features

Choose your Size

component-OBScountrySelectDesc

US765H Series
Design
  • Stand Type
    1 pole (Fixed)
    Front color
    Dark Meteo Titan
    (Nano Bezel)
    (Cinema Screen)
Display
  • Inch
    65"
    Resolution
    3840 X 2160 (UHD)
  • Nano
    Yes
    Brightness
    400nit
Video
  • HDR_Dolby Vision
    No
    HDR_HDR 10 Pro
    Yes
  • HDR_HLG
    Yes
Audio
  • Speaker (sound output)
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    No
    LG Sound Sync
    Yes (Required Bluetooth)
Broadcasting System
  • Digital (Terrestrial,Cable,Satellite)
    DVB-T2/C/S2
    Analog (NTSC / SECAM / PAL)
    PAL / SECAM
Hospitality Solution
  • Pro:Centric Smart
    Yes (Smart)
    Pro:Centric Direct (version)
    Yes (4.0)
  • Pro:Centric Application (version)
    Yes (PCA3.8)
    Quick Menu (Version)
    Yes (4.0)
  • Pro:Idiom (H/W Type)
    No
    Pro:Idiom (S/W Type)
    Yes
  • Pro:Idiom(Media)
    Yes
Smart Function
  • webOS version
    Yes (webOS 5.0)
    Gallery Mode
    Yes
  • Web Browser
    Yes
    CP App
    Yes
  • Magic Remote Compatibility
    Yes
    Mood Display
    Yes

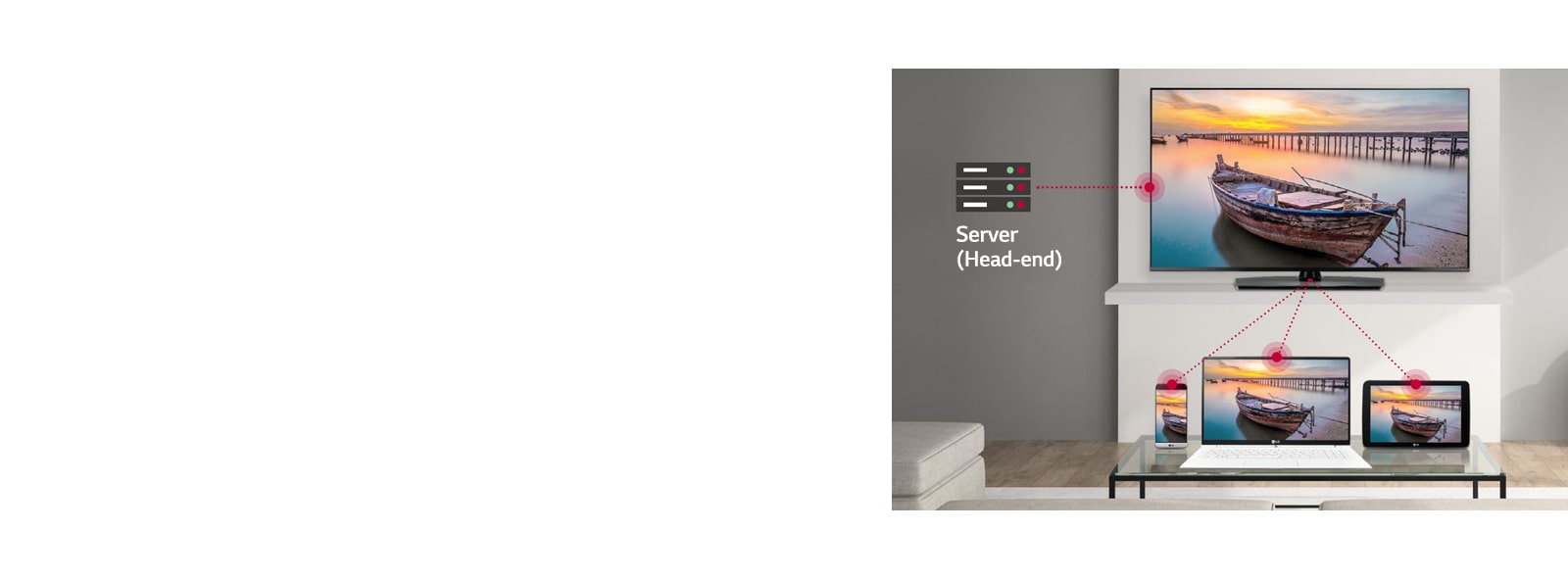

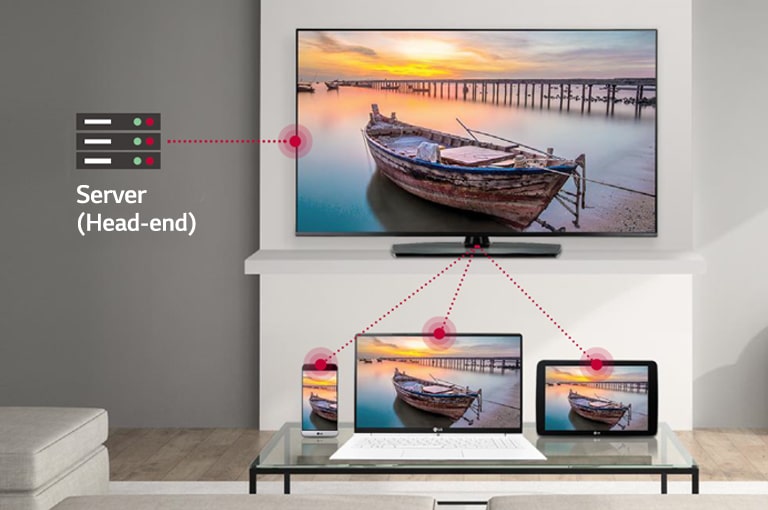

  • Soft AP
    Yes
    WiFi (version)
    Yes
  • Screen Share (Miracast)
    Yes
    Smart Share
    Yes
  • Bluetooth Audio Playback
    Yes
    LG Sound Sync/bluetooth
    Yes
  • Voice Recogion (Standalone/Solution)
    Yes
    IoT
    Yes
other Feature

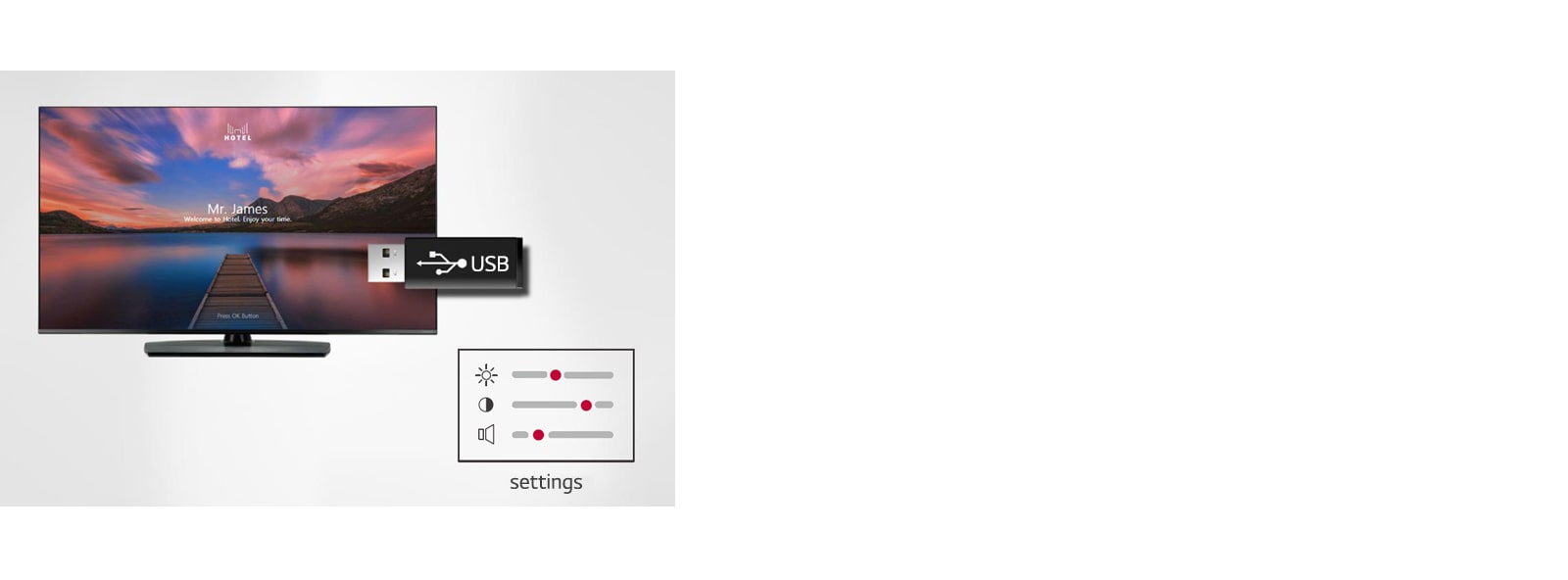

  • USB Cloning
    Yes
    SI Compatible
    Yes (TV Link tuner, RS232C)
  • IR Out
    Yes(HDMI, RS232C)
    Hotel Mode / PDM / Installer Menu
    Yes(Hotel Mode)
  • One Channel Map
    Yes
    IP Chanenel Manager
    Yes
  • External Speaker Out
    Yes(Int/Ext.Variable/Fixed)
    Instant ON
    Yes
  • V-Lan Tag
    Yes
    External Clock Compatibility
    Yes (LEC-005)
  • Full Touch Screen
    No
    b-LAN embedded
    No
  • Conformal Coating
    Yes
Vertical Function
  • Required Approval
    No
    Pillow Speaker
    No
  • Big Size Menu (Big Font UI)
    No
    Healthcare Headphone Mode
    Yes
  • Protection Cover (Glass)
    No
    Antimicrobial
    No
  • Video Tag
    Yes (2 Supported) (MR)
Jack Interface
  • Set Side
    HDMI In 1 (2.0),USB 2 (2.0),CI Slot 1
    Set Rear
    HDMI In (HDCP) 2 (2.0),Headphone Out 1,RF In 2,Digital Audio Out (Optical) 1,RS-232C(D-Sub 9pin / Phone jack) 1(D-Sub 9pin,Clock Interface (RJ12) 1,RJ45 (Usage Purpose) 2 (Ethernet, Aux),External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω Vol. Control 1)
etc
  • VESA Compatible
    Yes
    300x300
    Kensington Lock
    Yes
  • Credenza/Security Screw Hole
    Yes (Except 65")
    Lock Down Plate (for easy installing )
    Yes (Except 65")
Mechanic
  • Weight without Stand
    24.1
    Weight with Stand
    25.8
  • Weight in Shipping
    33.3
    Size without Stand
    1451 x 840 x 64
  • Size with Stand
    1451 x 910 x 324
Power
  • Power Supply (Voltage, Hz)
    AC 100~240V, 50/60Hz
    Power Consumption(Max)
    179W
  • Power Consumption(Typ)
    160W
    Standby Power Consumption
    Under 0.5W
