Discontinued

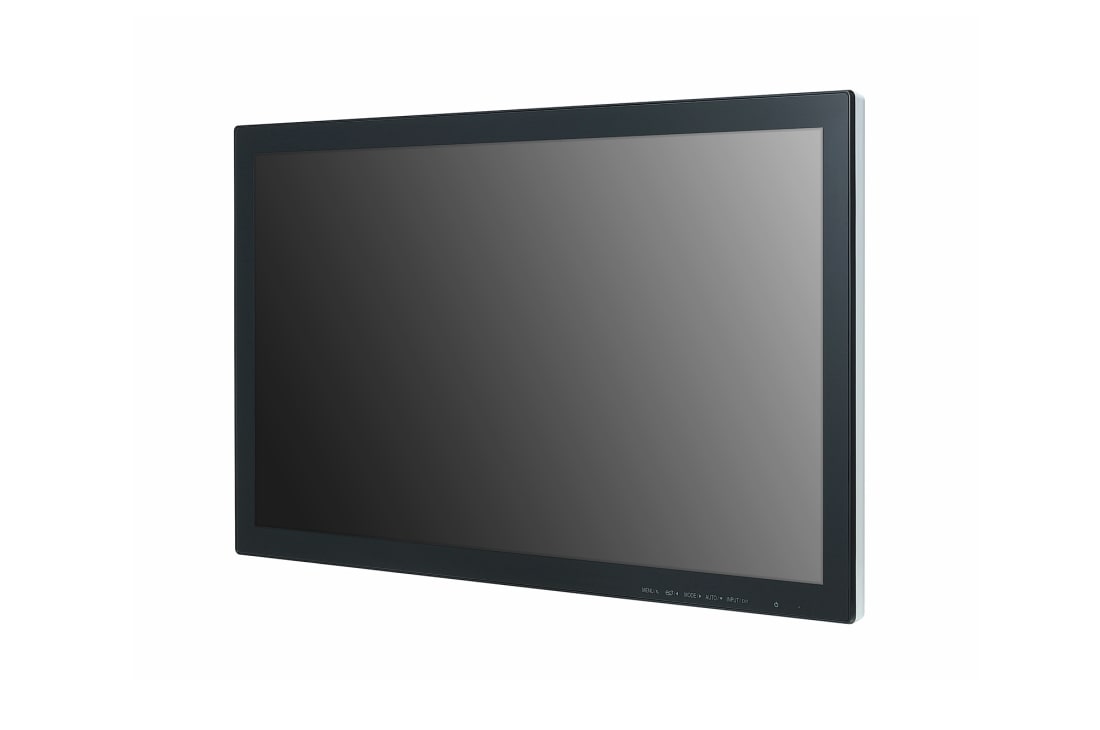

23SE3TE
23'' 250 nits FHD Standard Signage -> 23'' 250 nits FHD Touch Signage
23"
  • Brightness(Typ.): 250 cd/m²
  • Bezel Width (On Bezel): 22.9 mm (T), 23.8 mm (B), 21.5 mm (L/R)

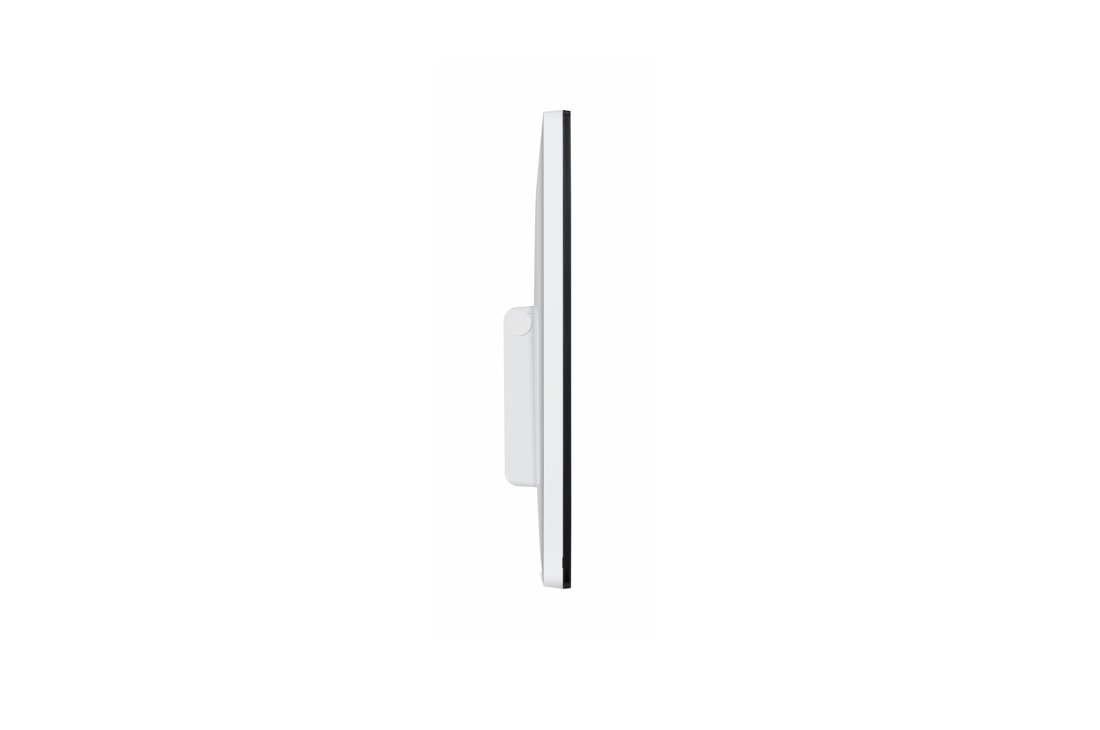

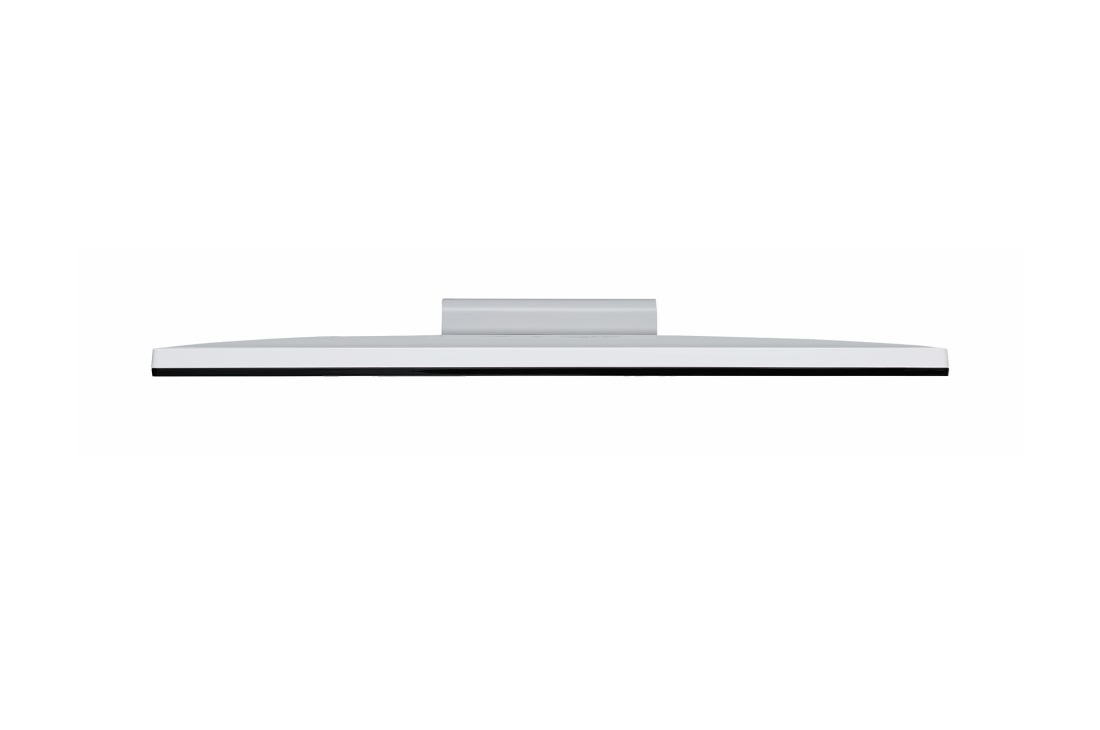

  • Depth: 53 mm
  • Interface : HDMI, RGB, USB (UP, for Touch), Headphone Out

component-OBScountrySelectDesc

23'' 250 nits FHD Standard Signage -> 23'' 250 nits FHD Touch Signage

Panel

  • Screen Size
    23"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    250

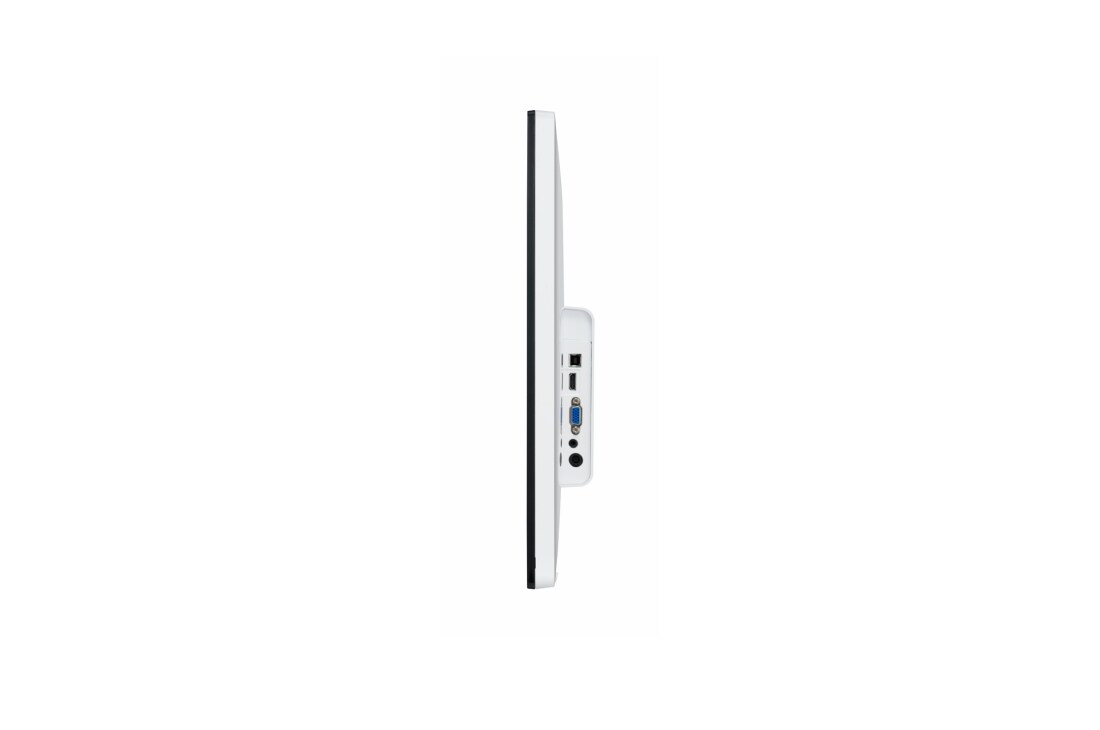

Connectivity

  • Input
    HDMI, RGB, USB (UP, for Touch)
    External Control
    Headphone Out

Physical Specification

  • Bezel Width (On Bezel)
    22.9 mm (T), 23.8 mm (B), 21.5 mm (L/R)
    Monitor Dimension (W x H x D)
    555 × 335 × 53 mm
  • Weight (Head)
    3.9 kg
    Carton Dimensions (W x H x D)
    631 × 120 × 412 mm
  • Packed Weight
    5.2 kg

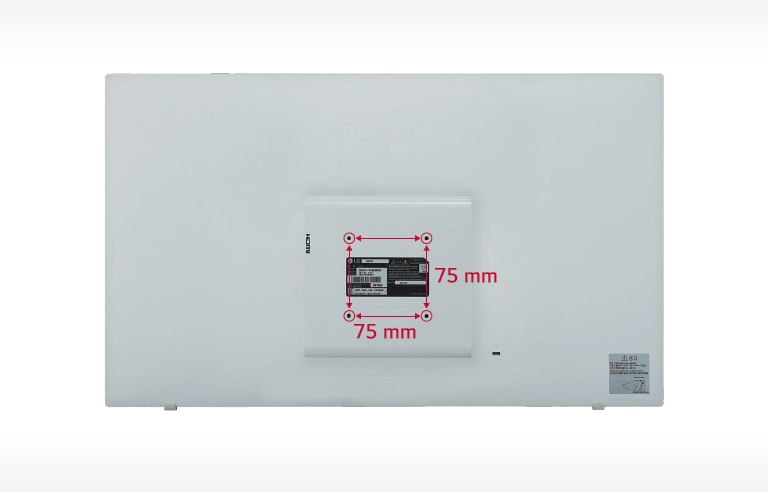

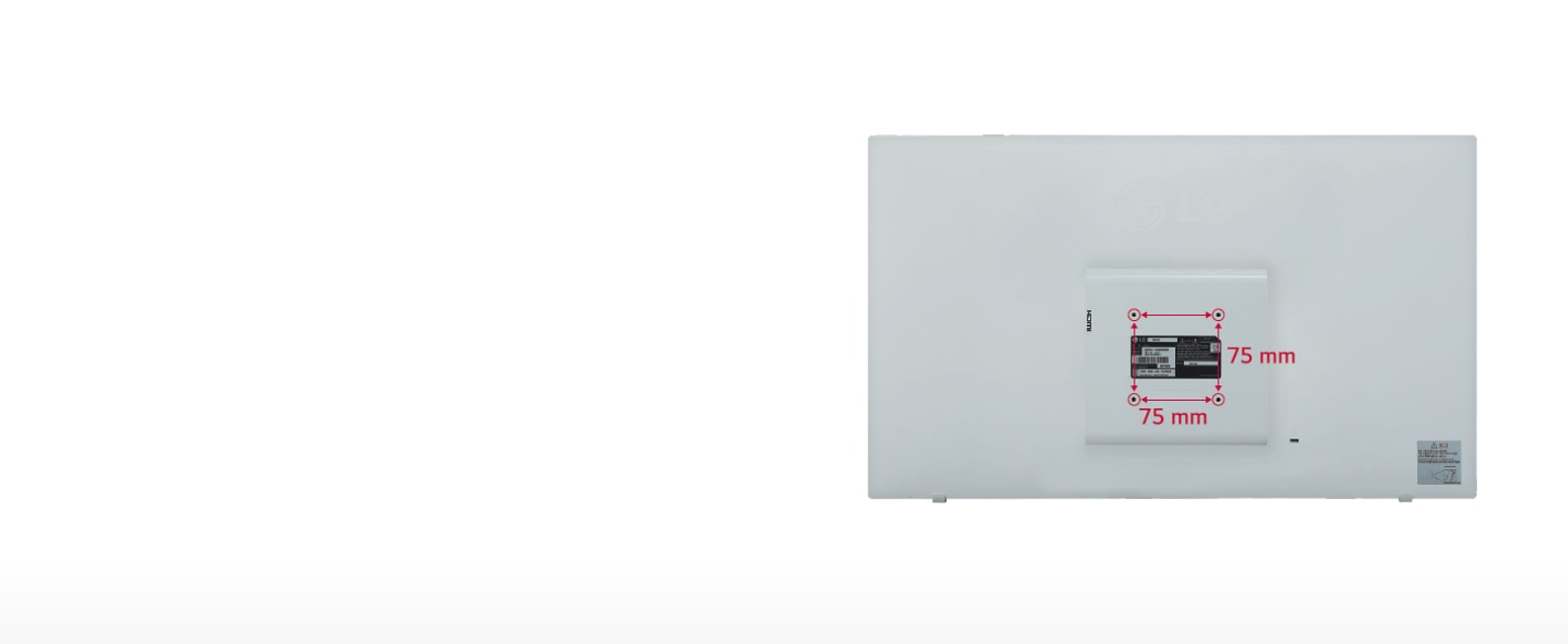

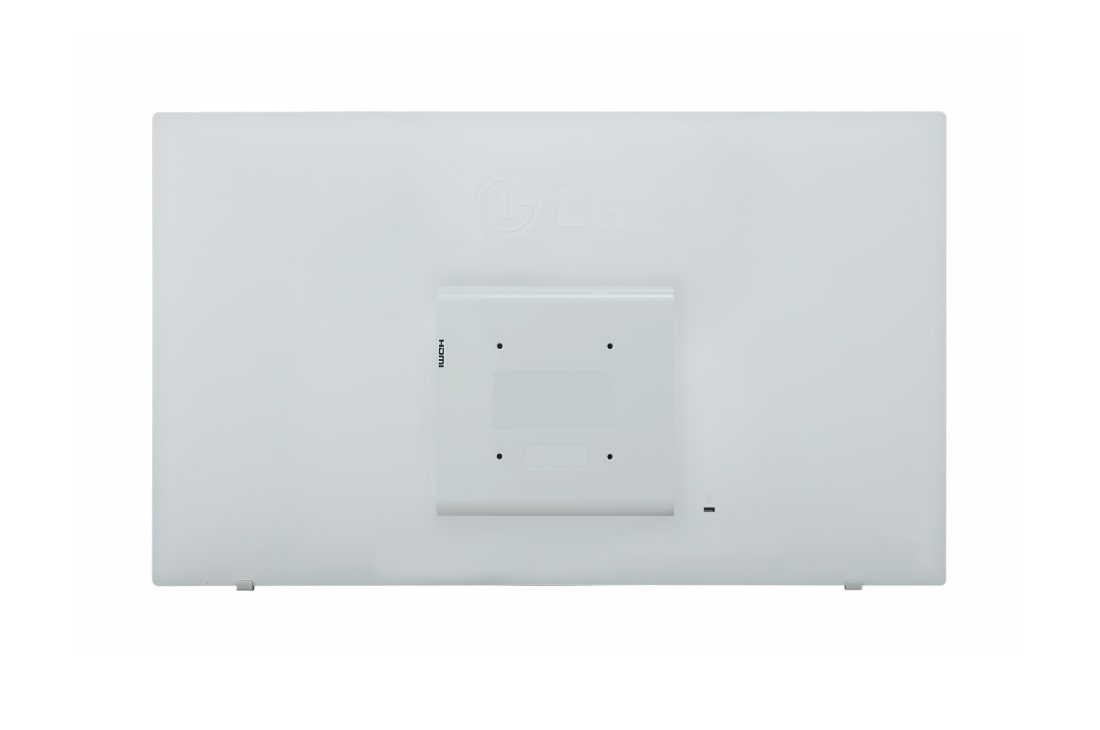

    VESA™ Standard Mount Interface
    75 × 75 mm

Environment Conditions

  • Operation Temperature
    10°C to 35°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Adapter

Power Consumption

  • Typ.
    25 W
    Max
    30 W

Standard(Certification)

  • Safety
    CB
    EMC
    FCC Class "A" / CE
  • ErP / Energy Star
    Yes / No

Accessory

  • Basic
    Adpater, USB Cable, RGB Cable, Easy Setup Guide, Warranty Card, Product Fiche, Regulatory

Touch

  • Touch type
    P-Cap (Ag Metal Mesh)
    Interface
    USB (UP)

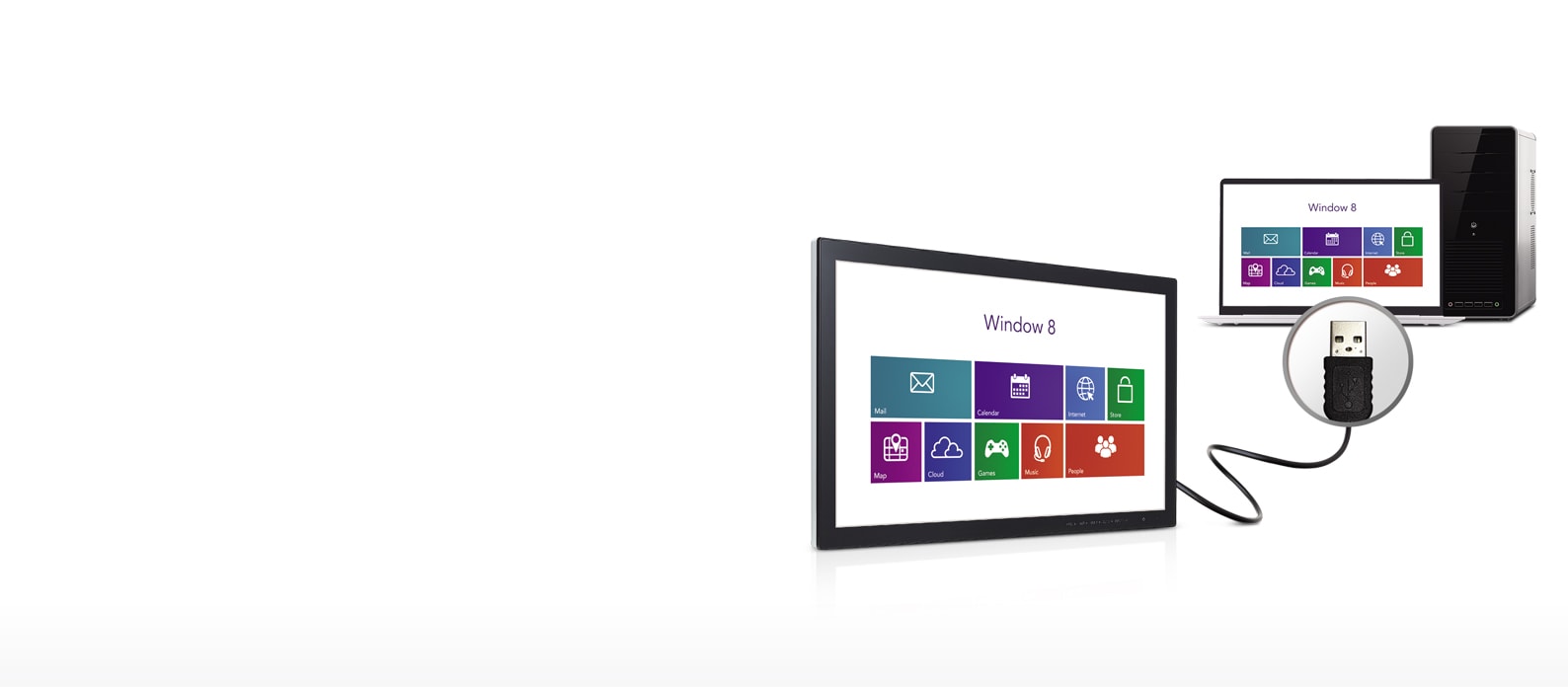

  • Operating Systme Support
    Windows 8, Windows 10
    Multi touch point
    Max 10 Points

General

  • Region
    Global
  • Dimension
    • [Dimension]23SE3TE.dwg
    • [Dimension]23SE3TE.pdf
  • Datasheet
    • 23SE3TE Leaflet(preview)_11803.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
