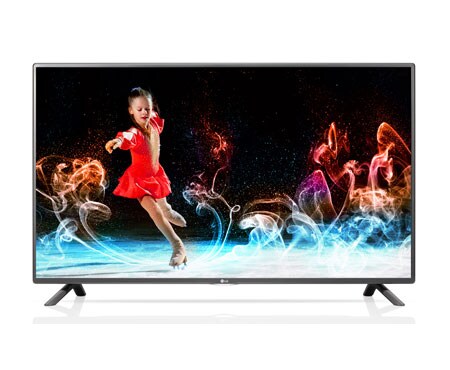

32LX330C (SCA-ISDB-T) component-copyModelName
LX330C Series

Key Features

component-OBScountrySelectDesc

LX330C Series
LCD Panel Specification
  • Backlight Type
    Direct LED
    Cinema 3D
    -
  • Resolution
    1,366 X 768 (HD)
    Brightness (cd/m²l, Typ)
    300
Broadcasting System
  • Analog
    PAL-M/N / NTSC-M
    Terrestrial
    ISDB-T
  • Cable
    -
    Satellite
    -
Video
  • 24p Real Cinema (24p 5:5/2:2 Pull down)
    Yes
    Aspect Ratio
    7 modes (16:9, Just scan, Set by program, 4:3, Zoom, Zoom2, Cinema zoom1)
Audio
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    -
Feature
  • Pro:Centric
    -
    Pro:Idiom
    -
Interface - Set Side
  • Headphone Out
    -
    AV In
    -
  • S-Video In
    -
    RGB In (D-sub 15pin)
    -
  • Component in (Y,Pb,Pr)
    -
    PC Audio Input
    -
  • HDMI In
    1
    USB (2.0)
    2
  • CI Slot
    -
Interface - Set Rear
  • RF In
    1
    AV In
    1 (Share with Component)
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    -
    Component in (Y,Pb,Pr) + Audio
    1
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI/HDCP Input
    1
  • USB 2.0
    -
    RGB In (D-sub 15pin) - PC
    1
  • PC Audio Input
    1 (Share with Component Audio)
    RS-232C (D-sub 9pin)
    1 (Control & Service)
  • Headphone Out
    -
    Clock Interface
    -
  • LAN Port
    -
    RJ45 (RJP interface)
    -
  • External Speaker Out(3.5mm phone jack)
    -
    TV link Configuration (phone jack type)
    -
Power
  • Voltage, Hz
    110 ~ 240V, 50/60Hz
    Typical (Watts)
    58.8W
Tool Description
  • Swivel (angle)
    -
    VESA Compatibility
    200 X 200
Required Listing(Certification)
  • Safety
    CB
    EMC
    -
  • ETC.
    RoHS
Dimension
  • WxHxD (w/o stand, mm)
    732 X 437 X 55.5
    WxHxD (with stand, mm)
    732 X 481 X 207
General
  • Region
    South America
  • Dimension
    • [Drawing] 42LX330C_NA_SCALB56.DWG
    • [Drawing] 42LX330C_NA_SCALB56.PDF
    • [Drawing] 32LX330C_NA_SCA_LB56.dwg
  • Datasheet
    • [Leaflet] LX330C_SCA_1112.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
