IP5x Dust-Proof Ultra HD Series

Key Features

Choose your Size

component-OBScountrySelectDesc

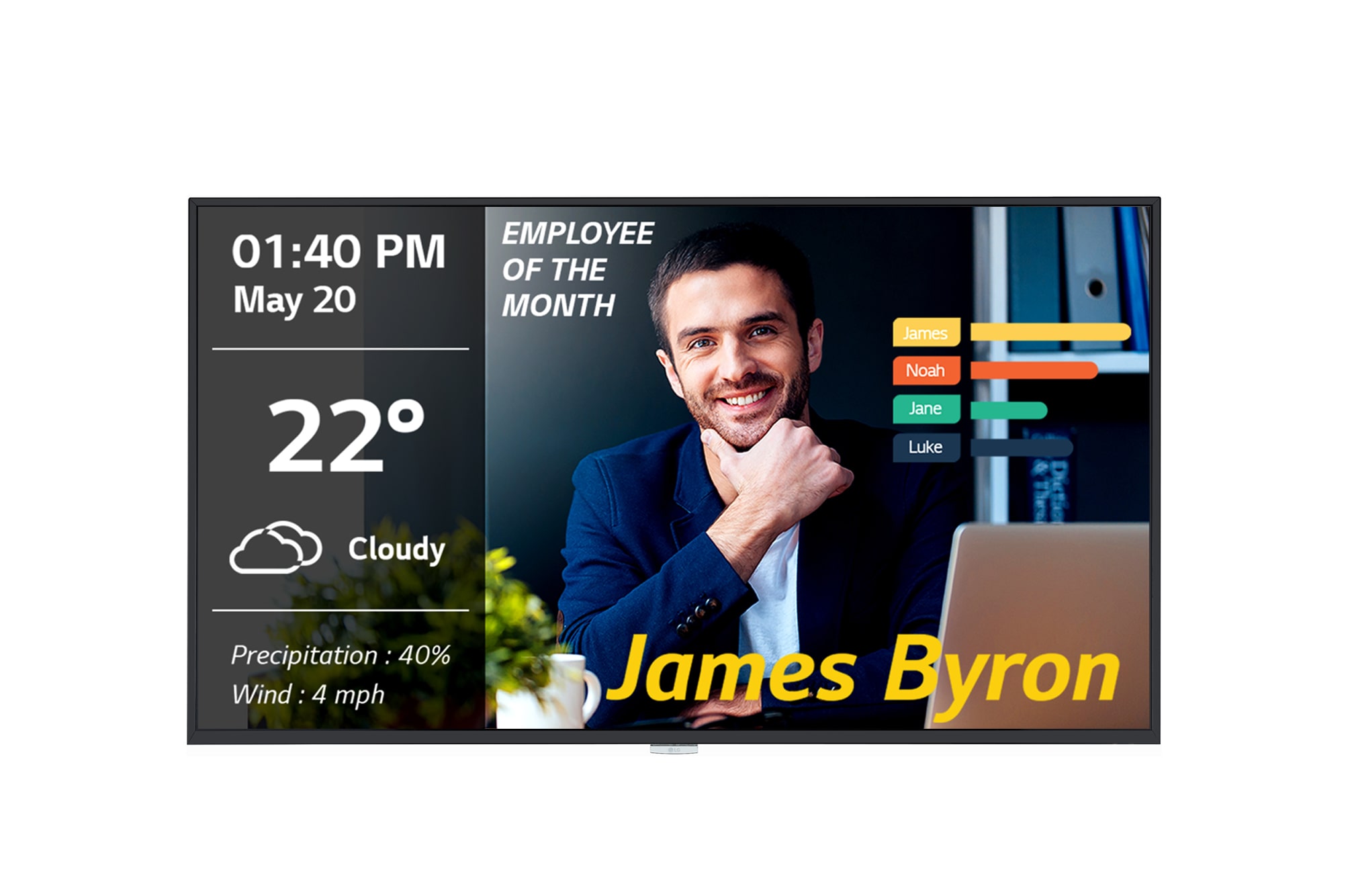

IP5x Dust-Proof Ultra HD Series
Panel
  • Screen Size
    43"
    Panel Technology
    IPS
  • Native Resolution
    3,840 x 2,160 (UHD)
    Brightness (Typ., nit)
    350
  • Contrast Ratio
    1,200:1
    Dynamic CR
    500,000 : 1 * The luminosity ratio of Full Black / Full White color on video input condition.
  • Color gamut
    BT709 95%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit(D)
    Response Time
    8 ms (G to G)
  • Surface Treatment (Haze)
    1%
    Operation Hours
    18 / 7 (Hours / Day)
  • Portrait / Landscape
    Yes / Yes
Connectivity
  • Input
    HDMI (3, HDCP 2.2/1.4), USB 2.0 Type A
    Output
    Audio
  • External Control
    RS232C (4 Pin Phone Jack) In / Out, RJ45 (LAN) In, IR In
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    8.4mm(T/R/L), 14.4mm(B)
  • Weight (Head)
    11.2 kg
    Monitor Dimensions (W × H × D)
    962.5 × 556.8 × 39.9 mm
  • Handle
    No
    VESA™ Standard Mount Interface
    200 x 200
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ. / Max.
    70W / 105W
    Power off
    0.5W
  • Smart Energy Saving
    50W
    DPM
    0.5W
  • BTU (British Thermal Unit)
    239 BTU/Hr(Typ.), 359 BTU/Hr(Max)
Sound
  • Speaker
    Yes
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC
  • ErP
    Yes
OPS Compatibility
  • OPS Type Compatible
    No
    OPS Power Built In
    No
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Signage365Care
    Yes (The availability can differ by region.)
Accessory
  • Basic
    Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender
    Optional
    Stand(ST-653T), Wall bracket(LSW240B), VESA Adapter(AM-B220S)
General
  • Region
    Global
  • Dimension
    • 43UM3DG_set_dimension.dwg
    • 43UM3DG_set_dimension.pdf
  • Datasheet
    • UM3DG_Datasheet(web)_LG UHD Signage_2005.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
