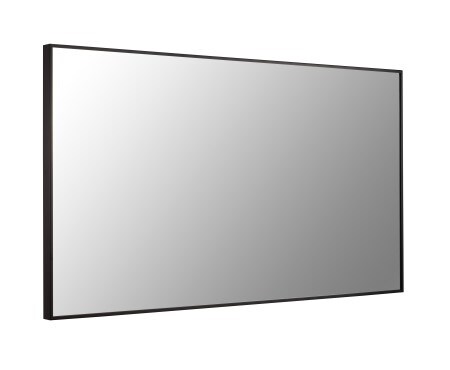

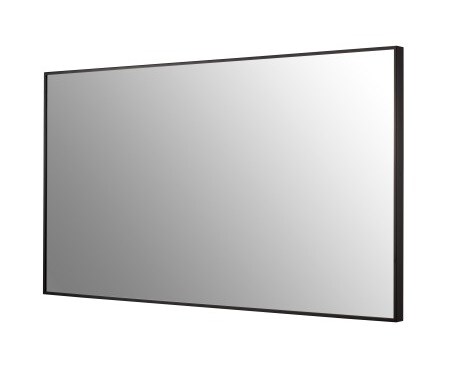

49MS75A
MS75A Series

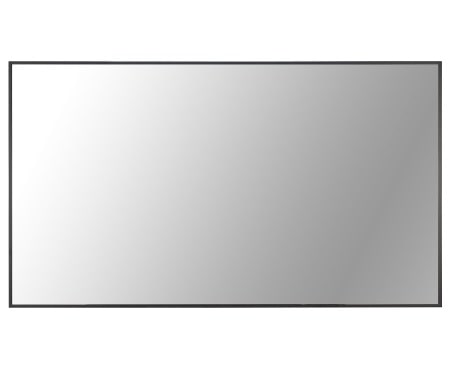

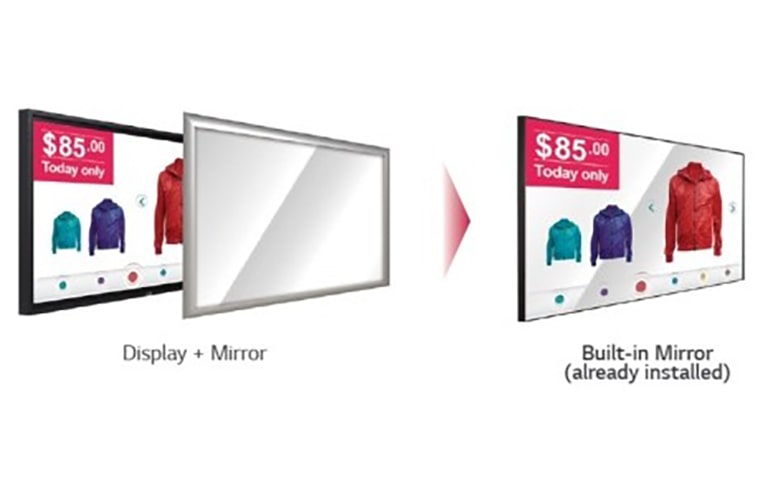

  • Built-in Mirro

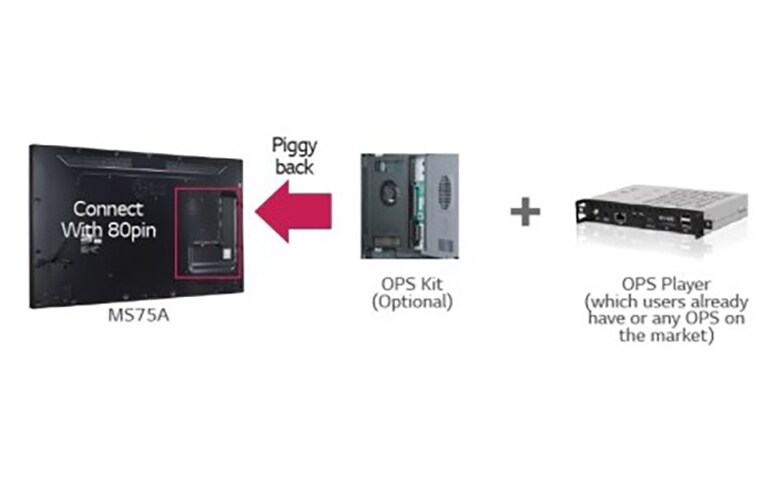

  • OPS Compatibility
  • Supports Wi-Fi ready (Dongle)

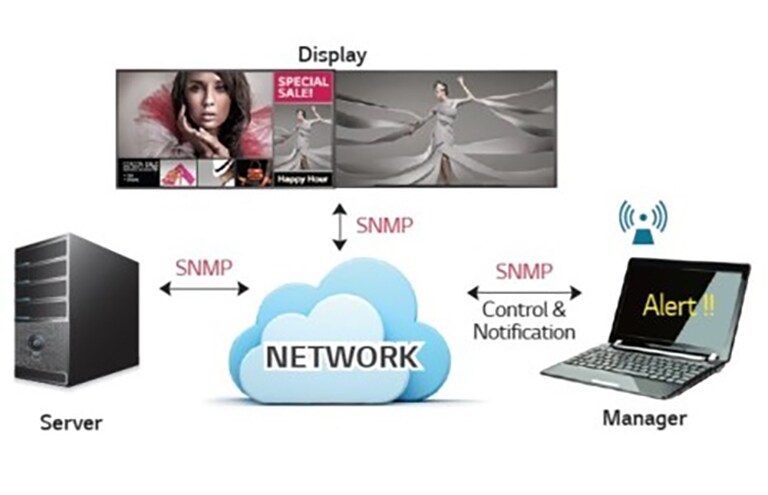

  • Supports SNMP
  • Enhanced Failover

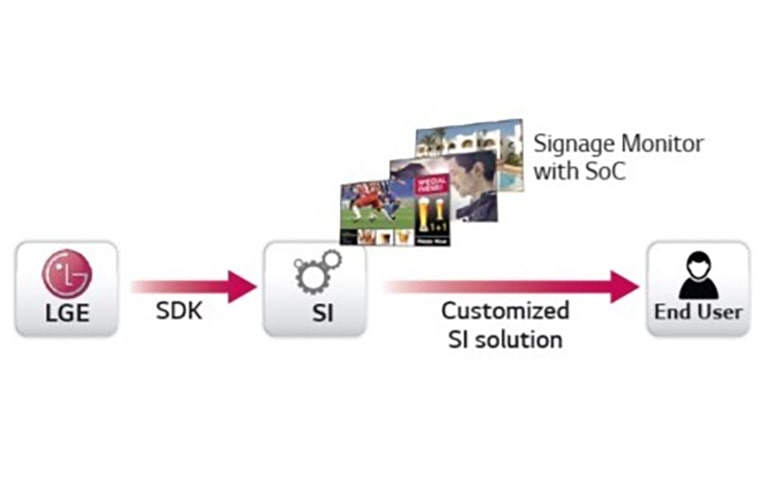

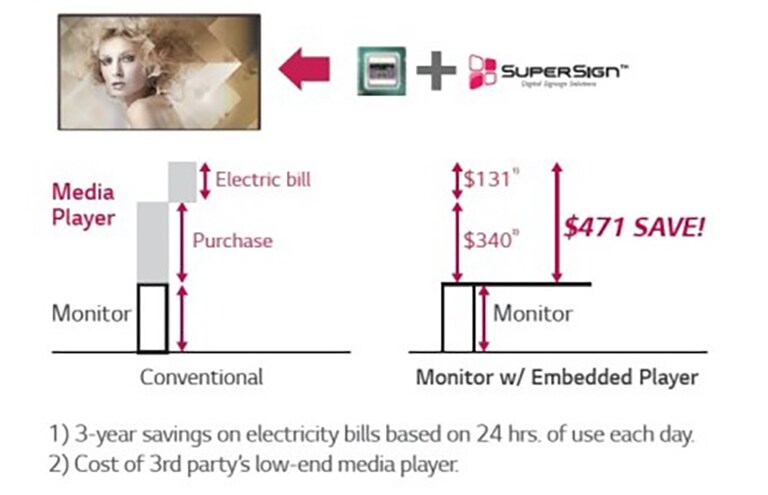

  • High Performance & Cost-effective SoC

component-OBScountrySelectDesc

MS75A Series

Panel

  • Screen Size
    48.50" (1232.00mm) diagonal
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    300

Connectivity - Intput

  • HDMI
    Yes (2), OPS
    DP
    Yes (1)
  • DVI
    Yes (1)
    Analog
    No
  • Audio
    Yes (1)
    External Control (RS232C IN)
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR/Light sensor)
    Yes (1)
  • External Control (Pixel Sensor)
    Yes (1)
    USB (USB2.0)
    Yes (1)

Connectivity - Output

  • Externel Speaker Out
    Yes (1, L/R)
    External Control (RS232C OUT)
    Yes (1)

Physical Specification

  • Bezel Width
    8.4mm (Even)
    Monitor Dimension (W x H x D)
    1,095.0mm X 625.2mm X 37.3mm
  • Weight (Head)
    22.0kg
    VESA™ Standard Mount Interface
    400mm x 400mm

Media Player Compatibility

  • External Media player Attatchable
    Yes (MP500/MP700), KT-OPSA

Software Compatibility

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

Accessory

  • Basic
    Remote Controller (including battery 2ea), Power Cord, IR/Light sensor receiver, CD (Owner's Manual), HDMI Cable
    Optional
    SP-2100 (External Speaker), ST-200T, LSW440S, AN-WF500 (WiFi USB Dongle), KT-OPSA (OPS Kits), KT-SP0 (Pixel Sensor)

General

  • Region
    Global
  • Dimension
    • [Dimension] 49MS75A.dwg
  • Datasheet
    • [Leaflet] 49MS75A.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
