55'' 700 nits FHD Standard Signage

Key Features

Choose your Size

component-OBScountrySelectDesc

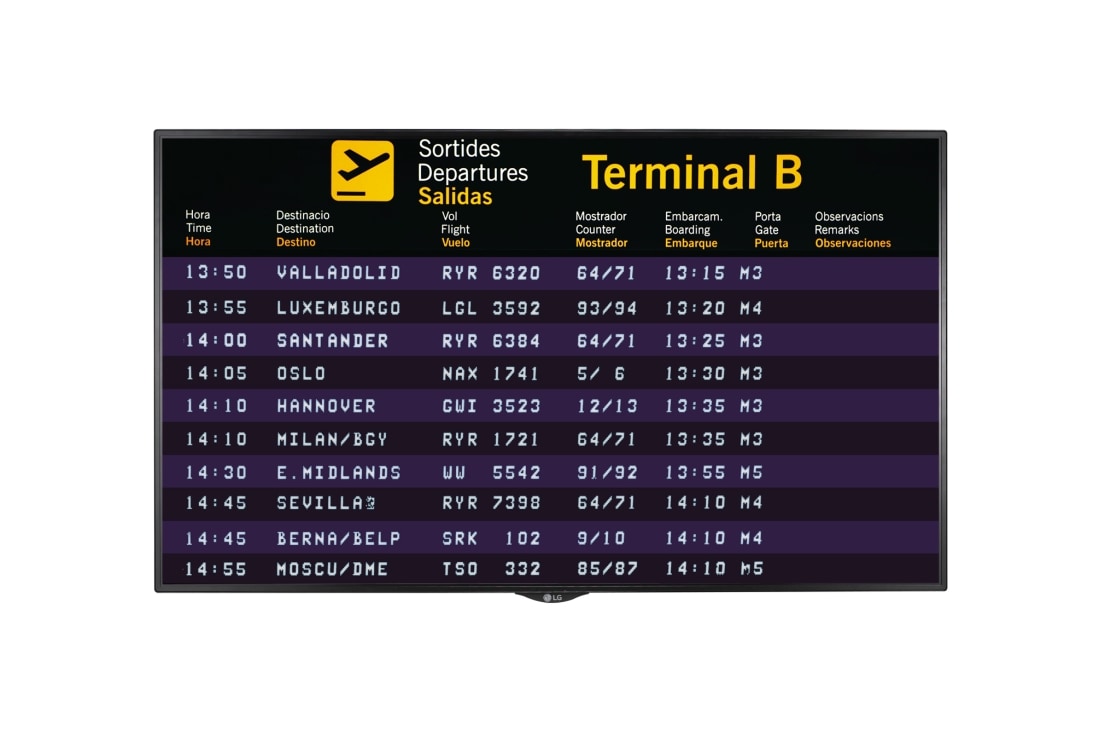

55" 700 nits FHD Standard Signage
Panel
  • Screen Size
    54.64" (1387.80mm) diagonal
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    700
Connectivity - Intput
  • HDMI
    Yes (1)
    DP
    Yes (1)
  • DVI
    Yes (1)
    Analog (RGB)
    Yes (1)
  • Audio
    Yes (1)
    External Control (RS232C(Phone Jack Type))
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (1)
  • External Control (Pixel Sensor(Optional))
    Yes
    USB
    Yes (1)
Connectivity - Output
  • DP Out
    Yes
    Audio Out
    Yes
  • Externel Speaker Out
    Yes (1, L/R)
    External Control (RS232C OUT)
    Yes (1)
Physical Specification
  • Bezel Width
    7.4mm (T/L/R/U even)
    Monitor Dimension (W x H x D)
    123.0cm X 71.4cm X 3.2cm
  • Weight (Head)
    27.0kg
    VESA™ Standard Mount Interface
    400mm x 400mm
Standard(Certification)
  • ErP / Energy Star
    Yes (EU Only) / N/A
Media Player Compatibility
  • OPS type compatible
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control
    Yes
Accessory
  • Basic
    Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional
    External Speaker (SP-2100), Stand (ST-200T), Wall Mount (LSW440S), WiFi USB Dongle (AN-WF500), OPS Kit (KT-OPSF)
General
  • Region
    Global
  • Dimension
    • [Drawing] 55SH7DB.dwg
    • [Drawing] 55SH7DB.pdf
  • Datasheet
    • SH7DB Series_Datasheet(web)_LG Standard Signage_2005.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
