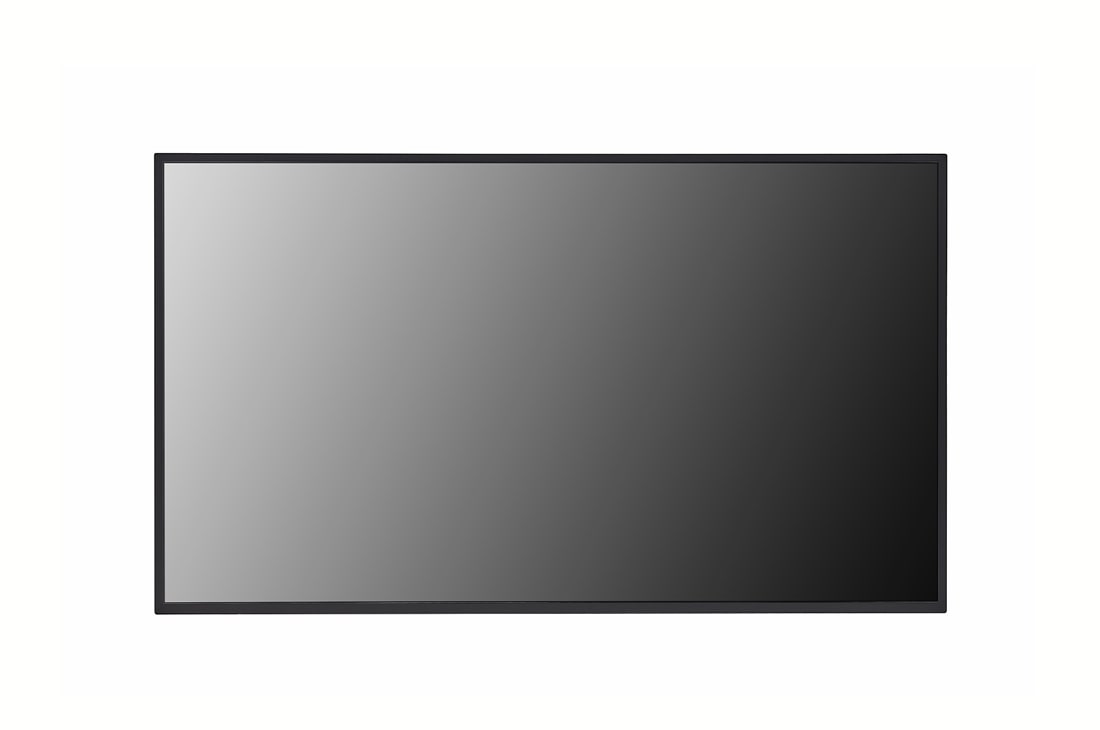

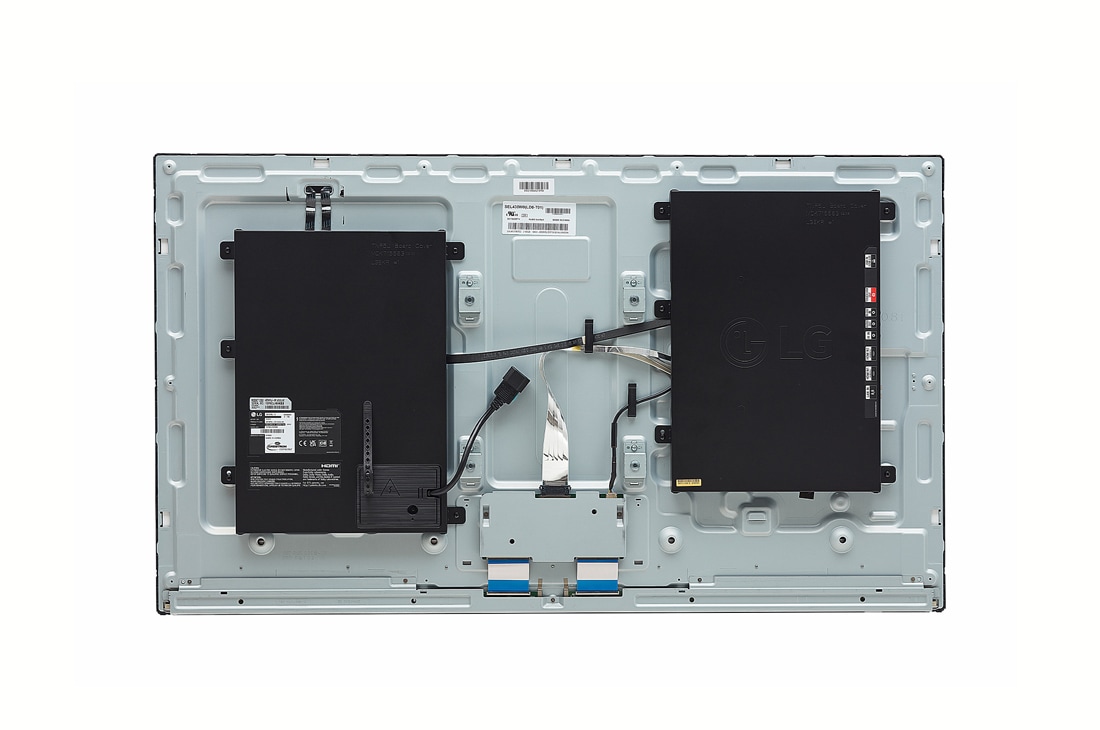

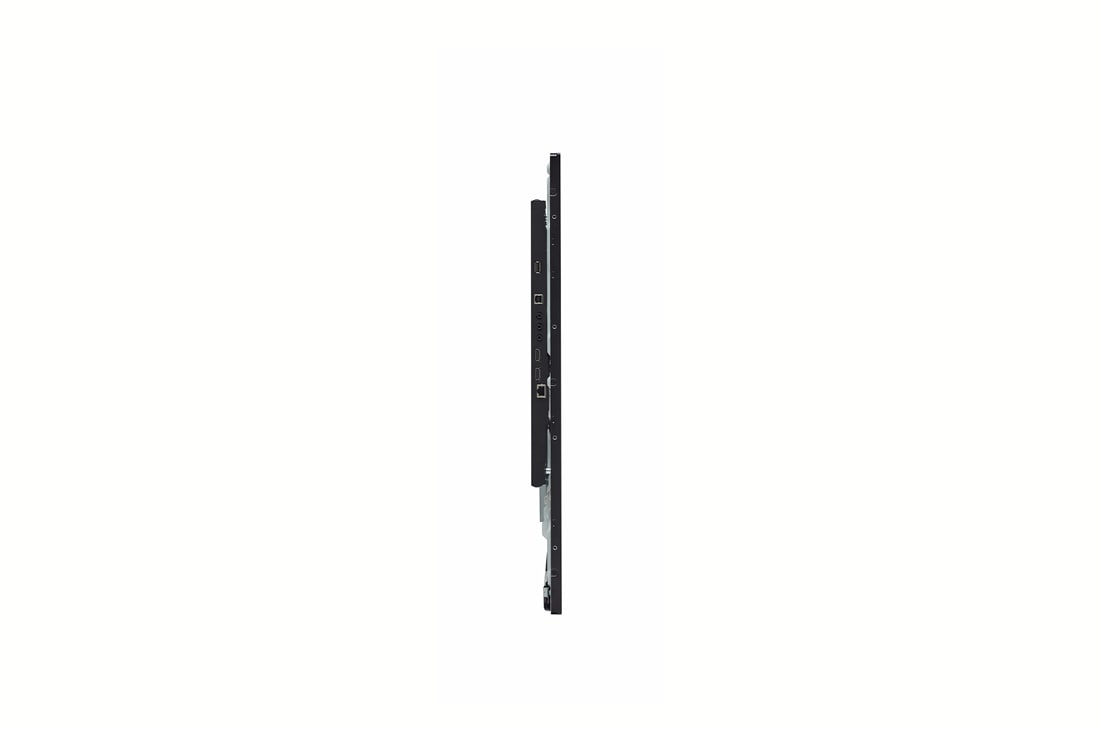

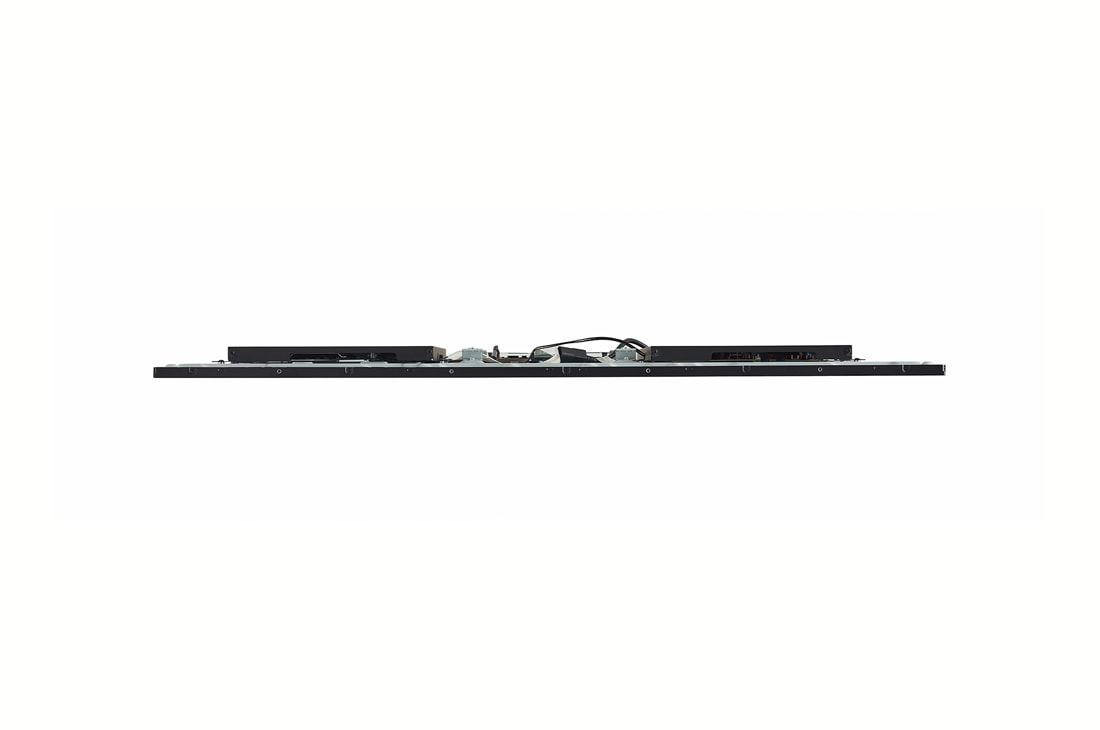

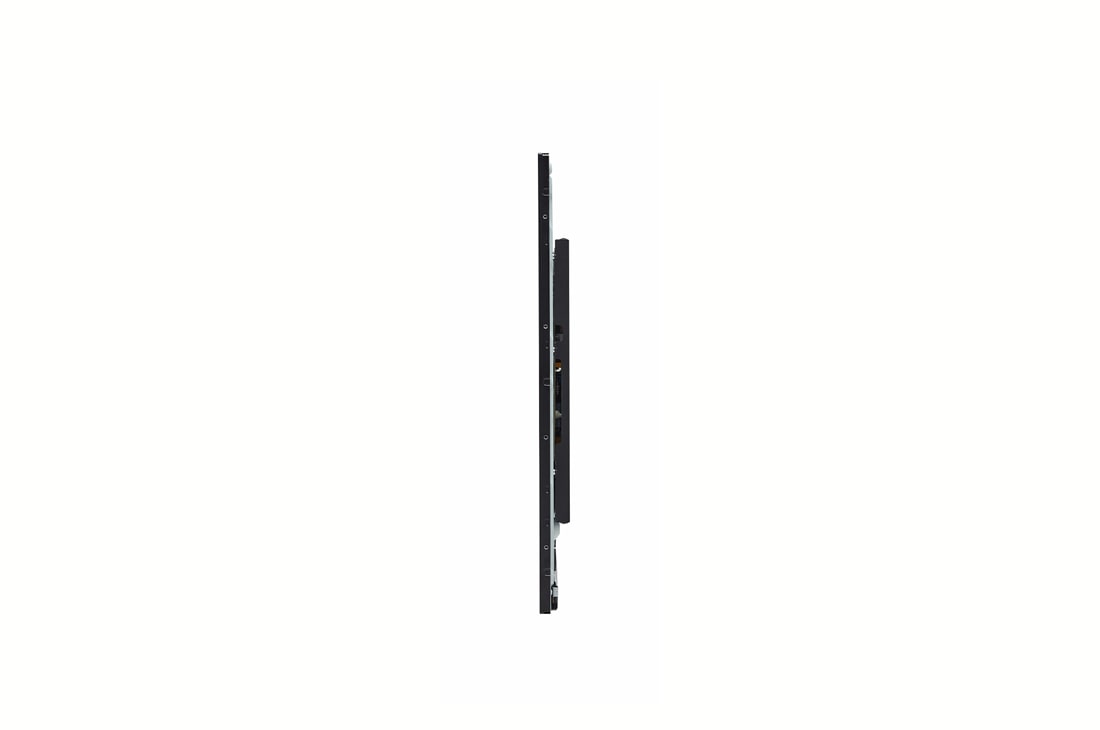

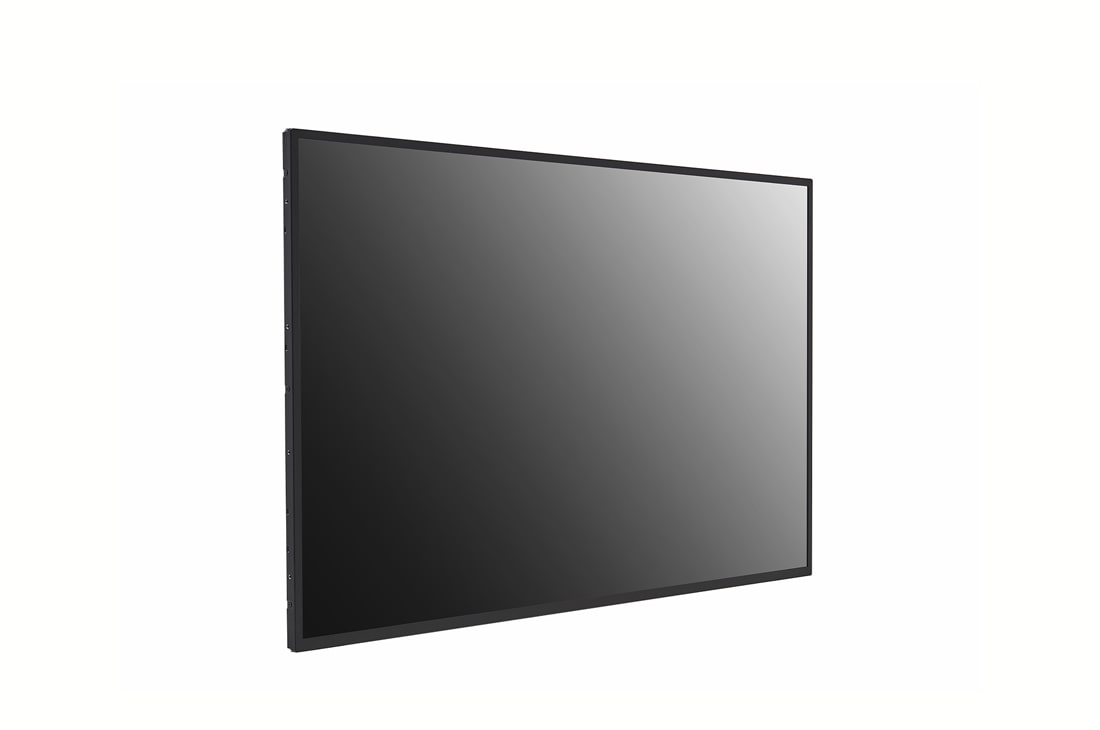

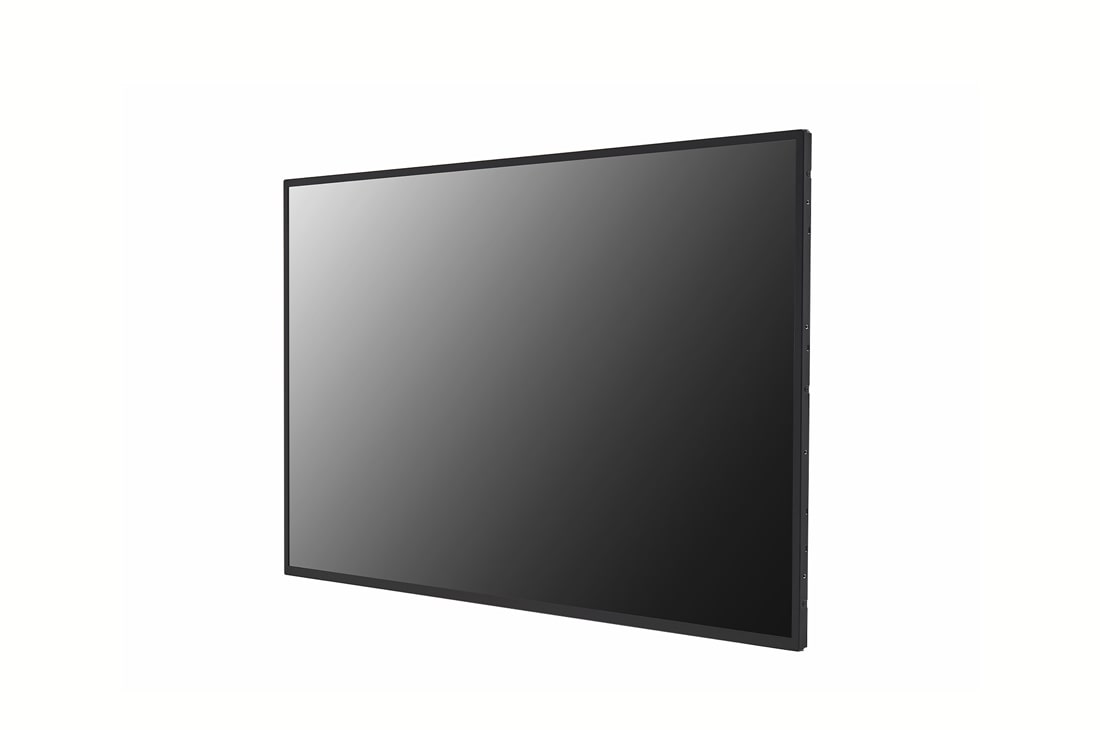

55TNF5J component-copyModelName
Touch Open Frame

Key Features

Choose your Size

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Touch Open Frame
Contact Us
Close
Panel
  • Screen Size
    55"
    Panel Technology
    IPS
  • Native Resolution
    3,840 × 2,160 (UHD)
    Brightness (nit)
    450
  • Contrast Ratio
    1,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H × V)
    178 × 178
    Color Depth
    10 bit (D), 1.07 Billion Colors
  • Response Time
    9ms (G to G)
    Surface Treatment (Haze)
    Haze 12%
  • Operation Hours (Hours / Day)
    24 / 7
    Portrait / Landscape
    Yes / Yes

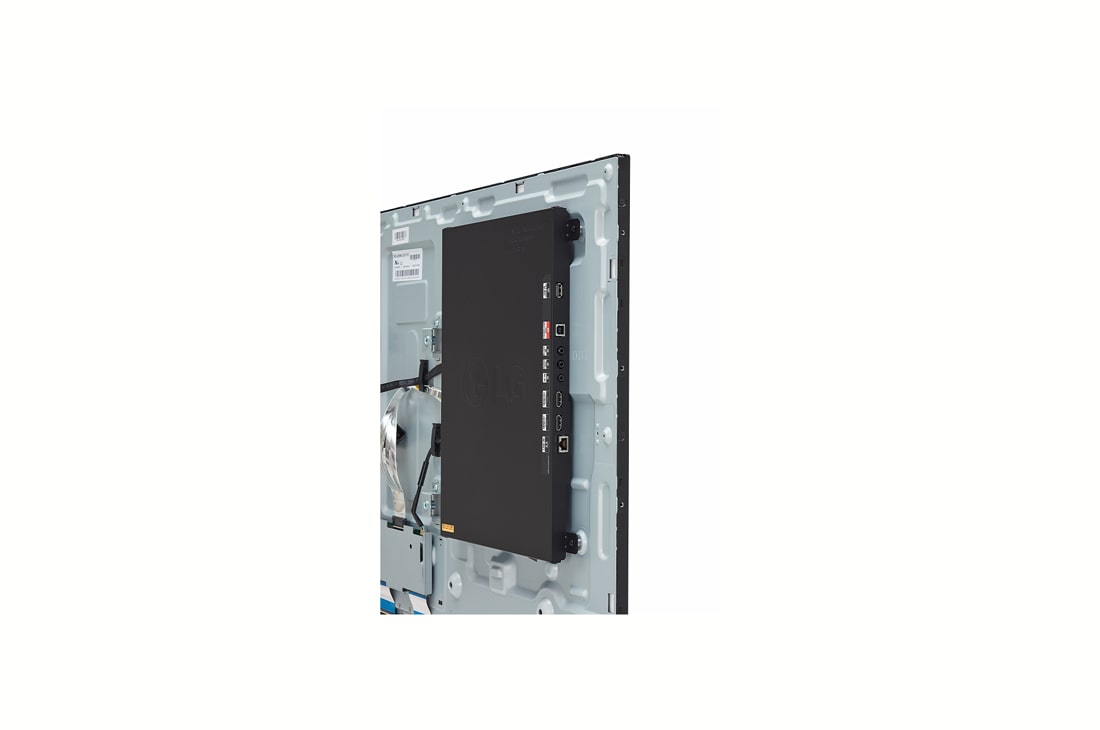

Connectivity
  • Input
    Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
    Output
    Audio Out, USB2.0 Type B(1)
Mechanical Specification
  • Bezel Color
    Black
    Bezel Width
    9.1 / 9.1 / 9.1 / 16.1 mm
  • Weight (Head)
    16.8 kg
    Monitor Dimensions (W × H × D)
    1,231.8 x 709.6 x 39.2 mm
  • VESATM Standard Mount Interface
    300 x 300
Key Feature(Hardware)
  • Internal Memory
    8GB (System 5GB + Available 2.48GB)
    Temperature Sensor
    Yes
Key Feature(Software)
  • webOS ver.
    webOS 6.0
    Embedded CMS
    Local Contents Scheduling, Group Manager
  • USB Plug & Play
    Yes
    Fail over
    Yes
  • Background Image
    Booting Logo Image, No Signal Image
    Video Tag
    Yes
  • Play via URL
    Yes
    Screen Rotation
    Yes
  • Gapless Playback
    Yes
    Setting Data Cloning
    Yes
  • SNMP
    Yes
    ISM Method
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • 3rd Party Compatibility
    Crestron Inside
    Power
    Smart Energy Saving, PM mode, Wake on LAN, Network Ready
  • HDMI-CEC
    Yes
    SI Server Setting
    Yes
  • webRTC
    Yes
    Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    127 W
    Max.
    170 W
  • BTU (British Thermal Unit)
    433 BTU/Hr (Typ.), 580 BTU/Hr (Max.)
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC
  • ErP
    Yes
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • Signage 365 Care
    Yes
Accessory
  • Basic
    Power Cord 1.55m, USB Cable (Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
Touch
  • Available Object Size for Touch
    Ø6mm ↑
    Response Time (Based on 'Paint' app on Windows 10 PC)
    90ms ↓
  • Accuracy
    3.5mm±0.5mm
    Interface
    USB 2.0
  • Operating System Support
    Windows 10
    Multi Touch Point
    Max. 10 Points
  • Dimension
    • 55TNF5J_2D.dwg
    • 55TNF5J_2D.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
