Indoor LED
Contact Us

LG's Standard Indoor LED Display with Megapixel HELIOS LED Processing Platform

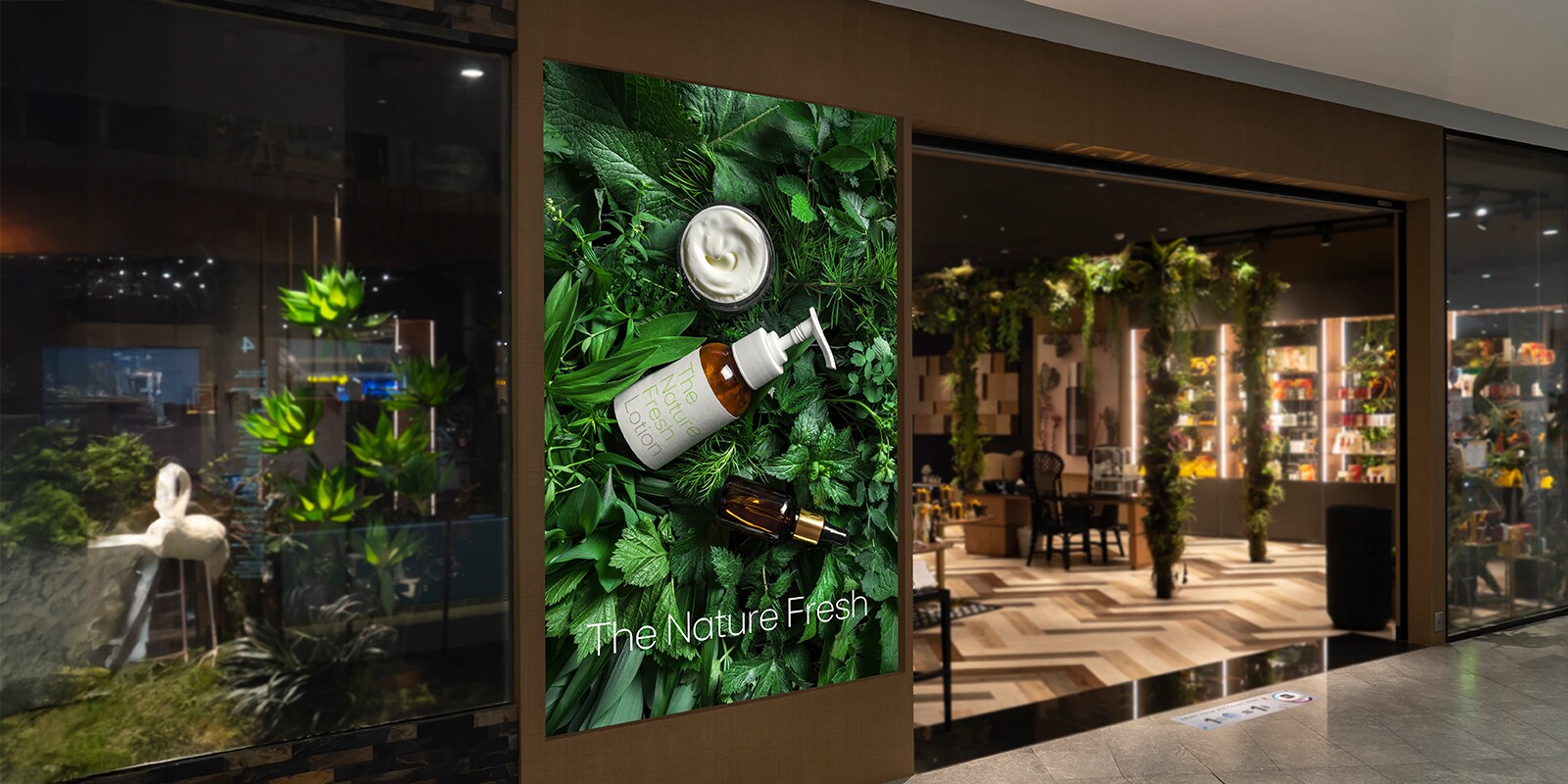

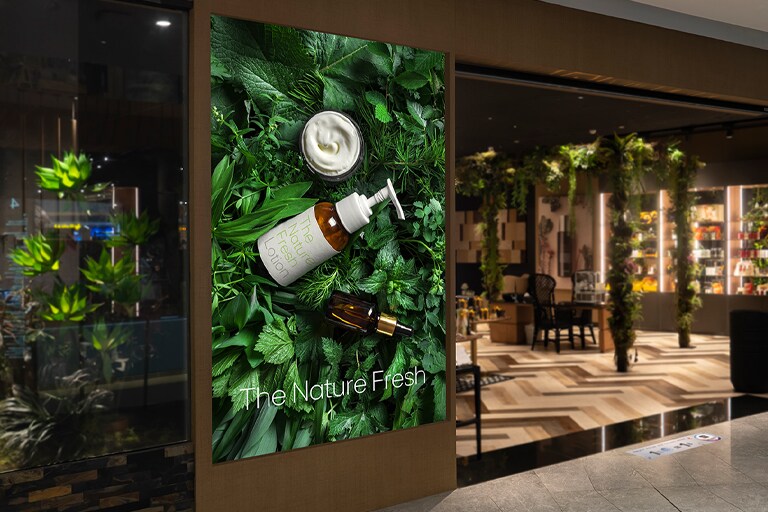

A large LED display is integrated with the wall next to a store entrance in a shopping mall, clearly displaying an advertisement. A large LED display is integrated with the wall next to a store entrance in a shopping mall, clearly displaying an advertisement.
* All images in this page are for illustrative purposes only.

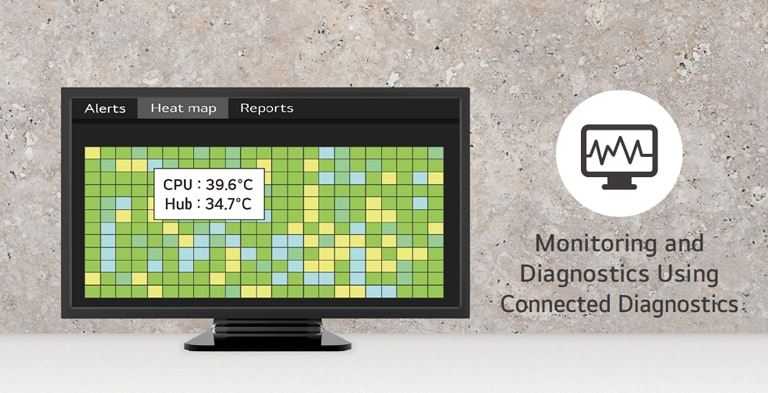

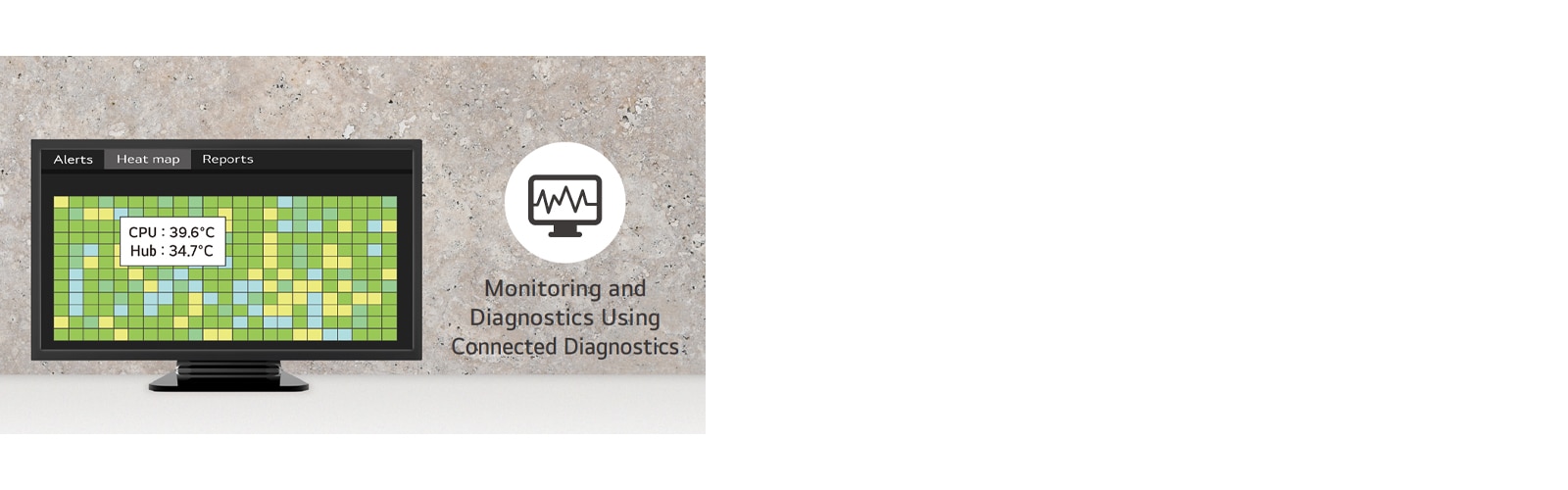

The Megapixel HELIOS LED Processing Platform provides access to features such as monitoring and diagnostics using connected systems. The Megapixel HELIOS LED Processing Platform provides access to features such as monitoring and diagnostics using connected systems.

Powerful UI/UX with Megapixel HELIOS LED Processing Platform

With the Megapixel HELIOS LED Processing Platform, the LSCD series now has the ability to leverage advanced UX and UI functionalities, including monitoring and diagnostics through connected systems.

* Megapixel HELIOS LED Processing Platform needs to be purchased separately.

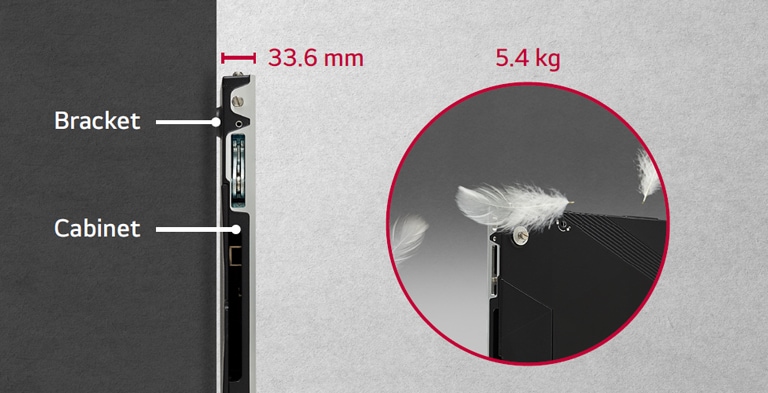

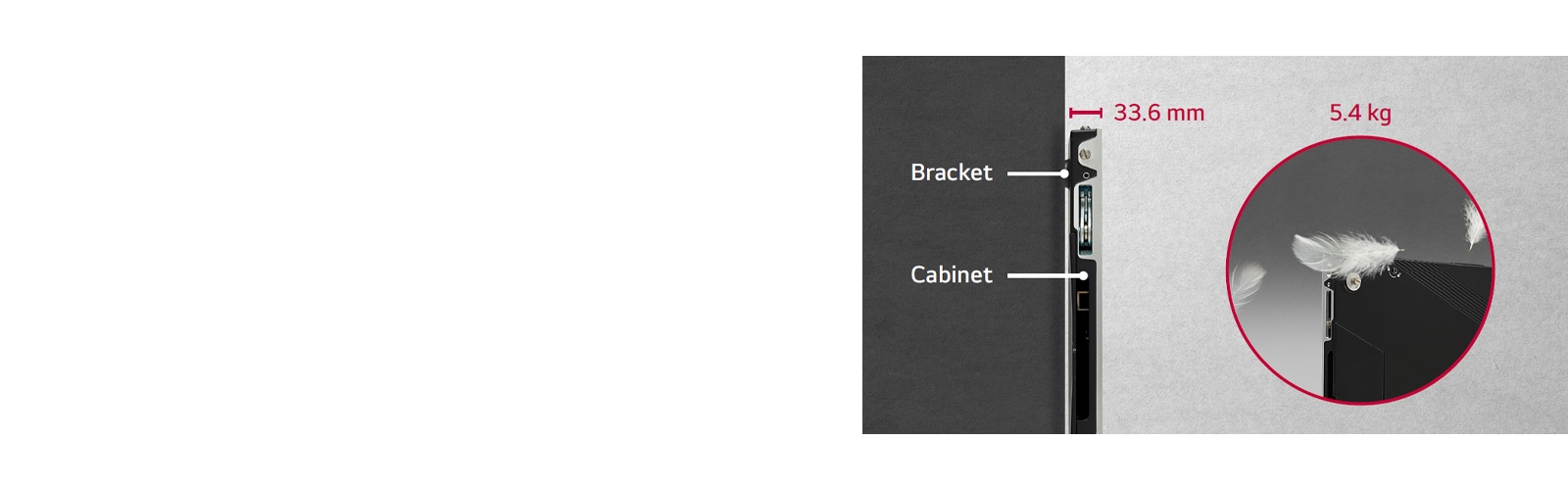

The LSCD series cabinet is designed with an ultra-slim depth and a lightweight build. The LSCD series cabinet is designed with an ultra-slim depth and a lightweight build.

Ultra Slim Depth and Lightweight

The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.4 kg*, is the standout feature of this product. This sleek and lightweight design allows the LSCD series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.

* LSCD012/015-GK

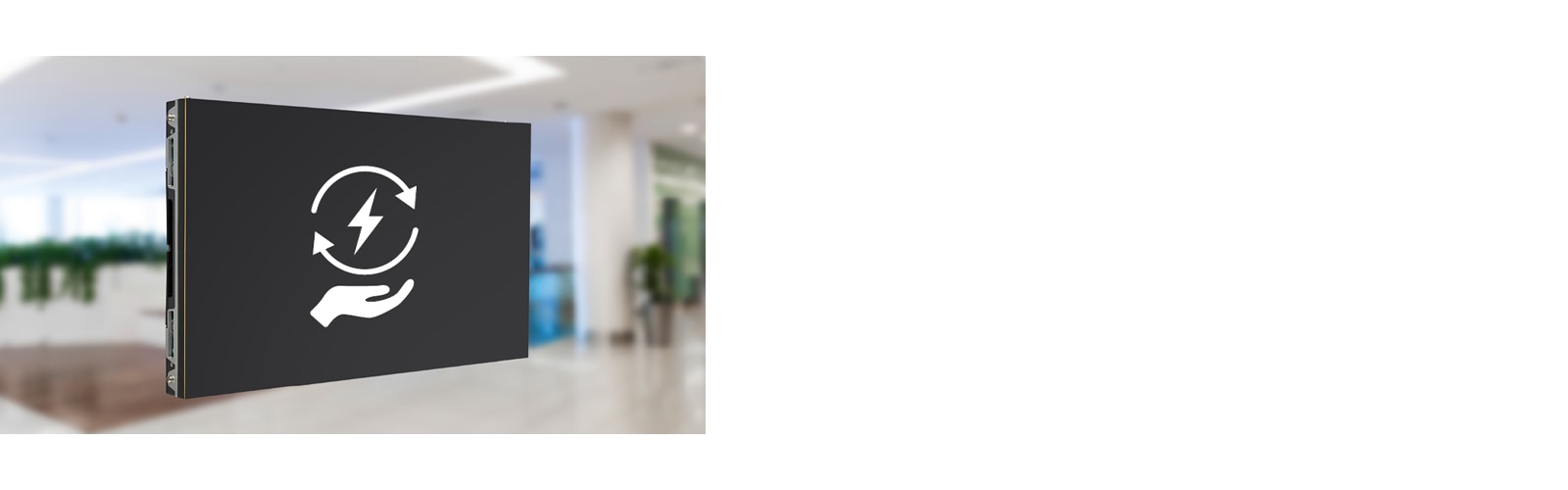

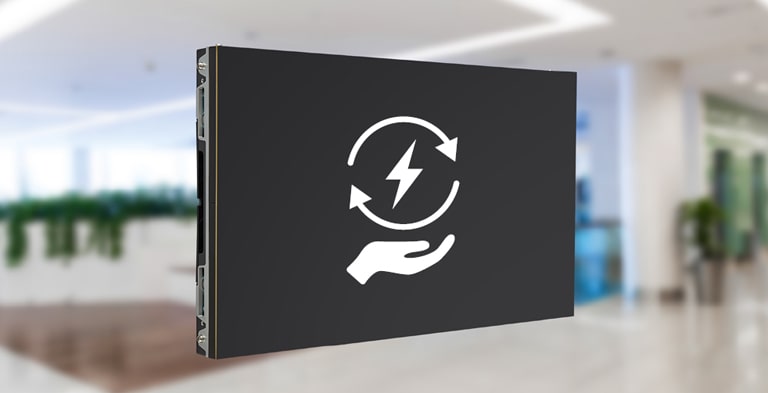

The LSCD series, with its improved power consumption, offers higher energy efficiency. The LSCD series, with its improved power consumption, offers higher energy efficiency.

Superior Energy Efficiency

The LSCD series improves power consumption by 16% to 25%*, depending on pitch models, delivering both energy efficiency and lower operating costs.

* Based on internal testing conducted in accordance with internal test conditions, both the LSCB and LSCD models were tested in Full White output mode at maximum LED brightness.
* Power consumption improvement is compared to the LG LSCB model.
* Actual performance may vary depending on the usage environment.

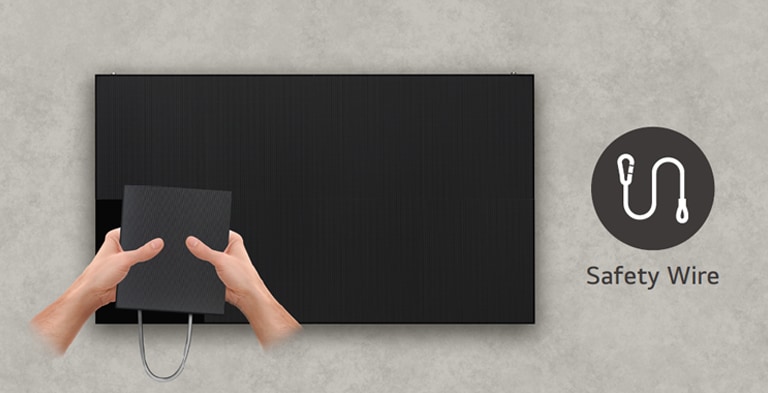

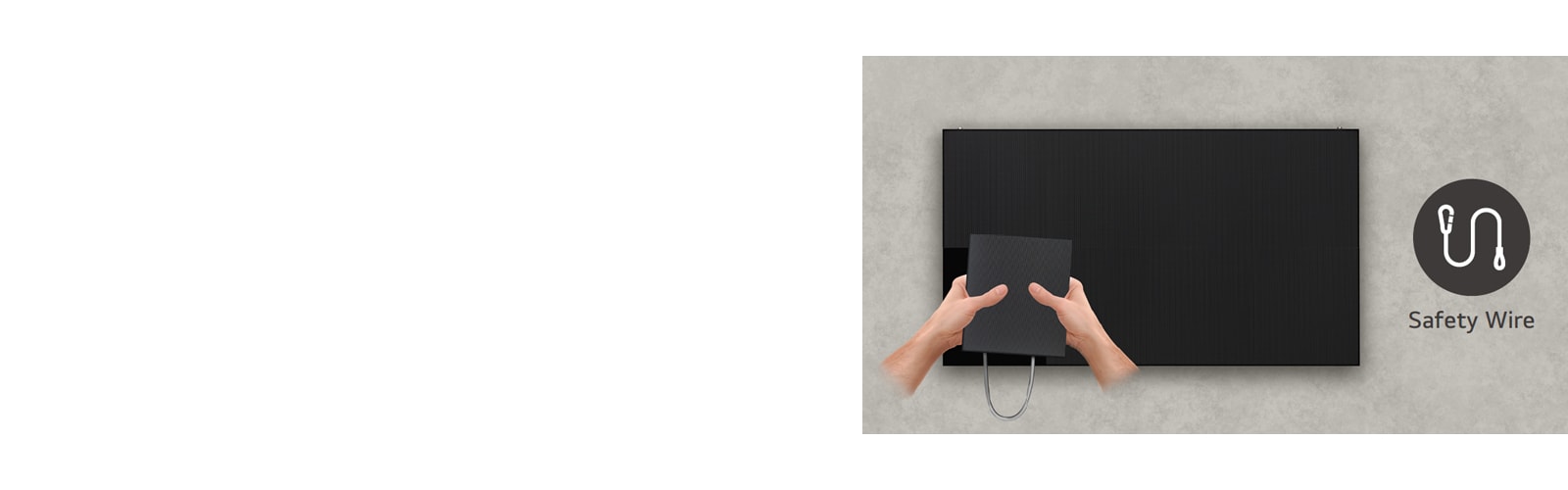

The LSCD series is securely installed using safety wires attached to the wire holders on the back of the module. The LSCD series is securely installed using safety wires attached to the wire holders on the back of the module.

Attachable Wire Hooks for Modules

All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety.

* Wires can be ordered separately as accessories.

Various Design Available

The LSCD series seamlessly integrates into any space, delivering smooth content to customers. Additionally, elegantly curved LED screens can be implemented as an option.

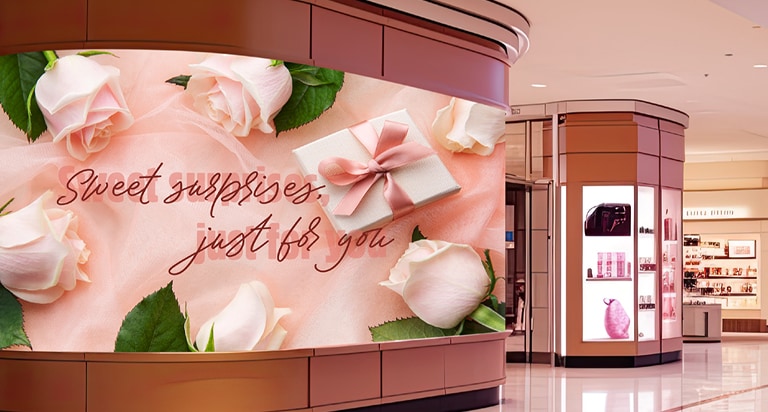

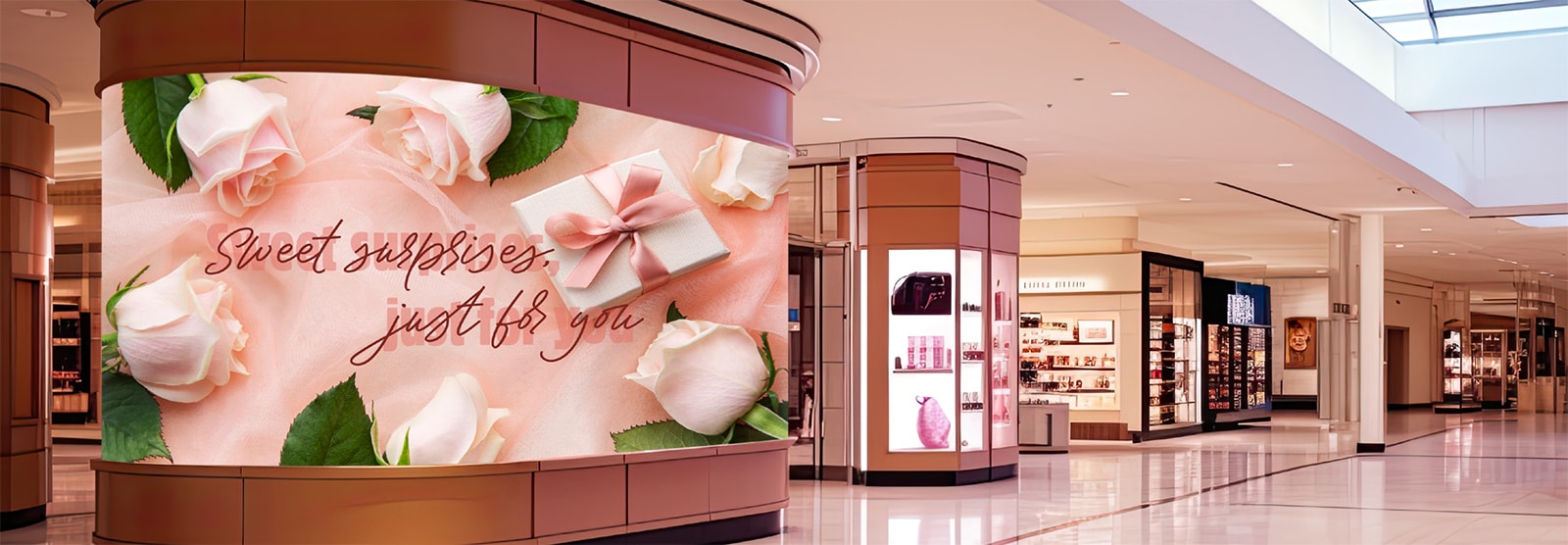

The LSCD is installed along the wide, curved surface of a pillar in a shopping mall, seamlessly displaying advertisements across the curved LED screen. The LSCD is installed along the wide, curved surface of a pillar in a shopping mall, seamlessly displaying advertisements across the curved LED screen.
Close
Physical Parameters
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    1.56
  • Module Resolution (WxH)
    192x108
    Module Dimensions(WxH,mm)
    300x168.75
  • Weight per Module (kg)
    0.31
    No. of Modules per Cabinet (WxH)
    2x2
  • Cabinet Resolution (WxH)
    384x216
    Cabinet Dimensions (W x H x D, mm)
    600x337.5x33.6
  • Cabinet Surface Area (m²)
    0.2
    Weight per Cabinet (kg/unit)
    5.0
  • Weight per Square Meter (kg/m²)
    24.40
    Physical Pixel Density (pixels/m²)
    409,600
  • Flatness of Cabinet (mm)
    ±0.1
    Cabinet Material
    Die-casting Aluminum
  • Service Access
    Front
OPTICAL SPECIFICATIONS
  • Brightness (After Calibration, nit)
    Max. 800
    Color Temperature (K)
    3500~9000K(default: 6500K)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    13 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    112
    Power Consumption (W/Cabinet, Avg.)
    37
  • Power Consumption (W/m², Max.)
    553
    Heat Dissipation (BTU/h/Cabinet, Max.)
    382
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    126
    Heat Dissipation (BTU/h/m², Max.)
    1,886
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10℃ to +45℃
  • Operating Humidity
    0~80%RH
    IP Rating Front
    IP30
  • IP Rating Rear
    IP30
Standard
  • Certification
    CE, FCC, ETL, EMC Class-A
    Certification (Fire Protection)
    BS476 Part7 Class1, EN13501-1
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    Megapixel HELIOS

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
