23MT77D-PZ component-copyModelName

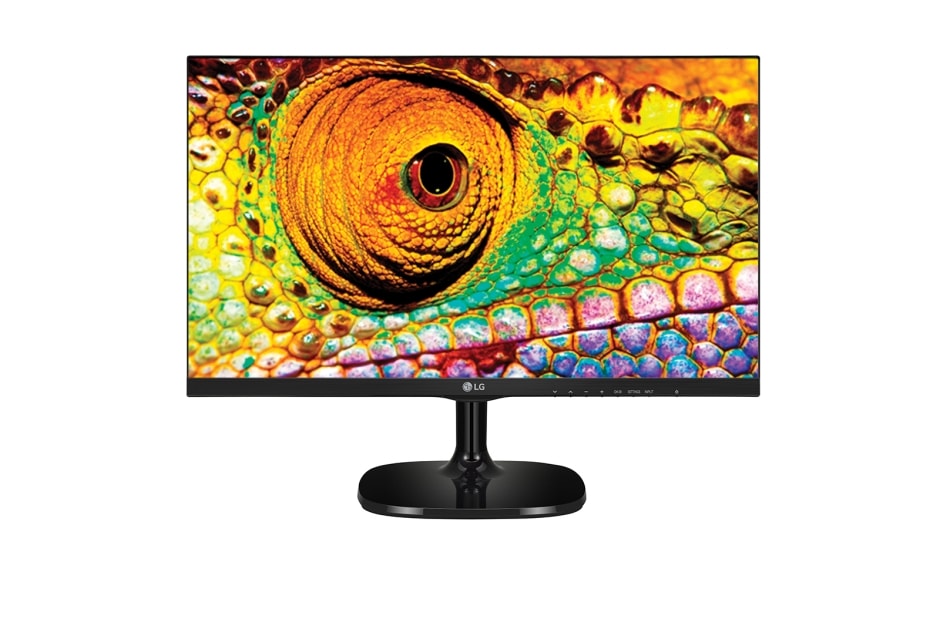

23” Class Full HD TV Monitor (23” Diagonal)

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (23MT77D-PZ)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (23MT77D-PZ)
    $
    $
    LG Members Price
Total
23” Class Full HD TV Monitor (23” Diagonal)

  • Smart Energy Saving technology

    • LG's Smart Energy Saving technology allows for greater energy saving while improving the LED backlight.
      * Note : Energy savings can be increased by adjusting screen brightness.

  • LED

    • The LG LED technology offers exceptional  brightness and incredible picture clarity.
      You will see richer colors and deeper blacks, while offering greater energy efficiency compared to conventional LCD monitors.
TV MONITOR ( 2 IN 1 )1 TV MONITOR ( 2 IN 1 )2

TV MONITOR ( 2 IN 1 )

Very simple, you can use it as a TV for entertainment for use it in your office as a monitor for tasks. You can also mount it on your wall depending on your tastes and needs.
CINEMA Screen1 CINEMA Screen2

CINEMA Screen

The CINEMA Screen design offers a incredibly immersive visual experience thanks to its ultra thin frame, so you can enjoy your favorite movies and video games in a better way.
Wide viewing angle1 Wide viewing angle2

Wide viewing angle

Whether sitting, lying down or standing, you will enjoy excellent image quality thanks to its wide viewing angle.
Full HD1 Full HD2

Full HD

Full HD resolution provides superb image quality through excellent color accuracy, visual contrast and sharpness.
Double HDMI Input1 Double HDMI Input2

Double HDMI Input

Receives signals for high resolution content without distortion and can play content from other devices.
Gaming mode black & Dynamic Stabilizer Sync Action1 Gaming mode black & Dynamic Stabilizer Sync Action2

Gaming mode black & Dynamic Stabilizer Sync Action

Black Stabilizer provides complete visibility even in dark scenes, and DAS helps scenes with quick movements.
These features are ideal for use with video games.
Ergonomics1 Ergonomics2

Ergonomics

To ensure a better working environment, the ergonomically designed LG Monitor lets you adjust height, tilt and vertical viewing.
Rider to the Wall1 Rider to the Wall2

Rider to the Wall

You can mount it on the wall or leave it on its the base depending on your tastes or needs.
Stereo Speakers1 Stereo Speakers2

Stereo Speakers

Watch movies or play video games with true stereo sound.
With built-in stereo speakers you won't need to place additional speakers around your monitor.
PANEL IPSIPS Panel1 PANEL IPSIPS Panel2

PANEL IPSIPS Panel

The LG IPS Monitor ensures stunning picture quality, offering sharper and more vivid and accurate colors from any angle.
Contact Information1 Contact Information2

Contact Information

For any inquiries about purchasing or technical supports, please find your local office in your country. If there is no listing for your country, please contact the nearest country to yours.
Learn More
Close
Feature
  • Size (Inch / cm)
    23" / 58cm
    Panel Type
    IPS
  • Color Gamut (CIE1931)
    72%
    Color Bit
    8bit (6bit+A-FRC)
  • Color Depth(Number of Colors)
    16.7M
    Pixel pitch(mm)
    0.2652(H)mm x 0.2652(V)mm
  • Aspect Ratio
    16:9
    Resolution
    1,920 x 1,080
  • Brightness(Typ.)
    250 cd/m²
    Contrast Ratio(Original)
    1000:1
  • Contrast Ratio (DFC)
    5M:1
    Response Time_Typ. (on/off)
    No
  • Response Time_Typ. (GTG)
    14ms (None OD Fuction)
    Viewing Angle(CR≥10)
    R/L 178 (Typ.), U/D178 (Typ.)
  • (CR≥5)
    No
    Lamp Q'ty
    No
  • Inverter(with/without)
    without
    Surface Treatment(Glare/non Glare)
    non Glare
Jack Input/Output
  • D-Sub
    Yes
    DVI-D
    No
  • Composite
    Yes (commonly used with component)
    S-Video
    No
  • Component
    Yes (commonly used with composite)
    HDMI (Ver.)
    Yes (HDMI1.3 2EA)
  • DisplayPort (Ver.)
    No
    SCART
    No
  • CI Slot
    No
    USB (Ver.)
    Yes (USB2.0)
  • Others (Signal Input)
    USB Media (Music/Picture), RS232C (Service only)
    [ Jack Location ] (Signal Input)
    Side (USB/HP Out, RS232C)
  • RCA(Audio Input)
    Yes
    PC Audio In
    No
  • Mic In
    No
    Others (Audio Input)
    No
  • [ Jack Location ] (Audio Input)
    Rear
    RCA (Audio Output)
    No
  • Headphone Out
    Yes
    Speaker Out
    No
  • Optical out
    No
    Others (Audio Output)
    No
  • [ Jack Location ] (Audio Output)
    Side
    Digital
    ATSC
  • Analog
    NTSC
    Others (Tuner Input)
    No
  • [ Jack Location ] (Tuner Input)
    Rear
    LAN
    No
  • Wireless
    No
    Bluetooth
    No
  • Others
    No
    [ Jack Location ] (Network)
    No
Speaker
  • Type
    Internal
    Audio output
    5W x 2
  • Others
    No
Power
  • Type (w/ Watt)
    Adapter (40W)
    Input
    100~240V
  • Output (for Speaker)
    No
    Normal On (EPA6.0)
    No
  • Normal On (typ.)
    29W
    Power Save/Sleep Mode (Max)
    1W
  • DC Off (Max)
    0.5W
Frequency
  • H-Frequency (D-sub)
    30 ~ 83kHz
    V-Frequency (D-sub)
    56 ~ 75Hz
  • H-Frequency (HDMI)
    30 ~ 83kHz
    V-Frequency (HDMI)
    56 ~ 75Hz
Resolution
  • D-sub
    1,920 x 1,080
    HDMI (PC)
    1,920 x 1,080
  • HDMI (Video)
    480p, 576p 720p, 1080i, 1080p
    Scart
    No
  • Component
    480i, 576i, 480p, 576p 720p, 1080i, 1080p
    Composite
    480i
Control Key
  • Key Number (Power Key Included)
    8 Key
    Key Type
    Touch
  • LED Color (On mode)
    Off
    LED Color (Power save mode)
    Amber
  • LED Color (Standby)
    Red
    [ Key Location ]
    Front
OSD
  • Country
    US, Canada, Mexico
    Number of Language
    3 Language(English, Spanish, French)
Special Feature
  • sRGB
    No
    DDC/CI
    No
  • HDCP
    Yes
    Intelligent Auto
    Yes
  • Remote Control
    Yes
    Key Lock
    Yes
  • Plug & Play
    DDC2B
    EPG
    No
  • Teletext
    No
    Caption (Hard of Hearing)
    Yes
  • Audio Description (Visual Impaired)
    No
    Flicker Safe
    No
  • Reader Mode
    No
    Gaming Mode
    No
  • Divx HD player (USB Media Player)
    No (Music, Picture)
    PIP
    No
  • Time Machine Ready
    No
    Bluetooth Audio
    No
  • MaxxAudio
    No
    Screen Share
    No
  • Smart Energy Saving
    Yes
    Motion Eye Care
    Yes
  • DLNA
    No
    Picture Mode
    Vivid/ Standard/ APS/ Cinema/Game/Photo/Expert1/Expert2
  • F-engine
    No
    Triple XD engine
    Yes
  • ARC-PC
    16:9, 4:3
    ARC-Video
    16:9 - DTV, ATV, AV, Component, RGB, HDMI1/2 Just Scan – DTV, Component, HDMI1/2(720p↑) Original - DTV, ATV, AV, HDMI1/2 Full Wide - DTV, ATV, AV 4:3 - DTV, ATV, AV, Component, RGB, HDMI1/2 14:9 - DTV, ATV, AV, Component, HDMI1/2 Zoom - DTV, ATV, AV, Component, HDMI1/2 Cinema Zoom - DTV, ATV, AV, Component, HDMI1/2
  • SRS
    No
    Virtual surround
    No
  • Dolby Surround
    No
    AVL (Auto Volume)
    Yes
  • Equalizer
    Yes
    Auto / Manual Clock
    Yes
  • On/ Off Time
    Yes
    Sleep Timer
    Yes
  • Auto Off / Auto Sleep
    Yes
    Hotel Mode
    No
  • TV Linker
    No
    RS232C
    RS232C (Service only)
  • USB Cloning
    No
    Others1
    No
  • Others2
    No
Color
  • Front
    Black Glossy
    B/Cover
    Black Glossy
  • Stand
    Black Glossy
    Base
    Black Glossy
  • Others
    Black Glossy
Stand
  • Base Detchable
    Detachable
    Tilt (Angle)
    -5° ~ 20° Degree
  • Swivel (Angle)
    None
    Height (mm)
    None
  • Pivot
    None
    Dual Hinge
    None
  • Others
    None
Size/Weight
  • Set (with Stand)(Dimension)
    533 x 198.2 x 423.7
    Set (without Stand)(Dimension)
    533 x 68.4 x 328.3
  • Box (Dimension)
    602 x 395 x 140
    Wall Mount
    75 x 75
  • Set (with Stand)(Weight)
    3.6
    Set (without Stand)(Weight)
    3.4
  • Box (Weight)
    5.1
    Individual (20ft/40ft/40ft HC)
    816 / 1,666 / 1,960
  • Pallet (20ft/40ft/40ft HC)
    675 / 1,500 / 1,800
Wrap
  • Packing Material
    EPS
    Stacking Type
    Face Down
  • Stand Packing Type
    Base Detach
    Box Printing Type
    Flexo
  • Handle
    Yes
Standard
  • TCO 6.0
    No
    ERP
    No
  • UL / cUL
    Yes
    TUV-GS
    No
  • TUV-Ergo
    No
    TUV-Type
    No
  • EPEAT
    No
    SEMKO
    No
  • FCC-B
    Yes
    CE
    No
  • EPA (Energy Star)
    Yes
    KC/KCC
    No
  • CCC(China)
    No
    VESA wall mount standard
    VESA Compatible (75*75) Only with respect to screw mounting interface dimension and mounting screw specifications
  • ISO13406-2
    No
    ISO9241-307
    No
  • Medical Certificatioin
    No
    Wndows
    No
  • Others
    No
Accessory
  • Power Cord
    Yes
    D-Sub cable
    Yes
  • DVI-D cable
    No
    HDMI cable
    No
  • RF cable
    No
    PC Audio cable
    No
  • RCA 3Line (Gender)
    No
    RCA 5Line (Gender)
    No
  • Remote Controller
    Yes
    Others
    No
  • Datasheet
    • 2016 TV Monitor_Leaflet.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
