55EF5F-L

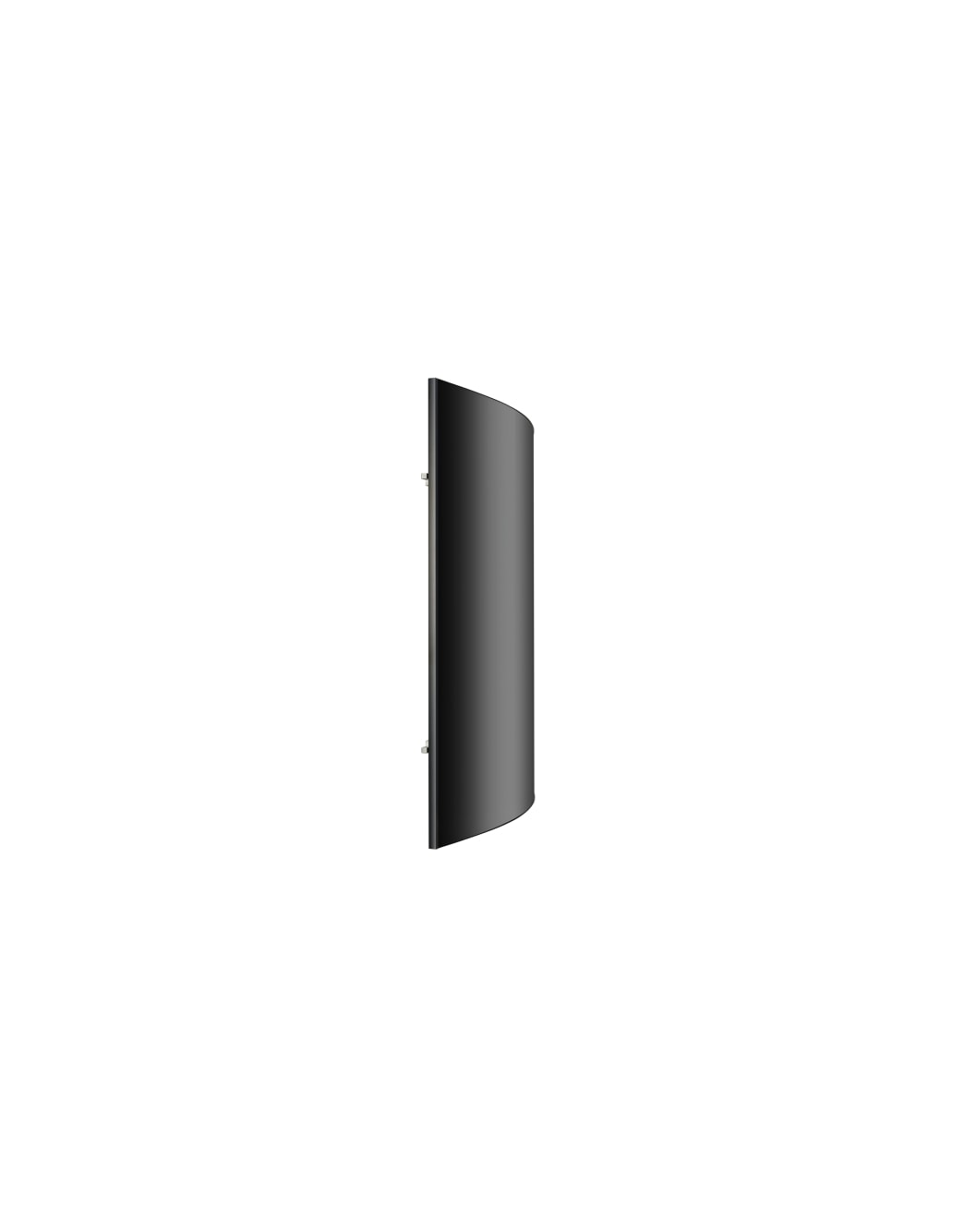

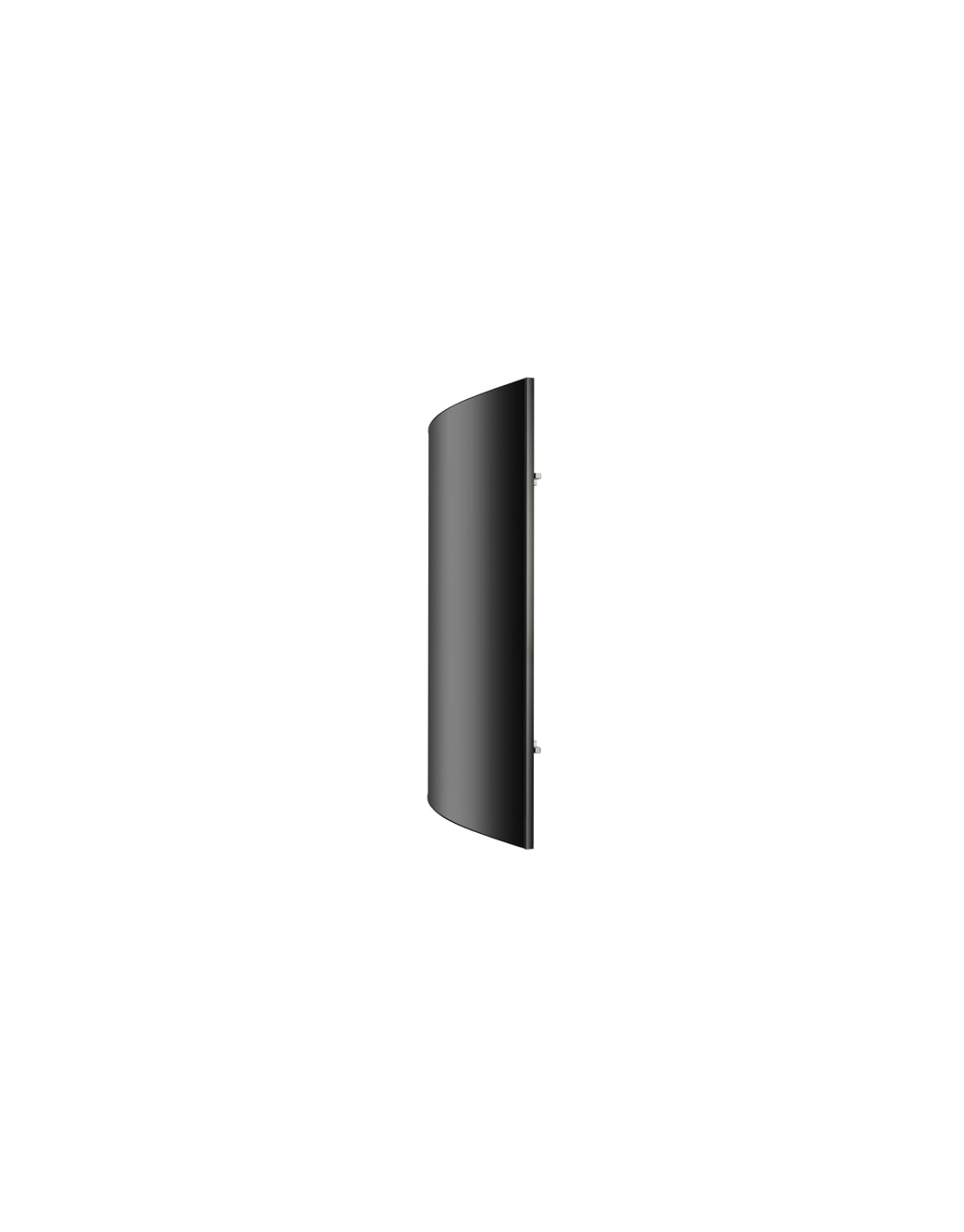

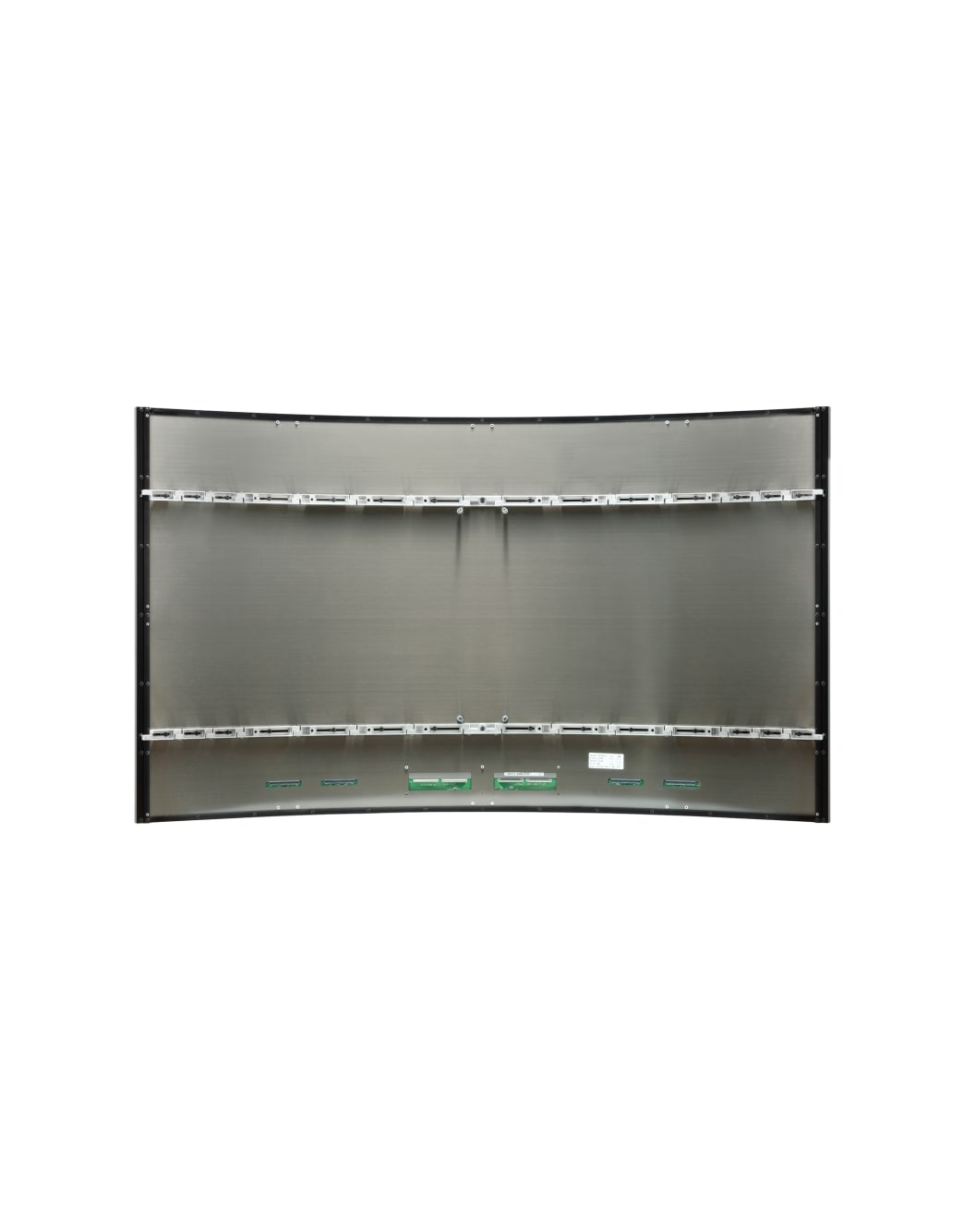

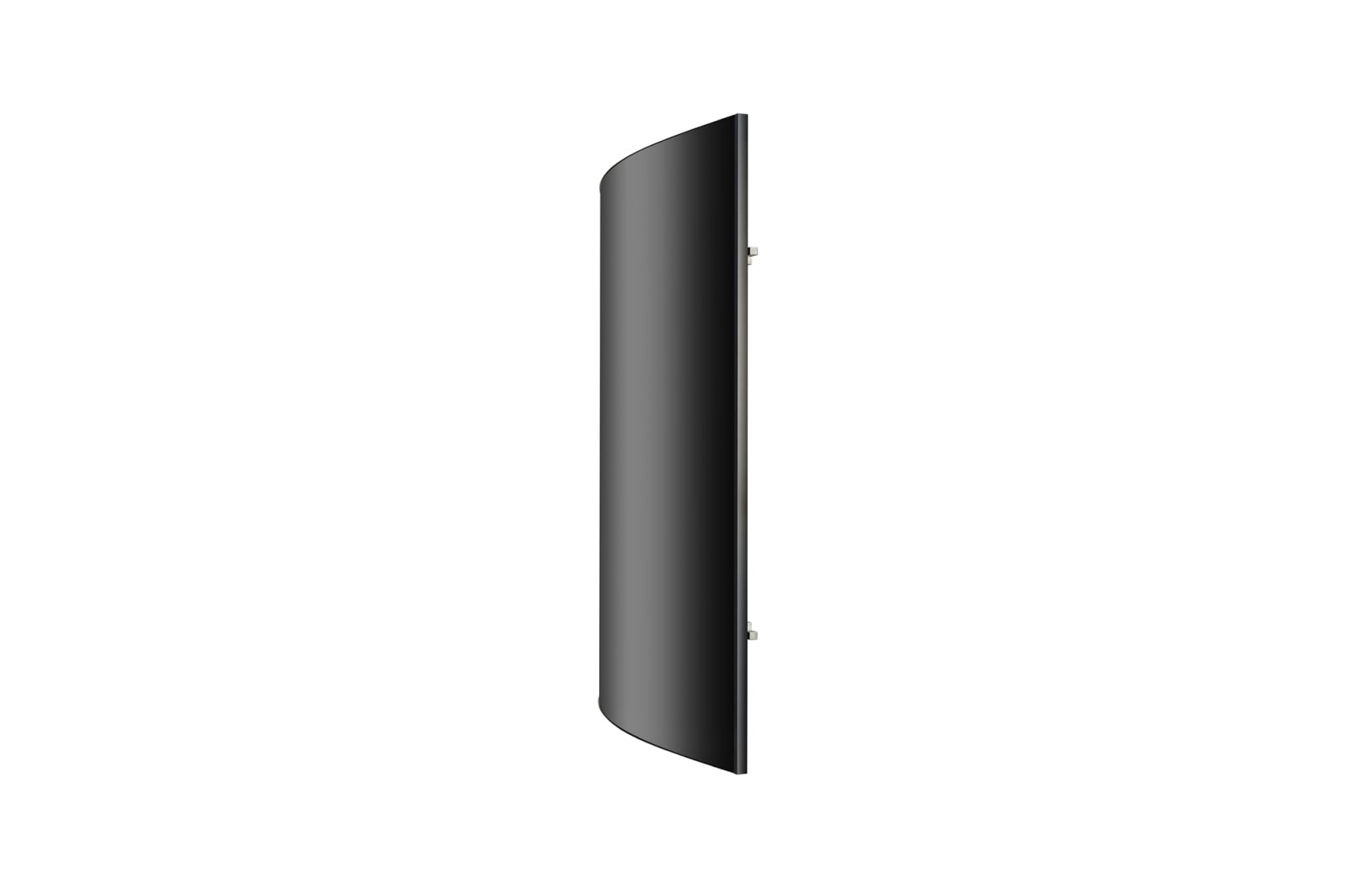

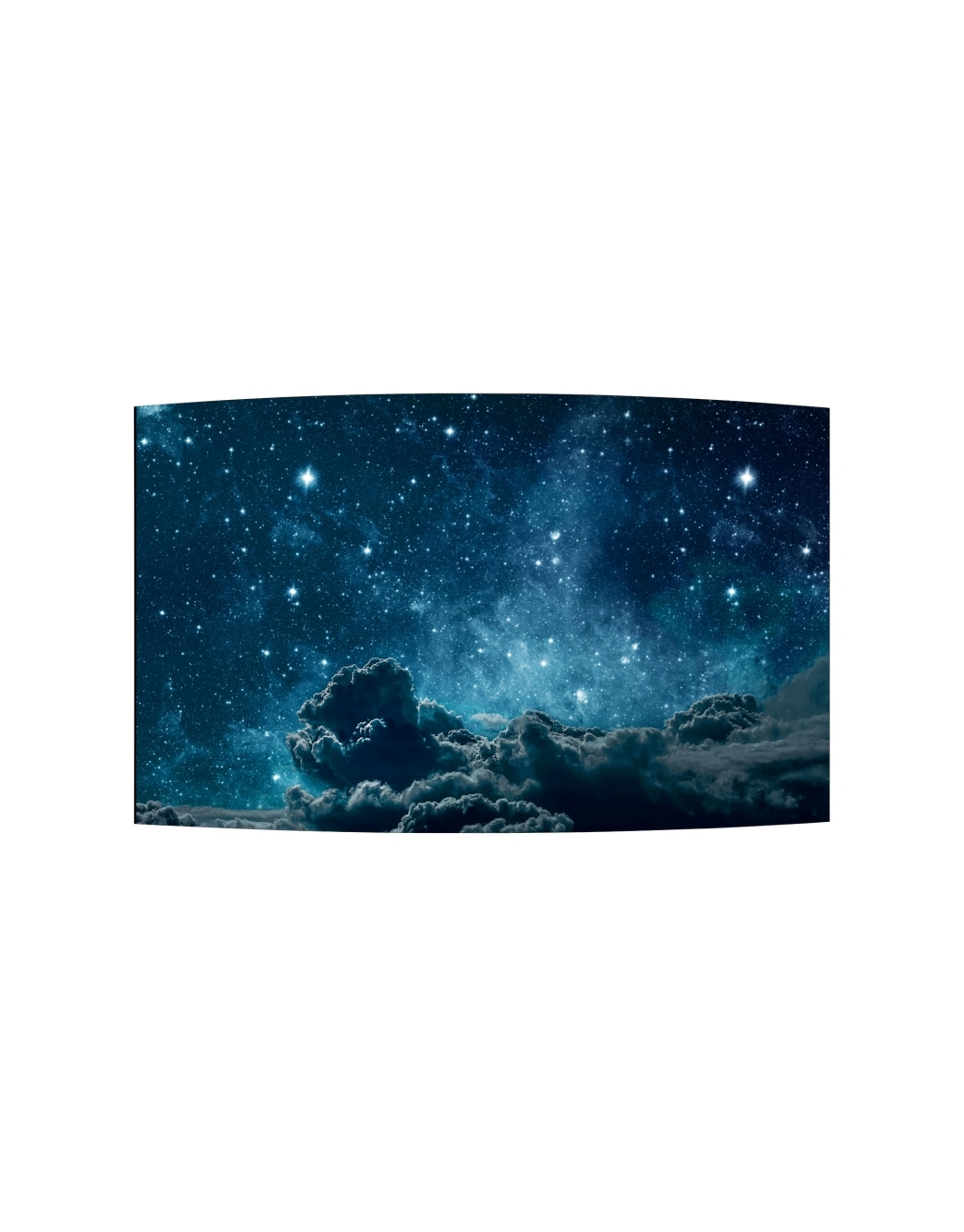

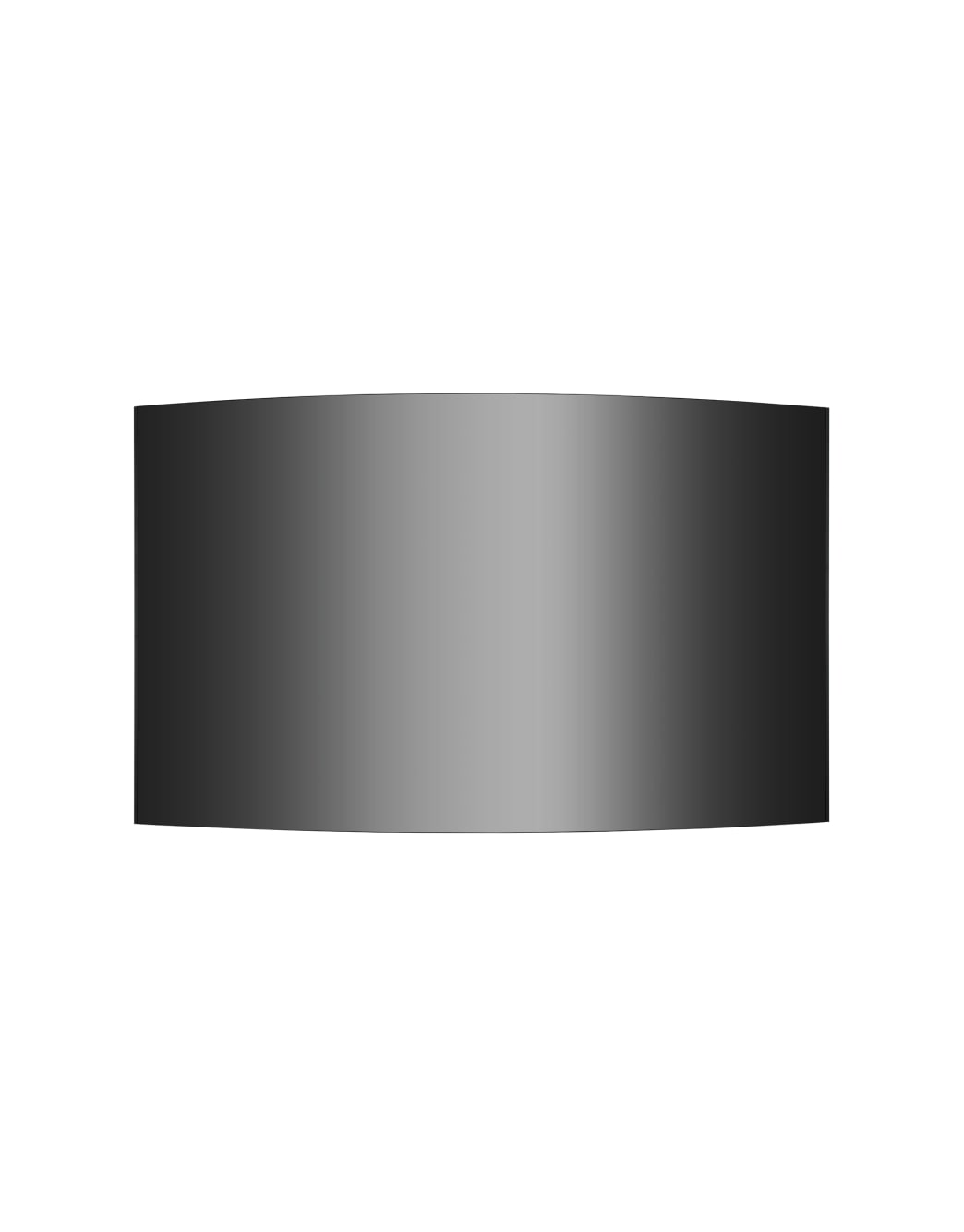

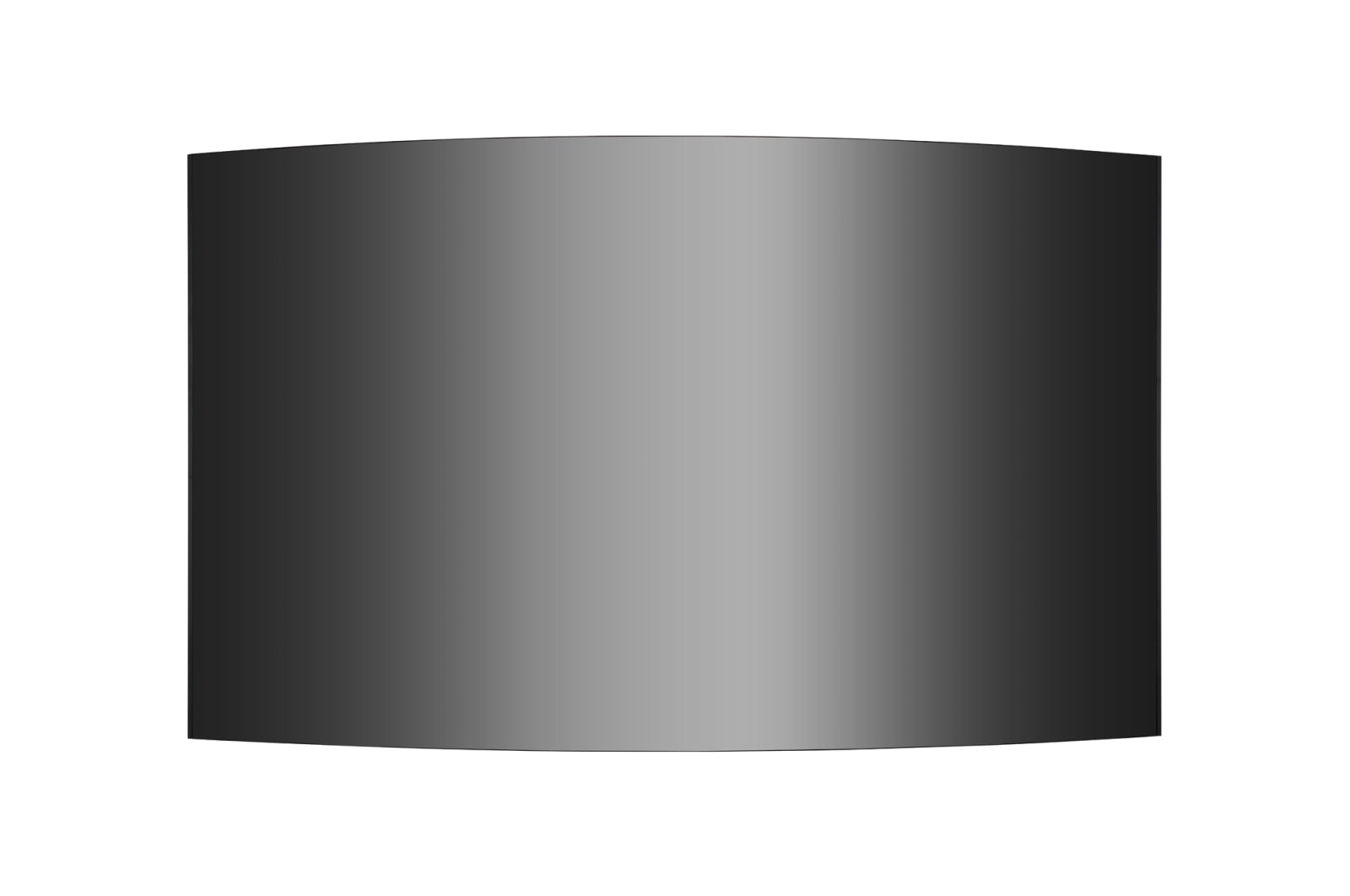

Flexible Curved Open Frame
55"
  • Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)
  • Depth: 12.4 mm (Head Only)

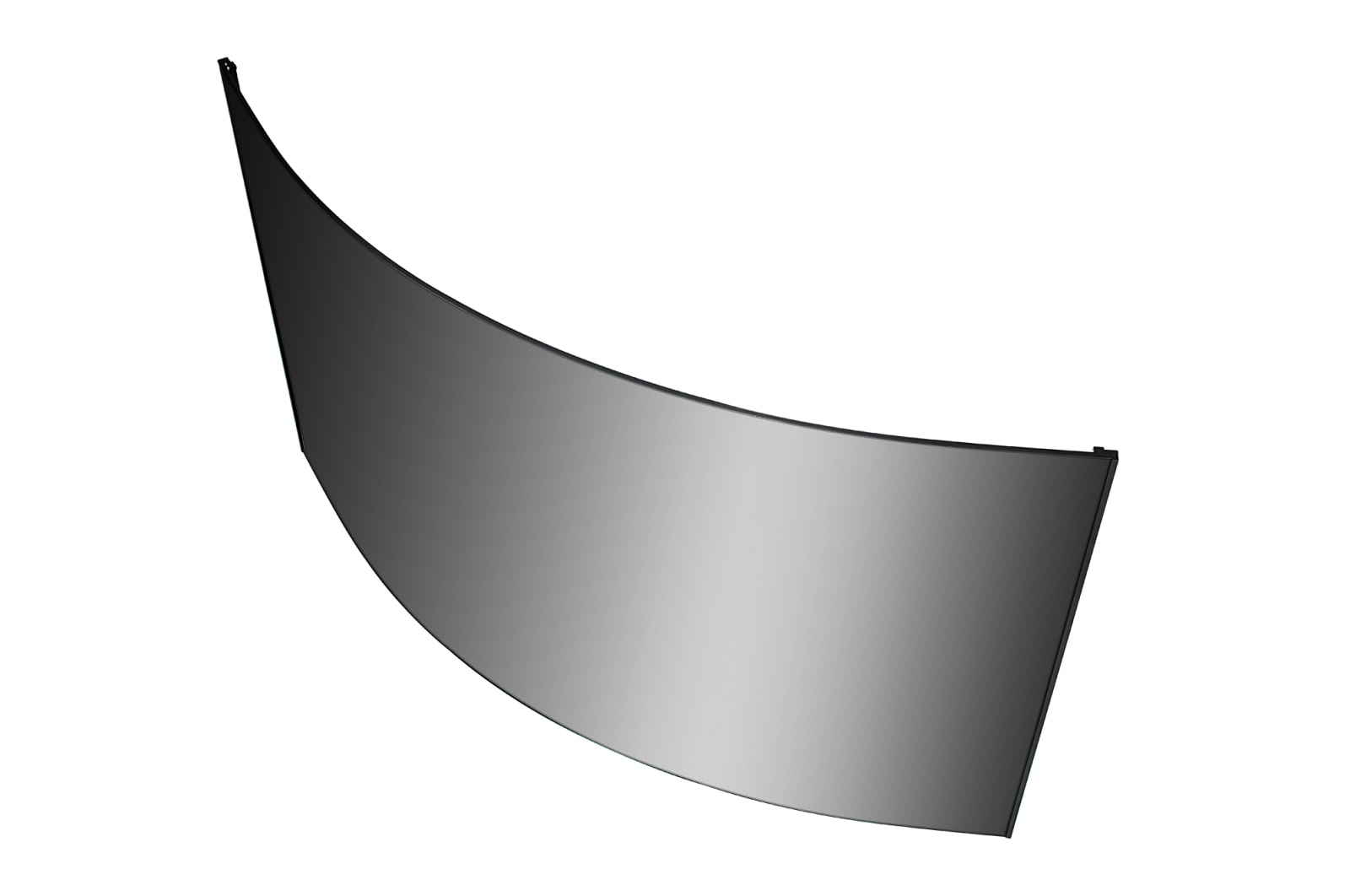

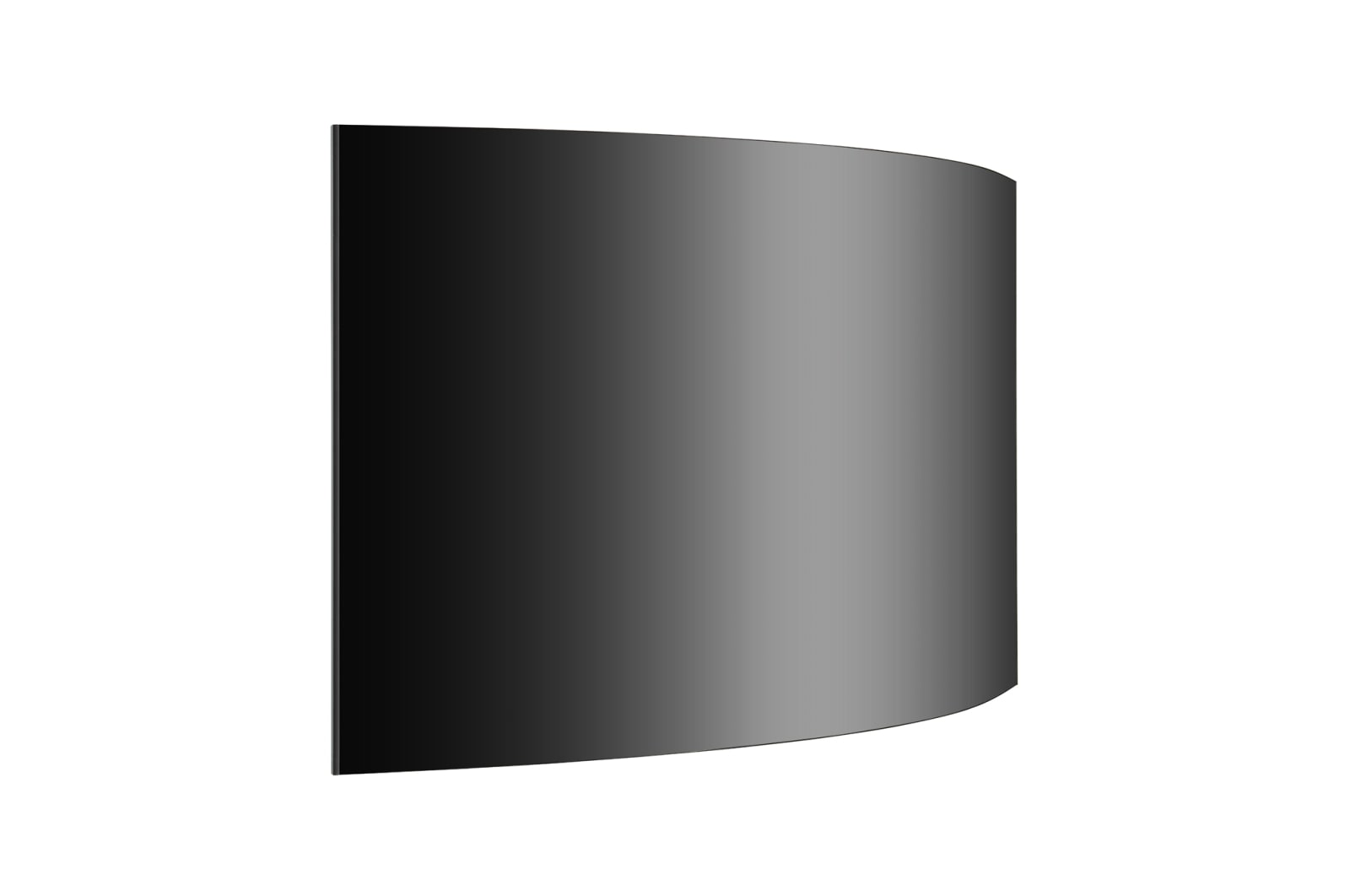

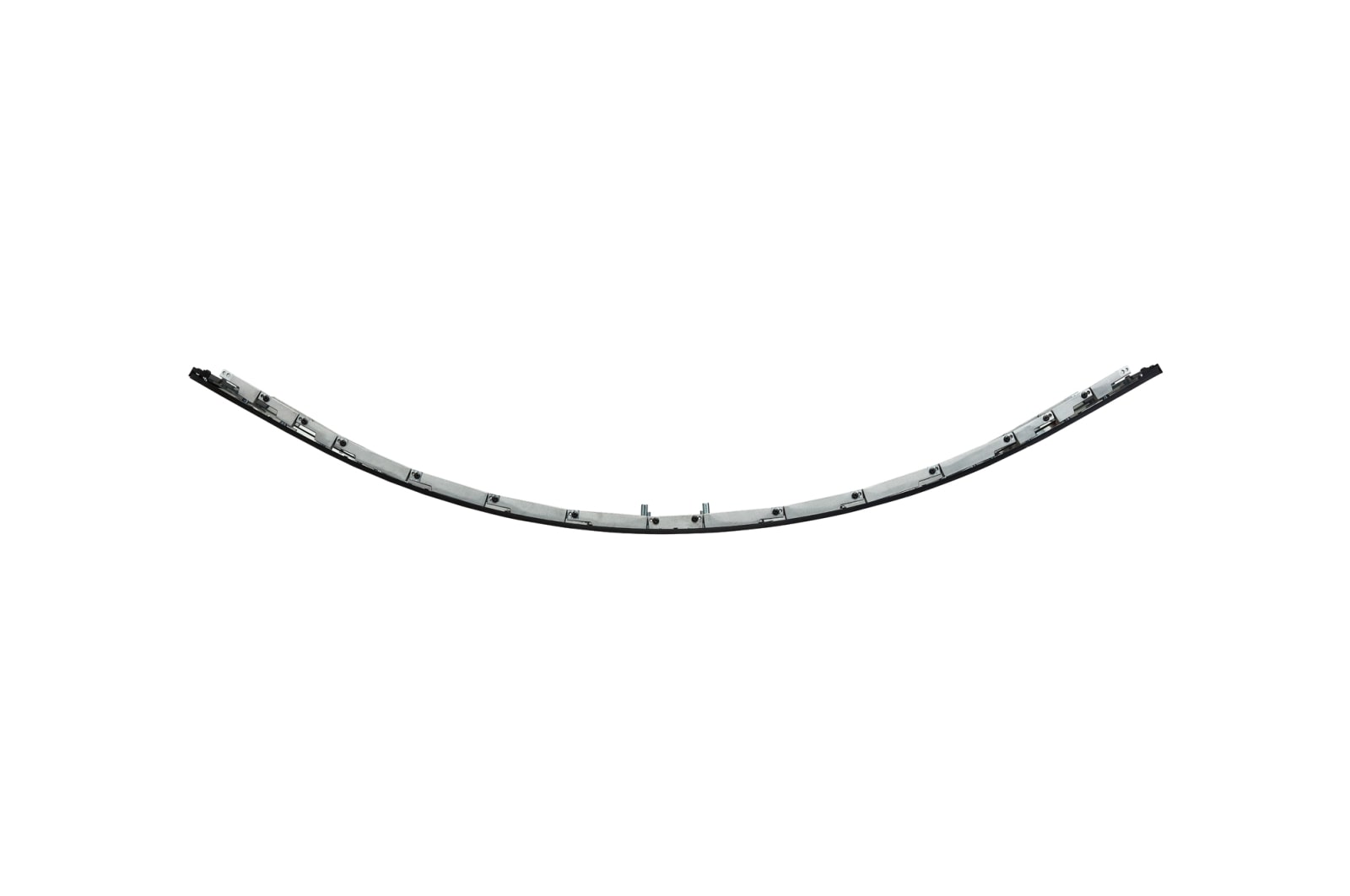

  • Curvature: ~1,000R(Concave/convex)
  • Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
Flexible Curved Open Frame
MSRP $

Panel

  • Screen Size
    55"
    Panel Technology
    OLED
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400
    Brightness (APL100%, Typ., cd/m²)
    150
  • Contrast Ratio
    150,000 : 1
    Viewing Angle (H x V)
    178 x 178
  • Life Time (Typ.)
    30,000 Hrs
    Operation Hours
    18 Hrs / 7 Days (Moving Video Only)
  • Orientation
    Landscape & Portrait

Connectivity

  • Input
    HDMI, DP, USB 2.0 (2)
    Output
    DP, Audio (Fixed/Off/Variable)
  • External Control
    RS232C In/out, RJ45 In/out, IR In

Physical Specification

  • Bezel Width (T/B/L/R)
    0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
    5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)
    Monitor Dimension (W x H x D)
    1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)
    1,224.9 x 696.2 x 12.4 mm (Head Only)
    Signage Box: 413 x 353 x 57.3 mm
  • Weight
    6.6 kg (Head)
    Signage Box: 3.5 kg
    Carton Dimensions (W x H x D)
    1,350 x 837 x 250 mm
  • Packed Weight
    17 kg (Head)

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    309 W / 318 W (Based on 8 color bar)

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC

Media Player Compatibility

  • OPS type compatible
    No

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control
  • Signage365Care
    Yes

Accessories

  • Basic

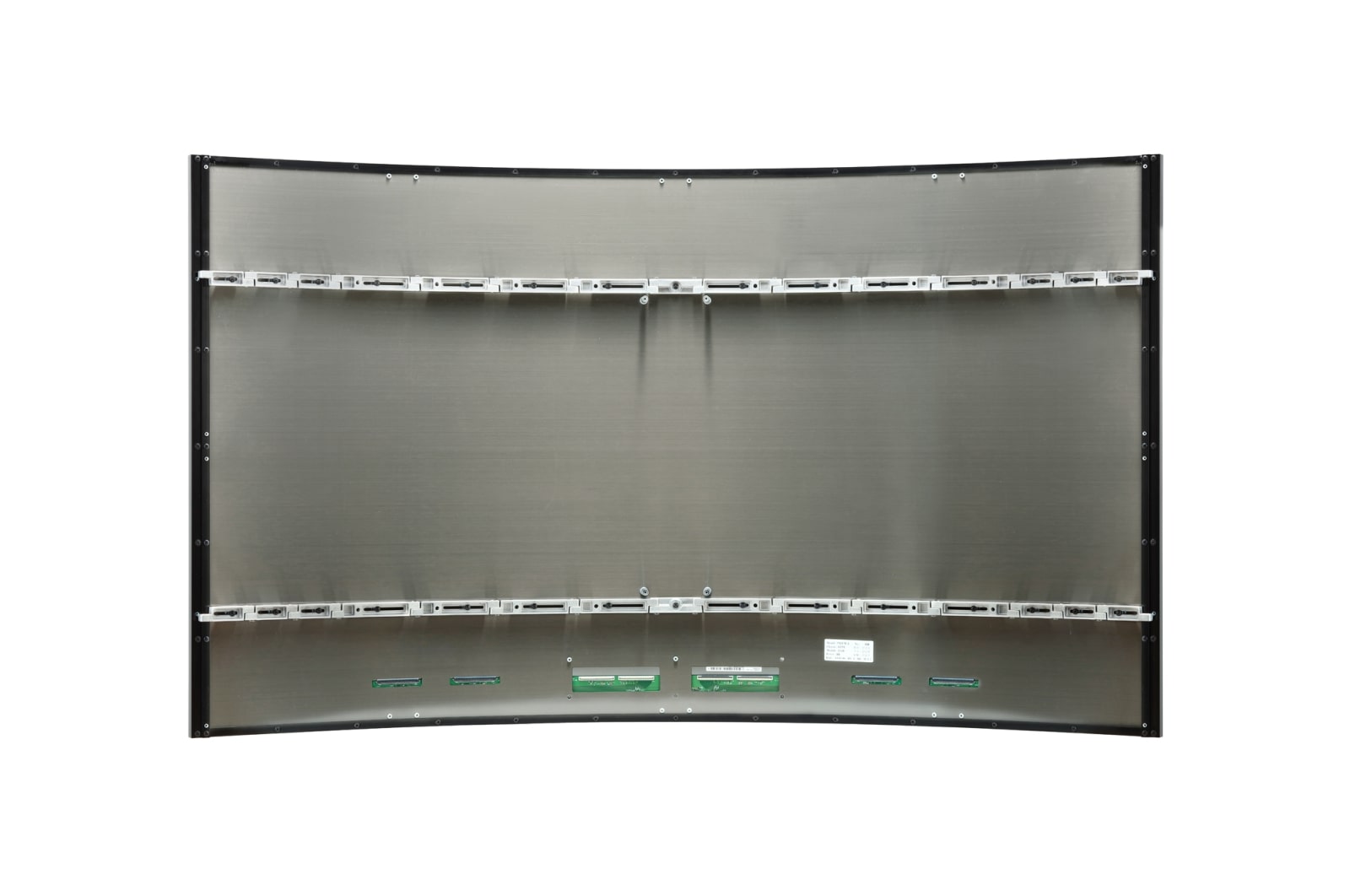

    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, RS232 Cable(4P-4P), LC Cable(VLC), Tapes, Screws, Shield Cover Ass'y, Tiling Set Fixers, Flex Bars
    Optional
    Curvature Calibrator (ACC-CC-EF5E)
