Transparent OLED Signage
Inquiry to Buy

See the unseen,
LG Transparent OLED

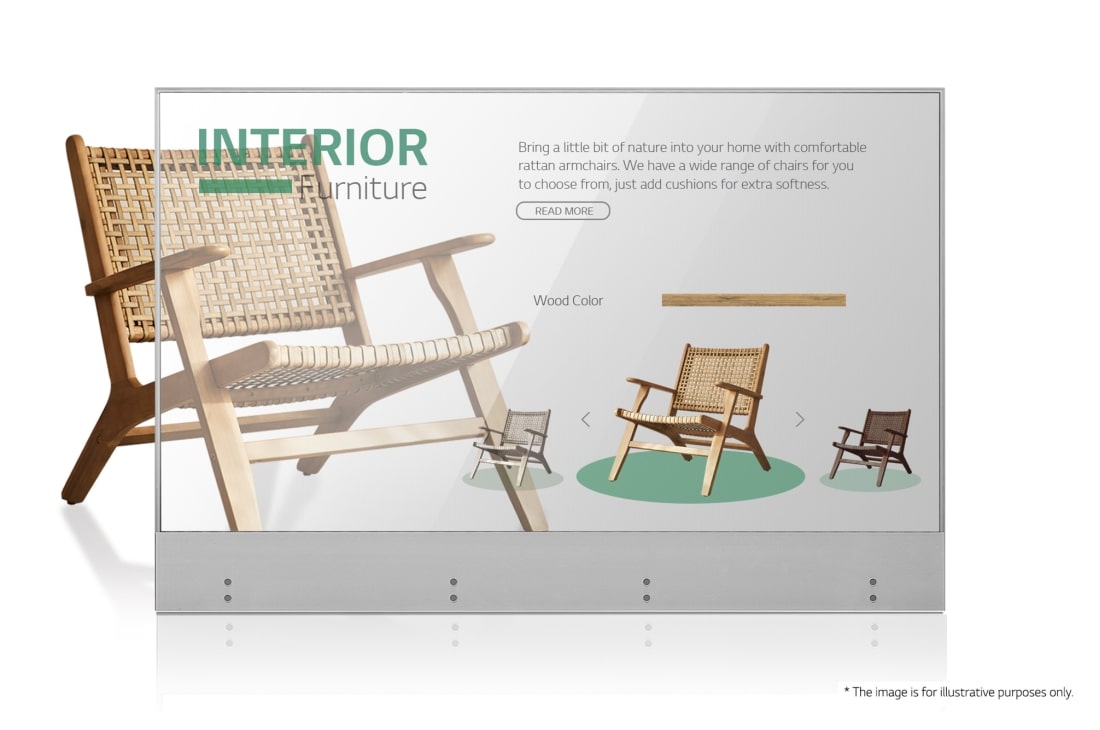

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.
People analyze their work using the transparent OLED screens installed on the wall of the lobby. People analyze their work using the transparent OLED screens installed on the wall of the lobby.
* All images are for illustrative purposes only.
Information about structures is displayed on the transparent OLED screens which are set up in front of the miniature structures. Information about structures is displayed on the transparent OLED screens which are set up in front of the miniature structures.

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.
* The Year of Measurement : 2018
Measurement Method : Checking Transparency Using a Hazemeter
Conducted by : LGD - internal testing

** Based on LG’s WFB series.
A man is being shown information and photos of the dessert menu on the transparent OLED screens. A man is being shown information and photos of the dessert menu on the transparent OLED screens.

Accurate
and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
A thin and transparent tempered glass is attached to the Transparent OLED screen. A thin and transparent tempered glass is attached to the Transparent OLED screen.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.
* Optically Clear Adhesive
A woman reviews her work by looking at it on the transparent OLED screens installed on the office windows. A woman reviews her work by looking at it on the transparent OLED screens installed on the office windows.

Expandable Design
(2×N Tiling)

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
* Installation accessories are not supplied by LG.
Close
Panel
  • Screen Size
    55"
    Panel Technology
    OLED
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness
    150/400nit (APL 100%/25%, Without Glass)
  • Contrast Ratio
    150,000 : 1
    Dynamic CR
    No
  • Color gamut
    BT709 120 %
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit(R), 1.07Bilion colors
    Response Time
    1ms (G to G), 8ms (MPRT)
  • Surface Treatment (Haze)
    Hard coating (2H)
    Operation Hours (Hours / Day)
    18 / 7 (Moving Content Only)
Connectivity
  • Input
    HDMI (1, HDCP 1.4), DP (1, HDCP 1.3), RS232C IN , RJ45(LAN), IR IN (1,External IR Receiver,) USB2.0 Type A(2)
    Output
    DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45(LAN)
Mechanical Specification
  • Bezel Width
    T/R/L/B : 7.9/7.9/7.9/121.7mm
    Weight (Head)
    11.6Kg (Head), 3.4Kg (Signage Box)
  • Monitor Dimension (W x H x D)
    1225.5 x 810.1 x 4.9mm (Head)
    782.8 x 238.4 x 34.7mm (Signage Box)
    VESA™ Standard Mount Interface
    No
  • Protection Glass
    Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective (Film), Shatter-Proof
Feature
  • HW
    Temperature Sensor
    SW
    Fail over, Screen Rotation, External Input Rotation, Tile Mode Setting,
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    171W (IEC 62087)
    Max.
    280W
  • Typ. / Max.
    250 W / 280 W
    BTU (British Thermal Unit)
    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)
Sound
  • Speaker
    No
Certification
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea
    Optional
    Stand (ACC-S-EW5F, 2 Pole)
  • Datasheet
    • 55EW5G-V_Datasheet(low)_LG T-OLED_210325.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
