AMP-19K

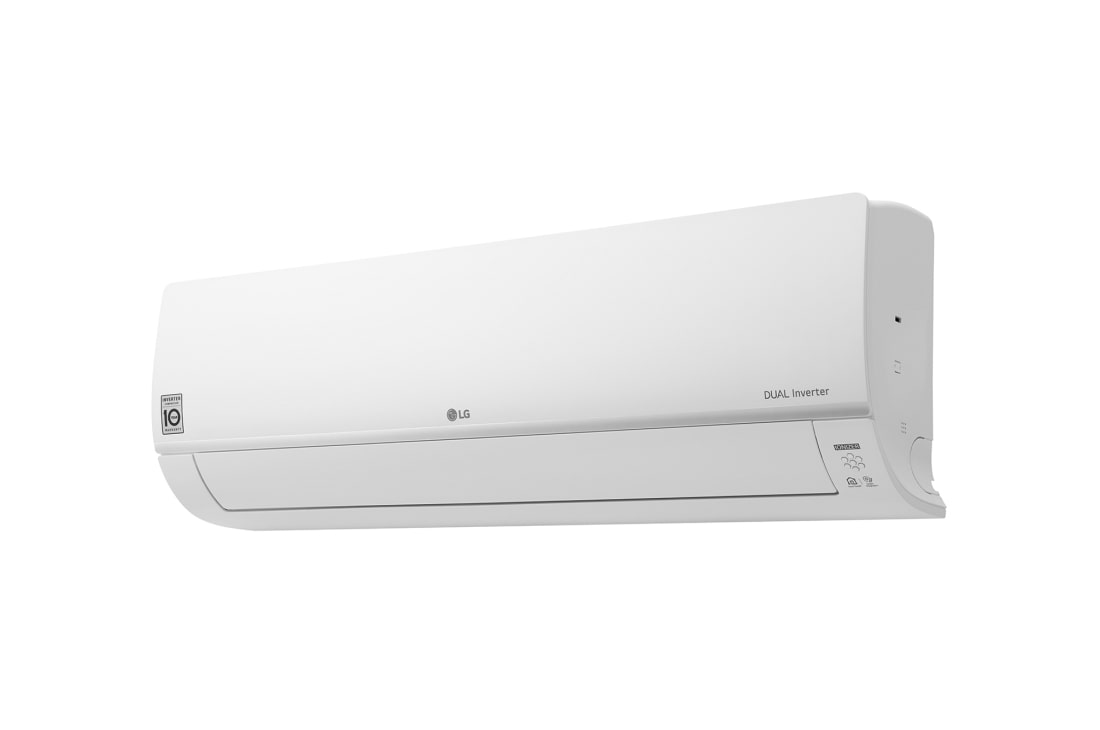

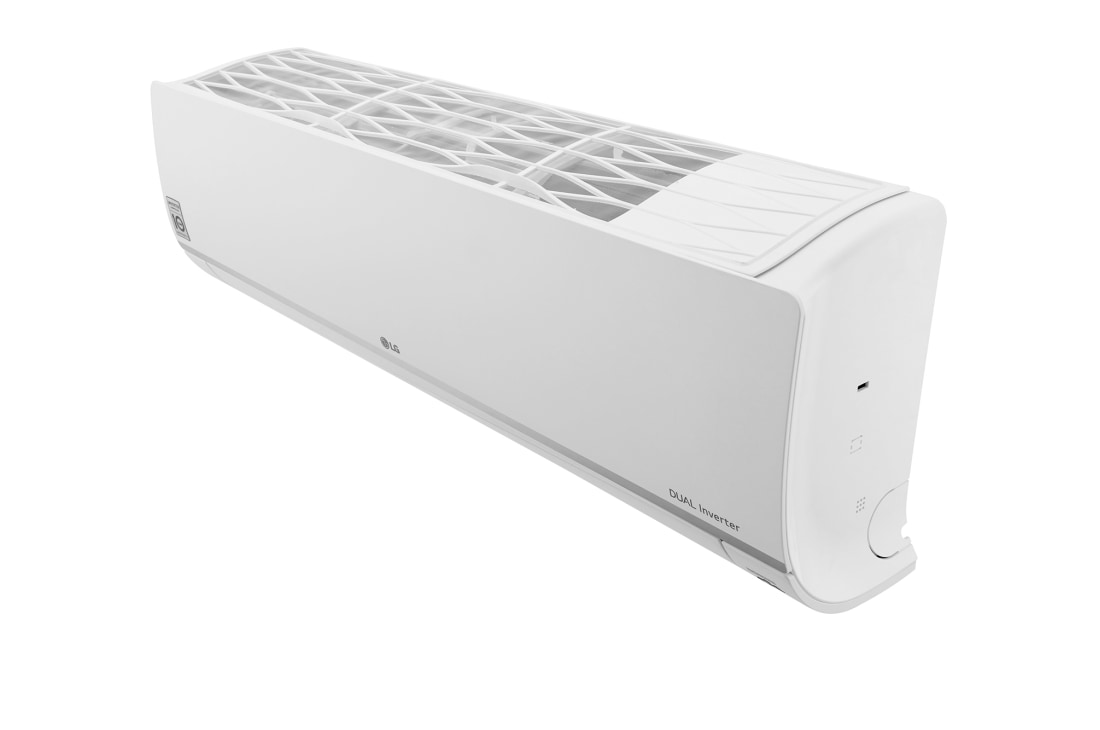

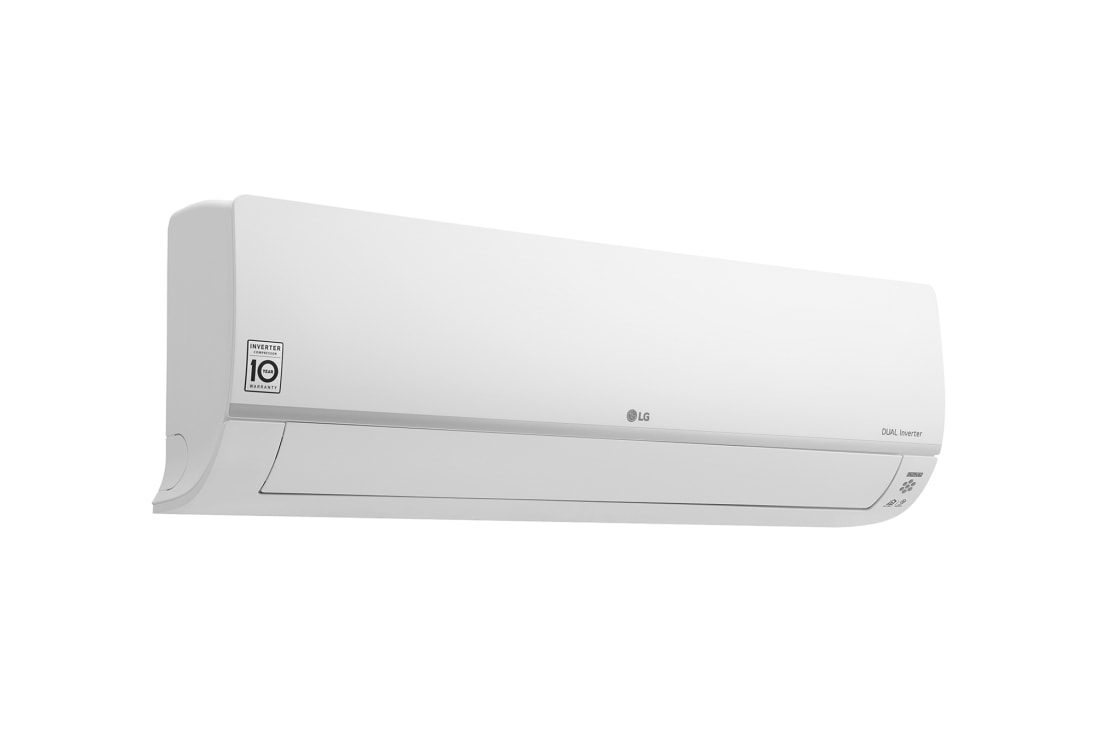

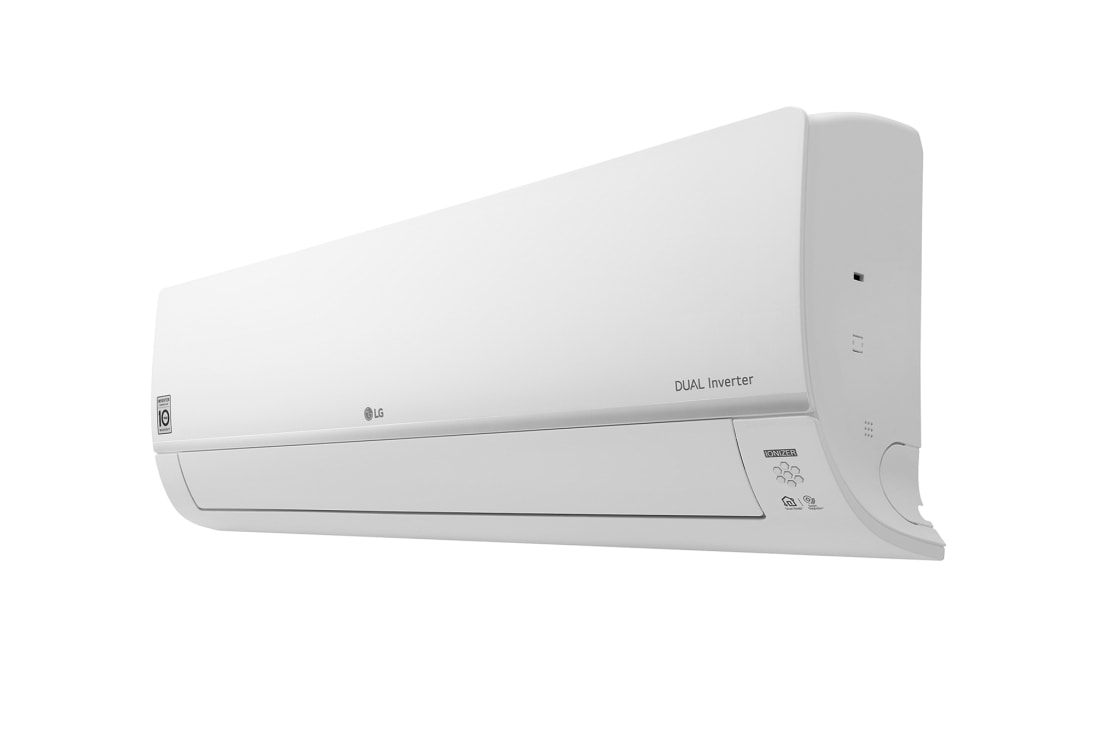

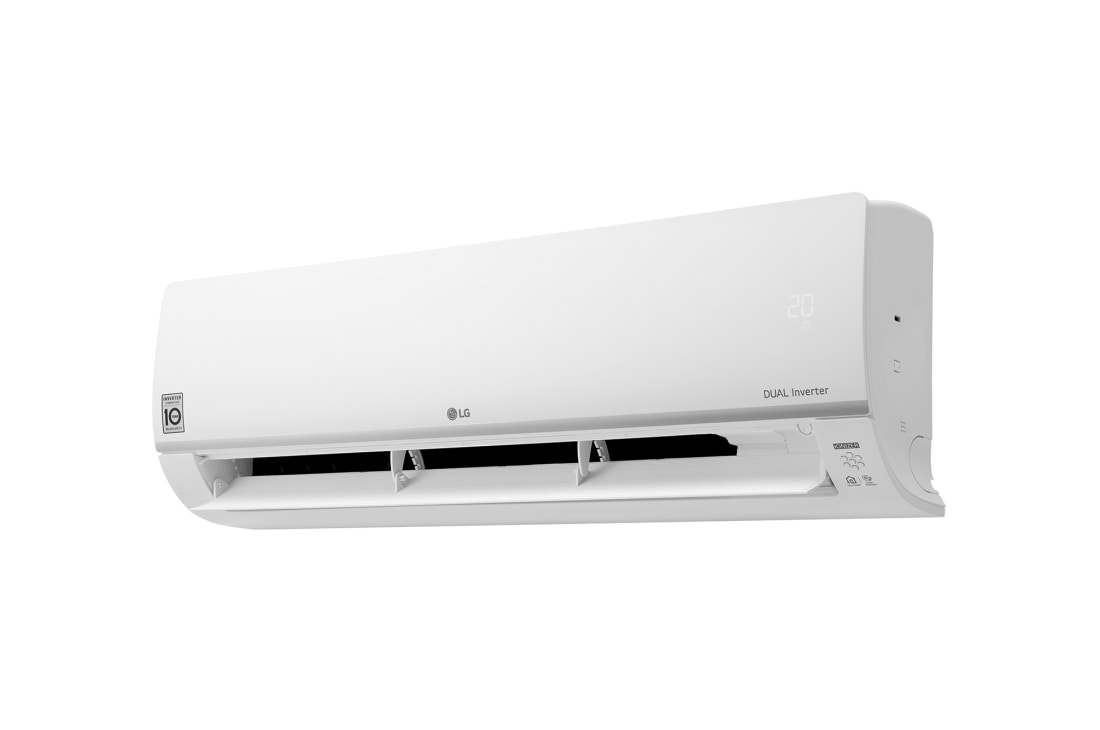

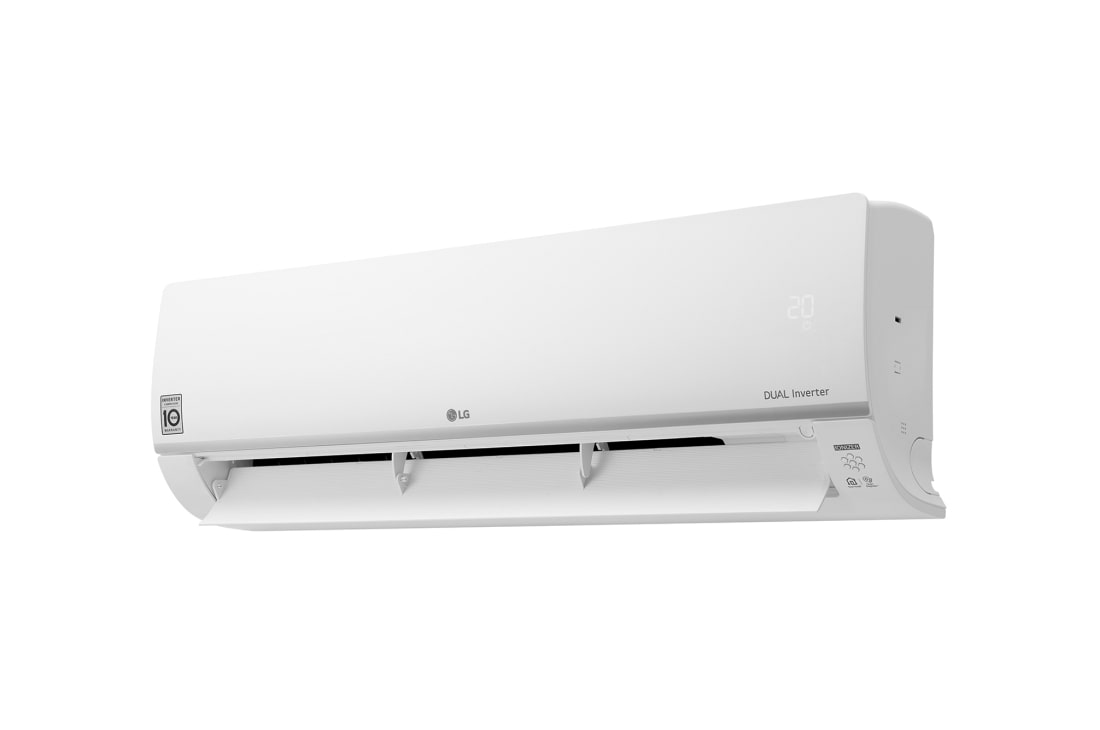

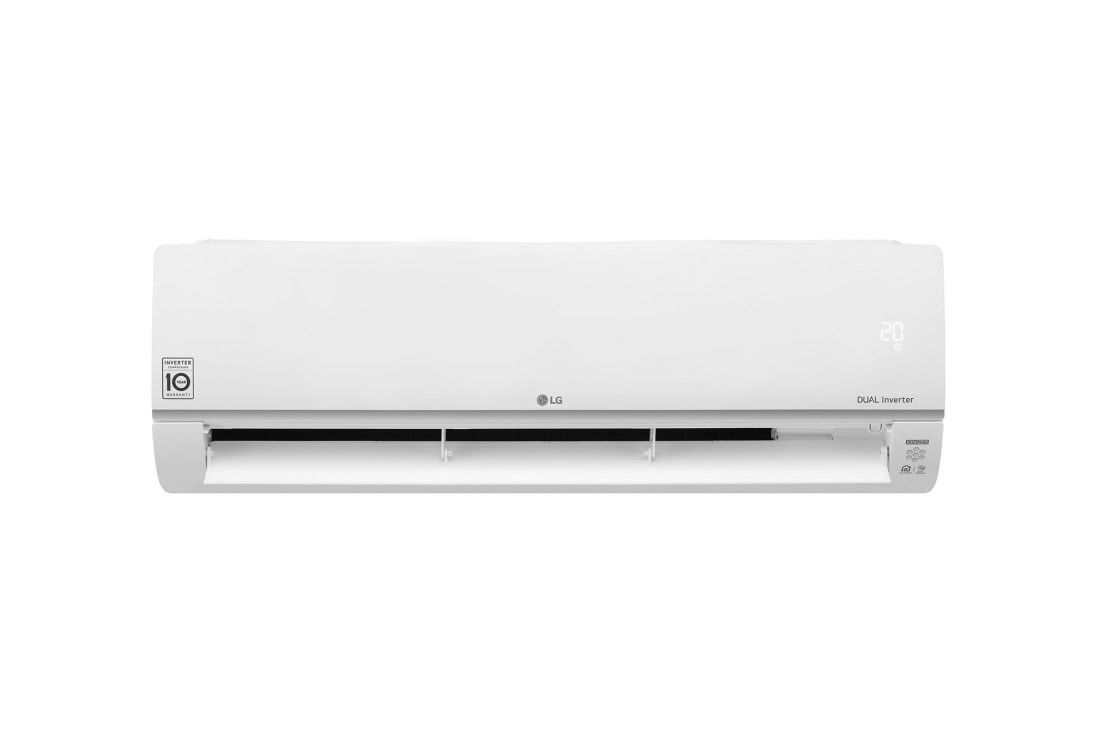

DUALCOOL Inverter AC 1.5 Ton, I Control Ampere, Energy Saving, Fast Cooling
  • Energy Efficient Control (40%, 60%, 80%)
  • Only Available in Iraq
  • Ampere Control up till 8, 6 or even 4 Amperes
  • Plasmaster Ionizer
  • 10 Years Warranty on Dual Inverter Compressor™
  • Wifi

component-OBScountrySelectDesc

DUALCOOL Inverter AC 1.5 Ton, I Control Ampere, Energy Saving, Fast Cooling

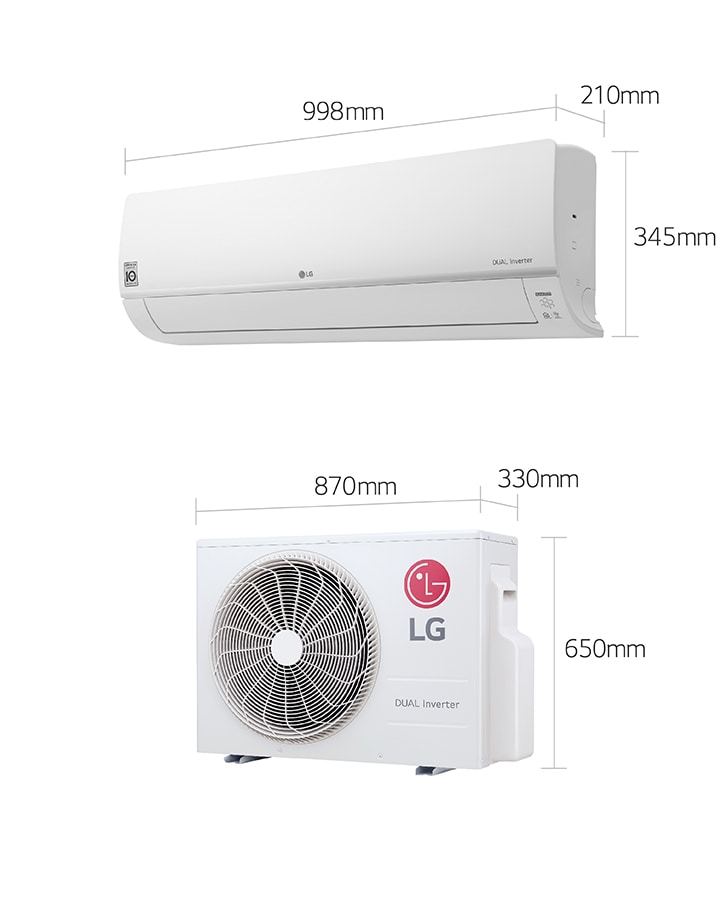

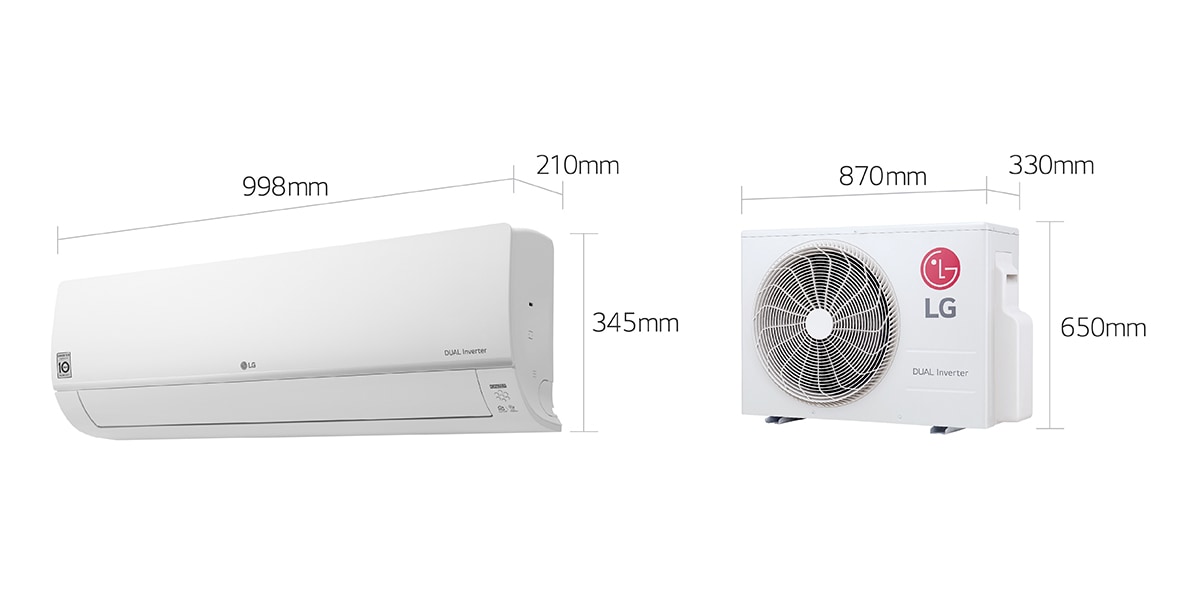

Dimensions

Summary

  • Capacity
    1.5 Ton
  • Dimension
    998 x 345 x 210
  • MAIN TECHNOLOGY
    I-CONTROL AMPERE
  • ADDITIONAL BENEFIT
    Durability (65℃ Max. Temp.)

GENERAL

  • Cooling Capacity (T1) (kW)
    5.27
    Cooling Capacity (T1) (Btu/h)
    18,000
  • Cooling Capacity (T3) (kW)
    4.48
    Cooling Capacity (T3) (Btu/h)
    15,300
  • Heating Capacity (kW)
    6.01
    Heating Capacity (Btu/h)
    20500
  • Power Input (T1) - Rated / Max (W)
    1,490 / 2,800
    Power Input (T3) - Rated (W)
    1,754
  • Power Input (Heating) - Rated / Max (W)
    1,665 / 2,800
    Running Curent (T1) - Rated / Max (A)
    6.7 / 14.00
  • Running Curent (T3) - Rated (A)
    8.20
    Running Curent (Heating) - Rated / Max (A)
    7.5 / 14.00
  • EER(T1/T3) (W/W)
    3.54 / 2.56
    EER(T1/T3) ((Btu/h)/W)
    12.08 / 8.72
  • COP (W/W)
    3.61
    Power Supply (Ø , V , Hz)
    1Ø, 220-240V, 50Hz
  • Power Factor - Cooling (%)
    96.7
    Power Factor - Heating (%)
    96.5
  • RPM - Cooling (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
    RPM - Heating (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
  • Air Flow Rate - Heating Indoor,Max (m3/min(CFM))
    19.5 (688)
    Air Flow Rate - Heating Outdoor,Max (m3/min(CFM))
    49 (1730)
  • Moisture Removal (l/h)
    2.5
    Sound Pressure Level (Indoor) - Cooling, Max / H / M / L / SL (dB(A)+1)
    - / 44 / 41 / 37 / 28
  • Sound Pressure Level (Indoor) - Heating, Max / H / M / L (dB(A)+1)
    - / 44 / 41/ 37
    Sound Pressure Level (Outdoor) - Cooling, Rated (dB(A)+1)
    52
  • Sound Pressure Level (Outdoor) - Heating, Rated (dB(A)+1)
    52
    Refrigerant & Charge (at 7.5 m) (g)
    R410A, 1400
  • Additional Refrigerant charge (g/m)
    20
    Compressor - Type
    Dual Inverter Compressor
  • Power and Transmission Cable (N x mm2)
    4*1.0 ( including Earth)
    Power Supply Cable (N x mm2)
    3*2.5
  • Piping Connections - Liquid Side (mm(in))
    6.35 (1/4)
    Piping Connections - Gas Side (mm(in))
    12.7 (1/2)
  • Drain Hose(O.D, I.D) (mm(in))
    21.5,16 (0.85,0.62)
    Dimension - Product dimensions (mm)
    998*210*345
  • Dimension - Indoor(W*H*D) (in.)
    39.3*8.3*13.6
    Dimension - Package dimensions (mm)
    1071*282*428
  • Dimension - Indoor(W*H*D) (inch)
    42*11.1*16.8
    Dimension - Product dimensions (mm)
    870*650*330
  • Dimension - Outdoor(W*H*D) (in.)
    34.3*25.6*13
    Dimension - Package dimensions (mm)
    1040*710*455
  • Dimension - Outdoor(W*H*D) (in.)
    40.9*27.9*17.9
    Net Weight - Indoor (kg(lbs))
    11 (24.3)
  • Net Weight - Outdoor (kg(lbs))
    43 (94.8)
    Set Weight - Indoor (kg(lbs))
    12.8 (28.2)
  • Set Weight - Outdoor (kg(lbs))
    47 (103.6)
    Operation Range - Cooling(Indoor) (°C (°F))
    18 ~ 32 (64.4 ~ 89.6)
  • Operation Range - Cooling(Outdoor) (°C (°F))
    18 ~ 54 (64.4 ~ 129.2)
    Operation Range - Heating(Indoor) (°C (°F))
    16 ~ 30 (60.0 ~ 86.0)
  • Operation Range - Heating(Outdoor) (°C (°F))
    -5 ~ 18 (23.0 ~ 64.4)
    Max. Piping Length (m(ft))
    30 (98.4)
  • Max. Elevation Dierence (m(ft))
    25 (82)

APPEARANCE

  • Indoor - Tool Code
    SK
    Indoor - Remote
    4 Way
  • Indoor - Remote Controller Type
    Wireless LCD
    AKB75415305
    Indoor - Grille Front Look
    Semi-R(silver)
  • Indoor - Display
    88 Display
    Outdoor - Tool Code
    U24A
  • Outdoor - Panel Type
    Steel
    Outdoor - Condenser Type
    Gold

FEATURE & FUNCTION

  • Ionizer - Plasmaster Ionizer
    Yes
    Pre-Filter (in Front Grille) - Anti bacteria air filter
    Yes (Top Filter)
  • Functions - Vane Horizontal
    Normal
    Functions - Temperature Control
    Thermistor
  • Functions - Auto Clean
    Yes
    Functions - Natural Wind
    Yes
  • Functions - Fan Speed (SH/H/MH/M/ML/L/SL)
    7
    Functions - Airflow Direction Control(up & Down)
    Auto
  • Functions - Airflow Direction Control(left & right)
    Auto
    Functions - Setting Temperature Range (Cooling (°C))
    16-30
  • Functions - Setting Temperature Range (Heating (°C))
    16-30
    Functions - Temperature Increment (°C)
    1
  • Functions - Auto Changeover (Micom Control)
    Yes
    Functions - Self Diagnosis
    Yes
  • Functions - Timer
    24hr On/Off
    Functions - Sleep Operation
    Yes
  • Functions - Soft Dry Operation
    Yes
    Functions - Restart Delay(minute)
    3
  • Functions - Deice Control(Defrost)
    Yes
    Functions - Display Light (On/Off)
    Yes
  • Functions - Hot Start
    Yes
    Functions - Jet Cool
    Yes
  • Special Function - Wi-Fi
    Yes
    Special Function - Fresh Dry
    Yes
  • Special Function - Indirect Air
    Yes
    Special Function - Active Energy Control
    I-Control Ampere
