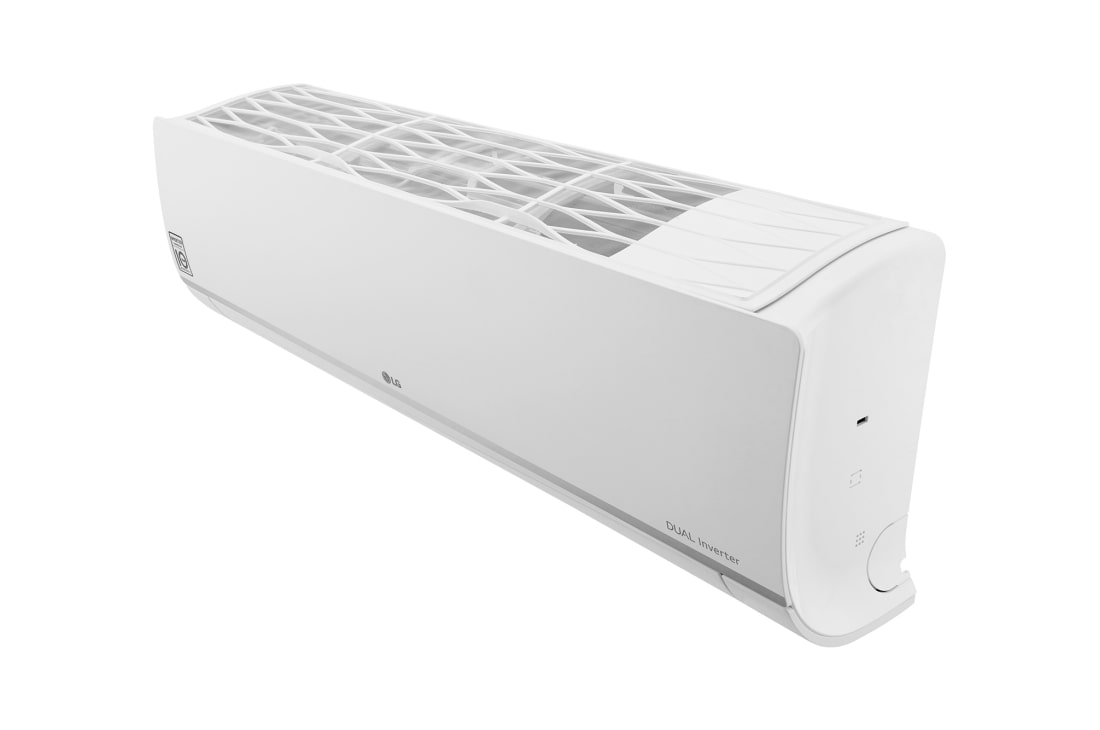

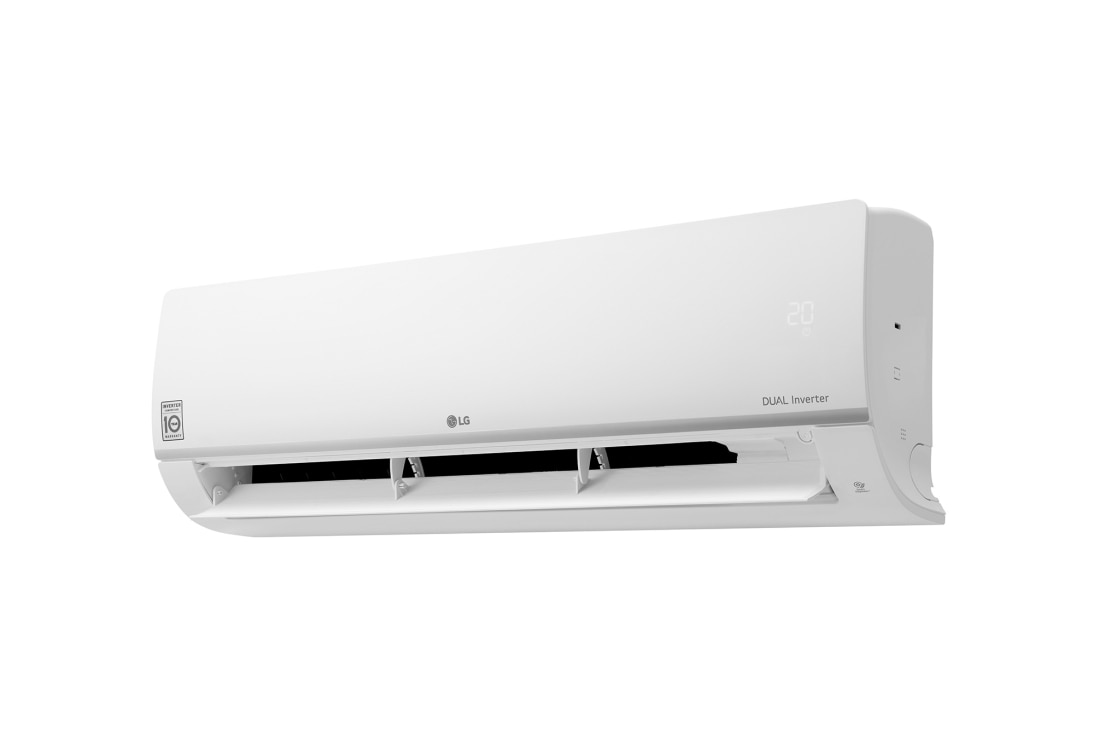

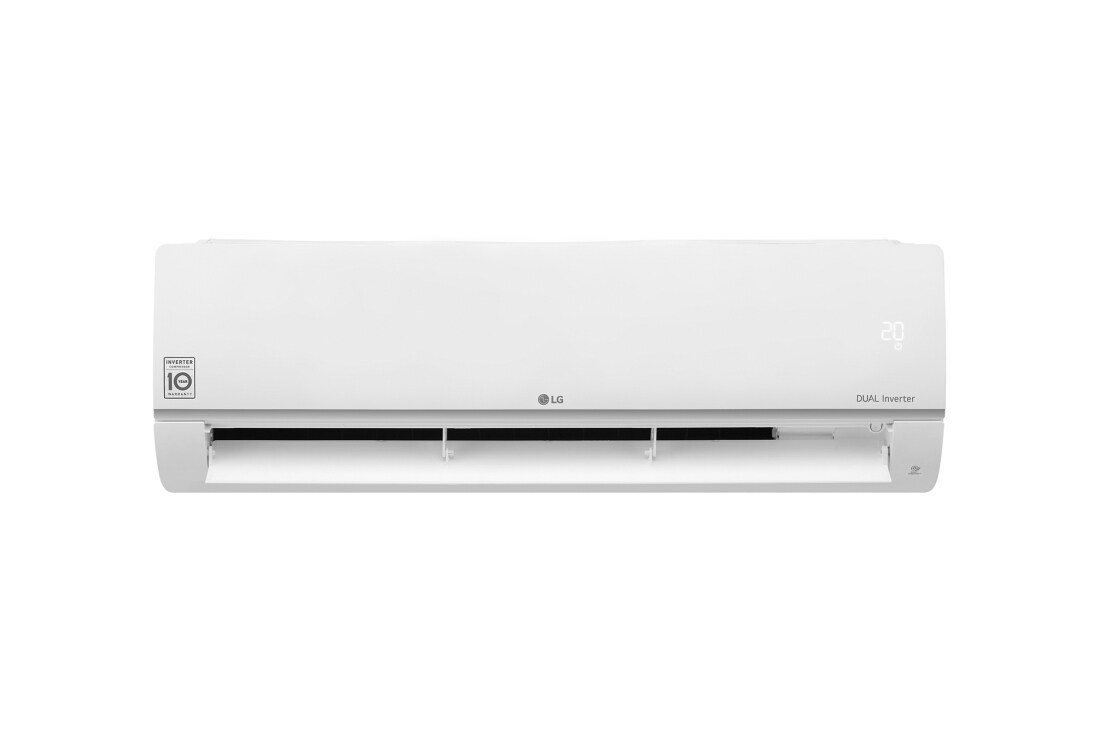

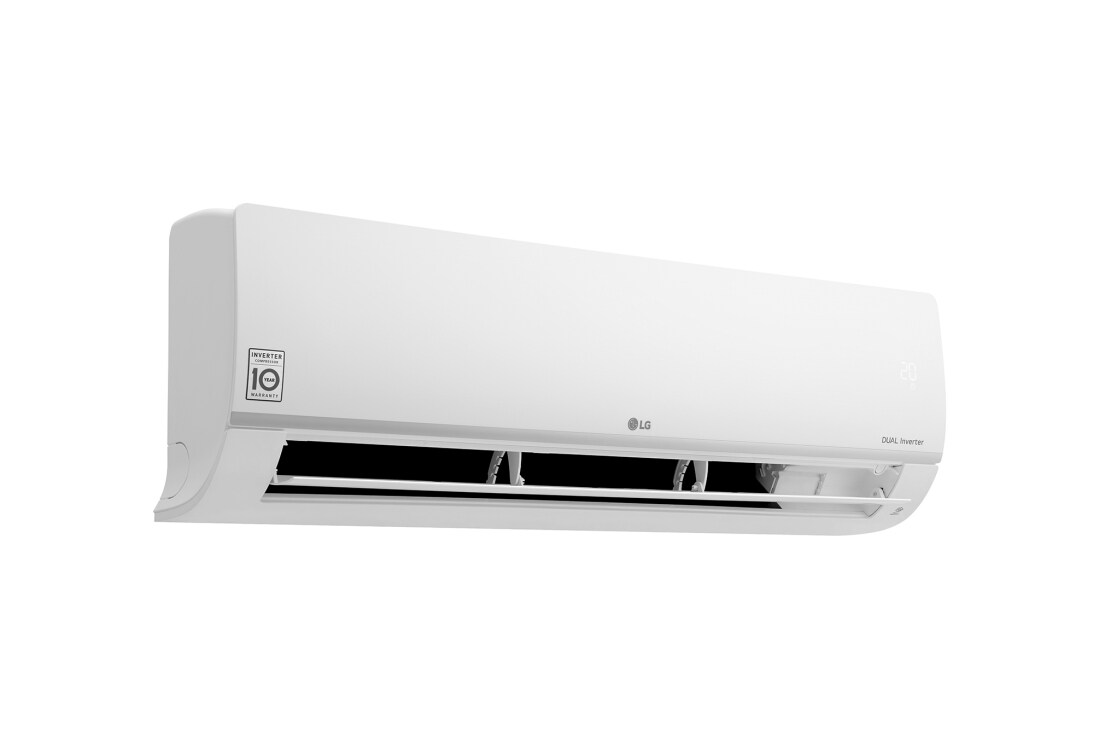

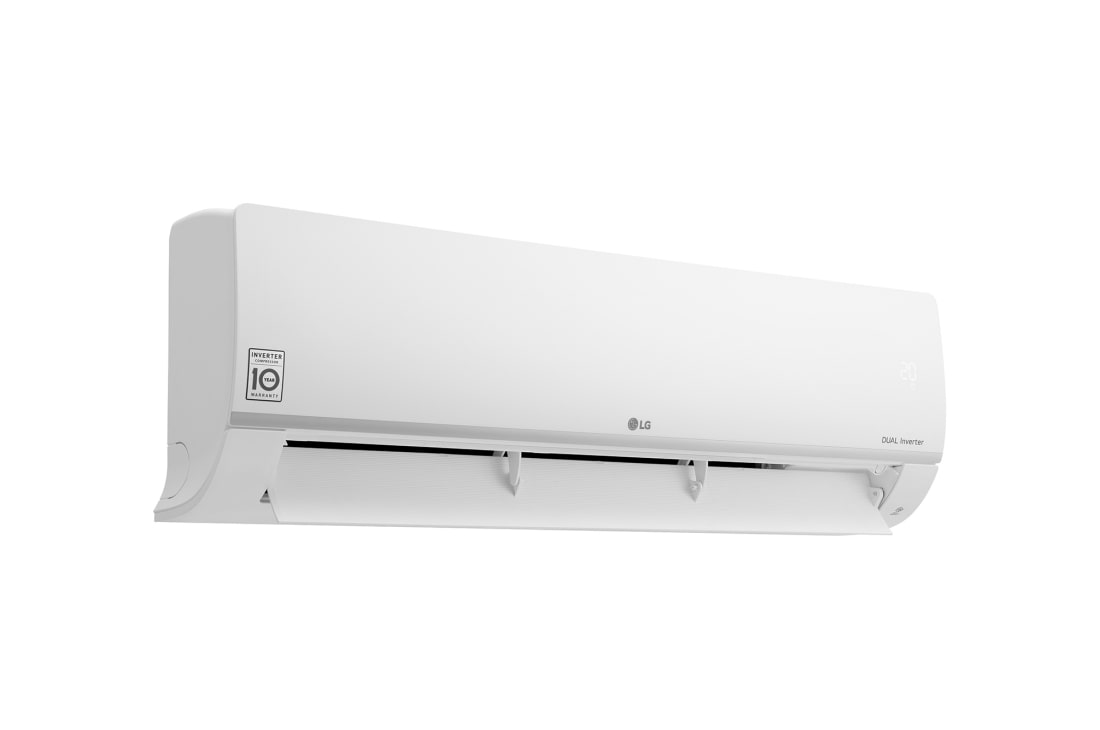

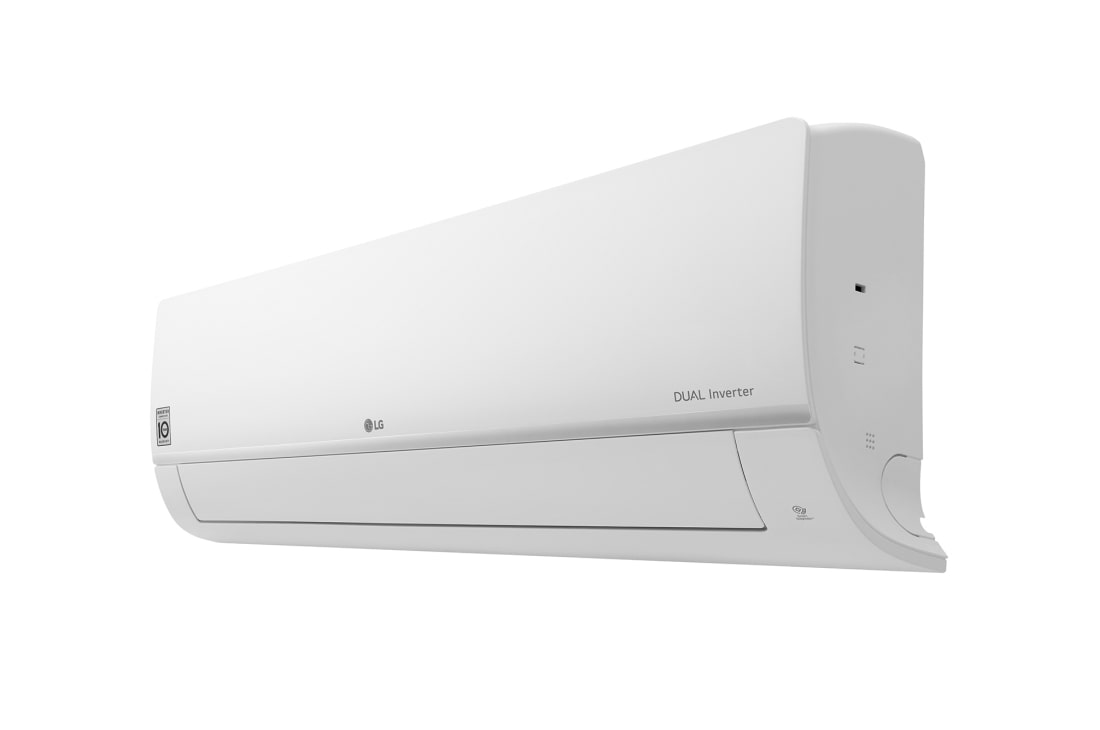

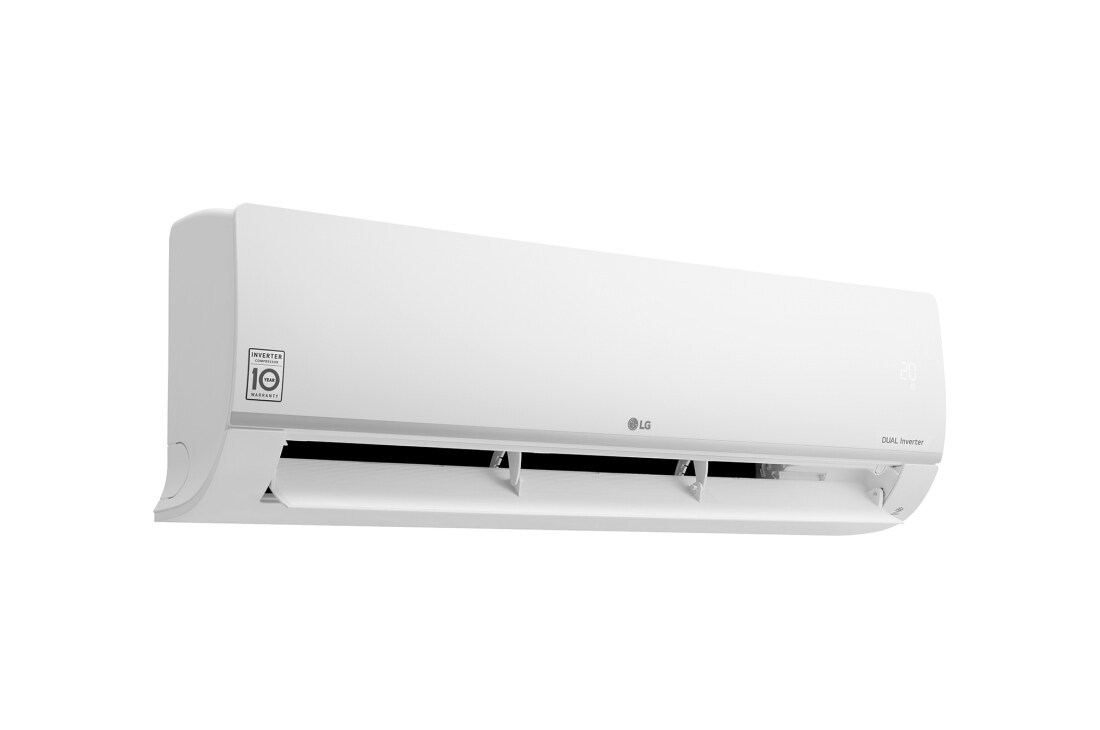

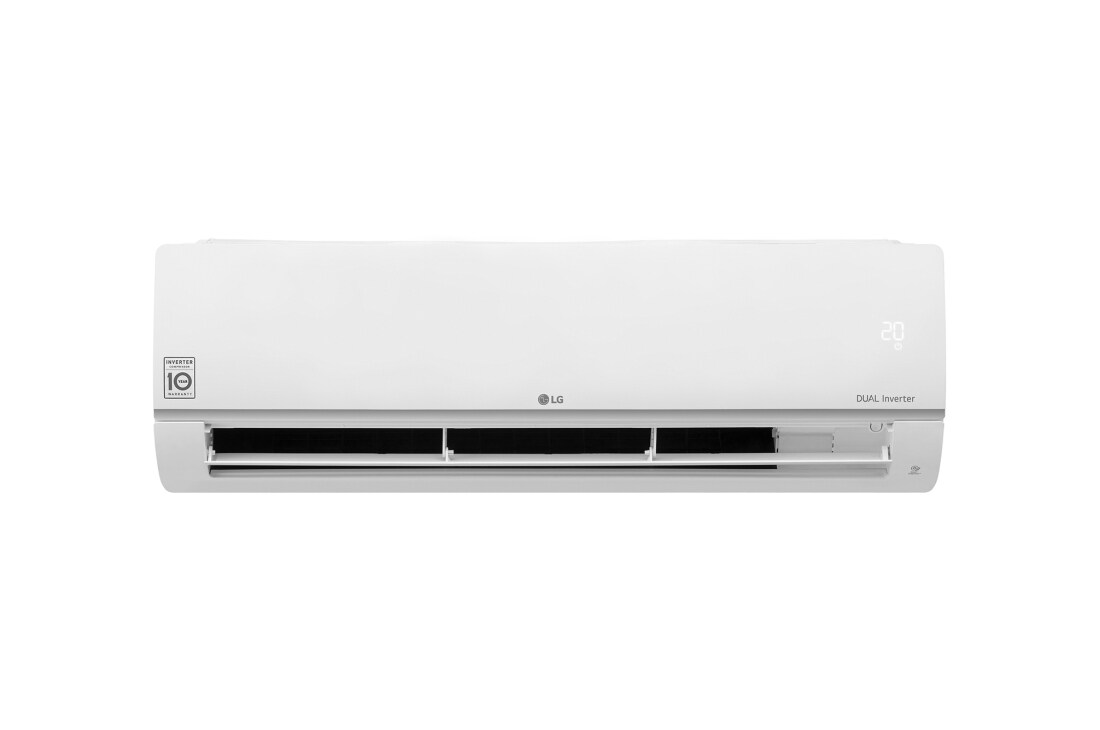

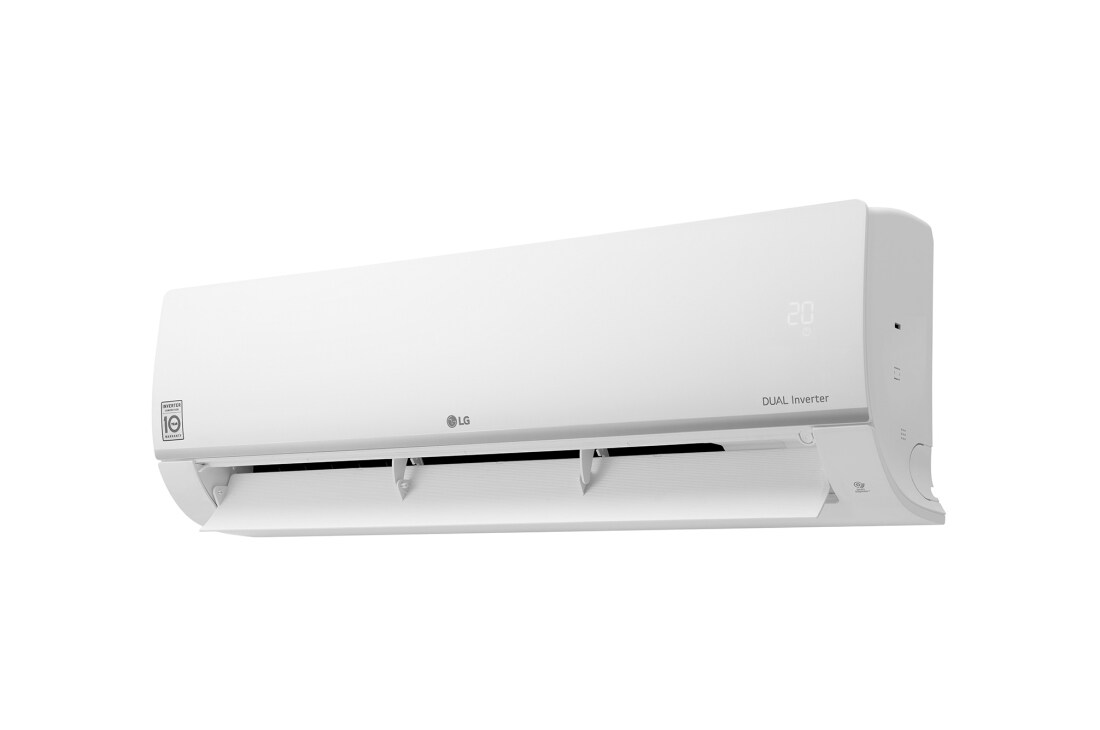

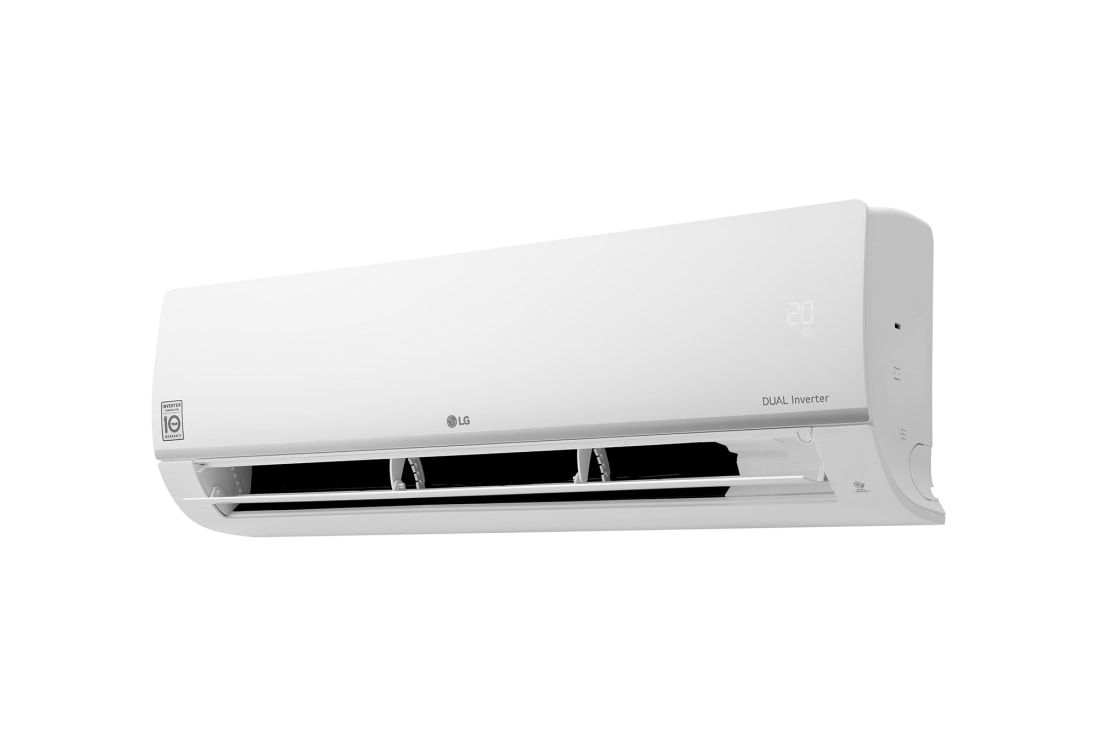

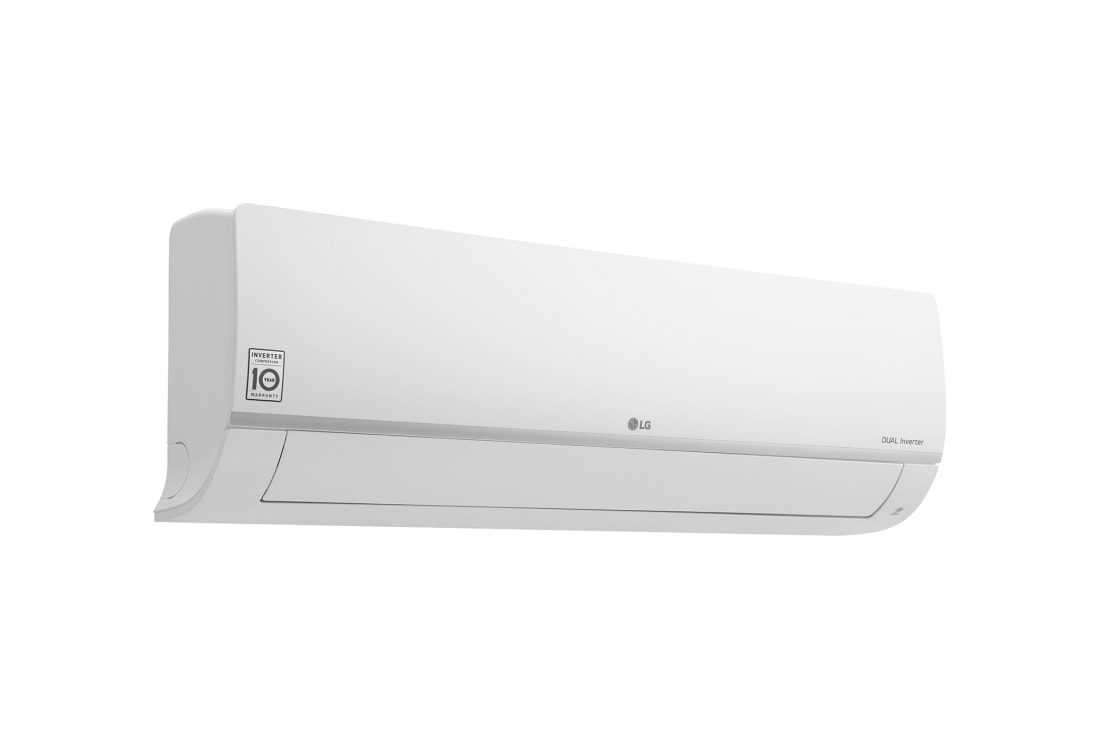

DUALCOOL Inverter AC 1.5 Ton, I Control Ampere, Energy Saving, Fast Cooling

Key Features

component-OBScountrySelectDesc

DUALCOOL Inverter AC 1.5 Ton, I Control Ampere, Energy Saving, Fast Cooling
Dimensions
Summary
  • Capacity
    1.5 Ton
  • Dimension
    998 x 345 x 210
  • MAIN TECHNOLOGY
    I-CONTROL AMPERE
  • ADDITIONAL BENEFIT
    Durability (65℃ Max. Temp.)
GENERAL
  • Cooling Capacity (T1) (kW)
    5.27
    Cooling Capacity (T1) (Btu/h)
    18,000
  • Cooling Capacity (T3) (kW)
    4.48
    Cooling Capacity (T3) (Btu/h)
    15,300
  • Heating Capacity (kW)
    6.01
    Heating Capacity (Btu/h)
    20500
  • Power Input (T1) - Rated/Max (W)
    1,490/2,800
    Power Input (T3) - Rated (W)
    1,754
  • Power Input (Heating) - Rated/Max (W)
    1,665/2,800
    Running Curent (T1) - Rated/Max (A)
    6.7/14.00
  • Running Curent (T3) - Rated (A)
    8.20
    Running Curent (Heating) - Rated/Max (A)
    7.5/14.00
  • EER (T1/T3) (W/W)
    3.54/2.56
    EER (T1/T3) ((Btu/h)/W)
    12.08/8.72
  • COP (W/W)
    3.61
    Power Supply (Ø , V , Hz)
    1Ø, 220-240V, 50Hz
  • Power Factor - Cooling (%)
    96.7
    Power Factor - Heating (%)
    96.5
  • RPM - Cooling (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
    RPM - Heating (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
  • Air Flow Rate - Heating Indoor, Max (m3/min (CFM))
    19.5 (688)
    Air Flow Rate - Heating Outdoor, Max (m3/min (CFM))
    49 (1730)
  • Moisture Removal (l/h)
    2.5
    Sound Pressure Level (Indoor) - Cooling, H/M/L/SL (dB(A)+1)
    44/41/37/28
  • Sound Pressure Level (Indoor) - Heating, H/M/L (dB(A)+1)
    44/41/37
    Sound Pressure Level (Outdoor) - Cooling, Rated (dB(A)+1)
    52
  • Sound Pressure Level (Outdoor) - Heating, Rated (dB(A)+1)
    52
    Refrigerant & Charge (at 7.5m) (g)
    R410A, 1400
  • Additional Refrigerant charge (g/m)
    20
    Compressor - Type
    Dual Inverter Compressor
  • Power and Transmission Cable (N x mm2)
    4 x 1.0 ( including Earth)
    Power Supply Cable (N x mm2)
    3 x 2.5
  • Piping Connections - Liquid Side (mm (in))
    6.35 (1/4)
    Piping Connections - Gas Side (mm (in))
    12.7 (1/2)
  • Drain Hose (O.D, I.D) (mm (in))
    21.5,16 (0.85,0.62)

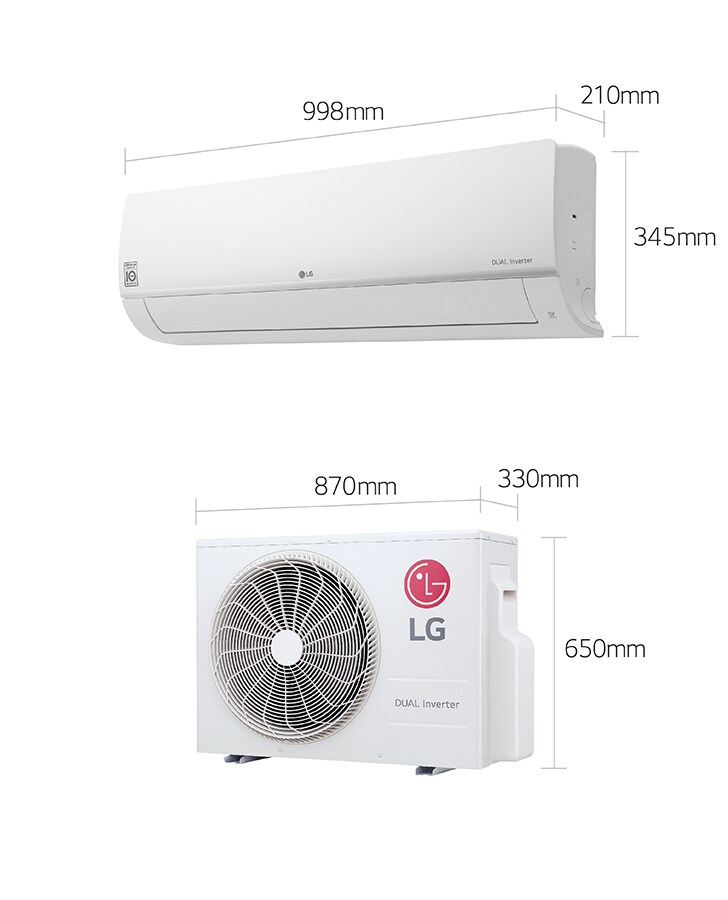

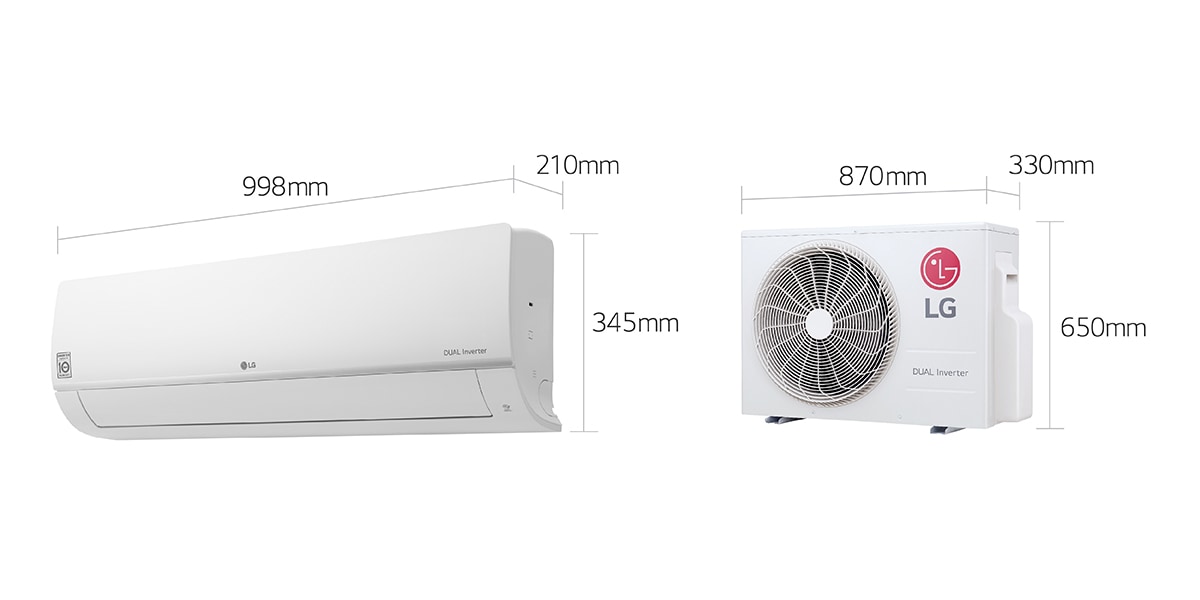

    Dimension - Product dimensions (mm)
    998 x 210 x 345
  • Dimension - Indoor (W x H x D) (in.)
    39.3 x 8.3 x 13.6
    Dimension - Package dimensions (mm)
    1071 x 282 x 428
  • Dimension - Indoor (W x H x D) (inch)
    42 x 11.1 x 16.8
    Dimension - Product dimensions (mm)
    870 x 650 x 330
  • Dimension - Outdoor (W x H x D) (in.)
    34.3 x 25.6 x 13
    Dimension - Package dimensions (mm)
    1040 x 710 x 455
  • Dimension - Outdoor (W x H x D) (in.)
    40.9 x 27.9 x 17.9
    Net Weight - Indoor (kg (lbs))
    11 (24.3)
  • Net Weight - Outdoor (kg (lbs))
    43 (94.8)
    Set Weight - Indoor (kg (lbs))
    12.8 (28.2)
  • Set Weight - Outdoor (kg (lbs))
    47 (103.6)
    Operation Range - Cooling (Indoor) (°C (°F))
    18 ~ 32 (64.4 ~ 89.6)
  • Operation Range - Cooling (Outdoor) (°C (°F))
    18 ~ 54 (64.4 ~ 129.2)
    Operation Range - Heating (Indoor) (°C (°F))
    16 ~ 30 (60.0 ~ 86.0)
  • Operation Range - Heating (Outdoor) (°C (°F))
    -5 ~ 18 (23.0 ~ 64.4)
    Max. Piping Length (m (ft))
    30 (98.4)
  • Max. Elevation Dierence (m (ft))
    25 (82)
APPEARANCE
  • Indoor - Tool Code
    SK
    Indoor - Remote
    4 Way

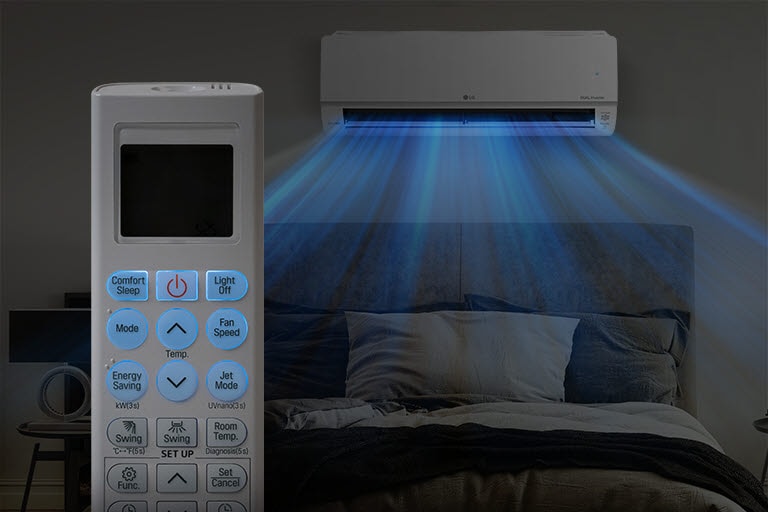

  • Indoor - Remote Controller Type
    Wireless LCD
    AKB75415305
    Indoor - Grille Front Look
    Semi-R (silver)

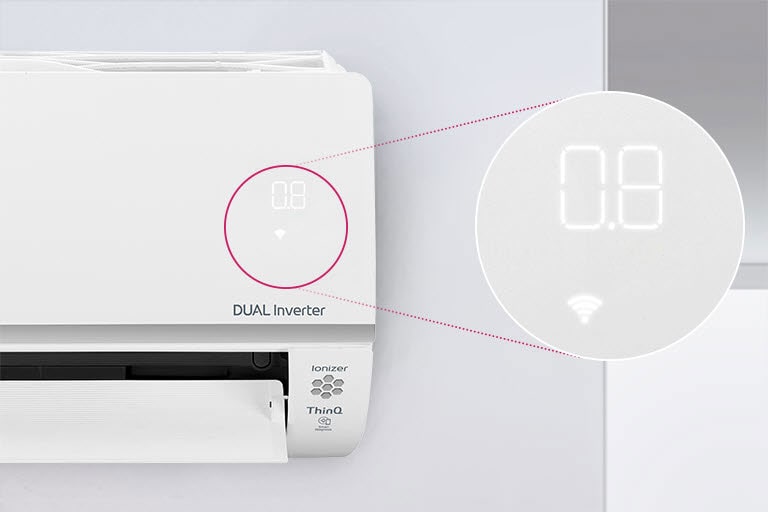

  • Indoor - Display
    88 Display
    Outdoor - Tool Code
    U24A
  • Outdoor - Panel Type
    Steel
    Outdoor - Condenser Type
    Gold
FEATURE & FUNCTION

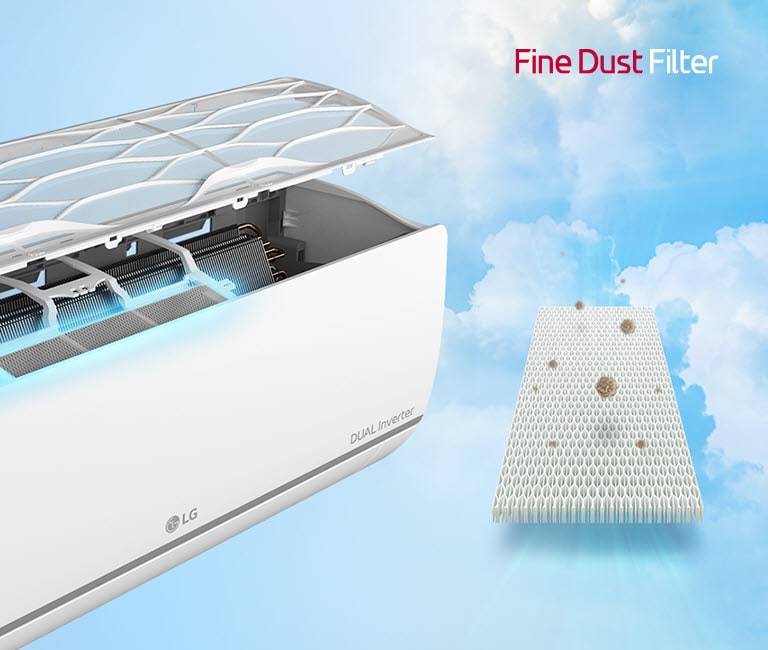

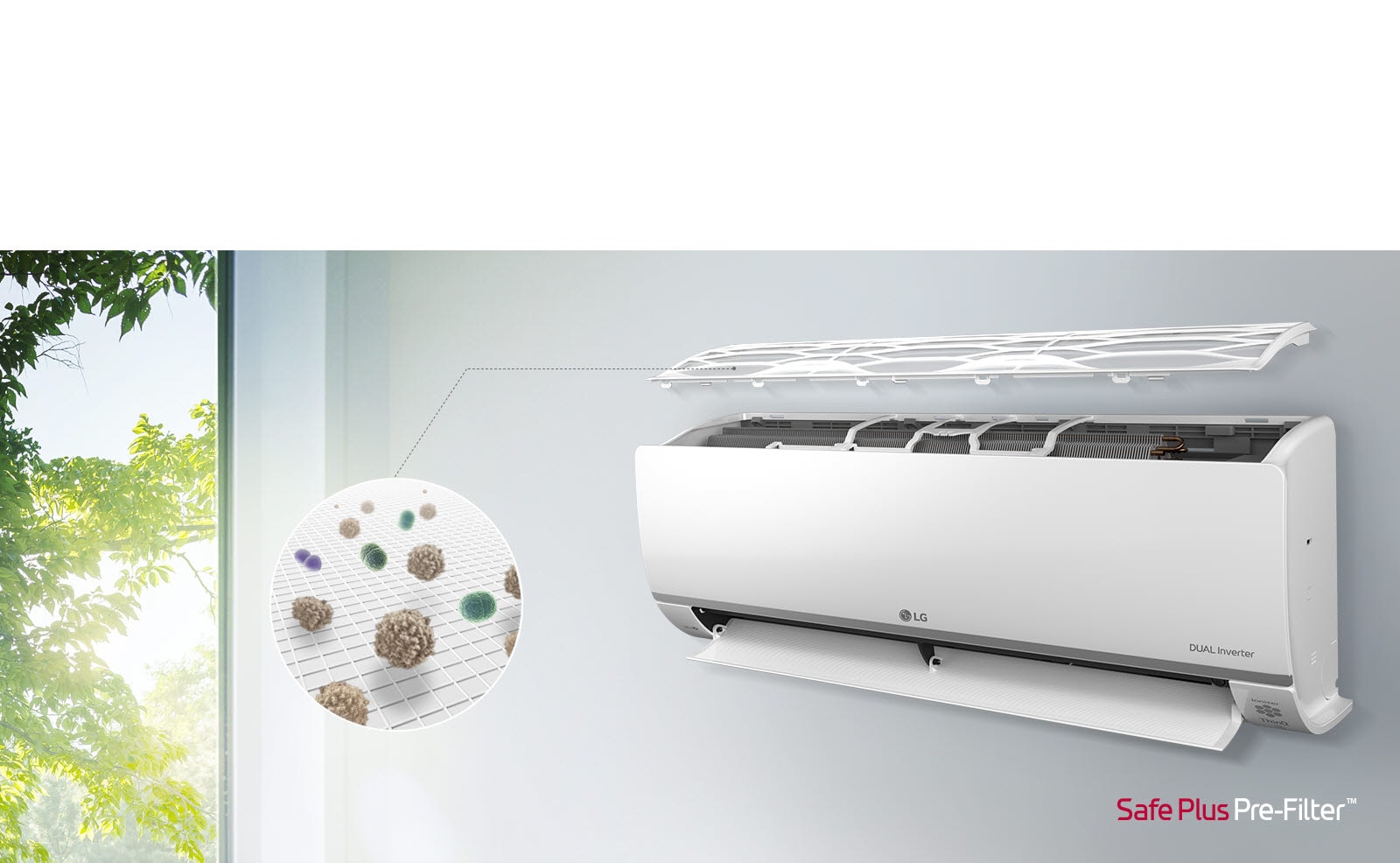

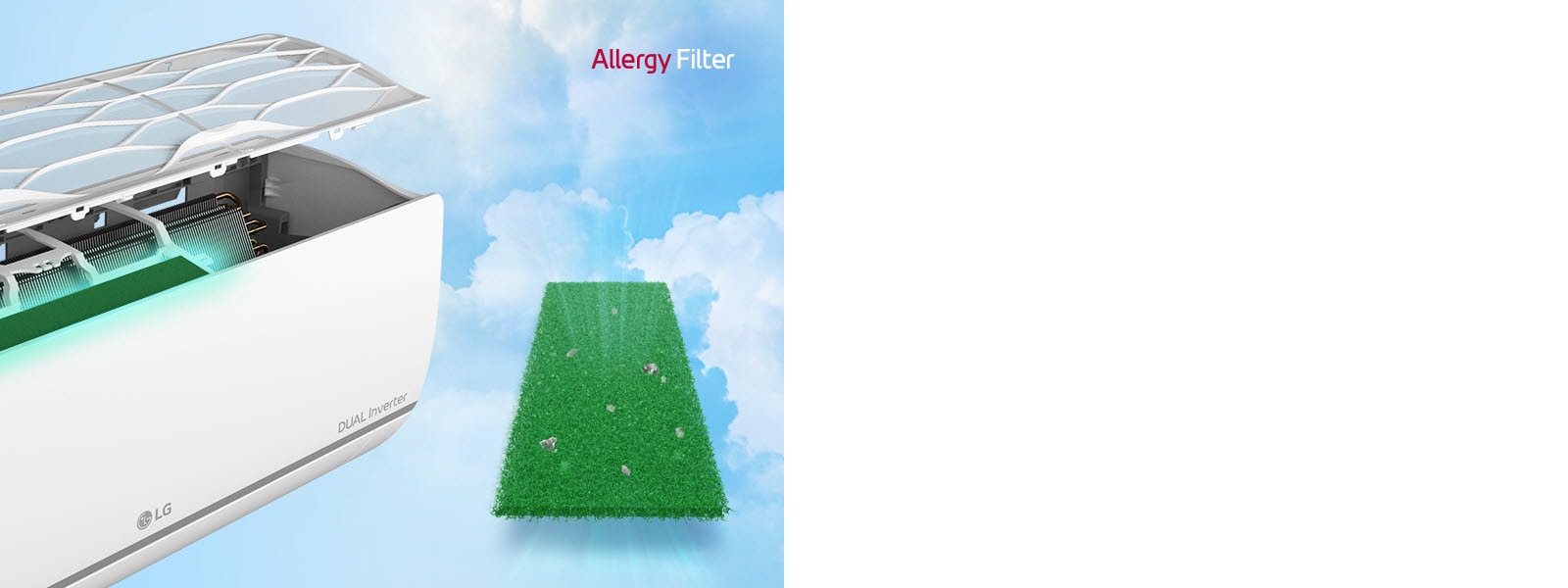

  • Pre-Filter (in Front Grille) - Anti bacteria air filter
    Yes (Top Filter)
    Functions - Vane Horizontal
    Normal
  • Functions - Temperature Control
    Thermistor
    Functions - Auto Clean
    Yes
  • Functions - Natural Wind
    Yes
    Functions - Fan Speed (SH/H/MH/M/ML/L/SL)
    7
  • Functions - Airflow Direction Control (up & Down)
    Auto
    Functions - Airflow Direction Control (left & right)
    Auto
  • Functions - Setting Temperature Range (Cooling (°C))
    16-30
    Functions - Setting Temperature Range (Heating (°C))
    16-30
  • Functions - Temperature Increment (°C)
    1
    Functions - Auto Changeover (Micom Control)
    Yes
  • Functions - Self Diagnosis
    Yes
    Functions - Timer
    24hr On/Off
  • Functions - Sleep Operation
    Yes
    Functions - Soft Dry Operation
    Yes
  • Functions - Restart Delay (minute)
    3
    Functions - Deice Control (Defrost)
    Yes
  • Functions - Display Light (On/Off)
    Yes
    Functions - Hot Start
    Yes
  • Functions - Jet Cool
    Yes
    Special Function - Wi-Fi
    Yes
  • Special Function - Fresh Dry
    Yes
    Special Function - Indirect Air
    Yes
  • Special Function - Active Energy Control
    I-Control Ampere
