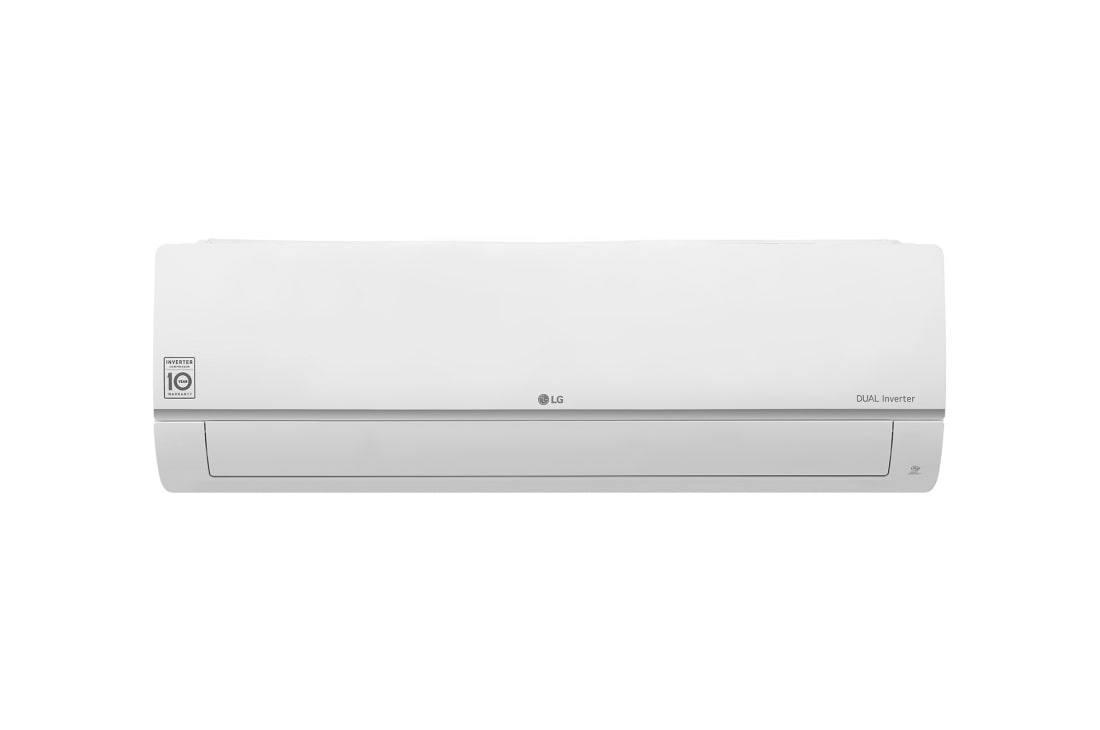

DUALCOOL 1.5 Ton Air Conditioner, I Control Ampere, Energy Saving & Fast Cooling

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (BMPN19K1)
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (BMPN19K1)
    $
    $
    LG Members Price
Total
DUALCOOL 1.5 Ton Air Conditioner, I Control Ampere, Energy Saving & Fast Cooling
It shows the carbon footprint certification label obtained for the wall-mounted split air conditioner of LG Electronics.

CARBON TRUST (UK)

The carbon footprint of this product has been measured and certified by the CarbonTrust
The DUAL Inverter 10 Year Warranty logo.

10-Year Warranty

With a 10-year warranty on the compressor, it will keep performing at its best for longer.
*1 year parts and labor warranty, and additional 9 years extra warranty applicable on specific part only.
The TUV Rheinland logo.

Verified by TUV

LG inverter air conditioners(US-Q242K*) cools up to 40% more faster than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃).
*It means temperature below 65℃.
The TUV Rheinland logo.

Verified by TUV

LG inverter air conditioners(US-Q242K*) saves up to 70% more energy than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃), Testing Time (8 Hours).
*According to LG internal test, LG DUAL Inverter air conditioner is less than 19dBA. (Model - V10API)
*It may vary depending on usage environment.
*It may vary depending on usage environment.
The TUV Rheinland logo.

Verified by TUV

TUV has verified that the New model has 42% higher cooling performance 4 years later compared to the conventional model(Test condition: T3 condition, New model: I23TTB 14FPI* wide louver, Conventional model : I23TTB 18FPI louver). *FPI(Fin Per Inch) : Quantity of fins in a inch (1inch = 2.54cm)
  • Half of the LG air conditioner can be seen installed on the wall with the front door open indicating it's on. A circle is around the air quality lights of the machine and a magnified circle is extened out to show the green lights of the air quality panel and the numbers to show the precise air quality. The DUAL Inverter logo can be seen on the machine.

    Easy-to-Monitor Energy Consumption

    The display keeps you informed so you can easily monitor and reduce energy consumption*. *Energy consumption during A/C operation.

  • A family sits on a couch in a living room with the LG air conditioner installed above them. Blue lines of air are coming out indicating the machine is on. In the foreground is the front of the remote control showing the buttons and temperature.

    Control 4 Levels of Energy Consumption

    Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat. Ut wisi enim ad minim veniam, quis nostrud exerci tatio

  • The side view of the air conditioner can be seen on the wall. Two hands are reaching up, one holding a tool, showing the ease of installation.

    Quick and Easy Installation

    Enjoy cool air sooner with air conditioning that takes less time and effort to install.

  • A father and daughter sleep on a couch beneath an air conditioner that is blowing air out over them.

    A More Comfortable Sleeping Environment

    Experience the most comfortable sleeping environment with automatically adjusting functions*. *When the comfort sleep function is activated.

  • The LG fan that is outside of the house is shown with a dark lightning sky in the background. The LG Logo can be seen on the side of the engine.

    Safety Against Voltage Fluctuation

    No need to turn on the light to change mode of your air conditioner by applying GYRO sensor in the remote.

Dimensions
BMPN19K1 BMPN19K1
Summary
  • Capacity
    1.5 Ton
  • Dimension
    998 x 345 x 210
  • MAIN TECHNOLOGY
    Ampere Control 8A, 6A, 4A
  • ADDITIONAL BENEFIT
    Fast Cooling & Energy Saving
BASIC SPECIFICATION
  • Capacity
    1.5 Ton
GENERAL
  • Cooling Capacity (T1) (kW)
    5.27
    Cooling Capacity (T1) (Btu/h)
    18,000
  • Cooling Capacity (T3) (kW)
    4.48
    Cooling Capacity (T3) (Btu/h)
    15,300
  • Heating Capacity (kW)
    6.01
    Heating Capacity (Btu/h)
    20500
  • Power Input (T1) - Rated/Max (W)
    1,490/2,800
    Power Input (T3) - Rated (W)
    1,754
  • Power Input (Heating) - Rated/Max (W)
    1,665/2,800
    Running Curent (T1) - Rated/Max (A)
    6.7/14.00
  • Running Curent (T3) - Rated (A)
    8.20
    Running Curent (Heating) - Rated/Max (A)
    7.5/14.00
  • EER (T1/T3) (W/W)
    3.54/2.56
    EER (T1/T3) ((Btu/h)/W)
    12.08/8.72
  • COP (W/W)
    3.61
    Power Supply (Ø , V , Hz)
    1Ø, 220-240V, 50Hz
  • Power Factor - Cooling (%)
    96.7
    Power Factor - Heating (%)
    96.5
  • RPM - Cooling (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
    RPM - Heating (S-H/H/M/L/S-Low)
    1600/1200/1000/850/700
  • Air Flow Rate - Heating Indoor, Max (m3/min(CFM))
    19.5 (688)
    Air Flow Rate - Heating Outdoor, Max (m3/min(CFM))
    49 (1730)
  • Moisture Removal (l/h)
    2.5
    Sound Pressure Level (Indoor) - Cooling, H/M/L/SL (dB(A)+1)
    44/41/37/28
  • Sound Pressure Level (Indoor) - Heating, H/M/L (dB(A)+1)
    44/41/37
    Sound Pressure Level (Outdoor) - Cooling, Rated (dB(A)+1)
    52
  • Sound Pressure Level (Outdoor) - Heating, Rated (dB(A)+1)
    52
    Refrigerant & Charge (at 7.5m) (g)
    R410A, 1400
  • Additional Refrigerant charge (g/m)
    20
    Compressor - Type
    Dual Inverter Compressor
  • Power and Transmission Cable (N x mm2)
    4 x 1.0 ( including Earth)
    Power Supply Cable (N x mm2)
    3 x 2.5
  • Piping Connections - Liquid Side (mm (in))
    6.35 (1/4)
    Piping Connections - Gas Side (mm (in))
    12.7 (1/2)
  • Drain Hose (O.D, I.D) (mm (in))
    21.5,16 (0.85,0.62)
    Dimension - Product dimensions (mm)
    998 x 210 x 345
  • Dimension - Indoor (W x H x D) (in.)
    39.3 x 8.3 x 13.6
    Dimension - Package dimensions (mm)
    1071 x 282 x 428
  • Dimension - Indoor (W x H x D) (inch)
    42 x 11.1 x 16.8
    Dimension - Product dimensions (mm)
    870 x 650 x 330
  • Dimension - Outdoor (W x H x D) (in.)
    34.3 x 25.6 x 13
    Dimension - Package dimensions (mm)
    1040 x 710 x 455
  • Dimension - Outdoor (W x H x D) (in.)
    40.9 x 27.9 x 17.9
    Net Weight - Indoor (kg (lbs))
    11 (24.3)
  • Net Weight - Outdoor (kg (lbs))
    43 (94.8)
    Set Weight - Indoor (kg (lbs))
    12.8 (28.2)
  • Set Weight - Outdoor (kg (lbs))
    47 (103.6)
    Operation Range - Cooling (Indoor) (°C (°F))
    18 ~ 32 (64.4 ~ 89.6)
  • Operation Range - Cooling (Outdoor) (°C (°F))
    18 ~ 54 (64.4 ~ 129.2)
    Operation Range - Heating (Indoor) (°C (°F))
    16 ~ 30 (60.0 ~ 86.0)
  • Operation Range - Heating (Outdoor) (°C (°F))
    -5 ~ 18 (23.0 ~ 64.4)
    Max. Piping Length (m (ft))
    30 (98.4)
  • Max. Elevation Dierence (m (ft))
    25 (82)
APPEARANCE
  • Indoor - Tool Code
    SK
    Indoor - Remote
    4 Way
  • Indoor - Remote Controller Type
    Wireless LCD
    AKB75415305
    Indoor - Grille Front Look
    Semi-R (silver)
  • Indoor - Display
    88 Display
    Outdoor - Tool Code
    U24A
  • Outdoor - Panel Type
    Steel
    Outdoor - Condenser Type
    Gold
FEATURE & FUNCTION
  • Pre-Filter (in Front Grille) - Anti bacteria air filter
    Yes (Top Filter)
    Functions - Vane Horizontal
    Normal
  • Functions - Temperature Control
    Thermistor
    Functions - Auto Clean
    Yes
  • Functions - Natural Wind
    Yes
    Functions - Fan Speed (SH/H/MH/M/ML/L/SL)
    7
  • Functions - Airflow Direction Control (up & Down)
    Auto
    Functions - Airflow Direction Control (left & right)
    Auto
  • Functions - Setting Temperature Range (Cooling (°C))
    16-30
    Functions - Setting Temperature Range (Heating (°C))
    16-30
  • Functions - Temperature Increment (°C)
    1
    Functions - Auto Changeover (Micom Control)
    Yes
  • Functions - Self Diagnosis
    Yes
    Functions - Timer
    24hr On/Off
  • Functions - Sleep Operation
    Yes
    Functions - Soft Dry Operation
    Yes
  • Functions - Restart Delay (minute)
    3
    Functions - Deice Control (Defrost)
    Yes
  • Functions - Display Light (On/Off)
    Yes
    Functions - Hot Start
    Yes
  • Functions - Jet Cool
    Yes
    Special Function - Wi-Fi
    NO
  • Special Function - Fresh Dry
    Yes
    Special Function - Indirect Air
    Yes
  • Special Function - Active Energy Control
    I-Control Ampere
COMPLIANCE INFORMATION
