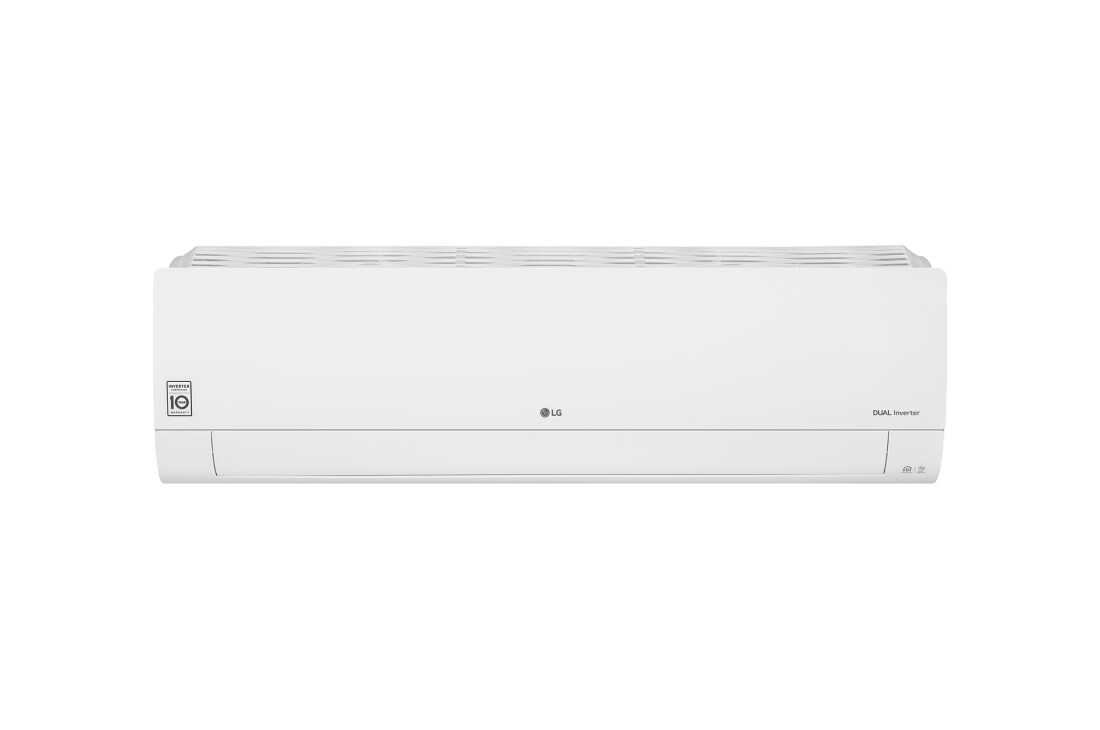

DUALCOOL Inverter AC, 30K BTU Cool and Heat, Split Air Conditioner with Wi-Fi control
Write a review

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (TIQ38K)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (TIQ38K)
    $
    $
    LG Members Price
Total
DUALCOOL Inverter AC, 30K BTU Cool and Heat, Split Air Conditioner with Wi-Fi control
Where to Buy
Energy Saving & Fast Cooling4 Energy Saving & Fast Cooling4

Energy Saving & Fast Cooling

Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor.
Thanks to the Dual Inverter compressor, air is expelled farther and faster.
Watch the Full Movie
Tropical Dual Inverter Compressor™4 Tropical Dual Inverter Compressor™4

Tropical Dual Inverter Compressor™

LG's Tropical Dual Inverter Compressor™ that works even at 65℃ With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.
Watch the Full Movie
*1 year parts and labor warranty, and additional 9 years extra warranty applicable on specific part only.
The gold coated machinery is shown in the background against a dusty desert landscape. There is a circle showing a magnified view of the anti-dust gold fin. There are two arrows, one pointing verticle and one perpendicular on the fin showing how it moves. The gold coated machinery is shown in the background against a dusty desert landscape. There is a circle showing a magnified view of the anti-dust gold fin. There are two arrows, one pointing verticle and one perpendicular on the fin showing how it moves.
Anti-Dust Gold Fin™

Advanced Long Lasting Performance

Enjoy long lasting performance with anti-corrosive gold coating and upgraded fin technology verified from TUV.
*It may vary depending on usage environment.
  • Dual Inverter Compressor™

    Dual Inverter Compressor™

    A compressor with a wider rotational frequency saves more energy and has a faster cooling range.

  • 10 Year Warranty

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle.

  • TUV Rheinland

    TUV Rheinland

    TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(US-W242Kxy0/TS-H2465DA0).

Low Noise Low Noise

Low Noise

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.
Watch the Full Movie
Precise temperature control Precise temperature control

Precise temperature control

The Compressor speed of LG Dual Inverter Compressor™ is constantly adjusted and varied to maintain the desired temperature with minimal fluctuation.
Watch the Full Movie
*The actual product image may differ from the shown above.
Smart ThinQ (Wi-Fi) Smart ThinQ (Wi-Fi)

Smart ThinQ (Wi-Fi)

Easily Control an air conditioner's functions. Monitor operational status of a product at anytime and from anywhere.
Watch the Full Movie
  • Gold Fin™

    Gold Fin™

    The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

  • Auto Cleaning

    Auto Cleaning

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

  • 4Way Swing

    4Way Swing

    LG air conditioners deliver cool air to every corner of your room quickly and efficiently.

  • Dual Protection Filter

    Dual Protection Filter

    The Dual Protection Filter captures large dust particles.

Dimensions
Summary
  • Capacity
    30000 BTU
  • Dimension
    1200 x 360 x 265
  • MAIN TECHNOLOGY
    Smart ThinQ (Wifi control)
  • ADDITIONAL BENEFIT
    Up to 53% Energy saving & Up to 60% Fast cooling
BASIC SPECIFICATION
  • Capacity
    2.5 Ton
    WIFI
    Yes
CAPACITY
  • Cooling (Min ~ Rated ~ Max) (kW)
    1.77 ~ 8.80 ~ 11.14
    Cooling (Min ~ Rated ~ Max) (Btu/h)
    6,035 ~ 30,000 ~ 38,000
  • Cooling (T3) (Min ~ Rated ~ Max) (kW)
    3.21 ~ 7.45 ~ 8.35
    Cooling (T3) (Min ~ Rated ~ Max) (Btu/h)
    10,940 ~ 25,400 ~ 28,500
  • Heating (Min ~ Rated ~ Max) (kW)
    1.47 ~ 8.50 ~ 9.79
    Heating (Min ~ Rated ~ Max) (Btu/h)
    5,000 ~ 29,000 ~ 33,400
POWER INPUT
  • Cooling (Min ~ Rated ~ Max) (W)
    610 ~ 2,440 ~ 3,990
    Cooling (T3) (Min ~ Rated ~ Max) (W)
    1,587 ~ 2,885 ~ 3,990
  • Heating (Min ~ Rated ~ Max) (W)
    559 ~ 2,235 ~ 3,990
RUNNING CURRENT
  • Cooling (Min ~ Rated ~ Max) (A)
    3.92 ~ 11.20 ~ 17.00
    Cooling (T3) (Min ~ Rated ~ Max) (A)
    7.21 ~ 13.10 ~ 17.00
  • Heating (Min ~ Rated ~ Max) (A)
    3.68 ~ 10.50 ~ 17.00
EER
  • EER (W/W)
    3.61
    EER ((Btu/h)/W)
    12.30
  • EER (T3)(W/W)
    2.58
    EER (T3)((Btu/h)/W)
    8.80
SEER
  • COP((Btu/h)/W)
    3.80
    COP (W/W)
    12.98
ENERGY LABEL GRADE
  • Cooling
    D
ANNUAL ENERGY CONSUMPTION
  • Cooling (kWh/year)
    6,588
    Heating (kWh/year)
    6,035
GENERAL SPECIFICATIONS
  • Power Supply (Ø, V, Hz)
    1, 220-240, 60/50
    Available Voltage Range (V)
    187 ~ 276
  • Power Factor (Cooling) (%)
    94.7
    Power Factor (Heating) (%)
    92.5
  • Moisture Removal (l/h)
    1.49
    Moisture Removal (pts/h)
    3.15
  • Circuit Breaker (A)
    25
    Power Supply Cable (No.)
    3
  • Power Supply Cable (mm²)
    2.5
    Power Supply Cable (AWG)
    12
  • Power Supply to Unit
    Outdoor
    Communication Cable (No.)
    4
  • Communication Cable (mm²)
    1
    Power and Communication Cable (AWG)
    16
  • Defrost Method
    Reverse Cycle
    Tool Code (Chassis) (Indoor/Outdoor)
    SR/U4
INDOOR
  • Air Flow Rate (Cooling, Max/H/M/L) (㎥/min)
    32/25/21/17
    Air Flow Rate (Cooling, Max/H/M/L) (CFM)
    1130/883/742/601
  • Air Flow Rate (Heating, Max/H/M/L) (㎥/min)
    33/27/23/19
    Air Flow Rate (Heating, Max/H/M/L) (CFM)
    1166/954/813/671
  • Fan Motor Speed (Cooling, Max/H/HM/M/ML/L/SL) (rpm)
    1500/1200/1120/1050/980/910/630
    Fan Motor Speed (Heating, Max/H/HM/M/ML/L/SL) (rpm)
    1500/1200/1120/1050/980/910/500
  • Sound Pressure Level (Cooling, Max / H / M / L / SL) (dB(A))
    -/52/47/43/34
    Sound Pressure Level (Heating, Max/H/M/L) (dB(A))
    -/52/47/43
  • Dimensions (W × H × D) (Net) (mm)
    1200 x 360 x 265
    Dimensions (W × H × D) (Net) (in.)
    47-1/4 x 14-3/16 x 10-7/16
  • Dimensions (W × H × D) (Shipping) (mm)
    1076 x 433 x 287
    Dimensions (W × H × D) (Shipping) (in.)
    50-13/32 x 17-29/32 x 14-1/16
  • Weight (Net) (kg)
    18.5
    Weight (Net) (lb.)
    40.8
  • Weight (Shipping) (kg)
    22.2
    Weight (Shipping) (lb.)
    48.9
  • Disconnect Switch (A)
    25
    Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
  • Operation Range (Cooling) (°C DB)
    18 ~ 32
    Operation Range (Cooling) (°F DB)
    64.4 ~ 89.6
  • Operation Range (Cooling) (°C WB)
    12 ~ 23
    Operation Range (Cooling) (°F WB)
    53.6 ~73.4
  • Operation Range (Maximum Relative Humidity) (%)
    85
    Operation Range (Heating) (°C DB)
    16 ~ 30
  • Operation Range (Heating) (°F DB)
    60.8 ~ 86
OUTDOOR
  • Air Flow Rate (Max) (m³/min)
    71.0
    Air Flow Rate (Max) (CFM)
    2507
  • Fan Motor Speed (Cooling, Min ~ Max) (rpm)
    190 ~ 850
    Fan Motor Speed (Heating, Min ~ Max) (rpm)
    190 ~ 850
  • Sound Pressure Level (Cooling, Rated) (dB(A))
    58
    Sound Pressure Level (Heating, Rated) (dB(A))
    59
  • Dimensions (W × H × D) (Net) (mm)
    950 × 832 × 330
    Dimensions (W × H × D) (Net) (in.)
    37-13/32 x 32-3/4 x 13
  • Dimensions (W × H × D) (Shipping) (mm)
    1130 × 908 × 456
    Dimensions (W × H × D) (Shipping) (in.)
    44-1/2 x 35-3/4 x 17-15/16
  • Weight (Net) (kg)
    67.1
    Weight (Net) (lb.)
    147.9
  • Weight (Shipping) (kg)
    72.7
    Weight (Shipping) (lb.)
    160.3
  • Max. Fuse Size (A)
    25
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range (Cooling) (℃ DB)
    18 ~ 54
    Operation Range (Cooling) (°F DB)
    64.4 ~ 129.2
  • Operation Range (Heating) (℃ DB)
    -5 ~ 24
    Operation Range (Heating) (°F DB)
    23 ~ 75.2
PIPING
  • Size (Liquid) (mm)
    ø 9.52
    Size (Liquid) (in.)
    ø 3/8
  • Size (Gas) (mm)
    ø 15.88
    Size (Gas) (in.)
    ø 5/8
  • Connections Method (Indoor/Outdoor)
    Flared/Flared
DRAIN HOSE SIZE
  • O.D, I.D (mm)
    20, 15
    O.D, I.D (in.)
    0.79, 0.59
BETWEEN INDOOR & OUTDOOR
  • Piping Length (Min/Standard/Max) (m)
    5/7.5/30
    Piping Length (Min / Standard / Max) (ft.)
    16.4/24.6/98.4
  • Piping Length (No Charge) (m)
    7.5
    Piping Length (No Charge) (ft.)
    24.6
  • Max. Elevation Difference (m)
    25
    Max. Elevation Difference (ft.)
    82.0
  • Piping Connection Heat Insulation
    Both liquid and gas pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge (g)
    2400
  • Pre Charge (oz.)
    84.7
    Additional Charge (g/m)
    30
  • Additional Charge (oz./ft.)
    0.32
    Control
    Electronic Expansion Valve
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    5.010
COMPRESSOR
  • Compressor
    Dual Inverter Compressor
    Type
    Twin Rotary
  • Model
    GPT330MAB
    Motor Type
    BLDC
  • Oil Type/Maker
    PVE (FW68D)/IDEMITSU
    Oil Charge (cc)
    1300
  • Manufacturer/Country of Origin
    LG Electronics / China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    113.1
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    124
    Motor Insulation
    Class E
  • Motor Enclosure/Ingress Protection
    TEAO/IPX4
HEAT EXCHANGER
  • Evaporator (Material, Tube/Fin)
    Cu/Al
    Evaporator ((øxRowxColumnxFPIxL)xQty.) (#1)
    (ø7 x 3 x 18 x 21 x 913) x 1
  • Evaporator (Corrosion Protection)
    PCM
    Evaporator (Fin Type)
    Slit
  • Condenser (Material, Tube/Fin)
    Cu/Al
    Condenser ((øxRowxColumnxFPIxL) x Qty.) (#1)
    (ø7 x 2 x 38 x 14 x 950) x 1
  • Condenser (Corrosion Protection)
    Gold
    Condenser (Fin Type)
    Wide Louver Plus
MAX PIPING LENGTH CAPACITY
  • Max Piping Length Capacity (Cooling)(%)
    96.0
    Max Piping Length Capacity (Heating)(%)
    88.0
MICOM(INDOOR)
  • Main PCB (CHECK SUM)
    AF62
    EEPROM (CHECK SUM)
    51A0
MICOM(OUTDOOR)
  • Main PCB (CHECK SUM)
    8A7F
    EEPROM (CHECK SUM)
    C400
WIRED REMOTE CONTROLLER
  • Main PCB Check Sum & P/No
    FCD5/SAA38424413
WIRELESS REMOTE CONTROLLER
  • Main PCB Check sum & P/No
    F43C/SAA38424403
    Changed Points compared to base model
    AKB74955622 (H/P)
DISCLAIMER
  • Performance
    Except for rated value, the performance can be varied based on the operation and the installation conditions.
