LG 9.1ch Smart 3D Blu-ray(TM) Home theater With Aramid Fiber

  • BH9530TW

  • Discontinued Product

Key Features

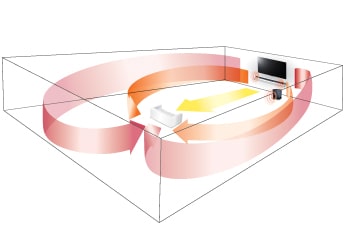

  • 9.1 channel , 3D Cinema Sound
  • Vertical Speaker
  • Aramid Fiber Speaker
  • 3D Blu-ray™ Playback
Design
Top & Bottom cabinet (slot) Yes
LG Smart TV
All-in-One Search Yes/Yes/Yes/No/Yes
Full Browser Yes/Yes
Premium Contents Yes
LG Apps Yes
Connectivity

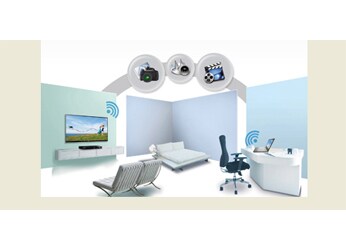

DLNA(Smart Share) Yes/Yes/No
NFC Yes
Wi-Fi direct Yes
Wi-Fi Built-in Yes
Wired (Ethernet) Yes
Wi-Fi display Yes
Physical
Center Speaker 360x81x70
Front Speaker 270x1300x270
Main 444 X 65 X 292.5
Rear Speaker 270x1300x270
Subwoofer 251x336x310
Amplifier
Channel 9.1
Center 180W
Front Top (L/R) 90WX2
Front L/R 180WX2
Sub-Woofer 200W
Total 1460W
Wireless Rear L/R 180WX2
Wireless Surround Top(L/R) 90WX2
Accessories
Batteries (Remote Controller) Yes
Battery (Size) AAA*2
DLNA Set-up Disc Yes
FM / AM Antenna Yes / No
HDMI Cable Yes
Instruction Manual CD Type
Remote Control Unit CB3
Simple Manual Yes
Speaker Cable Yes(6 EA)
Unified Yes
Wireless RX Yes
Warranty Card Yes
3D compatibility
3D / 2D Yes / Yes
2D to 3D converting (Video) Yes
Audio Format
LPCM Yes
Convenience
1:1 Rx module Type (Wireless Kit for rear) Yes
Auto Volume Level Yes
A/V Sync Delay(Audio Delay) Yes
Bluetooth (Rx / Tx) Yes / No
Booting-Time 5 sec↓
Dimmer Yes
Dynamic Range Control Yes
External HDD Playback Yes
Fanfare Yes
Firmware update by network Yes
Howlling Canceller Yes
Instant tray open 2 sec↓
Loading Time 10 sec↓
Made for iPod, iPhone, iPad vis 1 Yes
Mic Echo Volume Yes
Mic Volume Yes
Mute Yes
Progress Bar Yes
Scoring Yes
Simplink Yes
Sleep Yes
Smart phone remote App Yes
Sound Privacy Yes
Speaker Distance(channel delay) Yes
Speaker Level Trim Yes
Test Tone Yes
Thumbnail Yes
TV Sound (direct key) Yes
USB Direct Recording Yes
Volume on TV Yes
Warm booting 3 sec↓
BD
BD ROM profile 5

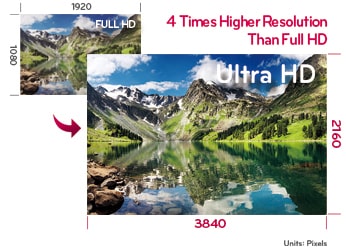

Digital Cinema 4K upscaling Yes
MHP-Like Interactivity Yes
Mixed Presentation of Dual Audio Yes
Simultaneous Playback of HD & SD Video Drip Yes
Still Picture PNG, JPEG, GIF
Decoding
AAC Yes
Dolby Digital Yes
Dolby Digital Plus Yes
Dolby TrueHD Yes
DTS Yes
DTS-HD High Resolution Audio Yes
DTS-HD Master Audio Yes
FLAC Yes
ID3 Tag Yes
MP3 Yes
MPEG 1/2 L2 Yes
WMA Yes
Disc Type
Audio CD Yes
BD-R Yes
BD-RE Yes
CD-R/CD-RW Yes
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes
DVD+R Yes
DVD+RW(Video mode) Yes
DTS-CD Yes
Disc (BD, DVD, CD) Playback
Auto Power Off Yes
Initial logo Yes
Parental Lock Yes
Screen Saver Yes
DVD
1080p Upscaling Yes
Features
ARC Yes
Deep Colour Yes
HDMI 1.4 Yes
Last Scene memory Yes
NTSC/PAL Hz 60Hz / 51Hz
NTSC⇔PAL Conversion Yes
Photo Zoom Yes
Resolution upto 1080p24/61Hz
VBI Yes
Video DAC 148MHZ/13bit
Video Enhancement Yes
xvYCC Yes
Functions
3D Blu-ray Play back Yes
DVD Playback Yes
Home Theatre Yes
Smart TV Apps Yes
USB Playback Yes
Wifi Yes
Front
Display FLD
Mic In(φ6.3) 2
USB 1
Graphics/Subtitle Format
Graphics/Subtitle Format 2bit/ 9bit Sub-picture Text-based Subtitle
Home Menu
Home Menu Yes
Playable
BD-ROM Yes
Power
Power Consumption 130
Power Off Consumption 0.23
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Preset Memory 50 Station
Band(FM / FM(RDS) / AM) Yes / No / No
Repeat Play
A-B Yes
Chapter Yes
Random Play Mode Yes
Title/Track Yes
Resume Stop DVD(-VR), CD-DA,MP3/WMA
R/Panel
Audio Input L/R Yes
Composing of channel 9.1
Ethernet Yes
FM Yes
Input 2
Optical 1
Out 1
Terminal Type LAN
USB 1
Wireless speaker Tx dongle Yes
Search
Chapter Yes
Time Yes
Title/Track Yes
Sound DSP
DSP Yes
Video
ARC Option
Trick Play
Fast Back Yes
Fast Forward Yes
Forward Step Yes
Forword Slow Yes
Pause Yes
Video Format
3GP Yes
AVCHD Yes
DivX Yes
DivX HD Yes
FLV Yes
M4V Yes
MKV Yes
MOV Yes
MP4 Yes
MPEG-1 Yes
MPEG2 Yes
MPEG4 AVC (H.264) Yes
SMPTE VC1 (VC-9) Yes
WMV Yes
VOB Yes
