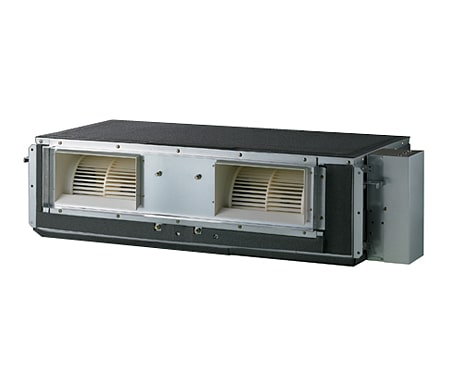

LG Ceiling Concealed Duct Air Conditioner - Inverter (5.3 Kw)

  • AB-Q18GHLT0

Key Features

  • Inverter Technology
  • Energy Savings
  • Fast Cooling
  • Low Noise Level
  • Wide Operation Range up to 54°C
  • E.S.P. (External Static Pressure) Control

LG Commercial Air Conditioner Introduction

Super Energy Saving

Super Energy Saving

Extreme Durability

Extreme Durability

Smart Cooling

Smart Cooling

Additional Benefits

Additional Benefits
Product information
Product TypeCeiling Concealed Duct
Inverter TechnologyYes
Fast CoolingYes
Super Energy SavingYes
Indoor Unit Noise Level (H/M/L)37 / 35 / 33 dB(A)
Refrigerant TypeR410A
Operation RangeUp to 54°C
E.S.PYes
Two Thermistors ControlYes
Energy saving (zero power consumption, standby mode)Yes
General Specifications
Power Supply (ø / V / Hz)1/220~240/50
Cooling Capacity5.3 Kw
Power Input1.6 kW
EER11.6 Btu/h/W
COP3.4 W/W
Indoor Unit
Running Current1.0 A
Air Flow Rate (H/M/L)16.5 / 14.5 / 13.0 CMM
External Static Pressure8 mmAq
Dehumidification Rate2.1 l/h
Body Dimensions (W x H x D)880 × 260 × 450 mm
Net Weight25.0 kg
Outdoor Unit
Running Current6.7 A
Compressor TypeTwin Rotary
Sound Level (H)48 dB(A)
Dimensions (W x H x D)870 × 655 × 320 mm
Net Weight44 kg
Piping Connections (Liquid)Ø 9.52 mm
Piping Connections (gas)Ø 15.88 mm
Drain (Outdoor / Indoor)Ø 32 mm / 25 mm
Max. Piping Length (Main Piping)30 m
Max. Elevation Difference (Indoor-Outdoor)15 m
Where to install
ResidencesYes
ShopsYes
RestaurantsYes
OfficesYes
HospitalsYes
HotelsYes
