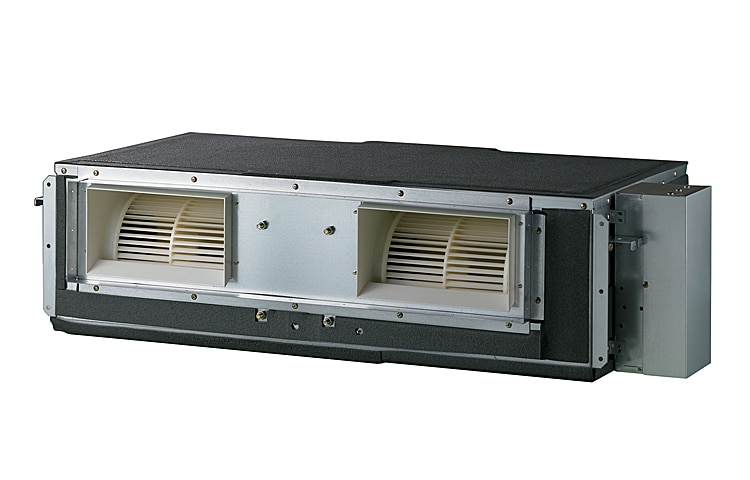

LG Ceiling Concealed Duct Air Conditioner - Inverter (7.0 Kw)

  • AB-Q24GGLT0

Key Features

  • Inverter Technology
  • Energy Savings
  • Fast Cooling
  • Low Noise Level
  • Wide Operation Range up to 54°C
  • E.S.P. (External Static Pressure) Control

LG Commercial Air Conditioner Introduction

Super Energy Saving

Super Energy Saving

Extreme Durability

Extreme Durability

Smart Cooling

Smart Cooling

Additional Benefits

Additional Benefits
Product information
Product TypeCeiling Concealed Duct
Inverter TechnologyYes
Fast CoolingYes
Super Energy SavingYes
Indoor Unit Noise Level (H/M/L)42 / 39 / 36 dB(A)
Refrigerant TypeR410A
Operation RangeUp to 54°C
Two Thermistors ControlYes
Energy saving (zero power consumption, standby mode)Yes
General Specifications
Power Supply (ø / V / Hz)1/220~240/50
Cooling Capacity7.0 Kw
Power Input2.1 kW
EER11.6 Btu/h/W
COP3.4 W/W
Indoor Unit
Running Current1.5 A
Air Flow Rate (H/M/L)26.5 / 23.0 / 20.0 CMM
External Static Pressure8 mmAq
Dehumidification Rate2.5 l/h
Body Dimensions (W x H x D)1,180 × 298 × 450 mm
Net Weight34.0 kg
Outdoor Unit
Running Current9.0 A
Compressor TypeTwin Rotary
Sound Level (H)50 dB(A)
Dimensions (W x H x D)870 × 655 × 320 mm
Net Weight44 kg
Piping Connections (Liquid)Ø 9.52 mm
Piping Connections (gas)Ø 15.88 mm
Drain (Outdoor / Indoor)Ø 32 mm / 25 mm
Max. Piping Length (Main Piping)50 m
Max. Elevation Difference (Indoor-Outdoor)30 m
