2023 LG 49inch Digital Signage, VL7F Series

Key Features

component-OBScountrySelectDesc

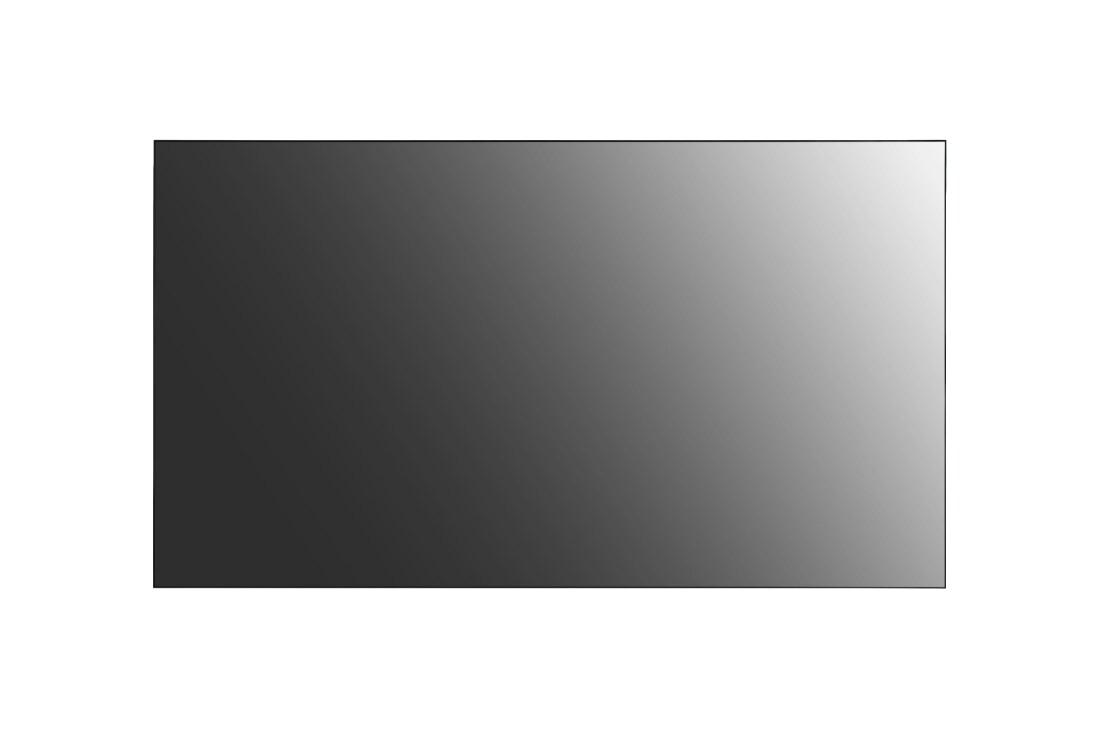

2023 LG 49inch Digital Signage, VL7F Series
PANEL
  • Screen Size
    49"
    Panel Technology
    IPS
  • Aspect Ratio
    16:09
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ., cd/m²)
    700
    Contrast Ratio
    1,300:1
  • Dynamic CR
    500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)

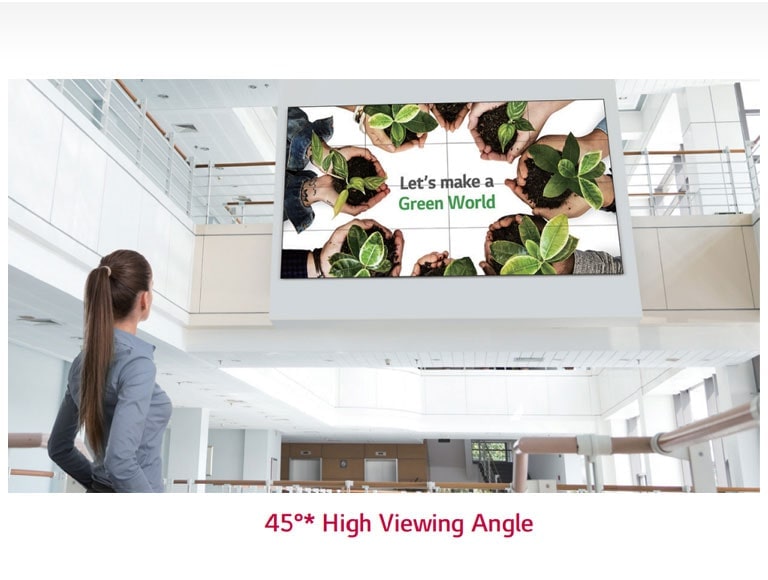

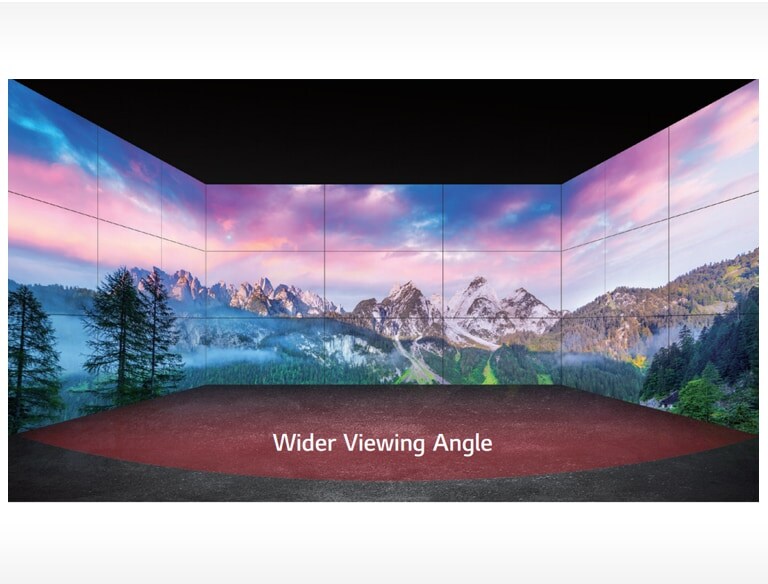

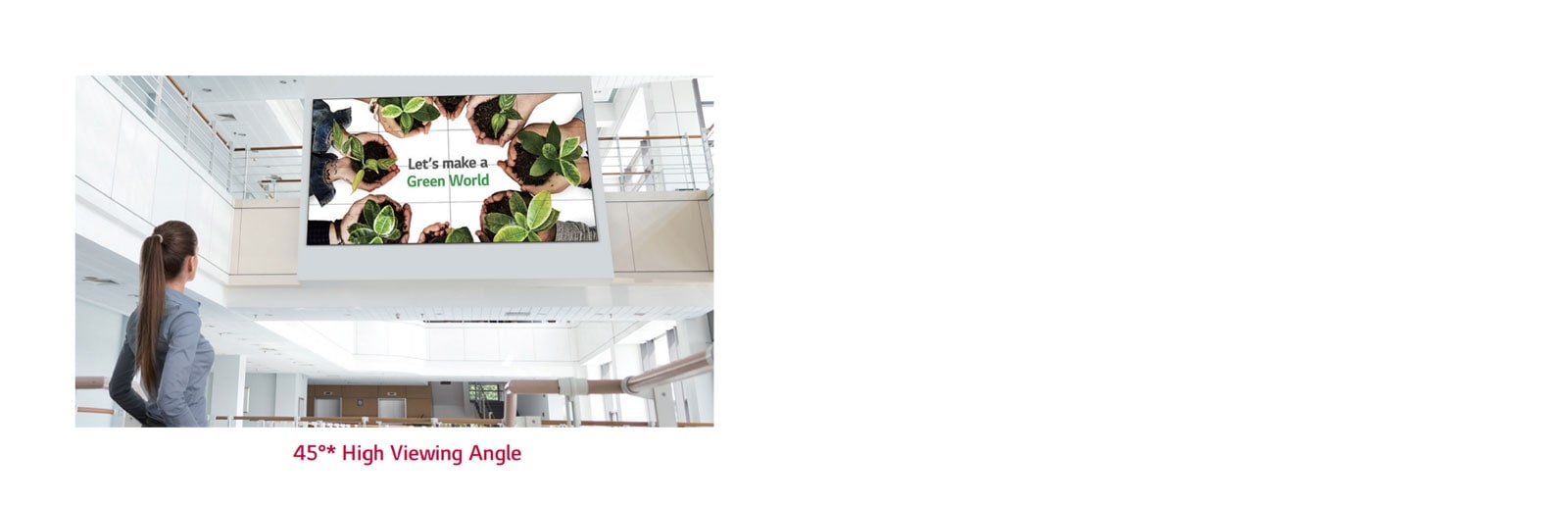

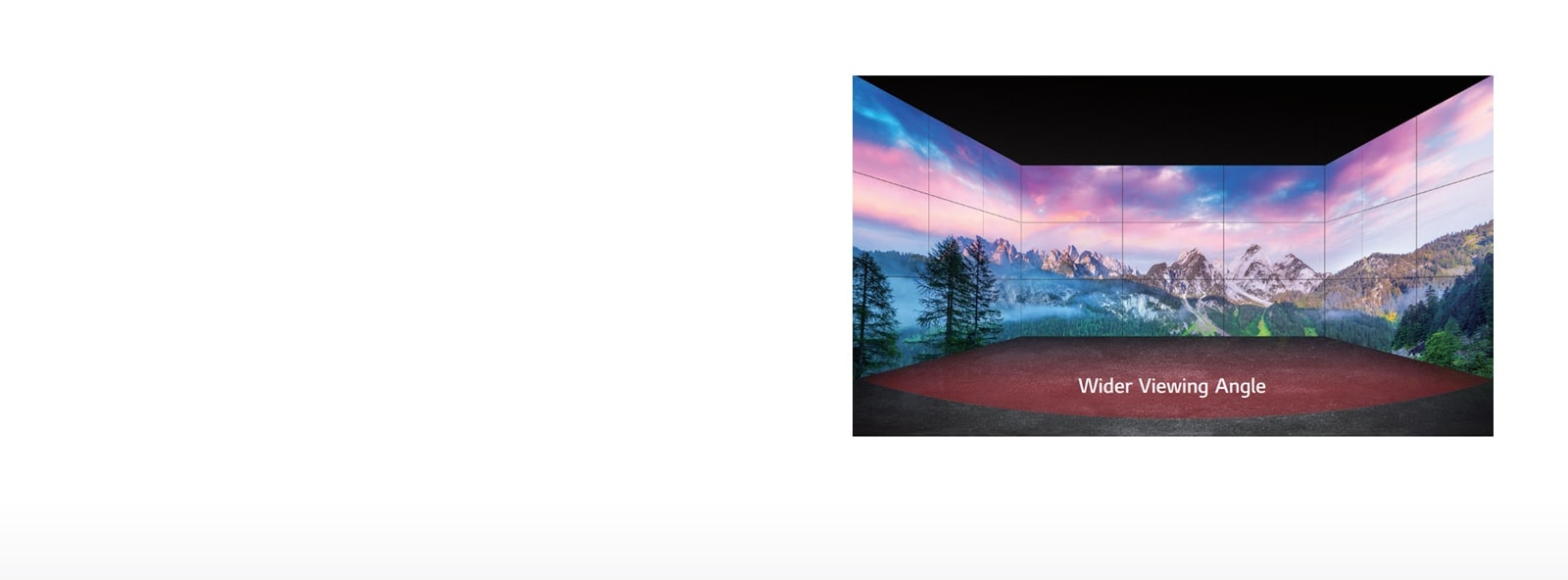

    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8 ms (G to G)
    Surface Treatment
    3%
  • Life time (Typ.)
    60,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, RGB, Audio, USB
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45(LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Color
    Black

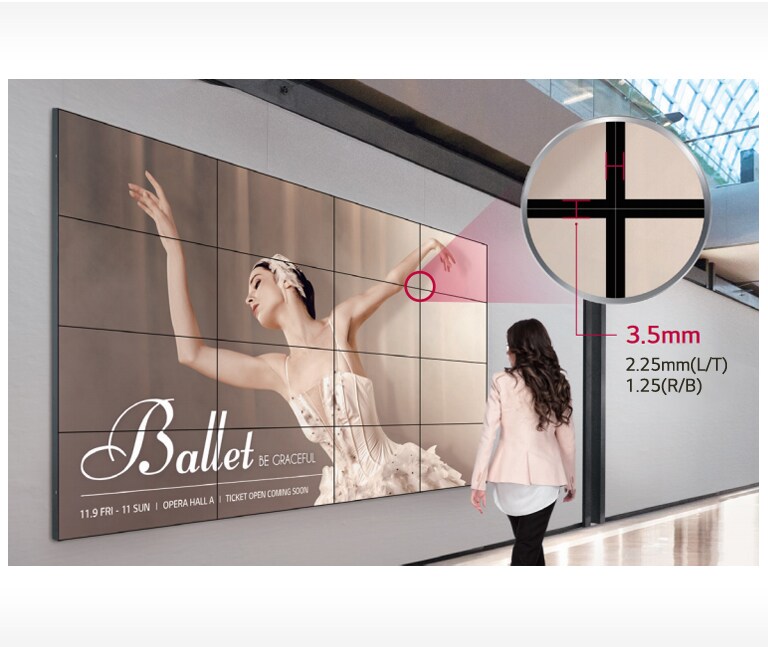

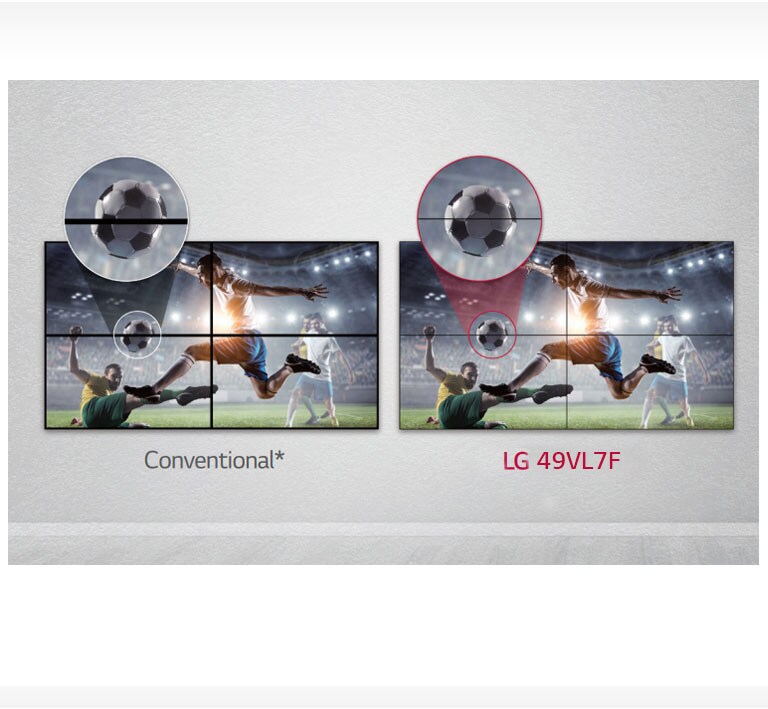

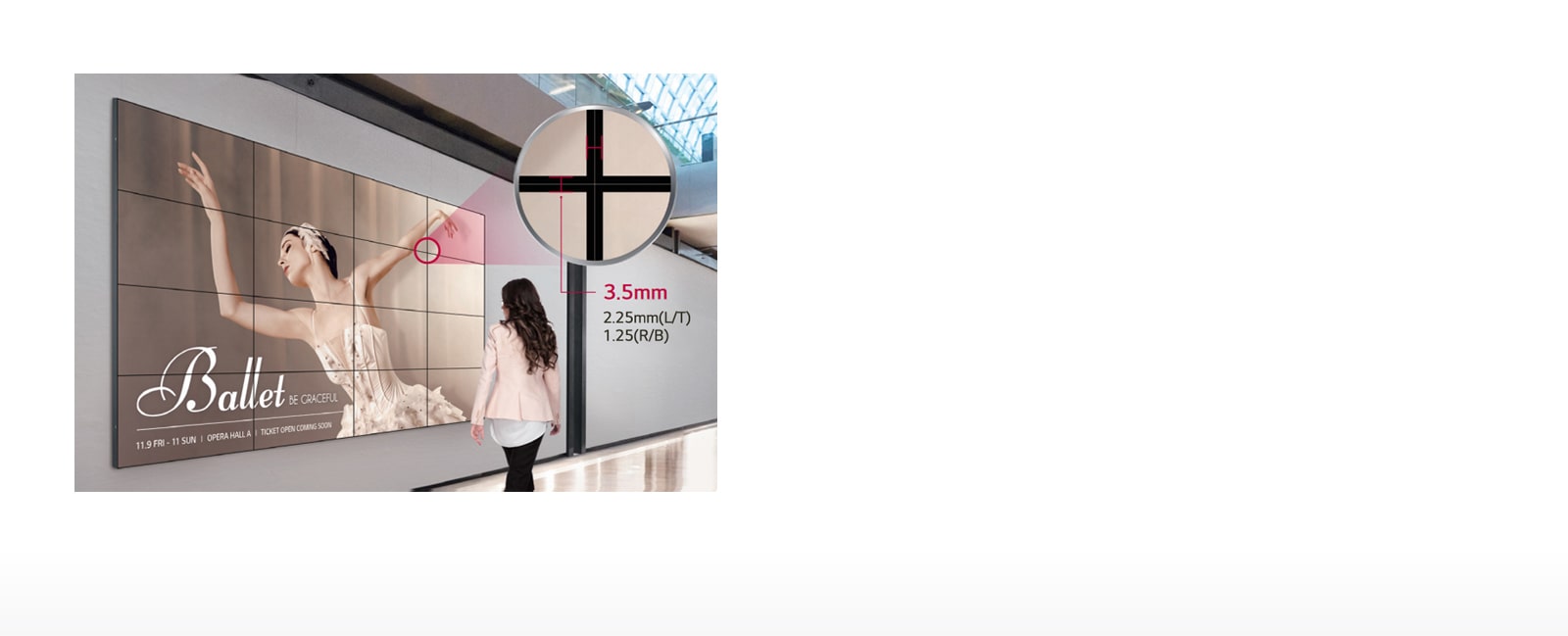

    Bezel Width

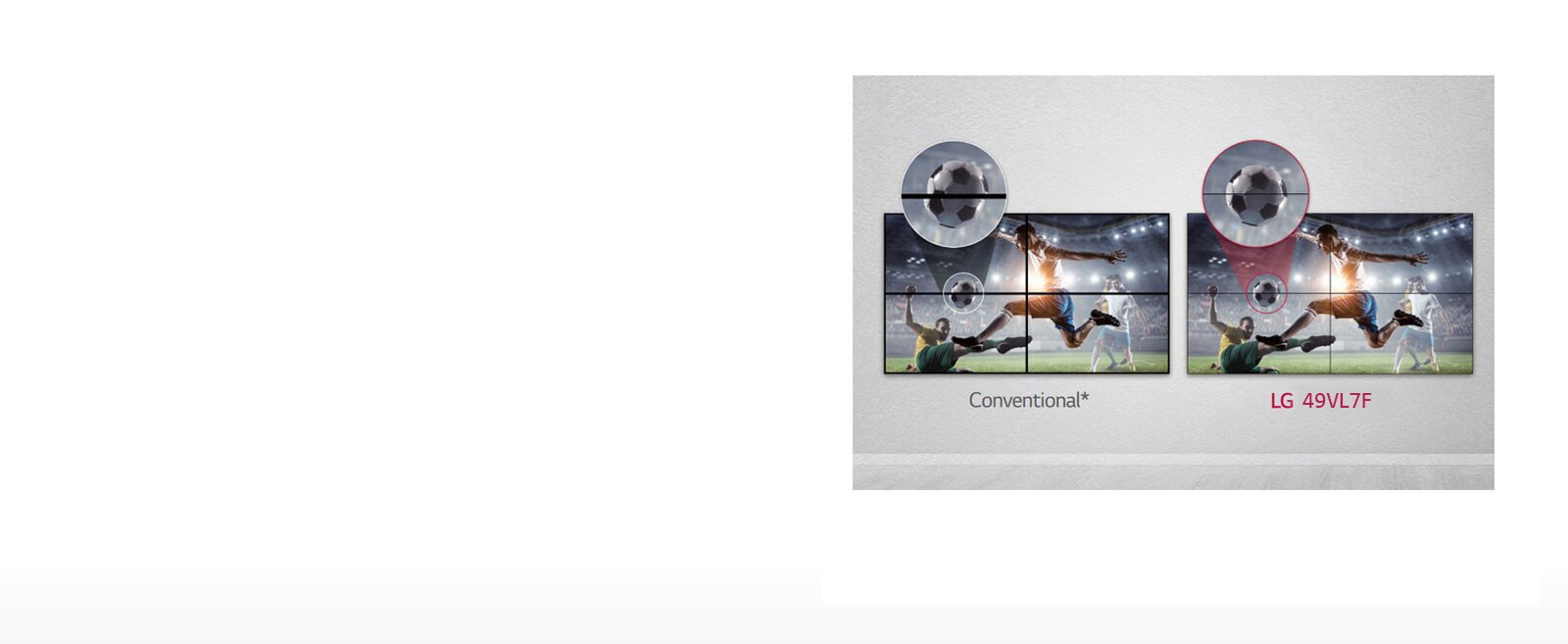

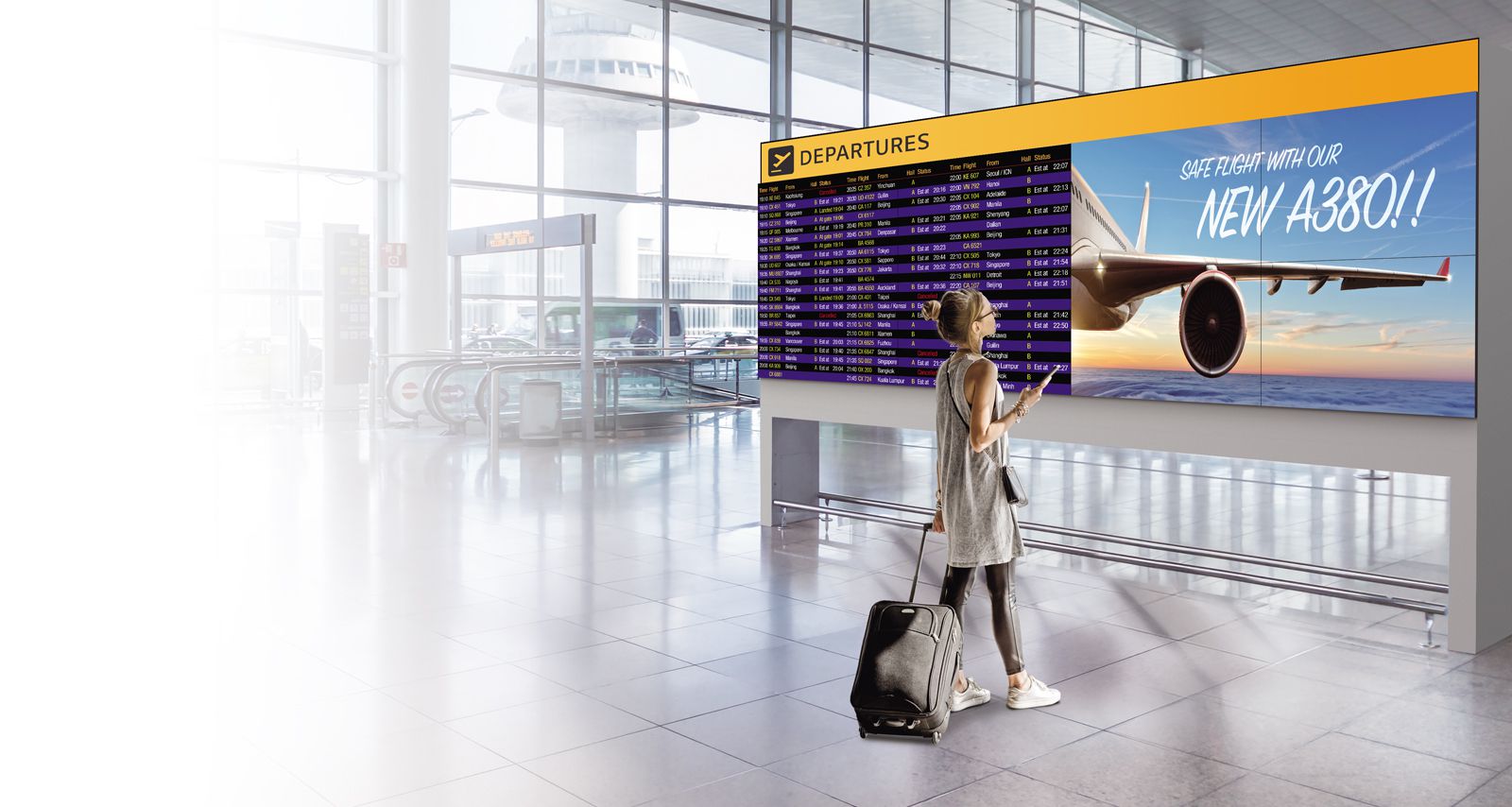

    2.25 mm (T/L), 1.25 mm (B/R)
  • Monitor Dimensions (W × H × D)
    1,077.6 x 607.8 x 89.7 mm
    Weight (Head)
    17.8 kg
  • Carton Dimensions (W × H × D)
    1,214 x 778 x 263 mm
    Packed Weight
    22.8 kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ./Max
    140 W / 165 W
    Smart Energy Saving
    75 W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
