75UH5F-H component-copyModelName

High Haze UHD Standard Signage

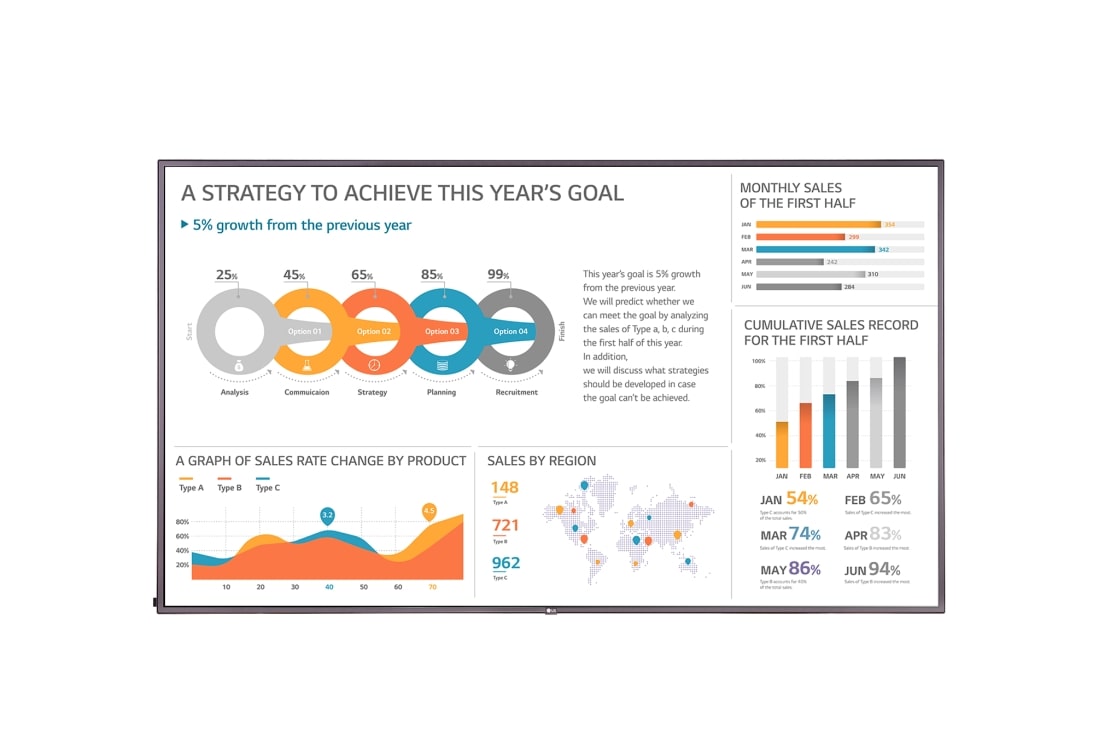

LG High Haze UHD Standard Signage, front view with inscreen, 75UH5F-H, thumbnail 1

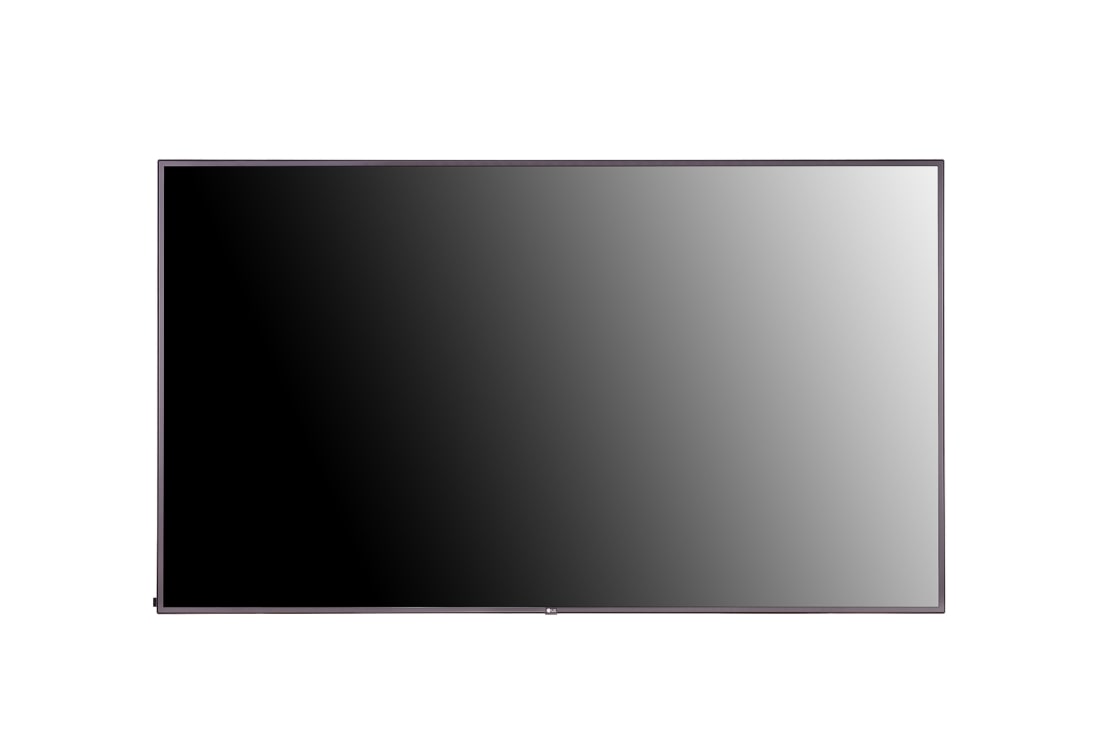

LG High Haze UHD Standard Signage, front view, 75UH5F-H, thumbnail 2

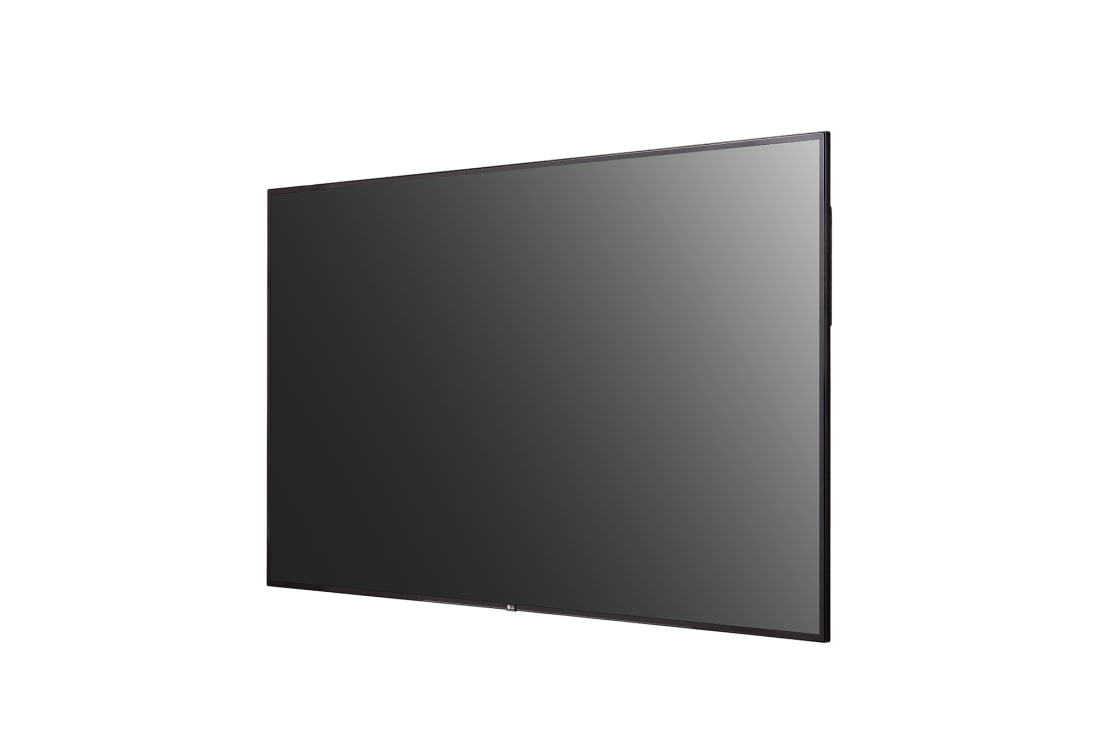

LG High Haze UHD Standard Signage, left 45 degree side view, 75UH5F-H, thumbnail 3

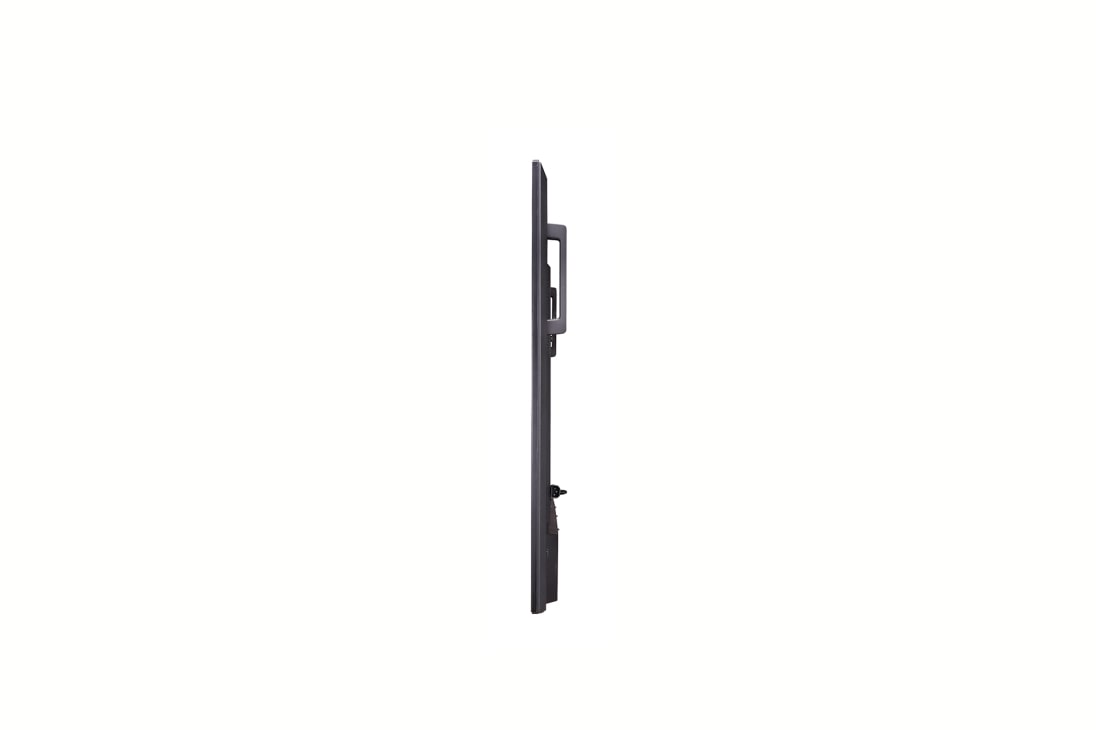

LG High Haze UHD Standard Signage, left side view, 75UH5F-H, thumbnail 4

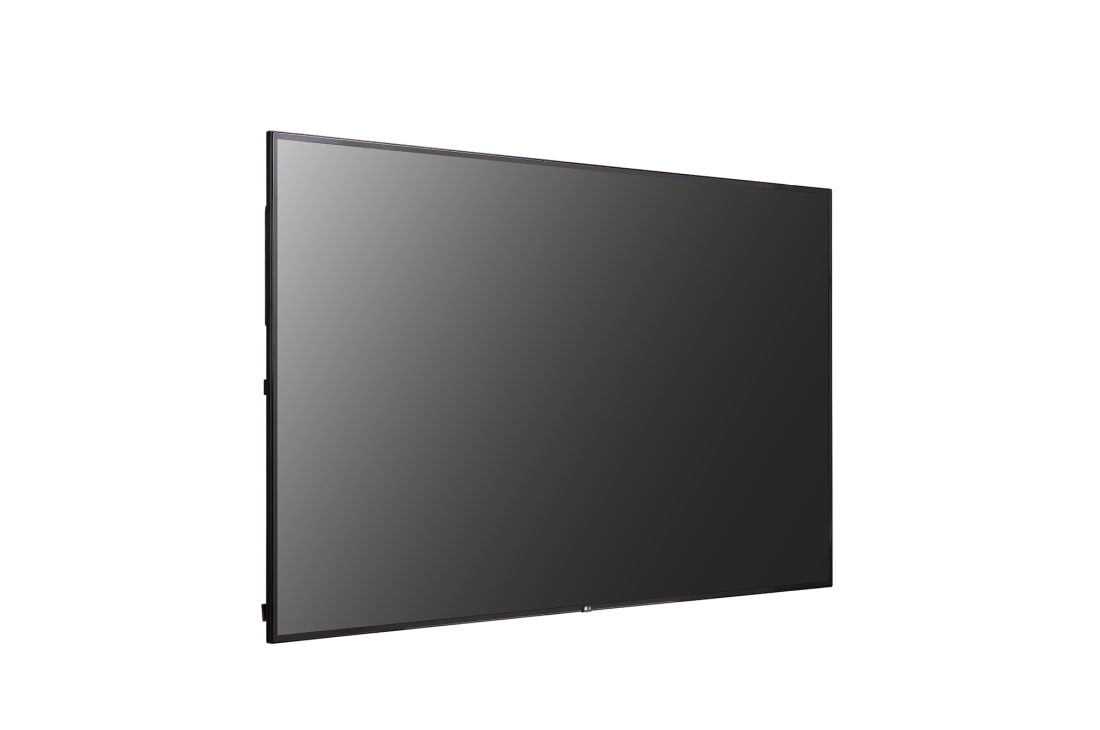

LG High Haze UHD Standard Signage, right 45 degree side view, 75UH5F-H, thumbnail 5

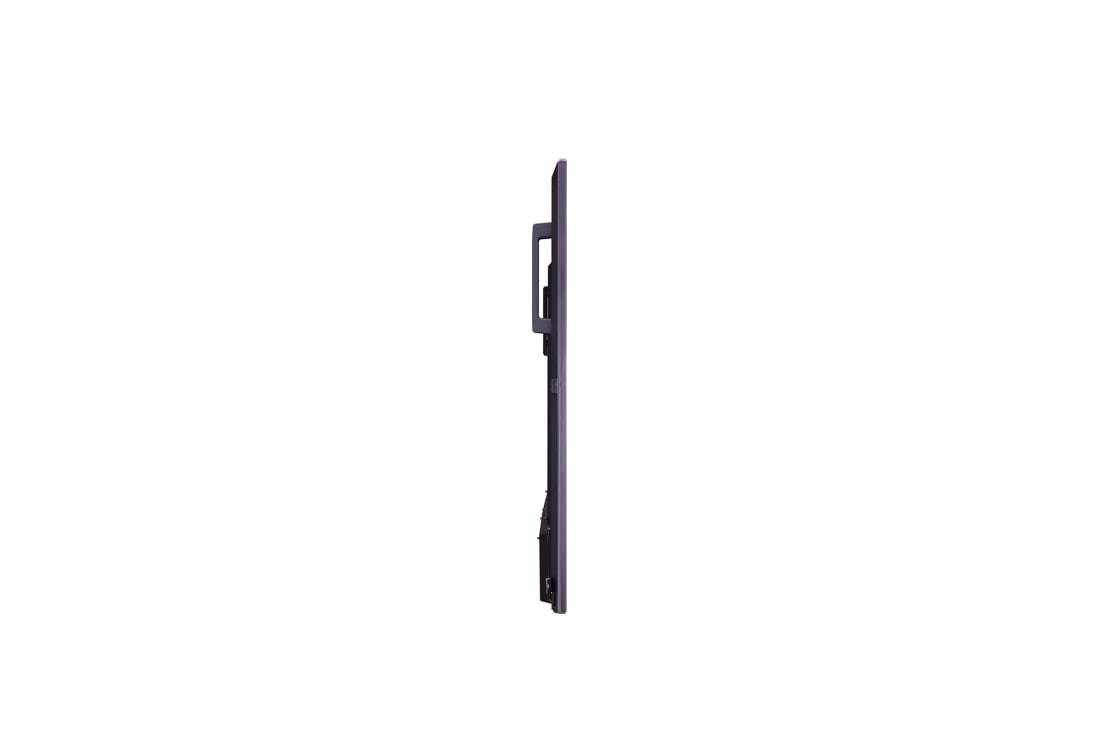

LG High Haze UHD Standard Signage, right side view, 75UH5F-H, thumbnail 6

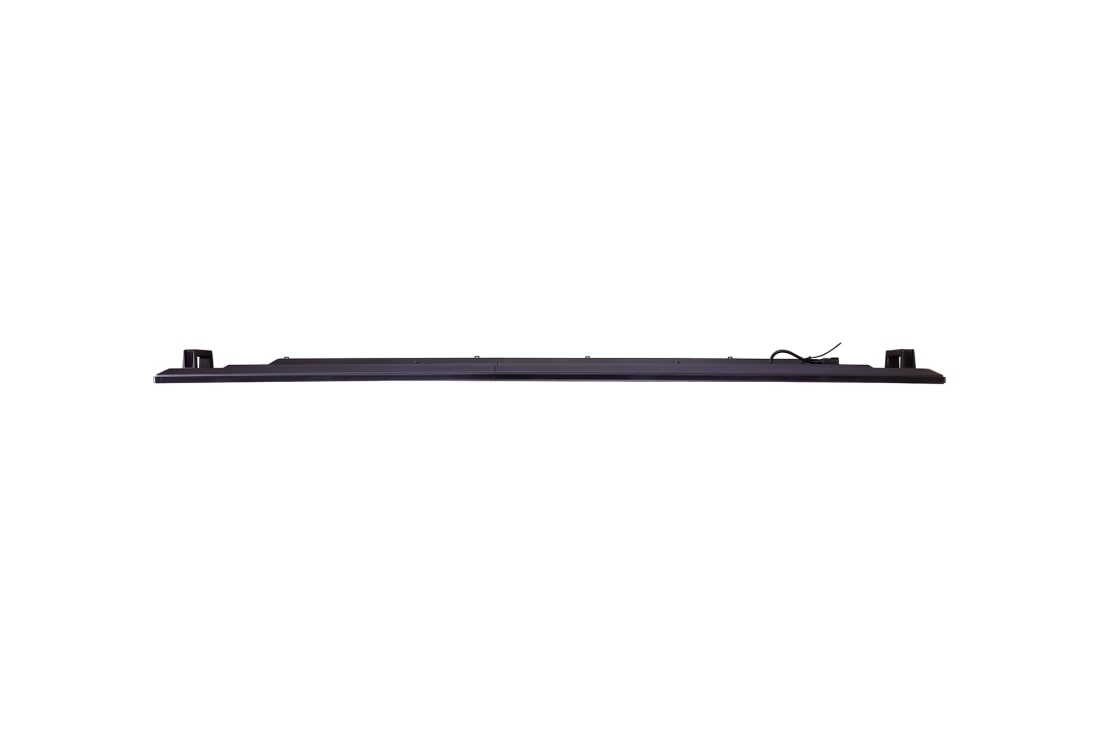

LG High Haze UHD Standard Signage, top view, 75UH5F-H, thumbnail 7

ADD TO WISHLIST

Discontinued

75UH5F-H component-copyModelName

High Haze UHD Standard Signage

Name: High Haze UHD Standard Signage
Brand: LG UAE
SKU: 75UH5F-H
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 14.9 mm (Even)
Depth : 57.9 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 14.9 mm (Even)
Depth : 57.9 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

High Haze UHD Standard Signage

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

SUPERB PICTURE QUALITY

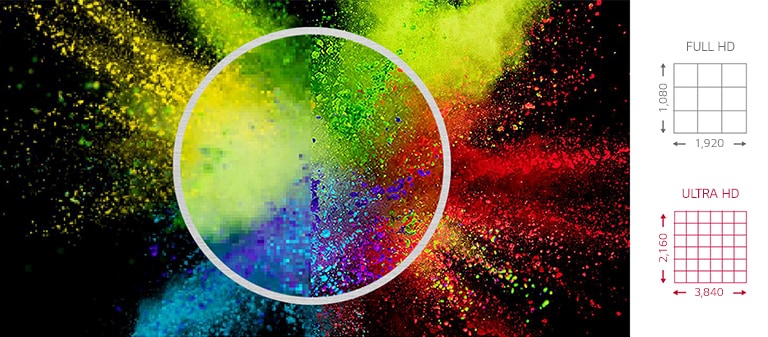

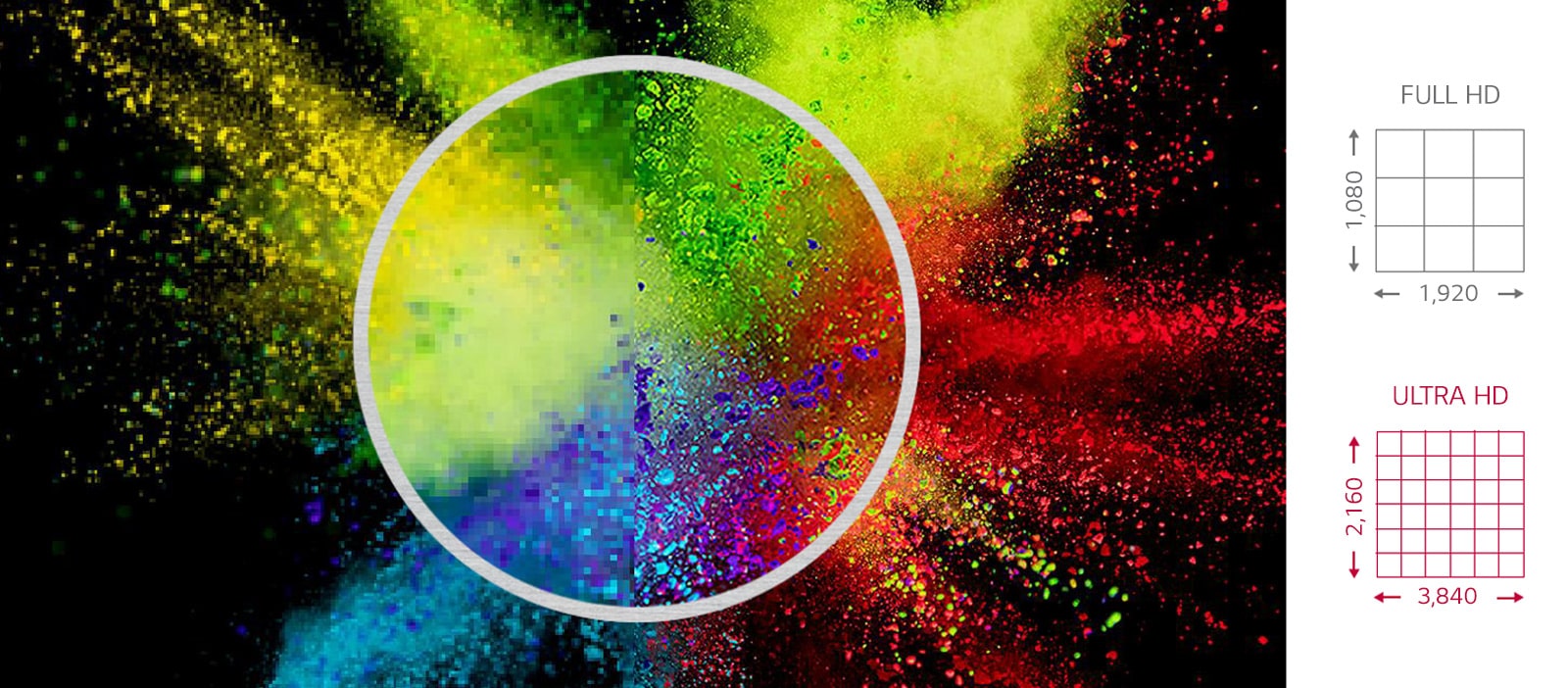

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

webOS SMART SIGNAGE PLATFORM

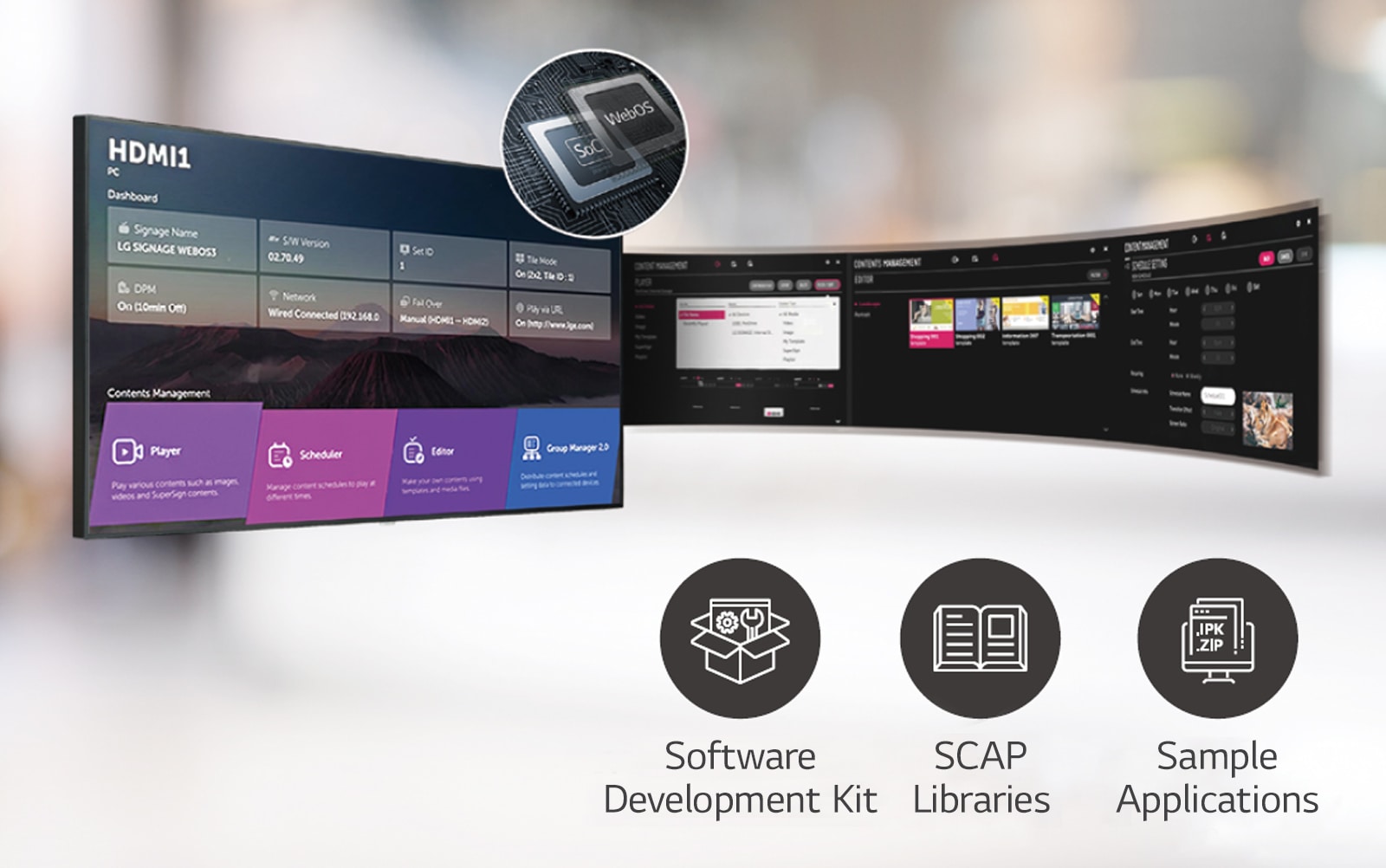

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

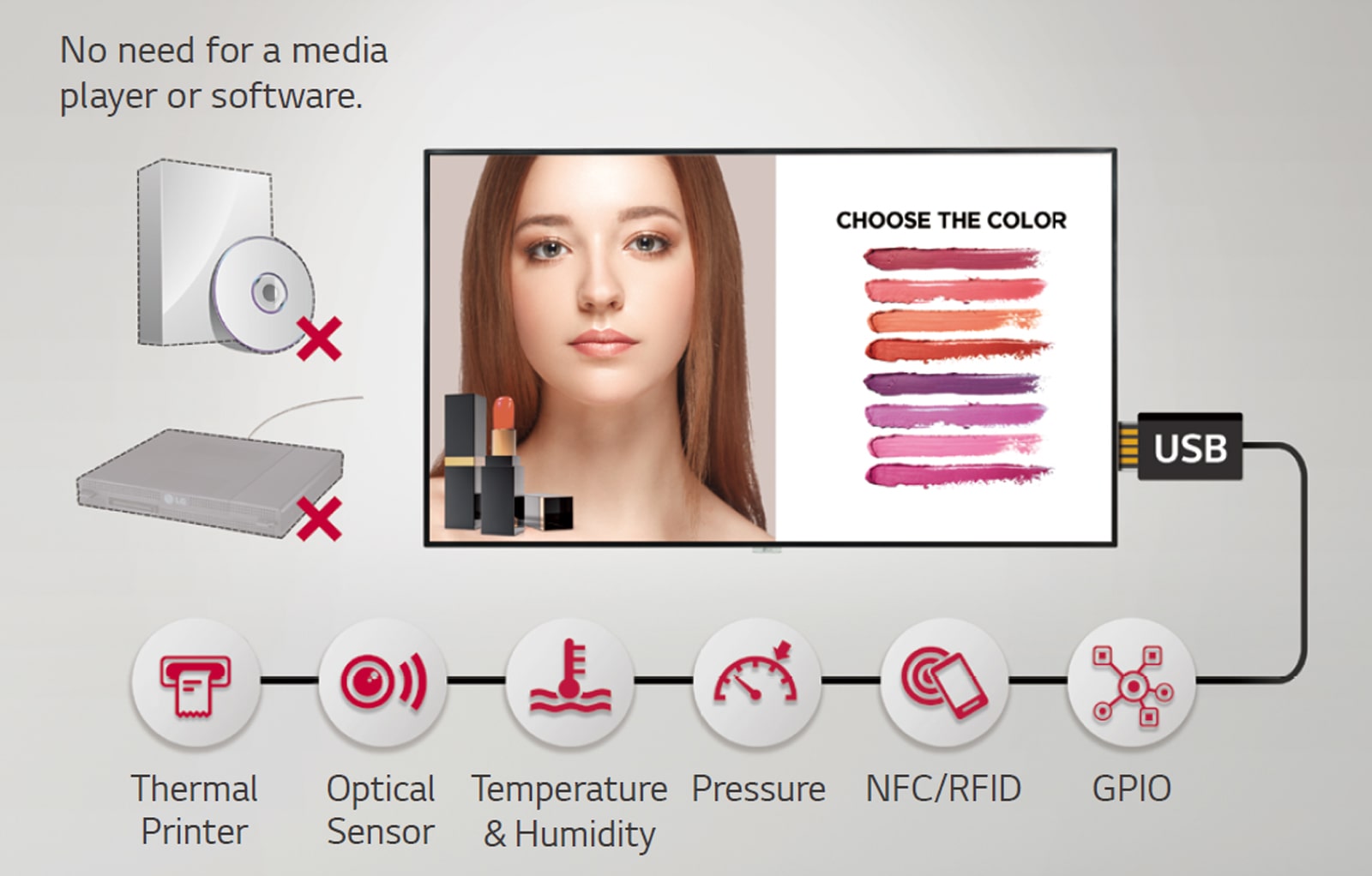

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

* Using an HDMI cable connection

EASY MANAGEMENT

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

EASY MANAGEMENT

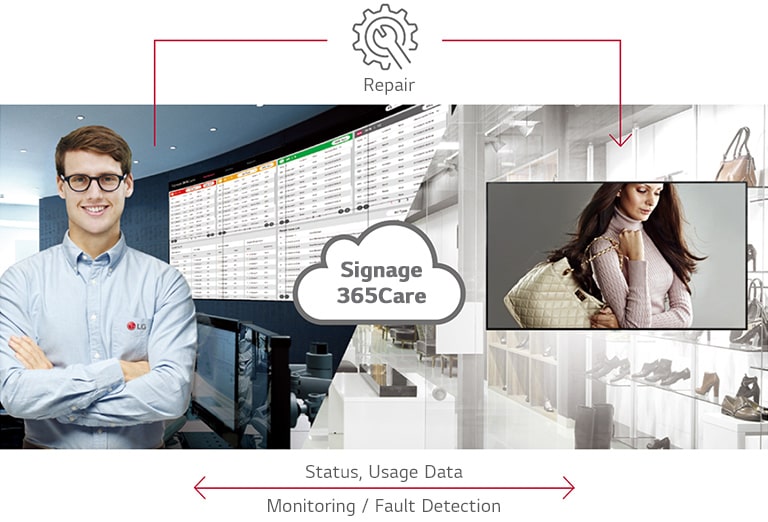

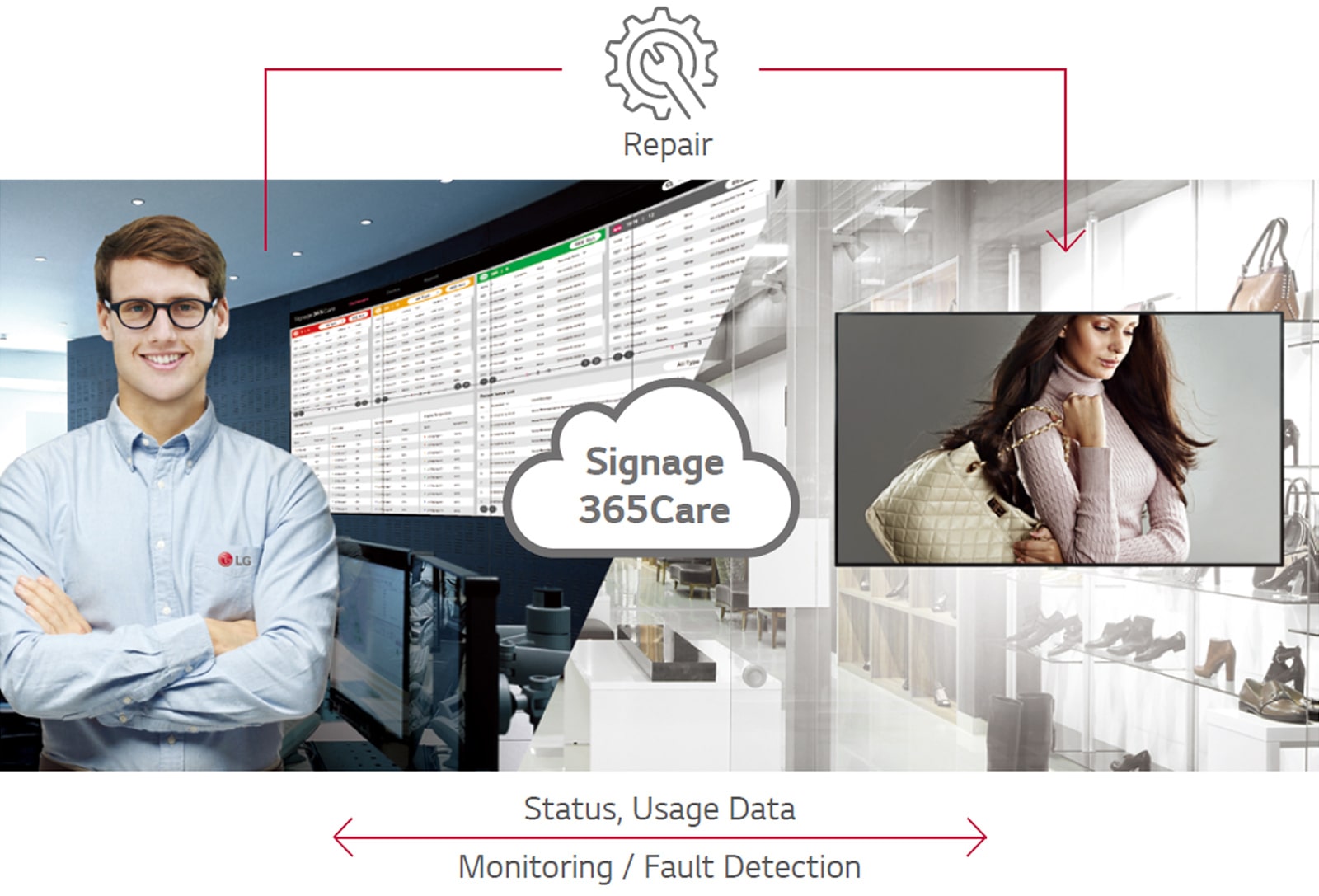

Real-time Cloud Care Service - Signage365care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

USER CONVENIENCE

Multiscreen Feature with PBP / PIP

PBP ^{(Picture-By-Picture)}features multiple screens in a single display with up to 4 input sources while PIP ^{(Picture-In-Picture)} supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.

ENERGY STAR® Certified

TYPE

Type

Standard

PANEL

Screen Size

75

Panel Technology

IPS
Back Light Type

Edge

Aspect Ratio

16:9
Native Resolution

3840 x 2160 (UHD)

Refresh Rate

120 Hz
Brightness

500nit (Typ.)

Contrast Ratio

1,100:1
Dynamic CR

1,000,000:1
*The luminosity ratio of Full Black / Full White color on video input condition.

Color Gamut

NTSC 72%
Viewing Angle(H x V)

178 x 178

Color Depth

10bit, 1.07Billion colors
Response Time

6ms (G to G)

Surface Treatment(Haze)

Haze 28%
Life time

50,000Hrs (Typ.)

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input - Digital - HDMI

Yes(3)
HDMI1/HDMI2 : HDCP 2.2/1.4
HDMI3 : HDCP 1.4

Input - Digital - DP

Yes(1), HDCP2.2/1.3
Input - Digital - DVI-D

Yes(1), HDCP1.4

Input - Audio In

Yes(1)
Input - External Control - RS232C IN

Yes(1), 4pin Phone-jack

Input - External Control - RJ45(LAN)

Yes(1)
Input - External Control - IR IN

Yes(1)

Input - USB

USB2.0 Type A(2)
Output - DP Out

Yes(1), Input : HDMI1/2/3/DVI/DP/OPS

Output - Audio Out

Yes(1)
Output - External Control - RS232C OUT

Yes(1), 4pin Phone-jack

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

Even bezel : 14.9mm
Weight(Head)

41.5Kg

Packed Weight

51.2Kg
Monitor Dimension(W x H x D)

1682.4 x 960.3 x 57.9mm
(without Handle and LG Logo)

Carton Dimensions(W x H x D) (Box outer size)

1816 x 1123 x 228mm
Handle

Yes

VESA™ Standard Mount Interface

600 x 400

KEY FEATURE

HW - Internal Memory

8GB

HW - Wi-Fi - Built-in

Yes
HW - Sensor - Temperature Sensor

Yes

HW - Sensor - Auto Brightness sensor

Yes
HW - Local Key Operation

Yes

HW - FAN

Yes
SW - webOS ver.

webOS4.0

SW - Embedded CMS - Local Contents Scheduling

Yes
SW - Embedded CMS - Group Manager

Yes

SW - USB Plug & Play

Yes
SW - Fail over

Yes

SW - Background Image - Booting Logo Image

Yes
SW - Background Image - No Signal Image

Yes

SW - Sync Mode - RS-232C Sync

Yes
SW - Sync Mode - Local Network Sync

Yes

SW - Multi-screen - PIP

Yes
SW - Multi-screen - PBP

Yes(4)

SW - Screen Share

Yes
SW - Video Tag

Yes(4)

SW - Play via URL

Yes(4)
SW - Rotation - Screen Rotation

Yes

SW - Rotation - External Input Rotation

Yes
SW - Gapless Playback

Yes

SW - Tile Mode Setting

Yes(Max. 15x15)
SW - Setting Data Cloning

Yes

SW - SNMP

Yes
SW - ISM Method

Yes

SW - Auto Set ID

Yes
SW - Status Mailing

Yes

SW - Control Manager

Yes
SW - 3rd Party Compatibility - Crestron Inside

Yes *Network based control

SW - Smart Energy Saving

Yes
SW - PM mode

Yes

SW - Wake on LAN

Yes
SW - Beacon

Yes

SW - HDMI-CEC

Yes *Compatibility may differ by equipment.
SW - SI Server Setting

Yes

SW - webRTC

Yes
SW - Pro:Idiom

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

180W

Max.

260W
BTU (British Thermal Unit)

614.25 BTU/Hr(Typ.), 887.25 BTU/Hr(Max)

Smart Enegy Saving

126W
DPM

0.5W

Power off

0.5 W

SOUND

Speaker

Yes

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes / Energy Star 8.0

OPS Compatibility

OPS type compatible

Yes

OPS Power built in

Yes

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
SuperSign WB

Yes

SuperSign Media Editor

Yes
Signage 365 Care

Yes (The availability can differ by region.)

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender

Optional

OPS Kit(KT-OPSF), LSW640A/B(Wall Mount), Touch overlay(KT-T75E)

SPECIAL FEATURE

Overlay Touch Compatibility

Yes
