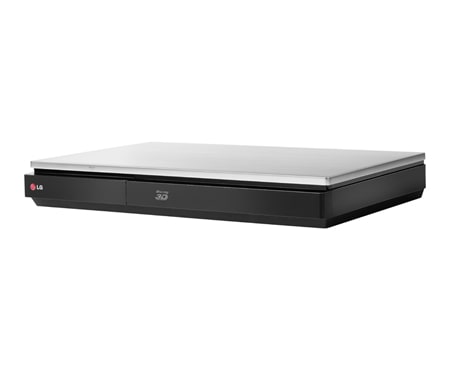

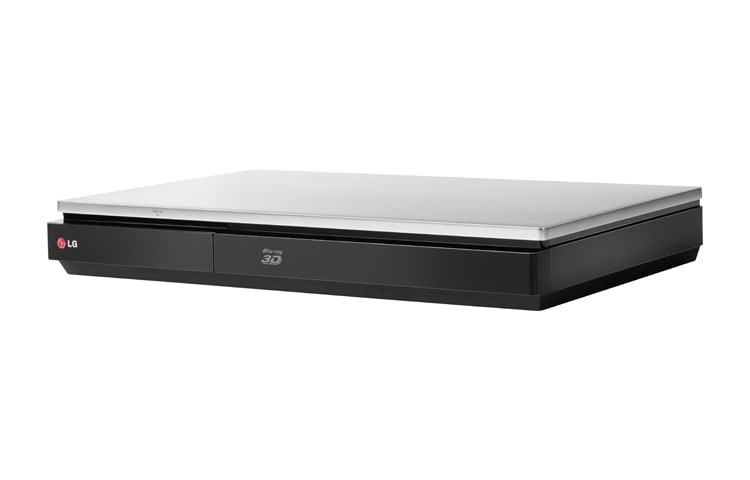

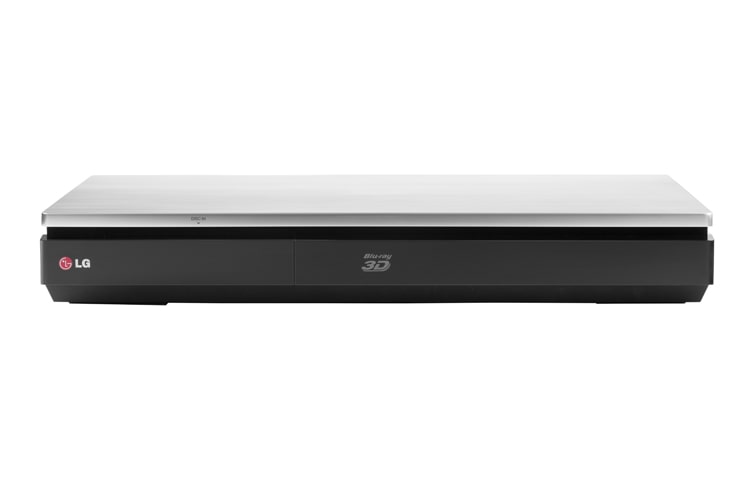

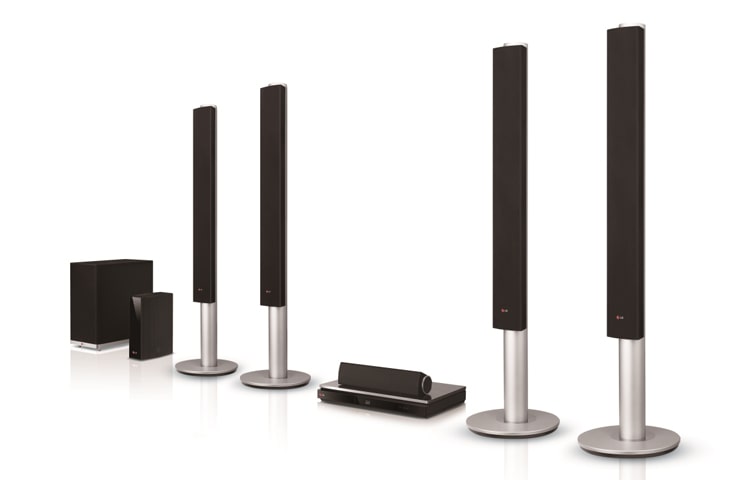

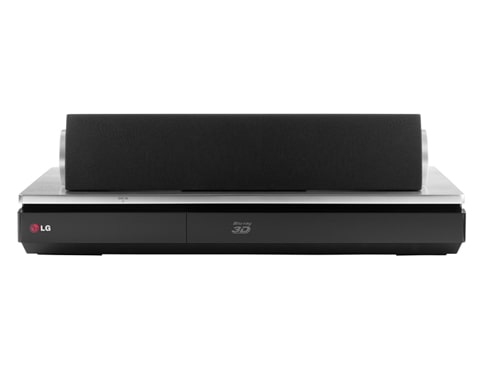

LG 9.1ch Smart 3D Blu-ray(TM) Home theater with Aramid Fiber

  • BH9540TW

Key Features

  • 9.1channel Cinema sound, 1460W
  • Aramid Fiber
  • 3D Blu-ray
  • LG Smart TV
9.1 Ch. Immersive Sound

9.1 Ch. Immersive Sound

9.1 Channel Immersive Sound adds 4 vertical surround speakers to your typical 5.1 channel home theater system. These 9 speakers deliver 9 different sounds each from a different direction, giving precise and genuine sound to make you feel like you were in the middle of the action.

Aramid Fiber Speaker

Aramid Fiber Speaker

Aramid Fiber, material highly resistant to the external stimulus, is applied to the unit to minimize sound distortion and deliver clear and precise sound.

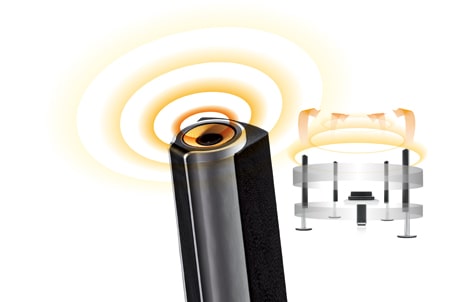

Vertical Speakers

Vertical Speakers

4 Vertical Speakers added on top can fill the entire space around you from top to bottom.Experience sound surrounding you not only from side to side but also from top to bottom.

3D Surround Processor

3D Surround Processor

With LG's unique sound calibration technology, Cinema Surround Processor, LG is able todeliver more immersive and cinema-like surround sound.

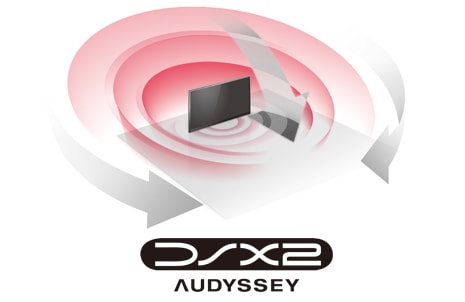

Audyssey DSX-2

Audyssey DSX-2

DSX extracts ambience elements (direct sound) from the front L/R and surround L/R signals in the original source in 2.1ch or 5.1ch, up-mixes them into 9.1ch, and then uses the in dependent 4 height channels to reproduce 3D sound.

Premium metal design

Premium metal design

A sleek and stylish cut and metallic speakers, the system will suit any environment and make the ultimate sound system for your home. The best designs are ready to suit your every need.

Ultra HD Upscaler

Ultra HD Upscaler

Enjoy the best picture quality for your home entertainment. ULTRA HD Up-scaling upgrades normal pictures to ULTRA HD quality, which is four times higher resolution than Full HD. *Only available with ULTRA HD display devices

3D Playback

3D Playback

The most comfortable 3D viewing experience is now possible. Perfected by advanced 3D technology, LG provides an immersive 3D viewing experience with an even brighter and clearer 3D picture with virtually no blur.

2D to 3D

2D to 3D

Don’t worry about lack of 3D content anymore-convert 2D to 3D! LG’s upgraded conversion technology is the most advanced one yet, with superior depth effect and smoothness.

USB Direct Recording & Playback

USB Direct Recording & Playback

With LG Home Theater System, Micro and Mini Audio you can not only playback files on USB devices, but record CD tracks or FM radio programs on your USB, while listening at the same time.

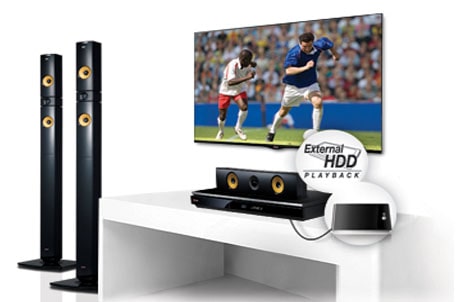

External HDD playback

External HDD playback

Just connect your portable storage devices and playback your favorite movie, music and photos on a bigger screen.

Wireless Rear Speakers

Wireless Rear Speakers

Sound with convenience and style is here with Wireless Rear Speaker. Enjoy clean, elegant look in your living room with easy and convenient installation.

Private Sound Mode 2.0

Private Sound Mode 2.0

"No more bothering!" You can enjoy everything with full surround sound, even in the middle of the night. Listen to music or movie audio in the home theater system through your smart phone or mobile device without additional purchase of a Bluetooth headset and dongle.

Wireless Audio Streaming

Wireless Audio Streaming

Enjoy your favorite music on mobile devices through LG sound system with wireless audio streaming via Bluetooth®.

LG Smart TV

LG Smart TV

Experience a multitude of popular streaming entertainment and apps with LG Smart TV functions. A full range of quality lifestyle applications, interactive games, and VOD Services designed for individual and family entertainment is all yours to enjoy.

Premium Content

Premium Content

Find contents you want to watch right on your TV with just a few clicks of a remote. LG Smart TV provides a variety of popular streaming entertainment and VOD services.

Miracast™

Miracast™

Miracast™ allows screen mirroring from mobile devices to TV. Just mirror the screen of mobile devices and enjoy mobile contents -pictures, videos, games- right on the TV screen.

Web Browser

Web Browser

Enjoy web surfing just like a PC on a bigger screen! You can search the Internet and access web content at ease through an intuitive user environment with the convenient Magic Remote!

Wi-Fi Direct™

Wi-Fi Direct™

Enjoy easy wireless file-sharing with Wi-Fi Direct™. LG Audio supports Wi-Fi Direct™, allowing it greater connectivity, easier access, and seamless content streaming with other digital devices.

Design
Top & Bottom cabinet (slot) Yes
Connectivity
DLNA(Smart Share) - DMP / DMR(Mobile to TV Streaming) / DMS(USB) Yes/Yes/No
Wi-Fi direct Yes
Wi-Fi Built-in Yes
Wired (Ethernet) Yes
Physical

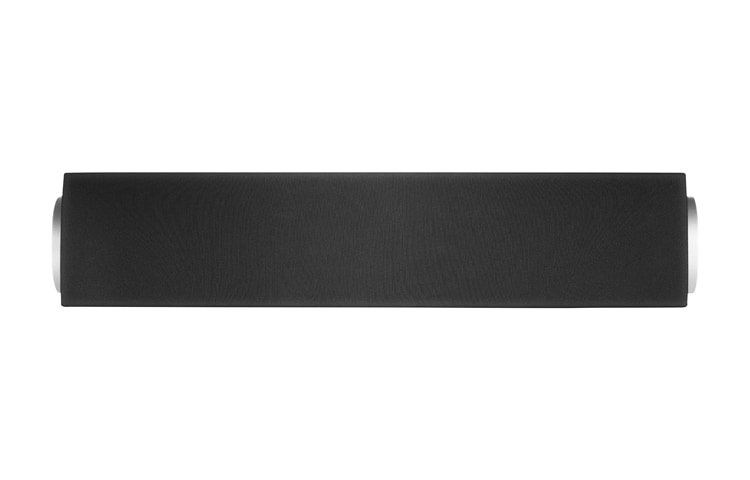

Size (W x H x D) mm - Center Speaker 341.5x79x81.5

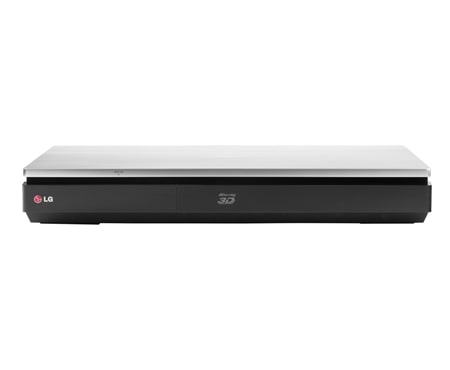

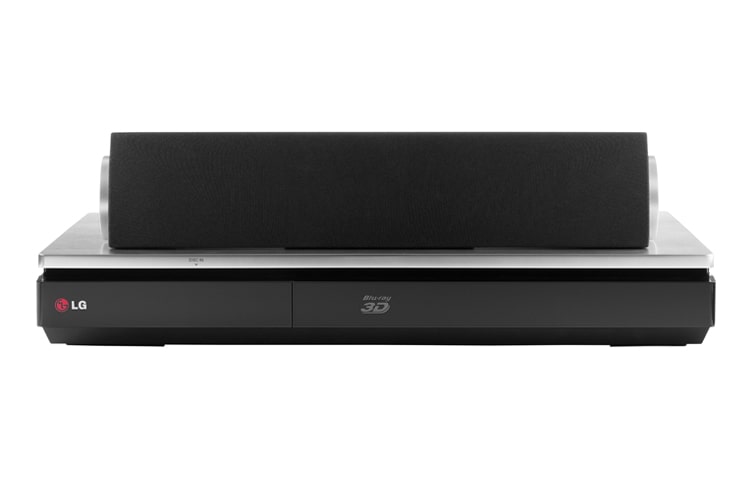

Size (W x H x D) mm - Main 444 X 65 X 292.5

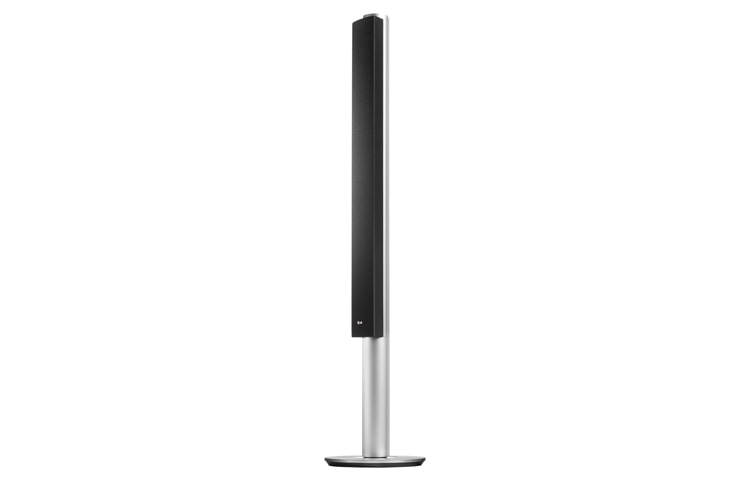

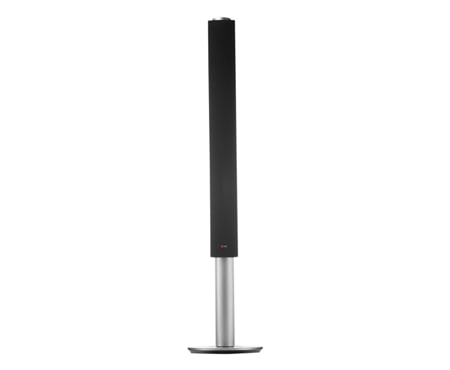

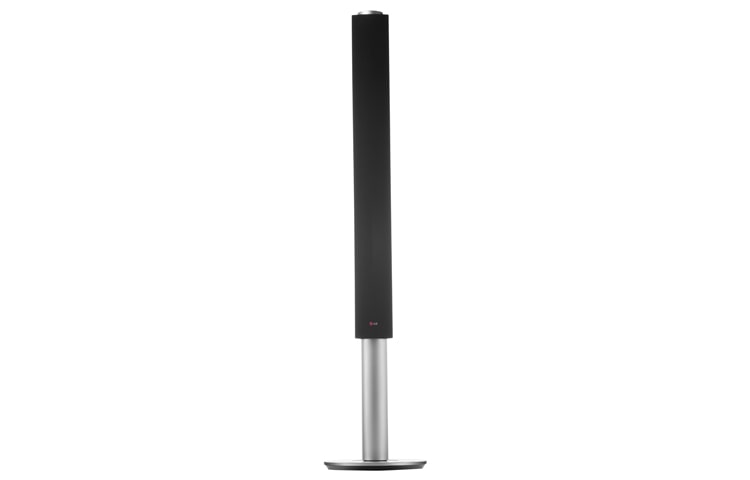

Size (W x H x D) mm - Front Speaker 290x1220x290
Size (W x H x D) mm - Rear Speaker 290x1220x290
Size (W x H x D) mm - Subwoofer 172X379X377
Amplifier
CH 9.1
Front Top (L/R) 90WX2
Front L/R 180WX2
Power Output - Total 1460W
Sub-Woofer 200W
THD 10% Front L/R 180WX2
Wireless Rear L/R 180WX2
Wireless Surround Top(L/R) 90WX2
3D compatibility
3D / 2D Yes / Yes
2D to 3D converting (Video) Yes
In & Out
Front-Display FLD
Front-USB 1
Mic - Mic In(φ6.3) 2
Front - Audio Input Yes
Front - Audio Input Optical 1
R/Panel-HDMI-Out 1
R/Panel-HDMI-Input 2
R/Panel-Radio Antenna-FM Yes
R/Panel-Speaker Terminal-Composing of channel 9.1
R/Panel-Speaker Terminal-Terminal Type LAN
R/Panel-Ethernet Yes
R/Panel USB 1
R/Panel-Wireless speaker Tx dongle Yes
Convenience
Private Sound Mode Yes
Karaoke Mic Volume / Echo Volume Yes/Yes
Auto Volume Level Yes
A/V Sync Delay(Audio Delay) Yes
Bluetooth (Rx / Tx) Yes / No
Booting-Time 5 sec↓
Dimmer Yes
Dynamic Range Control Yes
External HDD Playback Yes
Firmware update by network Yes
Instant tray open 2 sec↓
Loading Time 10 sec↓
Mute Yes
Progress Bar Yes
Simplink Yes
Sleep Yes
Smart phone remote App Yes
Speaker Distance(channel delay) Yes
Speaker Level Trim Yes
Test Tone Yes
TV Sound (direct key) Yes
Karaoke-Fanfare Yes
Karaoke-Scoring Yes
Karaoke-Howlling Canceller Yes
USB Direct Recording Yes
Volume on TV Yes
Warm booting 3 sec↓
BD
BD ROM profile 5.0
MHP-Like Interactivity Yes
Mixed Presentation of Dual Audio Yes
Simultaneous Playback of HD & SD Video Drip Yes
Still Picture PNG, JPEG, GIF
ULTRA HD Up-scaling Yes
Disc (BD, DVD, CD) Playback
Auto Power Off Yes
Initial logo Yes
Parental Lock Yes
Screen Saver Yes
Disc & AV Format
BD-ROM Yes
BD-R Yes
BD-RE Yes
DVD(NTSC) Yes
DVD(PAL) Yes
DVD-R Yes
DVD-RW(Video/VR Mode) Yes
DVD+R Yes
DVD+RW(Video mode) Yes
Audio CD Yes
DTS-CD Yes
CD-R/CD-RW Yes
MPEG2 Yes
MPEG4 AVC (H.264) Yes
SMPTE VC1 (VC-9) Yes
DivX Yes
DivX HD Yes
MKV Yes
AVCHD Yes
M4V Yes
FLV Yes
WMV Yes
3GP Yes
MPEG-1 Yes
MP4 Yes
MOV Yes
VOB Yes
LPCM Yes
Dolby Digital Yes
Dolby Digital Plus Yes
Dolby TrueHD Yes
DTS Yes
DTS-HD High Resolution Audio Yes
DTS-HD Master Audio Yes
MPEG 1/2 L2 Yes
MP3/ID3 Tag Yes
WMA Yes
AAC Yes
FLAC Yes
Graphics/Subtitle Format 2bit/ 9bit Sub-picture
DVD
1080p Upscaling Yes
Home Menu
Home Menu Yes
Power
Power Consumption 130
Power Off Consumption 0.5W ↓
SMPS 110-240, 50/60Hz
Radio
Tuner Type PLL
Tuning Up/Down Yes
Preset Up/Down Yes
Band FM Yes
Preset Memory 50 Station
Repeat Play
A-B Yes
Chapter Yes
Random Play Mode Yes
Title/Track Yes
Resume Stop Yes
Search
Chapter Yes
Time Yes
Title/Track Yes
Sound DSP
DSP Yes
Speaker
Front - System Closed type
Front - Tweeter Unit 20mm Silk Dome
Front - Woofer Unit 3" Paper (2EA)
3D Effect Unit (Top) 2.5" Aramid
Front - Impedance
Front - Magnetic Shielding No Shield
SPL (Rear) 82dB
System (Rear) closed type
Tweeter Unit (Rear) 20mm Silk Dome
Woofer Unit (Rear) 3" Paper (2EA)
3D Effect Unit (Top) (Rear) 2.5" Aramid
Impedance (Rear)
Magnetic Shielding (Rear) Non-Shield
SPL (Center) 82dB
System (Center) Closed Type
Tweeter Unit (Center) 20mm Silk Dome
Woofer Unit (Center) 3" Paper (2EA)
Impedance (Center)
Model Name(Rear) S94T1-S
Model Name(Center) S94T1-C

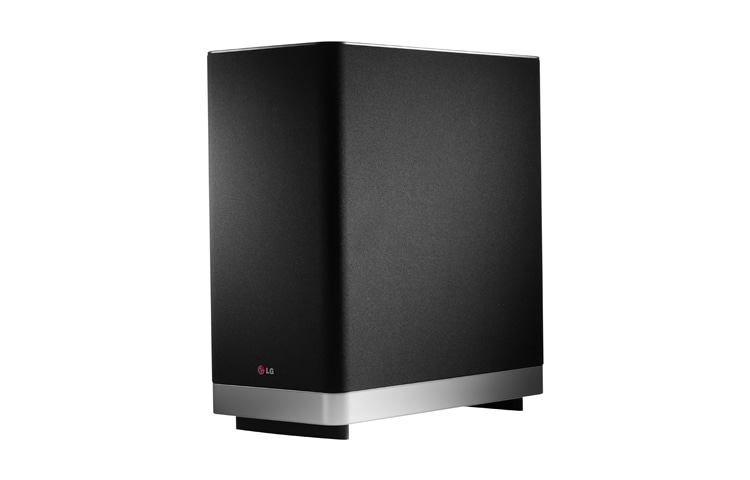

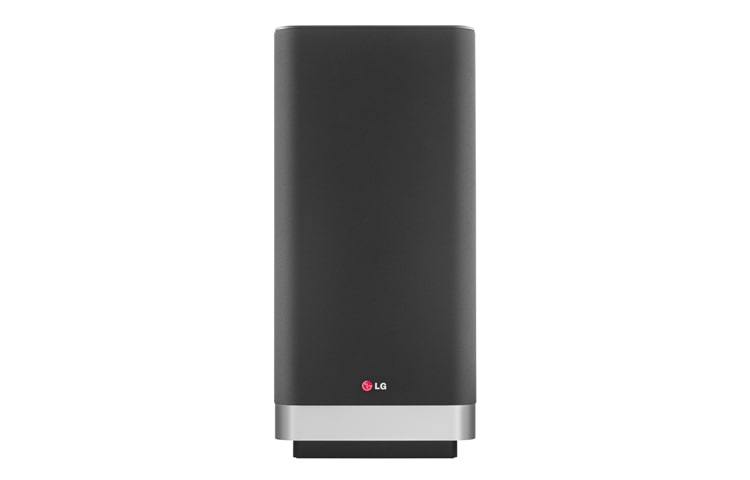

Subwoofer - System Bass Reflex Type
Model Name(Subwoofer) S94T1-W
Subwoofer - Woofer Unit 6.5" Paper (2EA)
Magnetic Shielding(Center) Non-Shield
Magnetic Shielding(Subwoofer) Non-shield
SPL (Subwoofer) 83dB
Rear Wireless Kit-Name W4-4
Video
ARC Yes
Deep Colour Yes
GUI/ Menu Option
HDMI 1.4 Yes
Last Scene memory Yes
NTSC/PAL Hz 60Hz / 51Hz
NTSC⇔PAL Conversion Yes
Photo Zoom Yes
Resolution upto 1080p24/61Hz
VBI WSS/CGMS-A/Closed Caption/Macrovsion
Video DAC 148MHZ/13bit
Video Enhancement Yes
xvYCC Yes
Trick Play
Fast Back Yes
Fast Forward Yes
Forward Step Yes
Forword Slow Yes
Pause Yes
