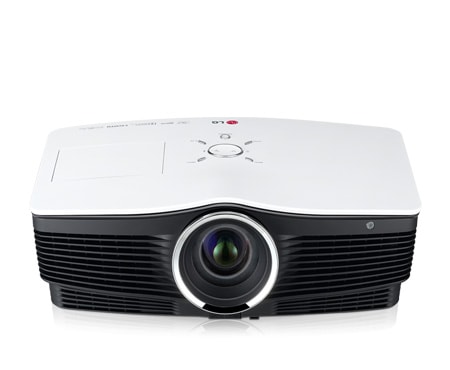

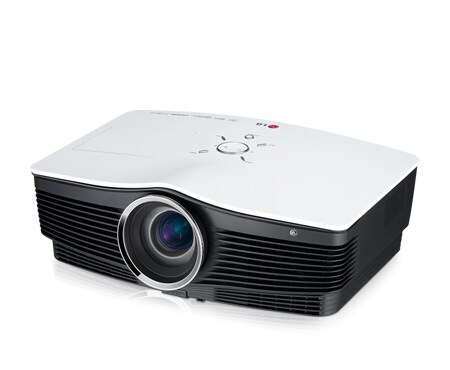

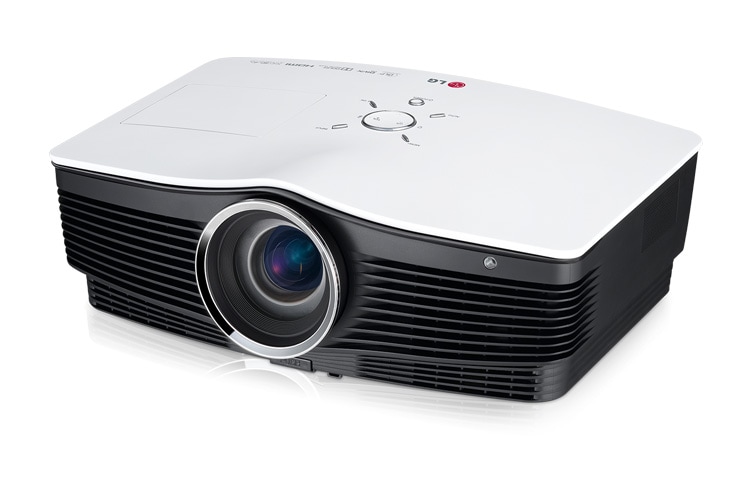

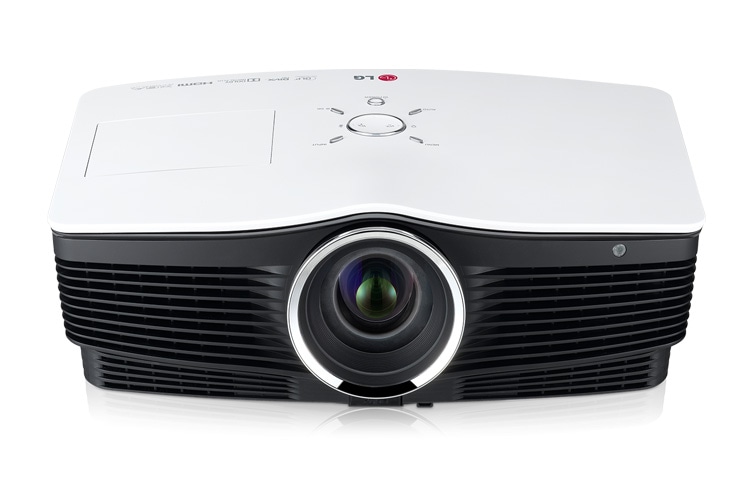

Semi short throw business projector with 5000 ANSI lumens, 3000: 1 contrast, HDMI port and WiDi

  • BC775

Key Features

  • Powerful business projector
  • Short-distance optics (Semi Short Throw)
  • High brightness of 5,000 ANSI lumens max
  • Horizontal and vertical keystone correction (Keystone)

Contrast ratio of 3,000: 1

With a contrast ratio of 3,000: 1 of powerful business projector is ideal for professional presentations prepared and delivers clear images with great depth and sharp contours. This is particularly important in the business sector, so that both fonts and graphics are always legible.

1.2x Zoom

The 1.2 times zoom allows optimal alignment of business projector to the spatial conditions and thus provides more flexibility. This pays off especially when the projector times can not be placed in the optimal distance from the screen to adjust the screen size.

Large screen size

The powerful business projector throws images with a screen size of 102 cm to 762 cm (40 inches to 300 inches) to the wall. So you can present well in small meeting rooms for one and also in large meeting and conference rooms, the security that your presentations are optimal also see from a distance to.

7-watt speakers

With a powerful business projector of course the sound is good form. And just so waiting the LG projector with its 7-watt speakers. So open the door for versatile multimedia presentations

File Viewer

File Viewer

Especially practical for daily use is the File Viewer, as this allows playback of various multimedia and Office files directly from a USB storage device - without a computer. So you can project, for example, Excel and PowerPoint files directly easily and most importantly, without conversion.

perfect connectivity

With the Intel WiDi technology, tangling cables and wires are of the past, transfer your business presentation from your tablet or PC easily wirelessly. With BC775 relieving wizard that helps you professionally in your presentation. In addition, the luminous projector comes with a handy LAN connection - so you can access directly from the projector to your network data and present them confidently in the conference room.

perfect connectivity

Automatic source detection

The business projector is equipped with a highly convenient feature - an automatic source detection. It remembers all by itself, which device has just been connected. Tedious and time-consuming to locate source thus spared. To do so quite looking forward to your next presentation, about connectivity or compatibility you need to stop worrying.

Variable format switching

In terms of format compatibility, the LG is BC775 absolutely flexible. Whether your content in 4:3 want to present 16:9 format - the projector can play both formats completely true to the original.

High native resolution

With the business projector your presentation is a persuasive sharp success. Because the impressive native XGA resolution (1024 x 768) makes the projector to your argumentation strong partner. A good feeling when you can rely on at critical moments to perfect technique.

Projection System
Brightness(ANSI) 5000
Colour wheel 6 segment (RGBWYC)
Contrast Ratio 30000:1
Lamp - Type 330W
Lamp Life Economic 3000 Hrs
Life Time - High Brightness 2500 Hrs
Native Resolution XGA (1024x768)
Noise - Economic 34dB(A)
Noise - High Brightness 37dB(A)
Projection Image Screen Size 40" ~ 300"
Projection Image - Standard 100"@2.5m (4:3) Semi Short Throw
Projection Image - Throw Ratio 1.23 / 1.47
Projection Lens - Focus Manual
Projection Lens - Zoom Manual 1.2x
Projection Offset 100%
Projection System DLP (0.7")
Uniformorty(JBMMA 9point) 80%
General Specification
Aspect Ratio Control Native 4:3, Support 16:9 / 15:10
Dimension (mm) 403.3x295.5x148.5mm
Input Signal Compatibility - Digital(HDMI) 1080p/1080i/720p/576p/480p
Input Signal Compatibility RGB Up to WSXGA+(1680x1050@60Hz)
Input Signal Compatibility - Component Video 1080i/720p/576p/576i/480p/480i
Input Signal Compatibility - Composite Video NTSC-M/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM
Menu Language Korean / English / French/ Spanish/ German / Italian / Swedish / Portuguese / Chinese Simplified / polish/ Brazilian Portuguese/Russian/ Greek / Arabic/ Turkish/ Taiwanese
Operation Temp 0 ~ 40℃
Power Consumption 440W/410W
Power Supply AC 100 ~ 240V(Free Voltage), 50Hz/60Hz
Sound 7W mono
Stand-by Power <0.5W
Weight (kg) 6.2 Kg

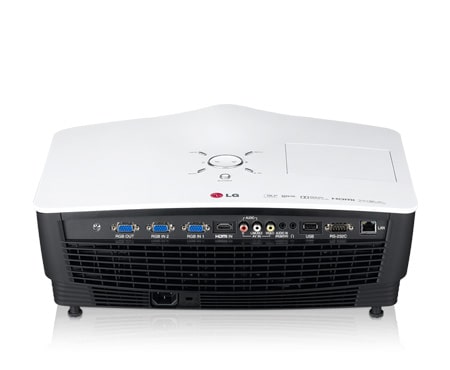

Input/Output Terminals
Audio Out (Φ3.5)1(HP)
Component (YPbPr) 2(RGB to Component in)
Composite(AV) Audio in 1
Composite(AV) in 1
HDMI 1 (Ver 1.3)
RJ45 1 (Ethernet)
RGB in 2
RS232C 1
RGB Out 1
RGB(PC) Audio in 1
Main Features
Auto Input Search Yes
Auto Sleep (Off) Yes (Off/10/20/30/60/90/120/180/240)
Auto Source Detection Yes
Automatic Standby Yes
Black Level Control Yes(High / Low)
Black board mode Yes
Blank Yes (Blue, Green)
Brilliant Color™ (Overlap Duty) Yes
Closed Caption Yes(Inut:AV Language :Korean)
Color Temperature Yes (Warm, Medium, Cool, Natural)
Digital Keystone Correction Yes (H/V)
Expert controlvADJ Yes
Gamma Correction Yes
Image Flip Horizontal/Vertical
Noise Reduction Yes
Picture Still Yes
Presentation Timer Yes
Plug & Play(RGB, DVI/HDMI Input) Yes
Status Display LED Yes
Sleep Timer Yes
Over Scan Yes
Added Features
File(Office) Viewer Yes
USB Host (DivX, MP3, Photo) Yes
Wireless Mirroring (WiFi Direct) WiDi, Wireless Display
Cabinet Color White Pearl
Kensington Lock Yes
Leg-Stand Yes
Local Key Yes
Lamp Top Replacement
Conformances(Regulation) CE, IEC, MIC
Lens Cap Yes
Ez-net Program CD Yes
Manual Simple book, CD, Warranty
Remote control Yes
D-sub 15 1
Power code 1
