Worlds Brightest Portable LED SMART Projector

  • PB62G

Key Features

  • RESOLUTION
  • BRIGHTNESS (ANSI-LUMEN)
  • CONTRAST RATIO
  • LAMP LIFE (HOURS)

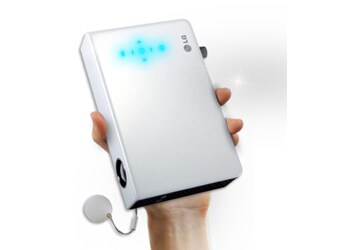

World Brightest Portable LED Smart TV Projector

World Brightest Portable LED Smart TV Projector

- WXGA (1280 x 800)
- 500 Ansi
- 2500:1 ↑ Contrast ratio
- 3000hrs lamp life
- HD DivX embedded
- 3D Ready
- File viewer

DESIGN

DESIGN

SUPER LONG LASTING LAMP

4 Hours a Day, Lasts 20years

SUPER LONG LASTING LAMP
Smart Sharing Among Your Various Digital Devices

Smart Sharing Among Your Various Digital Devices

Anywhere, Anytime Easy to Use

Anywhere, Anytime Easy to Use

INPUT/OUTPUT

INPUT/OUTPUT
Projection System
Brightness(ANSI) 500 * The brightness (ANSI) is based on the perceived brightness equivalent to the brightness of (standard) lamp projector
Contrast Ratio (FOFO) 15,000:1
Noise - High Brightness 34dB(A)
Noise - Normal 31 dB(A)
Noise - Economic 26 dB(A)
Uniformorty(JBMMA 9point) 85%
Projection Lens - Focus Manual
Projection Lens - Zoom Fixed
Projection Image Screen Size 25" ~ 100"
Projection Image - Standard 40"@1.3m
Projection Image - Throw Ratio 1.5
Projection Offset 100%
Lamp - Type RGB LED, PT39 (Luminus)
Lamp - Life High Brightness 30,000 Hrs
General Specification
Aspect Ratio Control 4:3/Just scan/Set by Pro./ 16:9/Full/Zoom/Cinema Zoom/Full
Dimension (mm) 158(W) x 103 (D) x 33 (H)
Input Signal Compatibility - Digital(HDMI) 1080p/1080i/720p/480p
Menu Language Korean / English / French/ Spanish/ German / Italian / Swedish / Portuguese / Chinese Simplified / polish/ Brazilian Portuguese/Russian/ Greek / Arabic/ Turkish/ Taiwanese
Power Consumption 60W
Sound 1W+1W Stereo
Stand-by Power <0.5W
Power Supply Adapter
Operation Temp 0 ~ 40°
Input Signal Compatibility RGB Up to WSXGA+(1680x1050@60Hz)
Input Signal Compatibility - Component Video 1080p/1080i/720p/480p/480i
Input Signal Compatibility - Composite Video 480p, 480i
Weight (kg) 470g
Input/Output Terminals
Composite(AV) in Phone to AV in
Component (YPbPr) RGB to Component in
Audio Out 1 (Φ3.5)
HDMI 1
RGB in 1
RGB(PC) Audio in 1
USB(SVC,Interactive) 1 (Type A)
Added Features
3D DLP 3D Ready (DLP Link), PC XGA 120Hz
Automatic Standby Yes
Auto Input Search Yes
Auto Keystone Yes
Auto Sleep (Off) Yes
Auto Source Detection Yes
Black Level Control Yes
Blank Yes (Blue, Green, Logo)
Brilliant Color™ (Overlap Duty) Yes
Closed Caption Yes (AV)
Color Temperature Yes
Digital Keystone Correction Yes (Vertical)
Expert controlvADJ Yes
File(Office) Viewer Yes
Gamma Correction Yes
Image Flip Yes - Vertical/Horizontal
Mirroring (Awind, WiDi, WFD) WiDi,Dongle (62G)
Noise Reduction Yes
Quick(Instant) Power on/off Yes (on: ~10sec, off:2 sec)
Sleep Time Yes
USB Host (DivX, MP3, Photo) Yes (HD DivX)
Accessory
Item Carry Bag(Pouch),Lens Cap, DLP Glasses Exclude, ceiling mount(ready), D-sub cable(1) Phone to AV(composite)Cable(1),Remote control(white),Quick setup guide,CD-manual
