The World's First 84 inch LG ULTRA HD TV

  • 84LM9600

  • Discontinued Product

Key Features

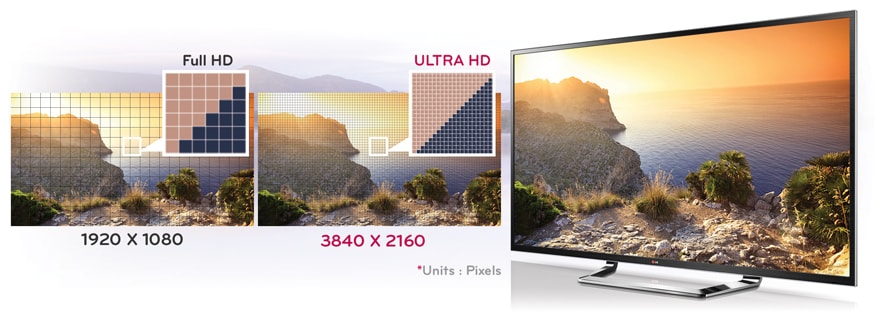

  • 8.3 Megapixels

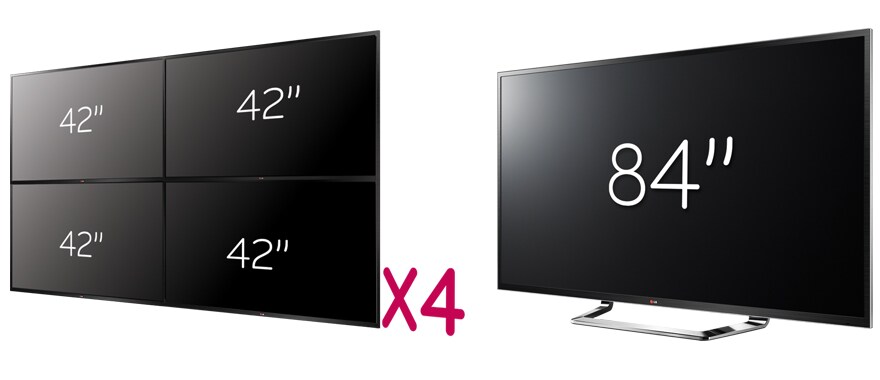

  • 84'' Gigantic Screen
  • 2.2 Speaker System

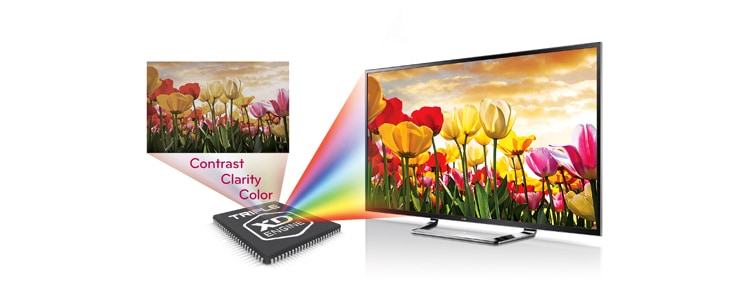

Triple XD Engine Yes

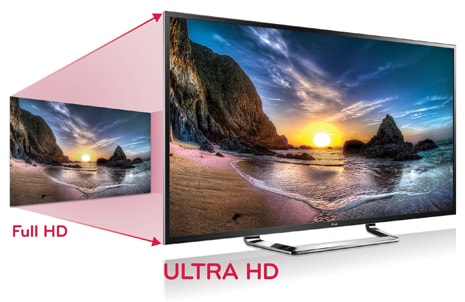

Resolution Upscaler (Basic/Plus) Yes(Plus)
Aspect Ratio Correction 8 Modes (16:9/JustScan/Original/4:3/14:9/Zoom/CinemaZoom/Full Wide)
AV Mode II(Cinema/Game/Sport) Yes
Contrast Optimizer Yes
Dynamic Colour Enhancer Yes
Just Scan (0% overscan) (HDMI/Component/RF)1080i / 1080p / 720p
Smart Colour Gradation Yes
Picture Status Mode 7 modes (Intelligent sensor, Vivid, Standard, Cinema, Game, isf Expert1, isf Expert2)
Picture Wizard Picture Wizard ||
Mono/Stereo/Dual (MTS/SAP) Yes
Dolby Digital Decoder Dolby MS10
Speaker System 3 way 10 speakers
Sound Optimizer 3 modes (Normal, Wall-Mount Type, Stand Type)
Mute Yes
SubWoofer 15W + 15W
Clear Voice Yes(Clear Voice 2 )
Surround System Yes
Sound Status Mode 7 modes (Standard/Music/Cinema/Sport/Game/ Vivid/User Setting)
3D Specification
3D type FPR(CINEMA 3D)
2D to 3D Viewpoint control -10~+10 (default : 0)
2D to 3D Mode 5 modes (Standard, Manual, Cinema, Sport, Extreme)
3D Depth Control 0~+20 (default : 10)
3D Viewpoint Control -10~+10 (default : 0)
3D Image Correction Yes
Format Auto Detection Yes
3D Sound Zooming Yes
Format S/S, T/B, C/B, F/S
3D to 2D Yes
2D to 3D Depth control 0~+20 (default : 10)
Dual Play Yes
2D To 3D Yes
Moving Picture Playback (SD/HD/Plus HD) DivX HD
Audio Codec AC3(Dolby Digital),EAC3,HAAC,AAC,Mpeg,MP3,PCM,DTS
USB Hub Ready
USB Version (& Speed) V2.0
Cabinet Description
VESA Compatible Yes
Voltage, Hz 100V ~ 240V 50/60Hz
Motion Clarity Index 800Hz

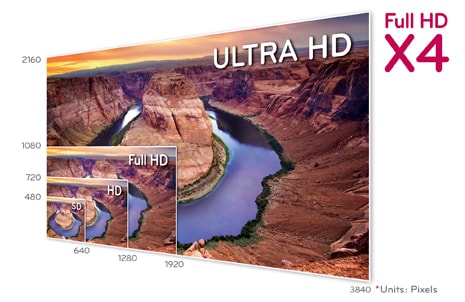

Resolution 3840 x 2160
Screen size (in.) 84
Display Type LED
Wi-Fi Ready / Built-in Yes - (Set Built-in)
2nd TV Ready Yes
Network File Browser Yes
Simplink (HDMI CEC) Yes
Wi-Fi Direct Yes
DLNA DLNA Certified
Wi-Di Yes
Mobile HD Link Yes
Jack Pack (Side)
USB 2.0 3 - Available for USB Hub
HDMI 1.4 4
CI slot 1
3D Glasses 3D Glasses included - 7 (4 x 3D Glasses, 2 x Dual Play Glasses, 1 x Clip-on)
Jack Pack(Read)
Headphone out 1
RGB In (D-sub 15pin) - PC 1
Digital Audio Out (Coaxial/ Optical) 1(Optical)
Full Scart 1
Component in (Y,Pb,Pr) + Audio 1
AV In 1
RF In 2 (T2/C, S2)
PC Audio Input 1
