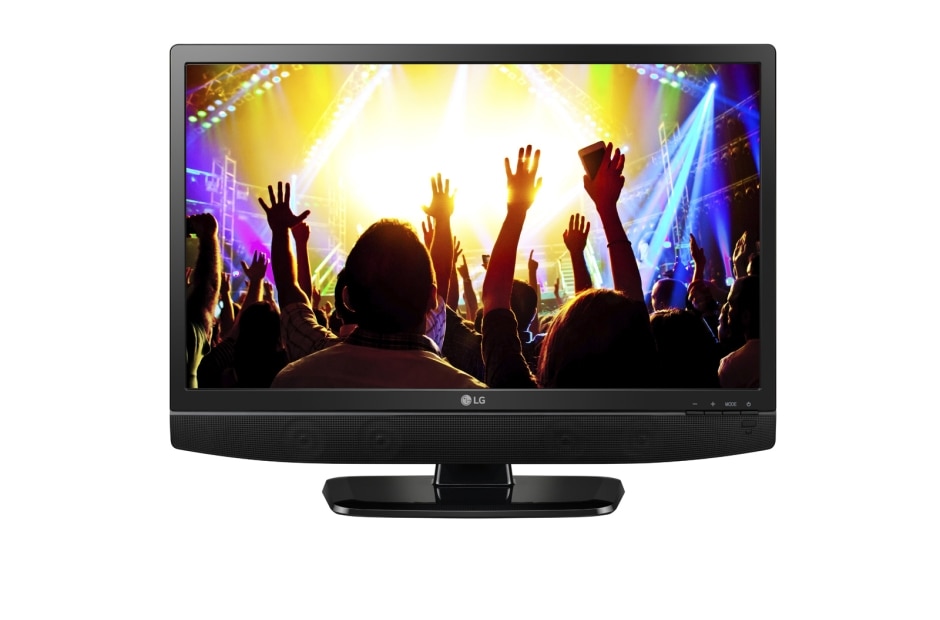

24" Class HD TV Monitor (23.5" Diagonal)

  • 24MT48AM-PT

Key Features

  • 20W Stereo Speaker
  • DIVX HD
  • USB AutoRUN
  • Built-in Game
  • Wide Viewing Angle
  • AVAILABLE SIZES: VA 23.6 / IPS 21.5

Wall Mount

Try mounting your monitor TV according to your inerior situations and take advantage of the space saving effect.

10Wx2 Stereo Speaker

Enjoy your movies or games with realistic stereo sound. With the built in 10Wx2 Stereo Speaker, there is no need for extra speakers around your monitor.

USB AutoRUN

USB AutoRUN offers more handy usages -  the contents start as soon as you turn on the monitor by connecting them with USB.

Contact Information

For any inquiries about purchasing or technical supports, please find your local office in your country.
If there is no listing for your country, please contact the nearest country to yours.

Feature
Size (Inch / cm)23.6" / 59.82cm
Panel TypeWide Viewing Angle
Color Gamut (CIE1931)72%
Color Bit8bit (6bit+FRC)
Color Depth(Number of Colors)16.7M
Pixel pitch (mm)0.38175mm x 0.38175mm
PPINo
Aspect Ratio16:9
Resolution1,366 x 768
Brightness (Typ.)250 cd/m²
Contrast Ratio (Original)1000:1
Contrast Ratio (DFC)5M:1
Response Time_Typ.(on/off)No
Response Time_Typ. (GTG)14ms
Viewing Angle (CR≥10)R/L 178 (Typ.), U/D178 (Typ.)
Surface Treatment(Glare/non Glare)Hard coating(3H) & Anti-Glare
Jack Input / Output
D-SubYes
DVI-DNo
CompositeYes (2EA)
S-VideoNo
ComponentNo
HDMI (Ver.)Yes (HDMI1.3)
DisplayPort (Ver.)No
SCARTNo
CI SlotNo
USB (Ver.)Yes (USB2.0)
Others (Signal Input)No
[ Jack Location ] (Signal Input)Rear/Side
RCA(Audio Input)Yes
PC Audio InNo
Mic InNo
Others (Audio Input)No
[ Jack Location ] (Audio Input)Rear
RCA (Audio Output)Yes
Headphone OutNo
Speaker OutNo
Optical OutNo
Others (Audio Output)No
[ Jack Location ] (Audio Output)Rear
DigitalNo
AnalogPAL Multi
Others (Tuner Input)No
[ Jack Location ] (Tuner Input)Rear
LANNo
Wi-FiNo
BluetoothNo
OthersNo
[ Jack Location ] (Network)Rear
Speaker
TypeInternal
Audio output10W x 2
OthersNo
Power
Type (w/ Watt)Adapter (40W)
Input100 ~ 240V
Output (for Speaker)No
Normal On (EPA6.0)No
Normal On (typ.)32W
Power Save/Sleep Mode (Max)No
DC Off (Max)0.5W
Frequency
H-Frequency (D-sub)30kHz ~ 69kHz
V-Frequency (D-sub)56Hz ~ 61Hz
H-Frequency (HDMI)30kHz ~ 69KHz
V-Frequency (HDMI)56 ~ 61Hz
Resolution
D-sub1,366 x 768
HDMI (Video)480p, 576p 720p, 1080i, 1080p
ScartNo
ComponentNo
Composite480i
Control Key
Key Number (Power Key Included)4 Key
Key TypeTact
LED Color (On mode)Off
LED Color (Power save mode)No
LED Color (Standby)Red
[ Key Location ]Front
OSD
CountryN/A
Number of Language18 Language (English/French/Spanish/Portuguese/Russian/Thai Malay/Indonesian/Hebrew/Farsi/Arabic/Kurd Vietnam, Hindi, Marathi, Telugu, Bengali, Tamil)
Special Feature
sRGBNo
DDC/CINo
HDCPYes
Intelligent AutoYes
Remote ControlYes
Key LockNo
Plug & PlayDDC2B
EPGNo
TeletextYes
Caption (Hard of Hearing)No
Audio Description (Visual Impaired)No
Flicker SafeYes
Eye Comfort ModeYes
Gaming ModeNo
CINEMA ModeNo
Divx HD player (USB Media Player)Yes (Video, Music, Picture)
USB Auto PlayYes
VoiceOn (Audio Guidance)No
PIPNo
Time Machine ReadyNo
Bluetooth AudioNo
MaxxAudioNo
Screen Share (Wi-Fi Mirroring)No
Smart Energy SavingYes
Motion Eye CareYes
USB Game (Download)No
Mini GamesYes (Egg Catcher, Space Wars, Cookie Cookie, Jungle Hunter, Bubble Pot)
DLNANo
Picture ModeVivid, Standard, CINEMA, Soccer, Game
F-engineNo
Triple XD engineNo
ARC-PC16:9, 4:3
ARC-Video16:9 - ATV, AV, RGB, HDMI / Just Scan – HDMI / Original - ATV, AV, HDMI / 4:3 - ATV, AV, RGB, HDMI / 14:9 - ATV, AV, HDMI / Zoom - ATV, AV, HDMI / CINEMA Zoom - ATV, AV, HDMI
SRSNo
Virtual surroundNo
Dolby SurroundNo
AVL (Auto Volume)Yes
EqualizerNo
Auto / Manual ClockO (Manual Only)
On/Off TimeYes
Sleep TimerYes
Auto Off / Auto SleepYes
Hotel ModeYes
TV LinkerNo
RS232CNo
USB CloningNo
Color
FrontBlack Glossy
B/Covertexture
StandBlack Glossy
BaseBlack Glossy
OthersNo
Stand
Base DetchableDetachable
Tilt (Angle)No
Swivel (Angle)No
Height (mm)No
PivotNo
Dual HingeNo
OthersNo
Size / Weight
Set (with Stand)(Dimension)558.6 x 144.9 x 415.1
Set (without Stand)(Dimension)558.6 x 55.9 x 379.4
Box (Dimension)691 x 454 x 127
Wall Mount75 x 75
Set (with Stand)(Weight)3.7
Set (without Stand)(Weight)3.48
Box (Weight)4.88
Individual (20ft/40ft/40ft HC)720 / - / 1,548
Pallet (20ft/40ft/40ft HC)640 / - / 1428
Wrap
Packing MaterialEPS
Stacking TypeFace Down
Stand Packing TypeBase Detach
Box Printing TypeOffset
HandleNo (Hand hole)
Standard
TCO 6.0No
ERPNo
UL / cULNo
TUV-GSNo
TUV-ErgoNo
TUV-TypeNo
EPEATNo
SEMKONo
FCC-BNo
CENo
EPANo
KC/KCC(KOR)No
CCC (for China)No
VESA wall mount standardNo
ISO13406-2No
ISO9241-307No
Medical CertificatioinNo
WndowsNo
OthersNo
Accessory
Power CordYes
D-Sub cableYes (NIGERIA Only)
DVI-D cableNo
HDMI cableNo
RF cableNo
PC Audio cableNo
RCA 3Line (Gender)No
RCA 5Line (Gender)No
Remote ControllerYes
OthersWall-mount Braket

Business Resources

Leaflet
Most comprehensive document of product setup and usage.

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
