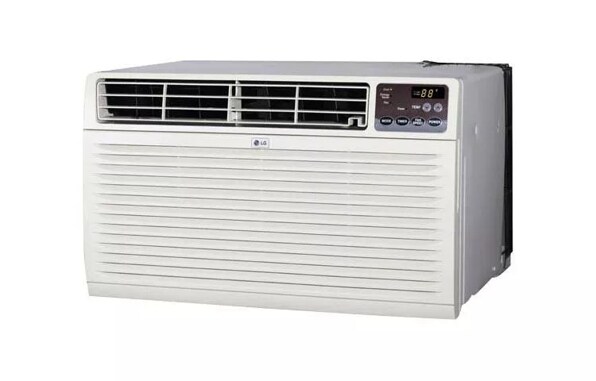

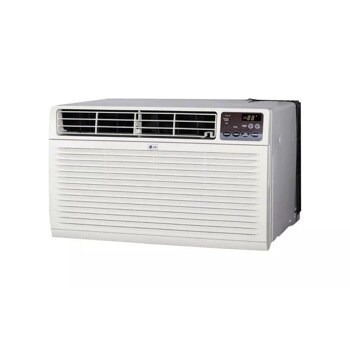

10,000 BTU Thru-the-Wall Air Conditioner with remote

  • LT103CNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 3 cooling and fan speeds with Auto Cool
  • 4-way air direction
AVAILABLE BTUS:
PERFORMANCE
BTU Performance 10,000
EER 8.8 / 8.8
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 51 / 60
BTU Performance Cooling 10,000 / 9,800
DIMENSIONS
Net Weight (lbs.) 78
Shipping Weight (lbs.) 86
Carton Height (inch) 17 13/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24
Dimension Depth (inch) 20 3/32
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Programmable Timer 24Hr, On/Off
Fan Speed: Cooling (Heating) 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
Fan Only 3
Real Grille Yes
ELECTRICAL RATINGS
Voltage / 60 Hz 208/230
Watts (Cooling) 1,140/1,110
Rated Amps (Cooling) 5.2/5.6
WARRANTY
Warranty 1 Year Parts and Labor with 1 Year Compressor

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

3 Questions & 3 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Will the wall sleeve LG model AXSVA1 fit the LG through the wall AC model LT103CNR?
Category: I do not own this product
Interested in: Feature comparison

Products related to my question





2 years, 2 months ago
User Name:
Spyder
Florida, USA

Please wait while more information about Spyder is loaded.
Additional information about Spyder could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
With the LG sleeve (optionally supplied with your unit), you can maintain the best performance of the new air conditioner:

Width 25-7/8"
Height 15-17/32"
Depth 16-23/32"

Products related to my answer




2 years, 2 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
i currently have a 6-15p 250volt outlet. which thru the wall air conditioners are compatible to purchase. it appears after some research that model lt103cnr is the only one. i need one between 8000 and 12000 btus. thank you. also where can i purchase it.
Category: I do not own this product
Interested in: Where to buy
2 years, 3 months ago
User Name:
mainman

Please wait while more information about mainman is loaded.
Additional information about mainman could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
This model requires:
Voltage / 60 Hz 208/230
Watts (Cooling) 1,140/1,110
Rated Amps (Cooling) 5.2/5.6
As it turns out, I cannot give any retailer information, please refer to the websites of your local retailers to ask where it is available for purchase.
2 years, 3 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

bug screen

I purchased an LG LT 103 cnr through the wall A/C. Isn't there supposed to be a bug mesh screen for the outside of the unit?
Category: I own this product
10 months ago
User Name:
crooztime
Home

Please wait while more information about crooztime is loaded.
Additional information about crooztime could not be loaded.
-1point
0out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in this air conditioner. Any screens would either come with, or be available for, the wall sleeve, into which the air conditioner cabinet slides and is contained. Such a screen does not come with the air conditioner itself.
9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
