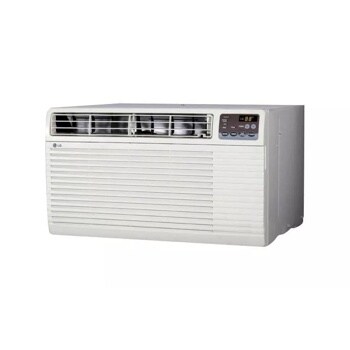

10,000 BTU Thru-the-Wall Air Conditioner with remote

  • LT103HNR

Key Features

  • Universal Fit for Sleeve
  • Gold Fin Anti-Corrosion
  • 2 cooling and fan speeds
  • 4-way air direction
PERFORMANCE
EER 9.4 / 9.4
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 51 / 60
BTU Performance Cooling 10,000 / 9,800
BTU Performance Heating 11,200 / 9,200
DIMENSIONS
Net Weight (lbs.) 78
Shipping Weight (lbs.) 84
Carton Height (inch) 18 4/32
Carton Width (inch) 27 23/32
Carton Depth (inch) 22 13/32
Dimension Height (inch) 14 13/32
Dimension Width (inch) 24 21/32
Dimension Depth (inch) 19 21/32
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Programmable Timer 24Hr, On/Off
Fan Speed: Cooling (Heating) 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XA
Auto Restart Yes
Fan Only 3
Real Grille Yes
ELECTRICAL RATINGS
Voltage / 60 Hz 208/230
Watts (Cooling) 1,060/1,040
Watts (Heating) 3,500/2,900
Rated Amps (Cooling) 4.7/5.2
Rated Amps (Heating) 15.3/14.0
WARRANTY
Warranty 1 Year Parts and Labor(Limited In-Home Service)

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

4 Questions & 4 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

provide me with an exterior view

In addition to what the exterior view should look like (I had one installed and I believe the guy left off and exterior trim piece) I would like to know how you secure the unit so it can't be pushed back inside the room. Thanks.
Gender: male
4 years, 4 months ago
User Name:
Kevin
Phoenix
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Hello and thank you for your inquiry. You can go to our website at www.lg.com and type in your model number in the "Search" box at the top left hand side of the LG Home Page. You can access installation information there as well by clicking on "Manuals" under the picture of the unit or by going to "Support".
4 years, 4 months ago
User Name:
CustomerAdvocacy2

Please wait while more information about CustomerAdvocacy2 is loaded.
Additional information about CustomerAdvocacy2 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

circuit breaker amps when 2 units are wired in series

Category: I do not own this product
Interested in: Feature comparison
4 years, 3 months ago
User Name:
hunk
usa
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The installation instructions, for this unit, recommend the use of a dedicated circuit for the air conditioner. Connecting the unit “in series” with another unit is improper installation and as such, we cannot recommend this type of connection.
4 years, 3 months ago
User Name:
Neil

Please wait while more information about Neil is loaded.
Additional information about Neil could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

What sleeve fits this unit and does this unit come with the sleeve?

Can you provide an image of the sleeve as well?
Category: I do not own this product
4 years, 3 months ago
User Name:
KZ
Texas
-1point
0out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The unit does not come with a sleeve. Please visit a local small appliance or hardware store for assistance.
Gender: female
4 years, 2 months ago
User Name:
CustomerAdvocacy

Please wait while more information about CustomerAdvocacy is loaded.
Additional information about CustomerAdvocacy could not be loaded.
-5points
0out of 5found this answer helpful.
HelpfulNot Helpful
Is it a heat pump or resistance coil?
Category: I do not own this product
1 year, 8 months ago
User Name:
dylan2883

Please wait while more information about dylan2883 is loaded.
Additional information about dylan2883 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
It has electric heat.
1 year, 7 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
