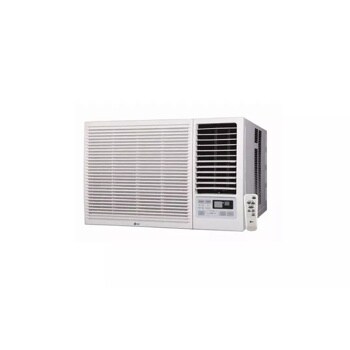

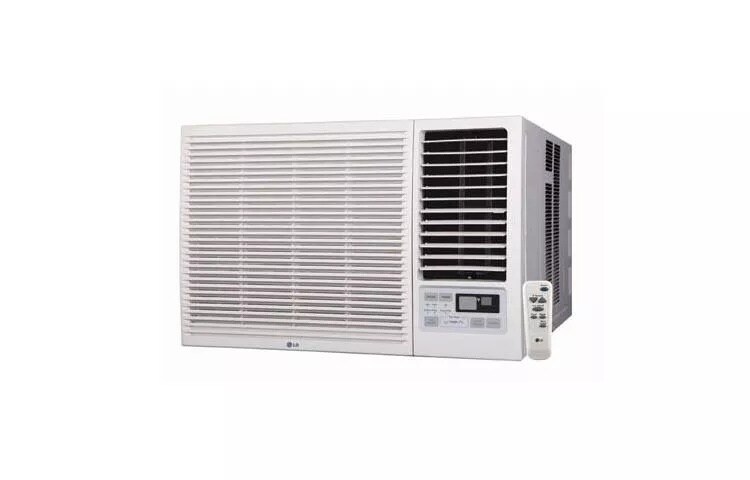

Window Air Conditioner

  • LW1814HR

Key Features

  • 17,500/18,000 BTU Cooling / 9,800/12,000 BTU Heating
  • Cooling EER (BTU/Watts) 9.7/9.7
  • Seasonal Heating & Cooling
  • Multiple Cooling/Heating Speeds
PERFORMANCE
EER 9.7 / 9.7
Dehumid. (Pts/Hr) 5.5
Dry Air Flow (CFM) 430
dBA Level (Indoor / Outdoor) 55 / 63
Est. Cooling Area (Sq. Ft.) 1000
BTU Performance Cooling 17,500 / 18,000
BTU Performance Heating 9,800 / 12,000
DIMENSIONS
Product (WxHxD) 25 1/2" x 16 27/32" x 30 1/2"
Shipping (WxHxD) 29 3/8" x 21 3/16" x 33"
Net Weight (lbs.) 136
Shipping Weight (lbs.) 150
Stuffing Quantity (20ft/40ft) 84/176
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Auto Swing Yes
Energy Saver Function Yes
Fan Speed: Cooling (Heating) 2(2)
Fan Only Speed 2
Compressor Rotary
Indoor Fan Type Blower
Type Air Discharge Side by side
Outdoor Vent / Exhaust Yes
Chassis Type Slide In-Out
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 208/230
Watts (Cooling) 1,800/1,850
Watts (Heating) 3,100/3,670
Rated Amps (Cooling) 9.0/8.3
Rated Amps (Heating) 15.0/16.0
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231 372848

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 209ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View LW1814HR Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I am planning on installing this unit in a wall as opposed to a window. Is there a Wall Sleeve I must purchase as well or...?

Asked by: willjepson74
I apologize, but no; this air conditioner has not been designed for compatibility with a wall sleeve. We would rather recommend the use of a model specifically made for wall installations. These can be found on our website at http://www.lg.com/us/wall-air-conditioners.
Answered by: NeilE
Date published: 2016-01-16

When in heat mode, should the unit's fan stop running once the temp reaches that set by thermostat?

Asked by: Alexander1951
We appreciate your interest in this air conditioner. When using the HEAT function of the machine, the fan is not regulated by the temperature setting. As such, the fan will run continuously.
Answered by: NeilE
Date published: 2015-02-23

No protection grill for fins on the outside of the ac

After installing the ac/heating unit we found that there was no grill to protect the outside fins on the rear of the ac. They will certainly be damaged with some protection. There are four places on the frame to insert a grill. Were they supposed to be included with the unit? If not, how do we obtain a grill.
Asked by: jazzy
We appreciate your interest in this air conditioner. No grille cover was released with this air conditioner. Such an accessory may be available through a local retailer. We have no particular accessory to recommend for this unit.
Answered by: NeilE
Date published: 2014-10-17

How quiet is this unit. I am hesitant to buy AC's that I can't test out first. I don't want a loud unit.

Asked by: Scotchw
Not noisy like older models.We love ours
Answered by: TNcwgrl
Date published: 2014-09-05

Wont come on why?

I have tested the power cord n reset it, i have checked all breakers to the house, and have tested the 220 plug itself n still nothing, WHY? HELP ITS HOTTTT!
Asked by: PAYA
We regret the trouble you have experienced with this air conditioner. It is difficult to determine why this device has failed. After the troubleshooting you have already performed, it seems that this unit will require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2014-05-09

Can Model #LW1814HR be mounted thru the wall

Asked by: stocky

the compressor continue to run even when the unit is turned off,what is the problem

Asked by: kennimack

The energy saver doesn't seem to shut off when room reached desired temp I have to control manually

Asked by: Bsrb
