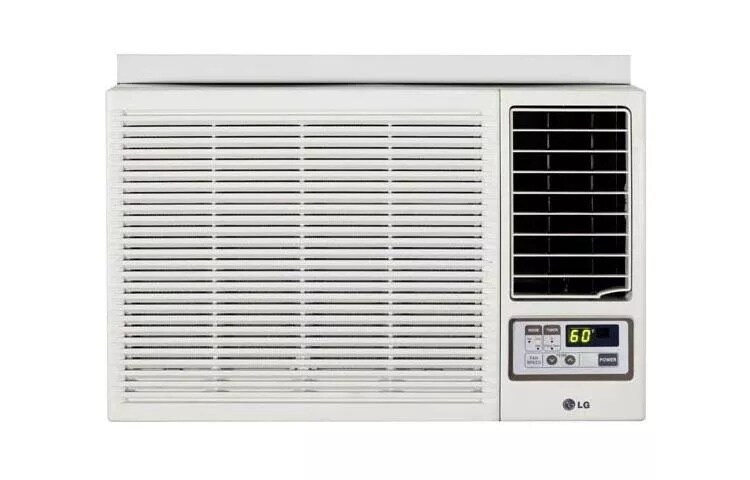

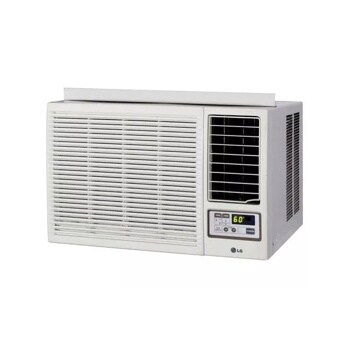

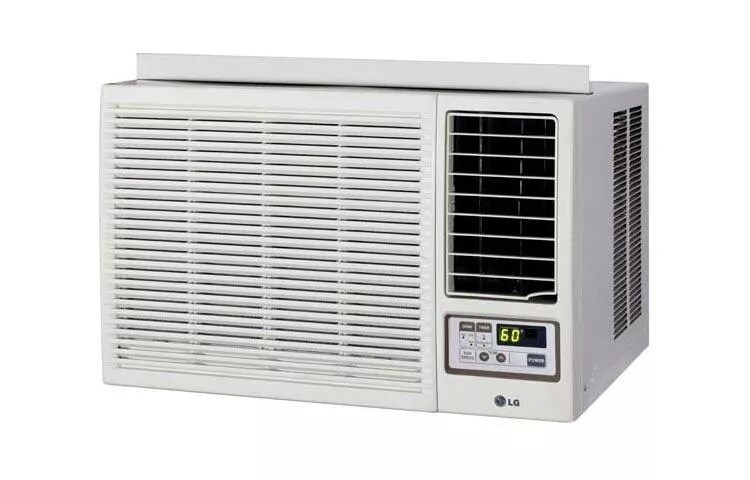

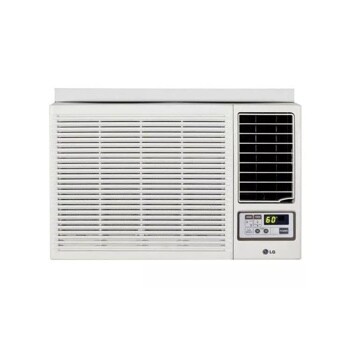

23,500 BTU - Heat/Cool Window Air Conditioner with Remote

  • LW2410HR

Key Features

  • Seasonal Heating & Cooling
  • Multiple cooling/heating speeds
  • 4-way air direction
  • Remote Control
PERFORMANCE
EER 8.5 / 8.5
Dehumid. (Pts/Hr) 6.5
Dry Air Flow (CFM) 560
dBA Level (Indoor / Outdoor) 64 / 69
Est. Cooling Area (Sq. Ft.) 1440
BTU Performance Cooling 23,000 / 23,500
BTU Performance Heating 9,400 / 11,600
DIMENSIONS
Product (WxHxD) 26" x 16 27/32" x 30 5/16"
Shipping (WxHxD) 29 3/8" x 21 3/16" x 33"
Net Weight (lbs.) 146
Shipping Weight (lbs.) 160
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Auto Swing Yes
Energy Saver Function Yes
Programmable Timer 12 Hr, On / Off
Fan Speed: Cooling (Heating) 2(2)
Fan Only Speed 2
Compressor Rotary
Indoor Fan Type Blower
Type Air Discharge Side by side
Outdoor Vent / Exhaust Yes
Chassis Type Slide In-Out
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 208/230
Watts (Cooling) 2,700/2,760
Watts (Heating) 3,750/3,770
Rated Amps (Cooling) 13.2/12.2
Rated Amps (Heating) 15.0/16.0
WARRANTY
Limited Warranty 5 Years Parts and Labor

What People Are Saying

Rated 3 out of 5 by from 2nd Unit, First Unit Bad Bought 1st unit in 2005 ... outside fan spun on shaft within 30 days. Bad fan caused internal compressor overheat to engage. Unit repaired, no cost, under warranty ... but the damage was done to compressor. Compressor overheat protection engaged when outside tempature was over 95 degrees. LG would not replace unit. Recently replaced 1st unit with 2nd exact unit after 7 years service because of compressor overheat issue.
Date published: 2012-09-01
Rated 5 out of 5 by from Wonderful replacement & Quality value I had to replace our previous AC because of a fire. I shopped and could find very little from the competition to compare with the features, value and quality of this one. It also had several bonuses, Energy saver, Timer, Heater & a remote. I live in the High desert near Joshua tree CA. We can typically do well with cooling by a evaporative cooler. How ever that changes dramatically when the Monsoon season hits with its high humidity. This unit does very well with the help of some fans to cool our 1400 sf living area. Its going to be nice to have the heater in that room this winter. We are very happy with its performance. We have solar, and I'm constantly monitoring our consumption of electricity, and I am very please in this regard as well, because I see a 28% difference. My only thing as is all wall units from whom ever manufactures these is the noise, which this unit is substantially less than our previous unit inside but is just as loud outside. Home depot made the sale very easy and delivered it to our door in the country.
Date published: 2012-07-11
Rated 1 out of 5 by from spits water always This is my second one. They replaced the first one after two weeks without air. The second one showed up and it was frezzing. the company they sent is no good. They have to take the air with them and never call you back. They said there was nothing they could do unless they saw it iced up. So now it is summer and the air is no good and I'll have to pay a GOOD company to try to fix this peice of junk.
Date published: 2012-05-30
Rated 5 out of 5 by from I'm out...It's right on!! Enclosed my deck. Spend much time out here..Installed this unit and am so glad I did! Cools very well, 4 way directional option is very good. By having both ac and heat we now can use this deck as an extended living area 24/7/365.
Date published: 2012-05-26
Rated 5 out of 5 by from Nice Unit Live in a large double-wide mobile home in Florida - central unit just didn't do the job - bought this unit to put in living room - Does a great job! Room is cooler - electric bill is lower - not too loud. Now the summers are comfortable and really gets cool in large living/room den combo. One of the smartest buys yet - looking forward to being warmer in the winter also.
Date published: 2011-10-28
Rated 5 out of 5 by from Great A/C I have used this A/C all summer long and it is relatively quiet and does a great job of cooling my kitchen and den. The main A/C went out mid-summer and surprisingly it kept the 2330 sq ft home I have at a temp that was quite bearable. I could actually sleep at night. i just wish the oscillating portion had a wider swing to it.
Date published: 2011-09-28
Rated 4 out of 5 by from Great so Far I have owned this uNIT FOR 2 YEARS SO FAR AND IT HAS OPPORATED FLAWLESSLY. THE ONLY PROBLEM IT THAT I LOST THE REMOTE, AND WITHOUT IT I CANT US THE ENERGY SAVER MODE.
Date published: 2011-09-23
Rated 4 out of 5 by from Great unit Works great,had trouble with the heat right away but they sent someone out to fix it the next day. It's been great ever since...two years now. The only negative thing I would say is the fan on both speeds is very loud...small price to pay for excellent cooling and heating though imho.
Date published: 2011-09-17
  • 2016-07-29T08:31CST
  • bvseo_cps, prod_bvrr, vn_cps_3.3.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_MD00001099, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LW2410HR Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How can I get a replacement remote?

Asked by: Sfwarr
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: 6711A20034D.
Answered by: NeilE
Date published: 2016-07-28

Ch34 flashing in display

Asked by: newje
We regret the trouble you have experienced with this air conditioner. It is uncertain to what message this might be referring, as the LW2410HR was designed with a 2-character digital display. Please contact our Customer Interactive Center at 800-243-0000 for assistance in this matter.
Answered by: NeilE
Date published: 2016-07-26

How do I turn ac on with out remote

Asked by: Blackie79
We appreciate your interest in this air conditioner. If the remote control is not available, press the POWER button on the air conditioner control board. Fan Speed, Temperature Adjustment and Cooling Mode buttons are also available.
Answered by: NeilE
Date published: 2016-07-06

Part # for Thermastat for model # LW2410HR.

Asked by: Frank the tank
There are many parts that make up the thermostat for the LG 23,500 BTU - Heat/Cool Window Air Conditioner with Remote, Model # LW2410HR. If you are looking to replace the User Control and display board for the unit then the part number for that is Part #6871A20611V. The heating element has a different part number, but you can contact an LG Authorized Parts Distributor and let them know exactly which component you are looking for. The closest LG Authorized Parts Distributor to you in your region is: MCM Electronics 650 Congress Park Drive Centerville, OH 45459 Sales: 800-824-9491 Fax: 800-765-6960 http://www.mcmelectronics.com/lgparts ...^IFV
Answered by: LGJoel
Date published: 2016-06-13

How do you reset filter light after cleaning?

Asked by: Clarke
We appreciate your interest in this Air Conditioner. According to the information we have on this particular model, no FILTER RESET light is in this design.
Answered by: NeilE
Date published: 2016-04-25

My unit will not turn on at all. The light doesn't turn on, on the plug the reset button doesn't work. I have made sure there is power in the outlet what could it be.

Asked by: musinomonica
If the power cord on your LG 23,500 BTU - Heat/Cool Window Air Conditioner with Remote, Model # LW2410HR, has a current interrupter device on it, with a test and reset button provided on the plug case, check the indicator light on the plug. That will determine what troubleshooting you will need to perform to try to resolve the issue. If the indicator is not illuminated and you have checked the circuit breaker to make sure it is not tripped and the outlet is working, push the reset button on the power interrupter device then the power button on the air conditioner. If the unit still does not turn on, you will need to call for a repair service. If the indicator is illuminated green, press the test button, then press the reset button, then the power button on the Air Conditioner's control panel. If the unit powers on, the safety relay may have tripped causing the air conditioner to power off. If the air conditioner does not turn on, you will need to call for a repair service. If the indicator illuminates red or orange, press the reset button, then the power button on the air conditioner. If the air conditioner fails to turn on, you will need to call for a repair service...^IFV
Answered by: LGJoel
Date published: 2016-03-17

How do I turn on the energy saver

Asked by: Balinda
We appreciate your interest in this air conditioner. Activate the ENERGY SAVER mode simply by pressing the ENERGY SAVER button on the remote control. Once activated, the fan will deactivate along with the compressor system. It will spin up to test the room temperature once every 3 minutes or so, according to the information provided on page 17 of your owner’s manual.
Answered by: NeilE
Date published: 2016-02-22

My air conditioning will not heat up

Asked by: DE295
We regret the trouble you have experienced with this air conditioner. If the unit does not appear to heat, then it would be recommended to check the filters and the air flow ducts for any obstructions. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-02-04
