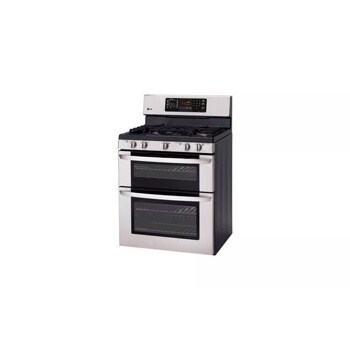

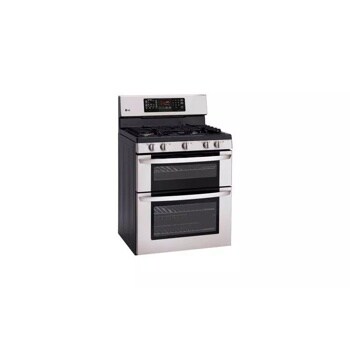

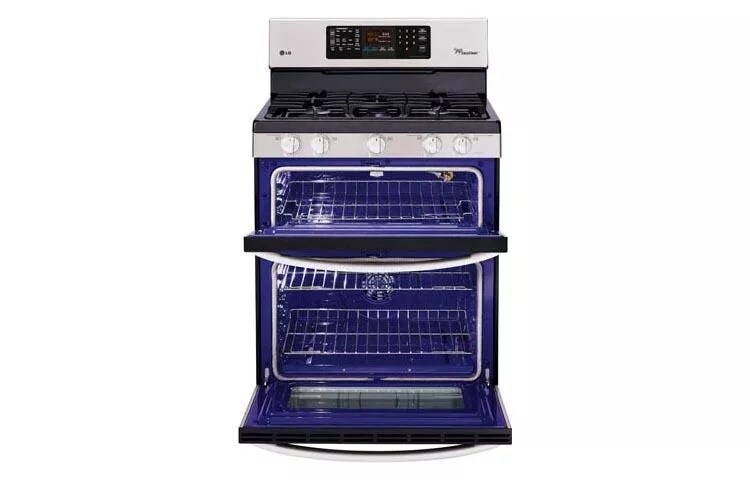

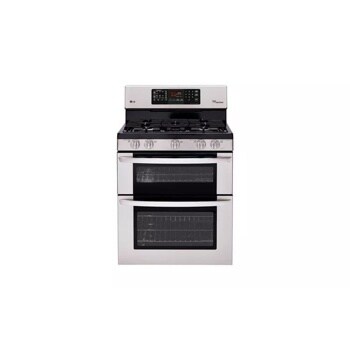

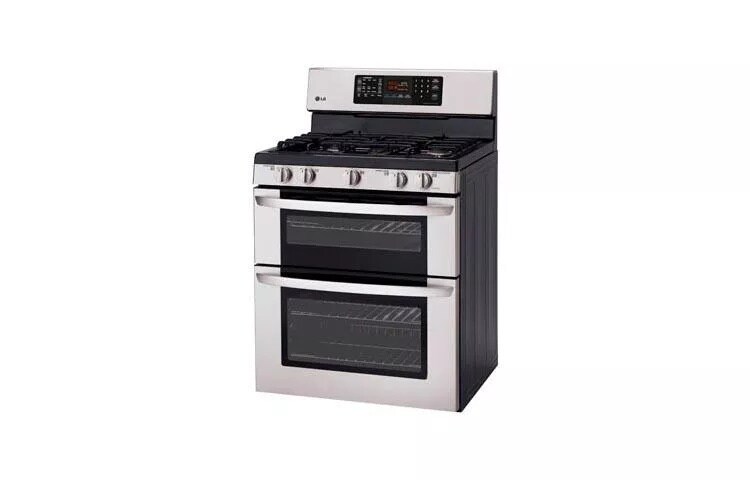

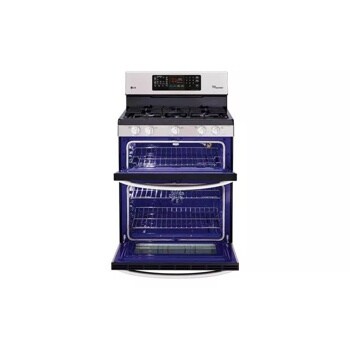

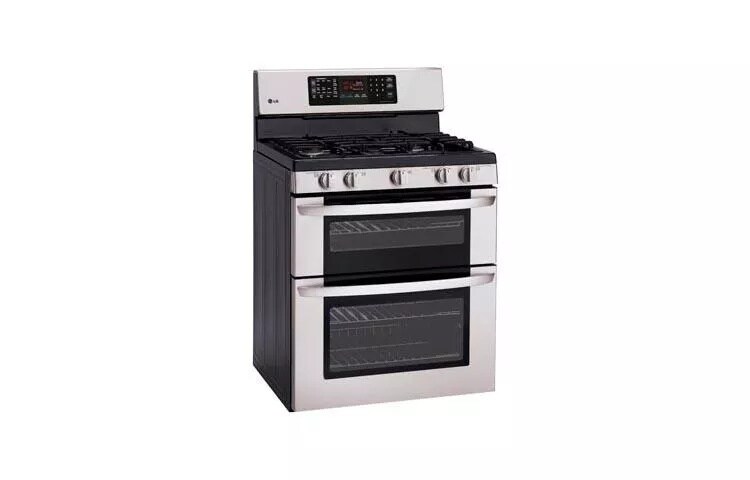

6.1 cu. ft. Capacity Gas Double Oven Range with EasyClean™ and IntuiTouch™ Controls

  • LDG3036ST

  • Stainless Steel

Key Features

  • Easy Clean™ Cleaning Feature
  • Maximum Usable Cooktop Space in a Gas Double Oven
  • Large Capacity Gas Oven (6.1 cu. ft.)
  • EvenJet™ Convection System

A Clean Oven in Minutes, Not Hours

Not enough time to clean your oven? No worries. LG brings you the new generation of oven cleaning with EasyClean™. LG ranges provide a quick and convenient way to clean your oven, while still being able to use the conventional self-clean method. Thanks to LG's innovative enamel technology, EasyClean works in three simple steps. Spray the oven interior with water, press EasyClean, then in just 20 minutes, wipe away any residual bits of grime. No chemicals or high heat needed to keep your oven sparkling clean.

Multitask with ease

Multitask with ease

LG's double oven offers you plenty of space to use large pans and skillets on the cooktop while still having two ovens . Sleek up front controls give more room allowing you to use 3 9" pans on the burners.

Handles any size meal

Handles any size meal

LG offers you the largest capacity gas double oven in the industry- which gives you the greatest flexibility to cook. Make two meals at once- Allows you to cook different dishes at different temperatures all at the same time. Gives you room for everything you'd need for a holiday dinner.

Heat Wave

Heat Wave

Delivers the ideal temperature and airflow needed for faster preheating and more precise cooking.

Fast boiling

Fast boiling

Spend less time waiting and more time cooking. The powerful Superboil™ 17,000 BTU Burner brings water and other liquids to a boil quickly.

Easy Operation at a touch

Easy Operation at a touch

IntuiTouch™, with scrolling IntuiScroll™ display, makes operating your gas range a snap. The left side of the panel mirrors the cooktop burners, while the right side controls the oven functions.

Room to move

Room to move

Simplify meals with 5 burners, allowing you to have more cooking and warming flexibility.

CAPACITY
Oven Capacity 2.2 cu.ft. Upper / 3.9 cu.ft. Lower
Total Capacity 6.1 cu. ft.
OVEN FEATURES
Configuration Freestanding Gas Double Oven
EasyClean™ Technology Yes
Control Type Knobs/Keypad
Display LED
Bake Element (Upper) 14,500 / 13,500 btu/h
Broil Burner (Upper) 14500Btu/h / 13500Btu/h
Bake Element (Lower) 16,000 / 14,000 btu/h
Convection Conversion Yes
Convection System - Convection Bake Yes
Convection System - Convection Roast Yes
Cooking Modes Bake, Broil, Proof, Warm
Oven Control Features Delay Bake, Delay Clean, Automatic Shut-Off
Cleaning Self Clean / EasyClean™
Oven Light Yes
No. Rack Positions 2 Standard Racks
Large WideView™ Window Yes
Accessories Griddle
COOKTOP
Burner Type Sealed Gas Burners
Configuration - Left Front 12000Btu/h / 9500Btu/h
Configuration - Left Rear 9100Btu/h / 9100Btu/h
Configuration - Center (Single Oval) 8000Btu/h / 8000Btu/h
Configuration - Right Front 17000Btu/h / 10000Btu/h
Configuration - Right Rear 5000Btu/h / 5000Btu/h
Oval Burner Yes
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs) 268
Cabinet Width (in) 30"
Overall Height (in) 47 7/16"
Overall Width (in) 29 9/10"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 1/2" x 8 4/5" x 19 1/5"
Depth (including handle) 28 7/8"
Oven Interior Dimensions (in) (W x H x D) 24 1/2" x 13 2/5" x 19 1/5"
POWER/RATINGS
Requirements 120 VAC
KW / Amp Rating @120V 1.65kW / 13.75A
MATERIALS/FINISHES
Available Colors Stainless Steel (ST)
Knobs Nikel Plating
Handle Matching Stainless
Door Full Stainless Steel Wrap
Cooktop Finish Porcelain
FIND THE RIGHT PRODUCTS
EasyClean Yes
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor, 5 Years Glass Cooktop/Electric Elements/Sealed Gas Burners
UPC 048231 318358

What People Are Saying

Rated 4.7 out of 5 by 131 reviewers.
Rated 5 out of 5 by Excellent range Have used this range for almost 1 year. Works flawlessly, excellent placement of controls & knobs, dual oven is a great feature, and digital panel is quite intuitive. The gas range has precise control over flame levels. The 1 concern for families with small children is that the front placement of knobs could pose a problem, as moving them could start the burners. The knobs do have a "push+twist" safety, which is nice. 2 issues that LG may want to look into: First the mechanism for leveling the unit is a wee bit odd, as the feet have to be adjusted prior to placing the unit in place. A set of long screws, accessible from the front, would make this super easy. Second, consider making the shelf for the lower larger oven adjustable. Overall, a very nice range. August 23, 2015
Rated 4 out of 5 by Excellent style The verdict on this oven is still out for me. I love the style, it far outshines any other double oven near the same price range. The functionality is yet to be determined. The middle burner for the griddle is a bit to low in my opinion. We have cooked brownies and have not burned any, so I guess that is a good sign. We are trying to determine the correct heat in the oven wight he convection style cooking we do. I think it will be great once we figure it out. August 22, 2015
Rated 5 out of 5 by What a pleasure to cook on this stove! I did plenty of research before purchasing a stove. This one came through with flying colors. It has the look & feel of a commercial stove, it's easy to use and has a "super burner" for rapid boiling. I love the double oven, and the only issue I found was the rack in the upper oven is a little difficult to pull out. However, this could be due to it being new, time will tell, but not anything that I am concerned with. This is a well made stove with many great features - it will not disappoint ! June 30, 2015
Rated 5 out of 5 by Great double oven My wife loves this oven. It has many nice features. Stove top cooks and cleans well and we love the double oven. June 29, 2015
Rated 5 out of 5 by Great Double Oven This is my first double oven & I love it. So easy to clean. Use the top oven more than the lower oven, but so nice when I have to use both. Great space for cooking. June 4, 2015
Rated 5 out of 5 by Love the Smaller Top Over Feature This oven cooks great. Love the smaller top over for smaller meals and baking. Stove top cooks well and is easy to clean. This is my first gas range/oven. May 22, 2015
Rated 1 out of 5 not functional and major design flaws center grate is ok, if that is all your using, cannot use outside 4 burners with center grate attached. HUGE issue, had a spill, that dripped inside lower oven door, no way to clean. stay away May 16, 2015
Rated 5 out of 5 by Great stove with lots of features Double oven, convection, center burner with griddle--so many great features. May 12, 2015
  • 2015-08-27T13:35:37.571-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_131, tr_131
  • loc_en_US, sid_MD05030161, prod, sort_default
2 3 4 5 6 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

101 Questions & 122 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

3 answers

Why won't the stove top & burners stay clean?

I've used different cleaners and nothing keeps the top and burners clean. Always streaky and a greasy looking. I don't fry foods so that's not the cause. Boiling water can cause this, too. Sometimes If I use a paper towel after cleaning I can get some of the grease and streaks out. But that's rare. And the burners are a problem, too. They burn up and have marks. What is your solution to this. I'm disappointed for the money the stove cost. I clean my stove after every use, so there's no build up. Thank you
Category: I own this product
Interested in: Troubleshooting
1 year, 8 months ago
User Name:
VickiSp
South Plainfield, NJ, USA

Please wait while more information about VickiSp is loaded.
Additional information about VickiSp could not be loaded.
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Hint for cleaning black appliances is to use degreaser dish detergent to wash black surfaces and dry. Use paper towel and spray window cleaner or dip in a little vinegar on paper towel and do a final wipedown. for a squeaky clean finish. Works like a charm. If you use fabric softener on your dishtowels, it will streak the black surface
Gender: female
11 months ago
User Name:
jerseysnowqueen
NJ

Please wait while more information about jerseysnowqueen is loaded.
Additional information about jerseysnowqueen could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
I have the same problem and this is reason that I did not give the stove five stars for quality. I too am disappointed that the burners stain so easily. Nothing I have tried to use to clean them works either. Hopefully someone reading this has a suggestion.
Gender: female
1 year, 7 months ago
User Name:
JMarleyboo
New Jersey, USA

Please wait while more information about JMarleyboo is loaded.
Additional information about JMarleyboo could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We regret your displeasure with the maintenance requirements of this dual-oven range. Once the cooktop has cooled, wash any oil / grease spills and splatters with warm water and a mild soap. Rinse the surface, dry it, and then buff/polish it with a dry cloth. If a stainless polish is needed, be certain to always wipe in the direction of the metal surface finish, as wiping across the grain will leave a cloudy/streaky appearance.
1 year, 8 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
-3points
0out of 3found this answer helpful.
HelpfulNot Helpful
I looked at the back of the stove behind the control panel but there is nothing. I need to register my stove. Is there anywhere else the serial number would be located?
Category: I own this product
Interested in: Warranty issue
1 year, 8 months ago
User Name:
Cheena
Illinois, USA

Please wait while more information about Cheena is loaded.
Additional information about Cheena could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I found my serial number for this model on the back left side (looking at front) down near the floor. I had to pull the whole oven out to find it.

It was closer to the floor than the control panel.
Gender: male
11 months ago
User Name:
BillRob
Austin, TX, USA

Please wait while more information about BillRob is loaded.
Additional information about BillRob could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
There is a sticker on the back left side (looking from front) of the range at approximately at the height of the cooktop surface/ control panel
Gender: female
1 year, 5 months ago
User Name:
Sndyc
Garden City, MI, USA

Please wait while more information about Sndyc is loaded.
Additional information about Sndyc could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We regret the trouble you have experienced with this dual gas range. The Model/Serial label should be located on the back of the oven, near the top, behind the controls. The oven would likely have to slide away from the wall in order to access this label. The only other location for this label would be just inside the door frame on the lower oven, on the left hand side.
1 year, 7 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

3 answers

What metal is the griddle made of ??

Category: I own this product

Products related to my question


1 year ago
User Name:
fingers
Washington State

Please wait while more information about fingers is loaded.
Additional information about fingers could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in this Double Oven Range. According to our information, the griddle of this unit is formed of Cast Aluminum with a PTFE-based Teflon coating.
5 months, 3 weeks ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Griddle seems to be cast aluminum not cast iron.
7 months ago
User Name:
grieves
Oxford Charter Township, MI, USA

Please wait while more information about grieves is loaded.
Additional information about grieves could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Aluminum.
Gender: male
8 months ago
User Name:
range
Ontario, CA, USA

Please wait while more information about range is loaded.
Additional information about range could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

3 answers

Can the oval burner flame be adjusted?

I've tried making pancakes on the griddle and the oval burner in the center of the stove just does not get hot enough. No matter how long I allow it to preheat, it takes too long to cook the pancakes and they end up like rubber. The flame is just not high enough to produce the necessary heat. I love everything else about this stove, but the griddle usage is disappointing to me.
Category: I own this product
Interested in: Troubleshooting
1 year, 2 months ago
User Name:
Consumer11

Please wait while more information about Consumer11 is loaded.
Additional information about Consumer11 could not be loaded.
+2points
2out of 2found this question helpful.
HelpfulNot Helpful

Answers

Answer:
I made a video on you tube that explains how to change out the center burner with a more powerful one. it is super simple. search for ldg3036st griddle and you will get all the information you need.
User submitted video
5 months, 1 week ago
User Name:
BK41
Nashville, TN, USA

Please wait while more information about BK41 is loaded.
Additional information about BK41 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Check out the parts list and part diagram at Sears website for this range. You will find a parts diagram for all of the burners with numbers that correspond to the parts list. You will find that the nozzle (sometimes called orifice) for the center burner is rated at 8,000 btu/hr. This nozzle is too small for this application. You need a nozzle rated at 12,000 btu/hr. This nozzle is used on the left front burner of the range. Sears will sell you another 12,000 btu/hr nozzle for about $6 and about $8 shipping. Ideal griddle temperature for pancakes is 375 f. The 8,000 btu/hr nozzle will deliver about 285 f. even after 5 minutes. The 12,000 btu/hr will deliver about 400 f after 3 minutes. You will have to reduce the heat to about "5" on the dial to get ideal pancake temperature.
The nozzle is 10 mm hex. You can replace it without removing the upper burner pan. You will need a 10 mm. socket.. Loosen the existing nozzle and then remove it carefully with plastic tubing that just fits over the nozzle. Don't drop it. Use a very little teflon paste on the threads of the 12,000 btu/hr nozzle. Get it started with the plastic tubing and then tighten it with the 10 mm. socket.
Even with the bigger nozzle the center burner is quite safe. The service tech. that replaced mine (I bought the nozzle, he put it in) saw no problem with warranty or otherwise. The flame in the center burner is in fact shorter than the flame of the left front burner (both the same 12,000 btu/hr). The left front burner is smaller and is round not oval. The flame does not extend beyond the griddle. If you want to call for service, LG's service department treated me very well. You will need to get a 12,000 btu/hr. nozzle yourself.
Be careful with the parts diagram and part numbers. You want the nozzle that comes installed in the left front burner. I tried the left rear nozzle (9,100 btu/hr) but that one was too small and did not get much hotter than the original 8,000 btu/hr one. The appliance store that took care of the warranty service sent the tech. out with just another 8,000 btu/hr nozzle, but that did not do anything. It needs 12,000 btu/hr. to heat properly.
Gender: male
8 months ago
User Name:
range
Ontario, CA, USA

Please wait while more information about range is loaded.
Additional information about range could not be loaded.
+3points
3out of 3found this answer helpful.
HelpfulNot Helpful

Answer:
We regret your dissatisfaction with the operations of this gas range. The flame level should certainly be adjustable, however this may require the assistance of a qualified technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
1 year, 2 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

Igniter Burners

I recently bought the LDG3036ST and noticed that whenever I operated the igniter on one of the burners the middle burner (griddle) was also firing. I had never seen this behavior on another range with electronic ignition. At first I thought my range was defective. After researching this in the manual I found that it was normal for other igniters to fire when operating one. So my question is what's the purpose of this feature and the rationale behind this design? Does this happen with all LG ranges or is this now some sort of a safety requirement for all new gas ranges?
Category: I own this product
Interested in: Troubleshooting
1 year, 11 months ago
User Name:
JoeJohn
New Jersey, USA

Please wait while more information about JoeJohn is loaded.
Additional information about JoeJohn could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Not only the middle burner was firing, they all were firing.
The purpose of this feature is simplicity. There is one common igniter circuit for all of the burners. There is one high voltage unit to supply all igniters. Any other design would require either a separate high voltage unit for each burner (5 total) or some means of switching the high voltage to just the burner being turned on. Separate igniter circuits for each burner would mean more parts and more points of potential failure for no good purpose.
Gender: male
8 months ago
User Name:
range
Ontario, CA, USA

Please wait while more information about range is loaded.
Additional information about range could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Yes, it is normal for all of the surface burner igniters to fire when any of the knobs are turned to the LITE position. This can ensure that none of the other burners are releasing gas or fumes unobstructed. All of our gas cooktops are designed in such a manner.
1 year, 11 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
  • 2015-08-27T13:36:23.457-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_MD05030161, prod, sort_default
2 3 4 5 ... 21 Next>>
  • 2015-08-27T13:36:23.463-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_MD05030161, prod, sort_default
2 3 4 5 ... 21 Next>>
