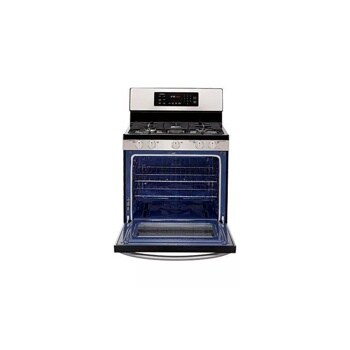

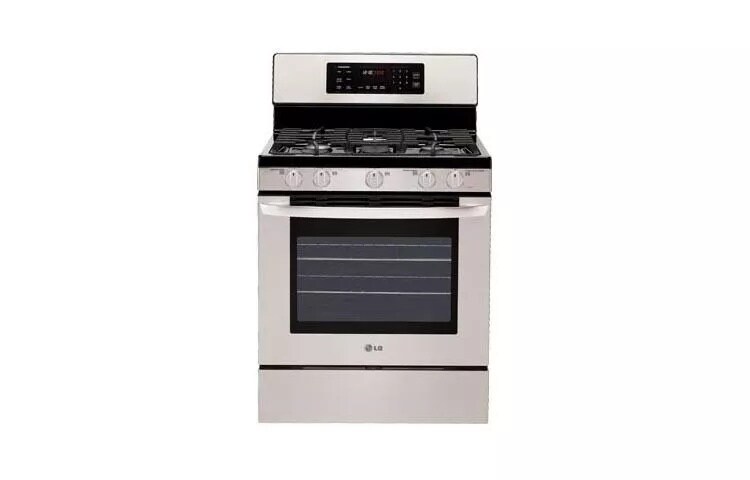

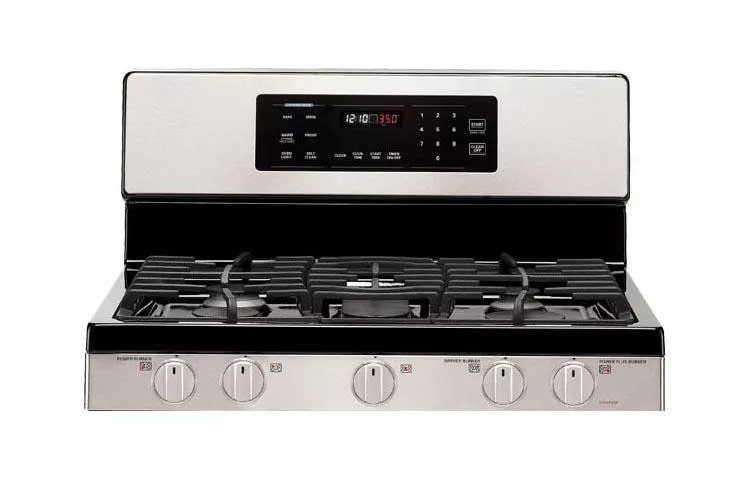

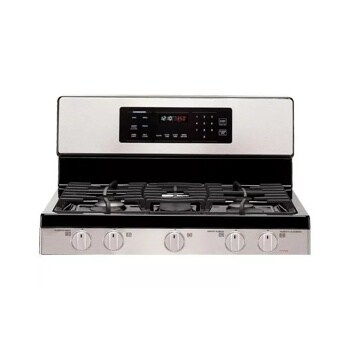

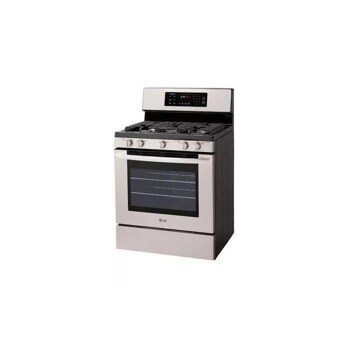

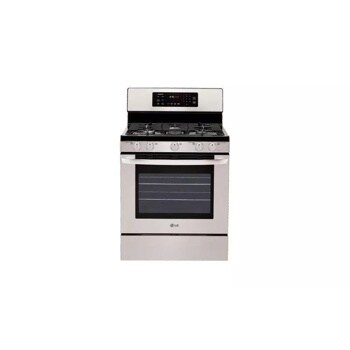

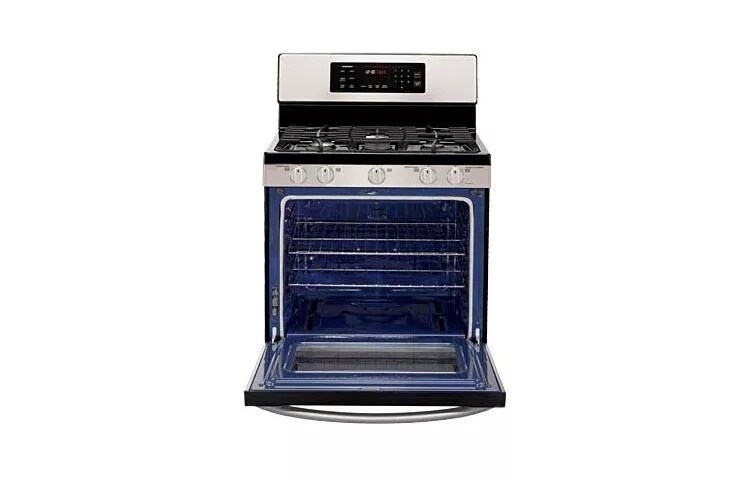

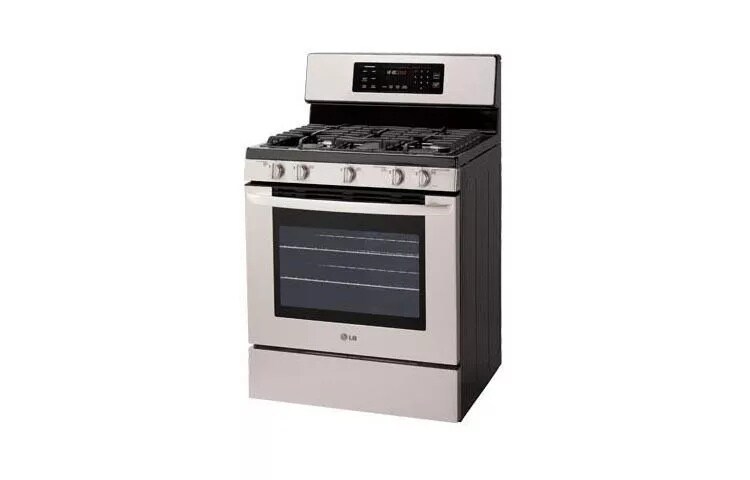

5.4 cu. ft. Capacity Gas Single Oven Range with Oval Burner and Griddle

  • LRG3093ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • Large Capacity Oven
  • Superboil™ 17,000 BTU Burner
  • 5 High Performance Sealed Burners
  • IntuiTouch™ Controls
AVAILABLE COLORS:
SUMMARY
Range Type Single Door
Cooktop Material Coated Porcelain
Capacity 5.4 cu. ft.
Product Dimensions (WxHxD) 29 15/16” x 47 5/8” x 26 29/32”
Color Stainless Steel
Control System IntuiTouch™/Knobs
Number of Burners 5
Burner Power (BTUs) Left Front (High Output): 12,000 BTU, Left Rear (All Purpose): 9,100 BTU, Center: 8,000 BTU, Right Front (SuperBoil™): 17,000 BTU, Right Rear (Simmer): 5,000 BTU
Broil Burner 15,500 BTU Flat Broiler
Bake Burner 18,000 BTU
OVEN FEATURES
Configuration Freestanding Gas Oven with Storage Drawer
DIMENSIONS
Width 29 15/16"
Height (to top of cooktop) 36"
Height (to top of backguard) 47 5/8"
Depth (including door) 26 1/2"
Depth (including handle) 26 29/32"
Oven Capacity (WxHxD) 24 1/2" X 19 1/2" X 19 11/16"
Drawer (WxHxD) 23" x 4 11/16" x 16 1/2"
WideView™ Window (WxH) 19 19/32 x 11 1/32"
Net Weight 227 lbs
TYPE
Type Free Standing Gas
Oven/Cooktop IntuiTouch™/Knobs
FEATURES
Display VFD
Electronic Clock & Timer Yes
Control Lock Function Yes
Audible Preheat Signal Yes
Special Functions Temperature Unit of Measure (F/C) Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off
Door Lock Yes
COOKTOP SPECIFICATIONS
Burner Type Coated Procelain
No. of Sealed Gas Burners 5
Configuration - Left Front 12000Btu/h
Configuration - Left Rear 9100Btu/h
Configuration - Center (Single Oval) 8000Btu/h
Configuration - Right Front SuperBoil™ 17000Btu/h
Configuration - Right Rear 5000Btu/h
Accessories Griddle
Oval Burner Yes
OVEN SPECIFICATIONS
Capacity 5.4 cu. ft.
Type Self-Cleaning
Variable Cleaning Time 2hr, 3hr, 4hr
Delay Clean Yes
Broil Burner 15.5k BTU
Broiler Type Flat Broiler
Bake Burner 18K BTU
Delay Bake 12 Hours
Automatic Shut-Off After 12 Hours
WideView™ Window Yes
GoCook™ Smart Oven Light Yes
Interior Oven Light Adjustment 1, Auto/Manual
No. of Racks/Positions 2 Full/7
DRAWER
Capacity 1.0 cu. ft.
Type Storage
MATERIALS/FINISHES
Available Colors Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
Oven Interior Brilliant Blue
Knobs Matching Metal
Handle Matching Commercial Handle
POWER SOURCE
Electrical Requirements 540kW / 4.5A 120 VAC
WARRANTY/UPC
Limited Warranty One Year Parts & Labor
