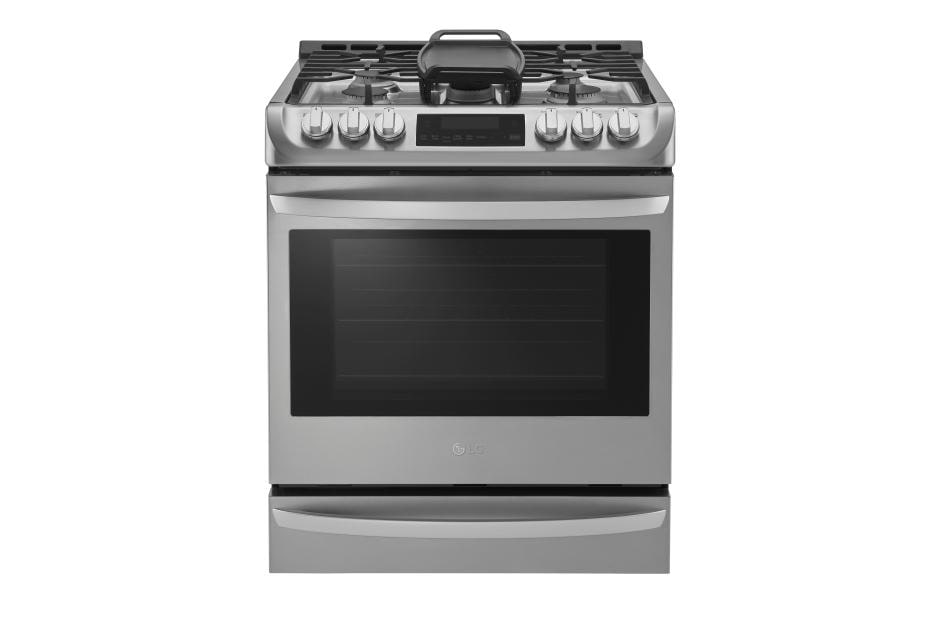

6.3 cu. ft. Gas Slide-in Range with ProBake Convection® and EasyClean®

  • LSG4513ST

  • Stainless Steel

Key Features

  • ProBake Convection®
  • EasyClean®
  • 6.3 cu.ft. Large Capacity
  • UltraHeat™ 18.5K BTU Power Burner

Baked to Perfection
on Every Rack, Every Time

LG ProBake Convection® delivers even baking results on every rack, every time*. Inspired by pro-style ranges, this new LG range moved the heating element from the bottom of the oven to the back wall for optimal heat distribution.

10 Minutes. 1 Spotless Oven.

LG EasyClean® delivers the fastest oven-cleaning feature yet. In 10 quick minutes your oven can be sparkling clean, without strong chemical fumes or high heat*. Simply spray the oven interior with water, press EasyClean® and then in 10 minutes, quickly wipe away any leftover grime.

Slide-in Design

A sleek, built-in look

With a depth that lines up with standard kitchen countertops, the LG gas slide-in range offers a streamlined custom appearance that enhances every kitchen décor and makes cooking a pleasure.

Handles Any Size Meal

Handles Any Size Meal

Bring on your oversize roasts, your 24-pound-plus turkeys, your cavalcade of side dishes. If you can dream it, this huge 6.3 cu. ft. capacity oven can match your menu stride for stride. With this large capacity oven, you can conquer large meals with room to spare.

LG’s Fastest Boiling Burner

LG’s Fastest Boiling Burner

Busy cooks, rejoice: LG UltraHeat™ 18,500 BTU burners deliver every bit of the precision you love about gas with even more power.*** No more waiting around to bring water and other liquids to a boil.

Oven Capacity 6.3 cu.ft.
Configuration Single Oven
Configuration Type Slide-In Gas Range
Broil Element (BTUh) 14,500 / 12,500 (LNG/LPG)
Oven Cooking Convection
Oven Cooking Modes Bake, Broil, Convection Bake, Convection Roast, Favorites, Multi-Rack Convection Baking, Delay Back, Delay Clean, Proof, Warm, Pizza
Oven Control Features Glass Touch
Convection Burner (BTU/h) 19000 / 17000 (LNG/LPG)
Convection Conversion Yes
ProBake Convection® Yes
EasyClean® Yes
Self Clean Yes
GoCook Smart Oven Light Yes (1 Light)
No. Rack Positions 7
Door Lock Yes
Automatic Safety Shut-Off After 12 hours
Left Rear (BTU) 9,100
Right Rear (BTU) 5,000
Left Front (BTU) 12,000
Right Front (BTU) 18,500
Center (Warming Zone) (BTU) 10,000 (Oval-Burner)
Cooktop Finish Stainless Steel
Cooktop Control Type Front Tilt-Control Knobs
Oven Control Type Glass Touch
Display VFD
Clock 12 hr or 24 hr (option)
Temperature Unit of Measure ˚F or ˚C
Cooking Complete Reminder Volume 1. High 2. Low 3. Mute
Certified Sabbath Mode No
Available Colors Stainless Steel
Handle/Knobs STS Finish (AI)
Oven Door Feature WideView™ Window
Shipping Weight (lbs) 210
Product Weight (lbs) 189
Cabinet Width (in) 30"
Overall Depth (in) - including handle 28 15/16"
Overall Height (in) - including backguard 37 3/4”
Overall Width (in) 29 7/8"
Oven Interior Dimensions (in) (W x H x D) 24 7/8" x 21 3/8" x 20"
Height to Cooking Surface (in) 36"
Storage Drawer Dimensions (in) (W x H x D) 22 3/16" x 4 1/2" x 16 3/8"
Carton Dimensions (in) (W x H x D) 32 1/2" x 44" x 30 1/2"
Amp at 120V 8.3A
kW at 120V 1.002 kW
Requirements 120 VAC
Griddle Yes
Standard Rack 3
Scouring Pad Yes
Spray Bottle Yes
Limited Warranty 1 Year Parts & Labor
UPC 048231319645

What People Are Saying

Rated 1 out of 5 by from Gas range The gas range top scratches with even a slight grain of salt that might fall on it. I have followed all recommendations in cleaning the product and have been so careful but just to see new scratches everyday. My husband is afraid to use it . The cook top must have the cheapest grade of stainless steel possible. I contacted customer service and was told to use cleaning creams and over time the scratches will be less noticeable.
Date published: 2017-09-13
Rated 2 out of 5 by from Misleading design Bought this as it looked like slide-in, but main reason was it had a drawer and I needed the space for baking/cookie sheets as I was downsizing. When I get it and review the manual AND verified with LG rep, I learned NOTHING is to be placed in the drawer.Very misleading. If drawer can't be used, should have been "false" door. Had I known this, I would have purchased the one with the warming drawer. Knobs are very difficult to remove and it's hard to clean around them.
Date published: 2017-08-24
Rated 5 out of 5 by from LIked the small upper oven I bought this a month ago. Disappointed with instruction manual. After baking ends can't reset timer for additional minutes it cake not fully basked. Hearing from customer service supposedly all you do is press the upper oven button once and reset the timer for additional minutes. Tried that and you get the message " convection roast". with my old oven all that was needed was to place the cake back in the oven and set the timer and press start again. LG Oven cools down to fast, must wait until original bake temperature is reached again. .Bought the oven for the upper oven feature. my mistake. Manual tells how to set bake and timer.and bell goes off at the end. Nothing about trying to bake for additional time once oven "ends.
Date published: 2017-08-17
Rated 5 out of 5 by from Great Range This has been a great range so far. We've had it about six months and it works great! Everything feels sturdy and high quality.
Date published: 2017-06-27
Rated 1 out of 5 by from nothing, nadda, zip, zero That's what I got when I plugged in this unit. Not a sound, not a light, not a happy camper! BTW, since it's special order, I have to wait at least 5 weeks for a replacement. Seriously? Even though the dishwasher, microwave, refriderator work great, I'm regretting purchasing all LG appliances.
Date published: 2017-03-27
Rated 5 out of 5 by from Great Range We purchased this range back in September but didn't actually get to use it until December. Absolutely love it. Cooks/bakes great. Easy to clean up which is wonderful. Looking forward to using features I haven't tried yet. You can't go wrong with this range!
Date published: 2017-03-13
Rated 2 out of 5 by from Burn marks on grate and burners after minimal usag We paid a lot for this stove and while it cooks great it looks horrible in our kitchen after minimal usage. All grates and burners have horrible scorch marks on them and really take away from the look it's an eye sore and pretty disappointed this has happened only after a month of use
Date published: 2017-03-09
Rated 2 out of 5 by from Slide in Gas range Purchased in 10/2016. Oven has never worked, repairman out 3 times, replaced thermostat, and front panel. Continues not to work. The cooktop works. I missed Cooking for Thanksgiving, Christmas and now a family member's birthday. Very poor communication between repairman & myself.
Date published: 2017-02-01
  • y_2017, m_9, d_19, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_34
  • loc_en_US, sid_MD05231043, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 4ms

We're here to support you with our product.

View LSG4513ST Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Can I purchase some kind of drip pans for this model range? Or should it have come with them? I find the stove too hard to keep nice looking with day to day drips and spills and  it isn't the smudge/print resistant like the rest of the range.

Asked by: Bullodg
We appreciate your interest in the range and its accessories. it may be possible for a drip pan to be purchased for the range, however, LG does not provide a drip pan with this unit.
Answered by: NeilE
Date published: 2017-08-22

Is the LSG4513ST have a down draft venting ?  Do any LG's have a down draft venting?

Asked by: Karyn J
The LG 6.3 cu. ft. Gas Slide-in Range with ProBake Convection® and EasyClean® , Model # LSG4513ST does not have a down draft vent and LG does not make any down draft range ovens...^IFV
Answered by: LGJoel
Date published: 2017-08-22

When I turn on the stove burners I hear a whistle sound. Why is this, it is a brand new stove that also came with a leak repaired by LG tech

Asked by: Csmsf253
We regret the trouble you have experienced with this gas range. Can it be determined from where this sound originates? Please contact our Customer Interactive Center at 800-243-0000 to troubleshoot this matter.
Answered by: NeilE
Date published: 2017-06-29

Do you have a gas to lp conversion kit for this range lsg4513bd

Asked by: Deborah a
We appreciate your interest in this gas range. The LP NOZZLE CONVERSION KIT, shown in the Product Overview on page 12 of the owner’s manual, was provided with the range. It should be found in a bag either on the back of the range, or in the storage drawer.
Answered by: NeilE
Date published: 2017-06-28

Is the center griddle shown in the pictures supposed to come with the oven? I didn't receive one. Where can I get one? Thank you.

Asked by: Christineg
Page 12 of your owner's manual for the LG 6.3 cu. ft. Gas Slide-in Range with ProBake Convection® and EasyClean® , Model # LSG4513ST has an inventory list of the included accessories that came with the range oven and shows that the the griddle plate should have been included. If this was a recent purchase, please contact the retailer from where it was purchased from otherwise you will need to contact our Support Center at (800) 243-0000 or order it from an LG Authorized Parts Distributor...^IFV
Answered by: LGJoel
Date published: 2017-06-27

Does the griddle sit on top of a great? Can it be removed & used as a 5th burner? or is the griddle a permanent fixture?

Asked by: Tom100
The non-stick coated griddle can only be used with the center burner on the LG 6.3 cu. ft. Gas Slide-in Range with ProBake Convection® and EasyClean®, Model # LSG4513ST and it must be properly placed on the center grate. The center grate must not be removed when using the griddle...^IFV
Answered by: LGJoel
Date published: 2017-06-27

Does this oven need a strip of granite in the back? Or can it be slid into place directly against wall?

Asked by: kohankf
The LG 6.3 cu. ft. Gas Slide-in Range with ProBake Convection® and EasyClean®, Model # LSG4513ST can be placed with 0" clearance (flush) at the back wall...^IFV
Answered by: LGJoel
Date published: 2017-06-13

Is there an extractor fan for top of stove?

Asked by: LAURENCB
The LG 6.3 cu. ft. Gas Slide-in Range with ProBake Convection® and EasyClean, Model # LSG4513ST does not have an extractor fan for the stove top. They are a variety of range vent hood that you can find at most Home improvement stores that can be used with this unit...^IFV
Answered by: LGJoel
Date published: 2017-04-27
