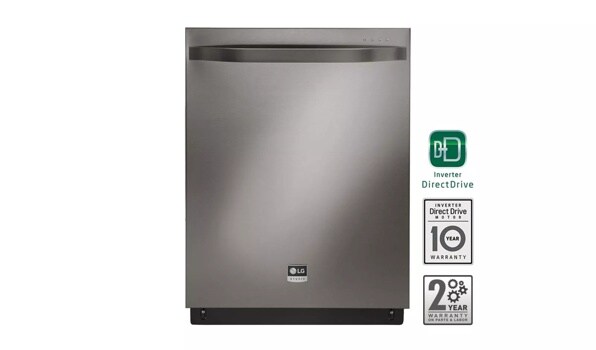

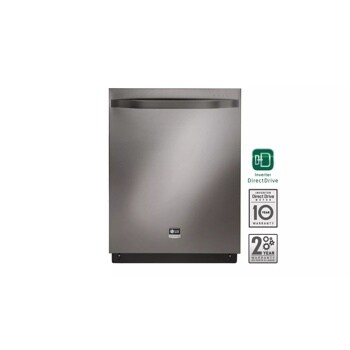

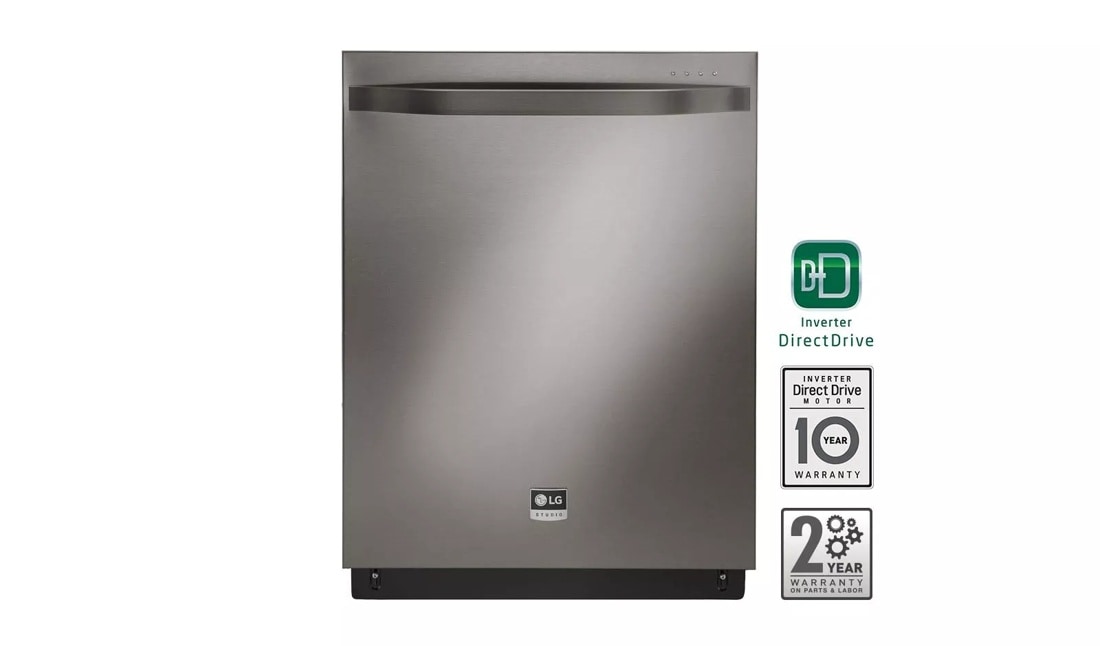

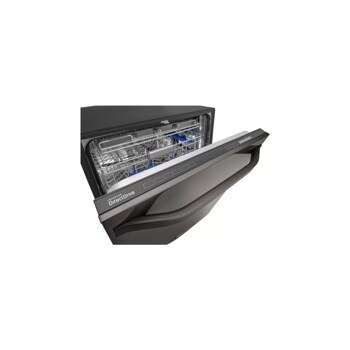

LG STUDIO - Top Control Dishwasher with TrueSteam® Technology

  • LSDF9969BD

  • Black Stainless Steel

Key Features

  • Fingerprint-Resistant Finish
  • TrueSteam® Technology
  • Hidden SmoothTouch™ Controls with LCD Display

J.D. Power Award Winner

“Highest in Customer Satisfaction with Dishwashers”

Kitchen design for a refined palate.

Use the LG STUDIO Virtual Designer to create and share your perfect kitchen.

Stylish Design You Can’t Wait to Get Your Hands On

Fingerprint and smudge resistant finish* easily wipes clean with a soft, dry cloth, so the only lasting impression is your impeccable taste. At last, the kitchen you can’t wait to show off is the kitchen that handles real-life in style.

STEAM WASH, DON’T PRE-WASH

Powerful yet gentle TrueSteam® virtually eliminates the need to pre-wash. The built-in TrueSteam® generator also enables gentle cleaning for fragile items (like stemware), and can also be used for heavy-duty cleaning like pots and pans.

Reservations for 14

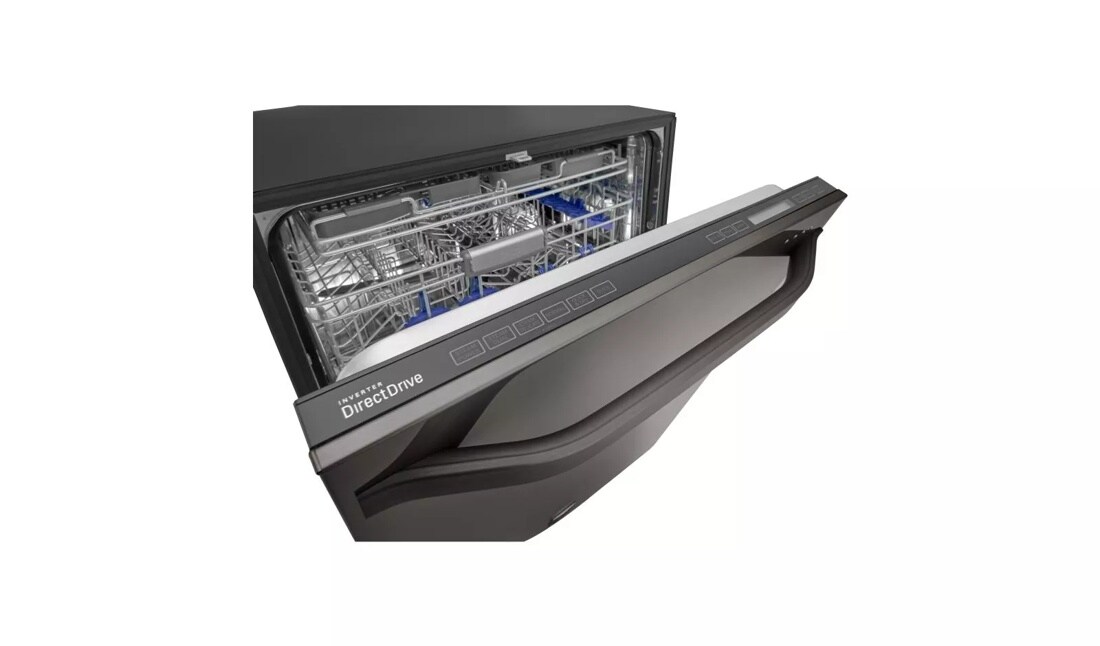

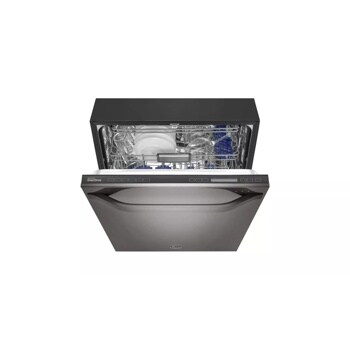

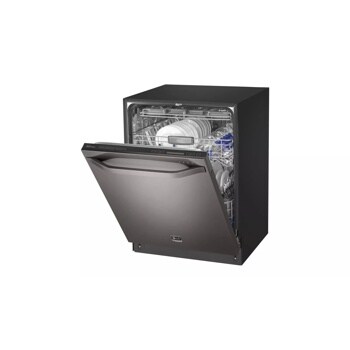

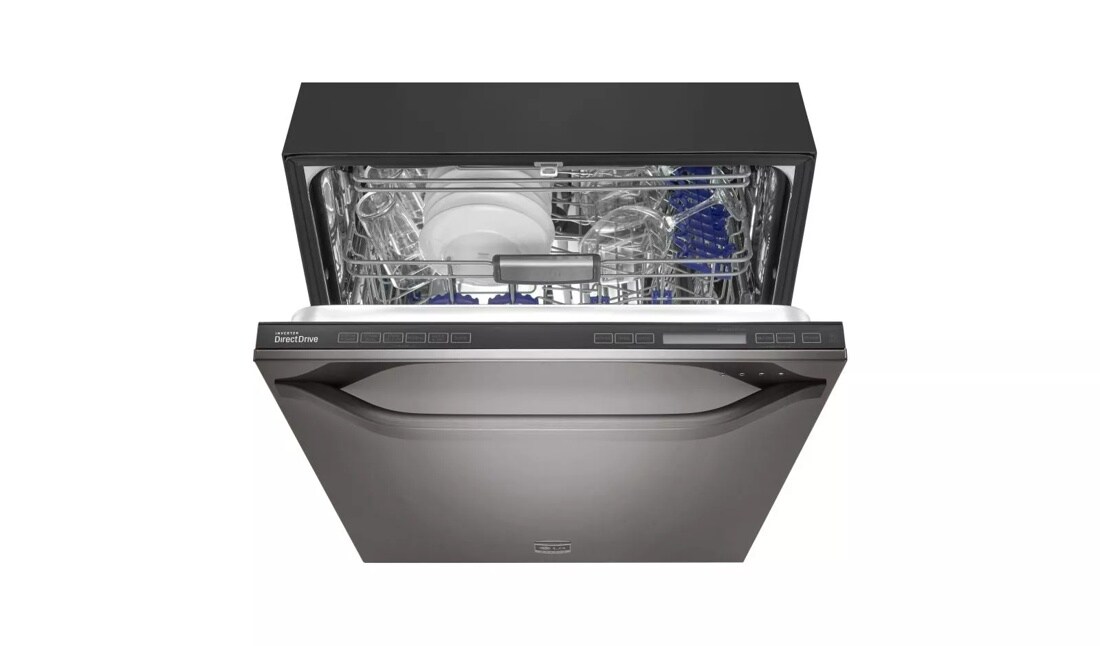

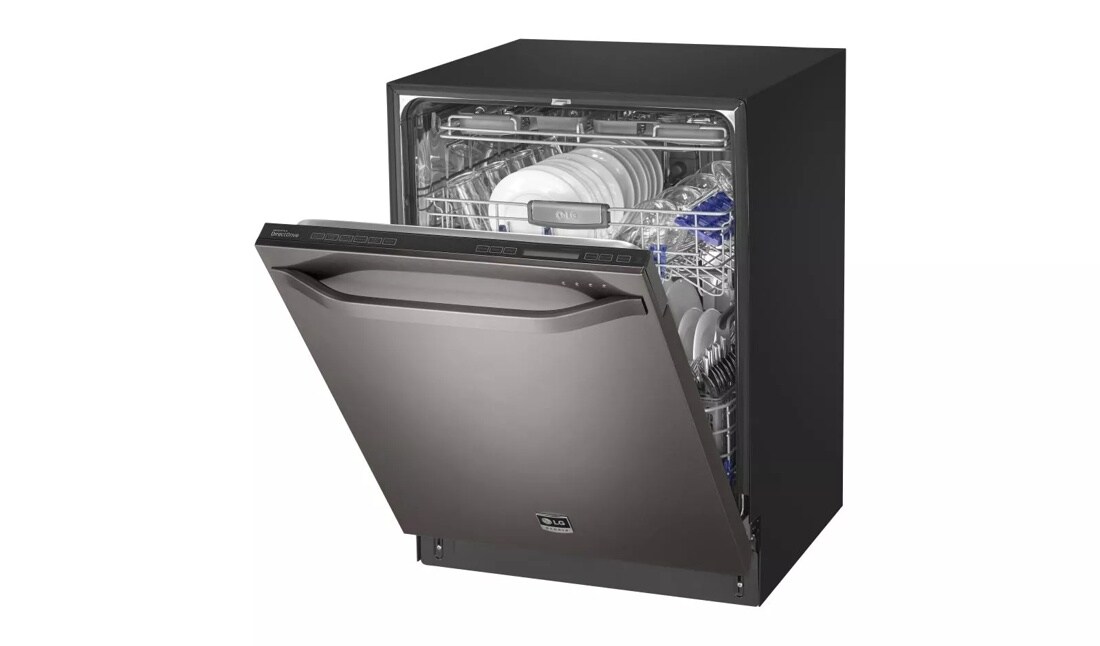

The spacious, stainless steel interior provides ample space for lots of dishes and stemware, in a variety of sizes. Fit up to 14 place-settings of dishes.

SUMMARY
LG STUDIO Yes
Handle Design Towel Bar Handle
TYPE
Type Top Control Dishwasher
CAPACITY
Total Place Settings 14
Upper Rack Dish Height Limit 12"
Lower Rack Dish Height Limit 14"
RACKS AND BASKETS
Cutlery Baskets 3-in-1 Detachable Baskets
Stemware Holders Yes
Racks and Tines Nylon Coated with Rounded Tips
EasyRack™ Plus System Yes
EasyRack™ Plus System: Upper Rack Color-Coded Foldable Tines Yes
EasyRack™ Plus System: Lower Rack Color-Coded Foldable Tines Yes
EasyRack™ Plus System: Height Adjustable Upper Rack Yes
STYLE AND DESIGN
Electronic Controls Hidden SmoothTouch™ Controls with LCD Display
Time Remaining Indicator Yes
Rinse-Aid Indicator Yes
SignaLight™ Cycle Indicator Lights 4: Wash, Rinse, Dry, Clean
FEATURES
TrueSteam® Yes
Slim Direct Drive Motor Yes
Number of Wash Cycles 7
Wash Cycles Steam Power, Normal, Quick & Dry, Quick Wash, Rinse Only, SteamDelicate™, Steam Dual
SenseClean™ Wash System Yes
Dual Spray Intensity Feature Yes
Variable Spray Intensities Strong/Medium/Soft
Sanitary Rinse Cycle Yes
Extra Rinse Option Yes
Multi-Level Water Direction 5
Hybrid Condensing Drying System Yes
LoDecibel™ Quiet Operation Yes
Overflow Detector Yes
120°F Inlet Water Capability Yes
Delay Start Up To 19 Hours
Child Lock Yes
POWER SOURCE/RATING
Ratings/Requirements/Type UL Listed/120 V, 12 Amps/60 Hz
Circuit Breaker Size 15 Amps
ENERGY STAR® Qualified Yes
MATERIALS AND FINISHES
Tub Material Stainless Steel
Handle Matching Commercial Handle (Vista Package)
Available Colors Black Stainless Steel (BD)
Fingerprint & Smudge Resistant Exterior Yes
DIMENSIONS
Unit Dimensions (WxHxD) 23 3/4" x 33 5/8" x 24 5/8"
Required Clearances (WxHxD) 24" x 34" x 25"
Carton Dimensions (WxHxD) 27 1/5" x 35 1/10" x 29 3/5"
Weight (Unit/Carton) 110.2 lbs / 116.4 lbs
WARRANTY
Limited Warranty 2 Year Parts & Labor, 5 Years on Control Board and Rack Parts, 10 Years Direct Drive Motor, Lifetime on the Stainless Steel Tub and Door Liner
UPC 048231018968

What People Are Saying

Rated 5 out of 5 by from easy set up this unit was very easy to set up , all 4 corners adjusted from the front... and this is the quietest and the best dishwasher that i have ever owned!!
Date published: 2017-11-09
Rated 4 out of 5 by from Great Features/Great Look We like that it is an extremely quiet dishwasher (though we're a little surprised by the length of the wash cycle - 2 hrs, 11 mins.) and the dishes come out shiny clean. The top slide-out for utensils is a real plus, and we really like the silverware tray. We are still working on figuring out all the changes that can be made to the interior dish compartment to get it to where it works best for us. All in all we're very satisfied with this dishwasher.
Date published: 2017-11-01
Rated 4 out of 5 by from very quiet. Seems to wash well but there is not a light that stays lit saying dishes are clean
Date published: 2017-10-05
Rated 1 out of 5 by from Not practical LG's top of the line dish washer is quiet! So much quieter than our previous dishwasher, there's hardly a comparison. And the "black stainless" finish is classy and blends in with the rest of our kitchen. We were so looking forward to the 3rd level for silverware. But we were so disappointed when we found several of our knives and spoons in each wash don't come clean. Particles left on the back of spoons. Layers of food left on the front. 2) The instructions so to not overlap dishes. This is certainly true. They don't come clean if you do. 3) But most annoying is the poor design of the folding racks in the middle and lower levels. Dishes are stacked facing a side. There is plenty of room to make two rows - one of full size dishes, the other of smaller side plates. However, after carefully arranging the dishes in 2 perfectly aligned rows, it's all but impossible to keep them in these neat rows when sliding the tray into the washer. The slightest jar causes both size plates to roll. Further, the tines do a poor job of holding the plates upright no matter which direction the plates are facing. 4) The foldable tines fold down much too easily. I'm always having to put them back up.
Date published: 2017-09-05
Rated 2 out of 5 by from so so We have owned this dishwasher for 8 months and although it cleans well and is quite, we would not buy this model again. The adjustable tines that hold and space the dishes do not stay in place and cause items to move and to fall during loading and washing operations. We have broken more then a few items because of the poorly designed adjustable tines
Date published: 2017-08-22
Rated 5 out of 5 by from So quiet - I forgot I started it! I've had several dishwashers in my time, but this one is just plane AWESOME! It is so quiet - I have to put my ear on the door to see if it's running!!! And tall - lots of room on the top (middle) rack. I took out the top table service rack and can put tall stuff on the top (middle) rack as well as the bottom. Would never buy any other dishwasher again!
Date published: 2017-08-21
Rated 5 out of 5 by from Best, bar none, dishwasher I've ever owned Super quite. If it wasn't for the lights, I'd never know its on. Perfect job cleaning the dishes. I really love the steam feature. It works.
Date published: 2017-08-21
Rated 5 out of 5 by from What's Not To Love? Quiet, beautiful, loads of features, outstanding performance. I cannot ask for anything more. You will love it. I read a couple reviews about frustration when loading, but no worries, the tines have some flexibility, so just pay attention to the loading recommendations and it'll only take a couple of moments to figure out the best loading configuration that fits your need.
Date published: 2017-08-12
  • y_2018, m_2, d_19, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_17
  • loc_en_US, sid_MD05773887, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LSDF9969BD Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Just purchased a stainless dishwasher. The bottom face plate is black - can I order a stainless one?

Asked by: ChristieS
We apologize for the inconvenience, we do not sell a stainless steel face plate separately for this dishwasher. ^CP
Answered by: ChrisPSM
Date published: 2017-12-21

What is the decibel rating?

Asked by: Jill at
I had to download the manual specifications. I was curious myself. Found it is 42 db.
Answered by: PeterUnlisted
Date published: 2017-12-07

Is it ok to use the dishwasher detergent tabs? We clean our dishes well before putting them in the dishwasher and they still don't come out clean. Are we doing something wrong?

Asked by: BusyMomof2
Regrettably, we can only advise that you follow the manufacturer's instructions for the use of the dishwasher detergent tablets in the LG Studio - Top Control Dishwasher with TrueSteam® Technology, Model # LSDF9969BD. Detergent tabs can deliver a greater performance when removing stubborn stains, they might also require a longer rinsing cycle to remove mineral deposits and do not offer the same flexibility of liquid gel or dishwasher detergent powder when it comes to precise measurements for different sizes of dishwasher loads. You may want to try dishwashing powder or dishwashing gel to compare the results and see which one better suites your needs...^IFV
Answered by: LGJoel
Date published: 2017-01-17

Is the light supposed to continue blinking during the cycle!

Asked by: Curiously yiurs
We appreciate your interest in this dishwasher. If the unit is performing the cleaning operations properly, then the indicator lights are likely to be operating as designed.
Answered by: NeilE
Date published: 2017-02-25
