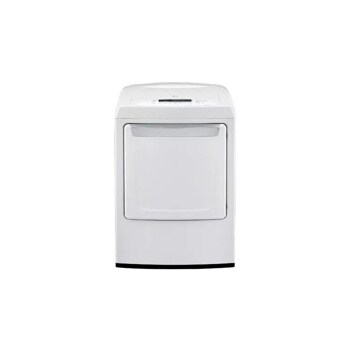

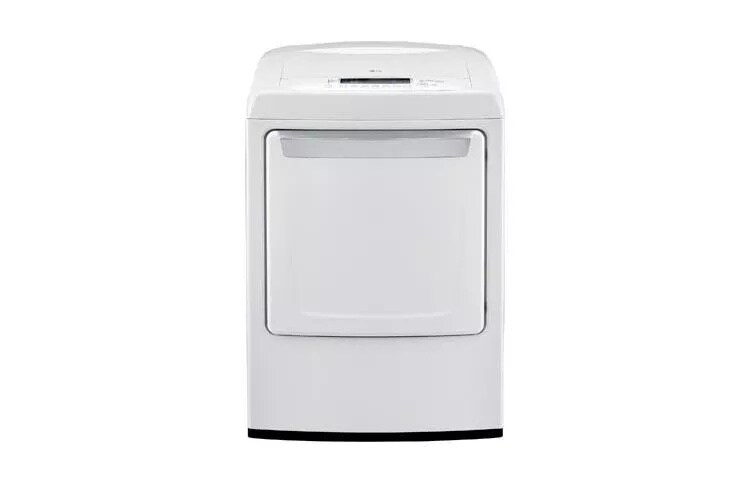

7.3 cu. ft. Ultra Large Capacity Dryer with Sleek Contemporary Design (Electric)

  • DLE1101W

  • White

Key Features

  • 7.3 cu. ft. Ultra Large Capacity
  • SmartDiagnosis™

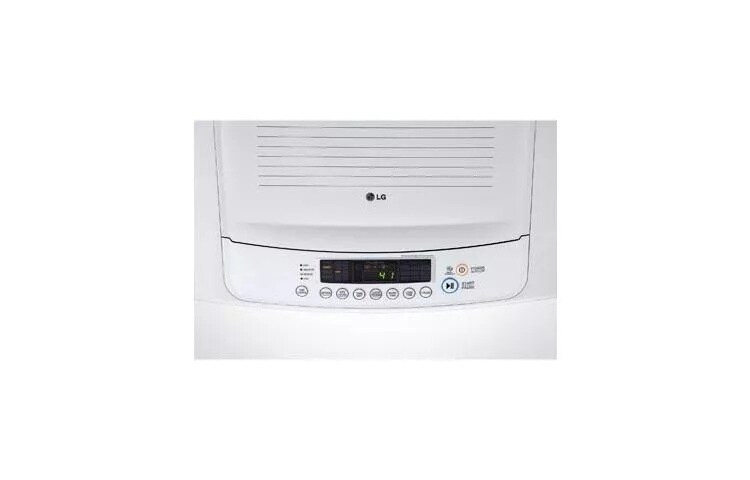

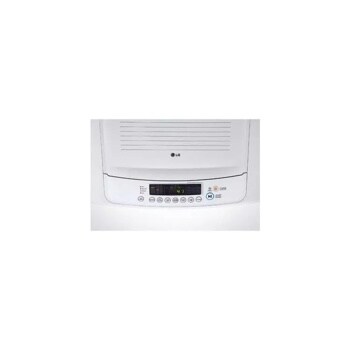

  • Easy Front Control Panel with LED Display
  • FlowSense™ Duct Clogging Indicator
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

A revolutionary spin on laundry.

A revolutionary spin on laundry.

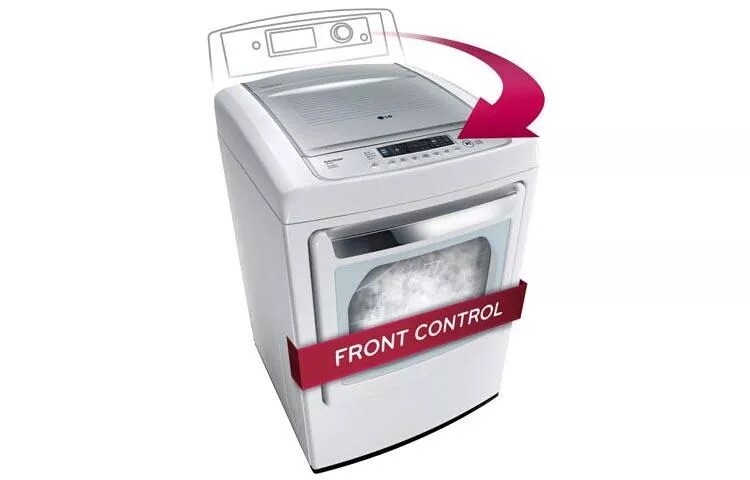

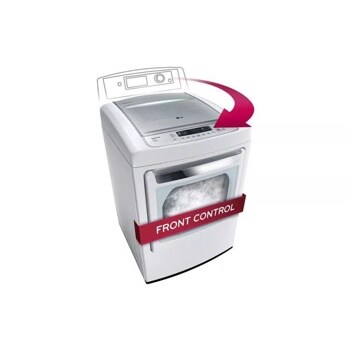

LG puts a modern design spin on the traditional top load laundry pair. By moving the control panel from the back to the front, the buttons and LED display are easier to read and use. This simple change makes for a more intuitive and functional design and a look that is unlike anything you’ve ever seen.

Keep it quiet

Keep it quiet

There’s no need for laundry to be noisy. Thanks to LG's LoDecibel™ operation, chances are you may not even notice it.

SUMMARY
Dryer Type Electric
CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE
Design Look Front Control
Front Electronic Control Panel with LED Display Yes
DRYING PROGRAMS
No. of Programs 9
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Delicates, Small Load, Towels
Programs (Manual Dry) Freshen Up, Speed Dry, Air Dry, Rack Dry
No. of Options 7
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Aluminized Alloy Steel Drum Yes
Top Plate Plastic
Body-Matching Solid Door Yes
Cabinet Painted Steel
Control Panel Plastic
Available Colors White (W)
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2" x 43 7/10" x 31 1/4"
Weight (Product/Carton) 121.7 lbs. / 139.6 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 013246

What People Are Saying

Rated 5 out of 5 by from I bought this dryer over a year ago and have been very happy with it.
Date published: 2016-07-21
Rated 5 out of 5 by from Super product I could not be happier with my choice of both a washer and dryer for my home. Great value! Quality Design!
Date published: 2016-07-14
Rated 5 out of 5 by from This dryers is so efficient! I love the ease of use on this dryer, works like a charm and drys so quick, I have seen my use of water and electricity go down since I bought both my LG Washer & Dryer
Date published: 2016-07-09
Rated 5 out of 5 by from Great dryer. We usually do not have dryer when we are in Korea. When we did, we were totally surprised after we got it. Totally awesome experience of a new dryer.
Date published: 2016-07-09
Rated 5 out of 5 by from A+++++ This dyer has all the bells and whistles! !!!!!!!!
Date published: 2016-06-06
Rated 5 out of 5 by from Best dryer I've ever owned Purchased about a month ago and it is wonderful! Very quiet, lots of options, dries clothes the first time. Very nice!
Date published: 2016-05-24
Rated 5 out of 5 by from love this Dryer This Dryer is great, dries fast and quite, the cloths dont' come out all wrinkled
Date published: 2016-05-12
Rated 1 out of 5 by from Hate this dryer! Purchased in August, continuous problems. Warranty work has been performed numerous times and same issue occurring. Stay away from this model.
Date published: 2016-05-02
  • 2016-07-26T09:05CST
  • bvseo_cps, prod_bvrr, vn_cps_3.3.0
  • cp_1, bvpage1
  • co_hasreviews, tv_18, tr_500
  • loc_en_US, sid_MD05015940, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 9ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View DLE1101W Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Hi, my dryer has check flight blinking on. I have cleaned the filter and the vent and still blinking and won't start even I press start/pause. Please help.

Asked by: Irini
We appreciate your interest in this electric dryer. It is normal for the CHECK FILTER light to activate before every cycle. This is not an error; it is simply a reminder. If the unit still does not operate after this, then there may be a problem in the machine. The unit will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-06-29

My dryer keeps cycling when it is off. Only way to stop it is unplugging it or opening door. Can I fix this myself!? Very upset this is just 2 yrs old.

Asked by: Michelle22
We regret the trouble you are experiencing with your dryer. Please contact our Customer Interactive Center at 800-243-0000 that we might troubleshoot the matter with you.
Answered by: ShenaS
Date published: 2016-04-28

Why is my clothes taking long to dry..??, I put like 5 stuff in the dryer for 30 minutes and when I went to go take it out it was still dry.!!! Please help

Asked by: Fplw
We regret the trouble you have experienced with this dryer. If the items from your load are still wet after a cycle, then it is suggested to check the lint filter and exhaust duct, to make sure they are clear. If they are clear, and the load is still wet, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-04-07

just purchased received no Manuel and it's saying check folter?

Asked by: Dee27
We appreciate your interest in this electric dryer. According to the information in your owner’s manual, the DISPLAY panel will show CHECK FILTER when the dryer is turned on as a reminder to check the filter. It turns off when the START/PAUSE button is pressed. This is normal operation.
Answered by: NeilE
Date published: 2016-01-14

New dryer only had a few months. The dryer didn't turn off at end of cycle, instead it had three dashes. I pushed every button, even held down a few and it would do nothing. Finally I unplugged it. Now it won't turn back on, but the light inside is on.

Asked by: Jk0607
We regret the trouble you have experienced with this electric dryer. Which buttons were held down in your attempt to use the machine? Some of these could have activated a key lock, which can prevent operations. Please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-01-06

Hi, I am wondering why my lg dryer is not going through the complete cycle. I have is set for a normal cotton load for drying andbthat is a 41 minute cycle however after few minutes on this cycle is drops don't to 19 which isn't normal .

Asked by: Nella
We regret the trouble you have experienced with this dryer. The change in the timed drying cycle can be caused by a clogged filter or exhaust hose. It is recommended to check each. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2015-11-06

Maximum venting distance?

Asked by: kev120000011122
The ductwork and venting for the LG 7.3 cu. ft. Ultra Large Capacity Dryer with Sleek Contemporary Design (Electric), Model # DLE1101W must conform to your local building codes. Depending on what type of wall cap you have and whether you have elbows or not, the maximum length of 4-inch diameter rigid metal duct can run from 65 feet down to 28 feet or from 55 feet down to 22 feet. You would need to deduct 6 ft. (1.8 m) for each additional elbow and it is not recommended to use more than four 90° elbows...^IFV
Answered by: LGJoel
Date published: 2015-10-08

How do you get the chime to work at the end of cycle?

Asked by: Chrissy13
To reactivate the alert signal, press and hold the OPTION button for 3 seconds.
Answered by: NeilE
Date published: 2015-10-05
