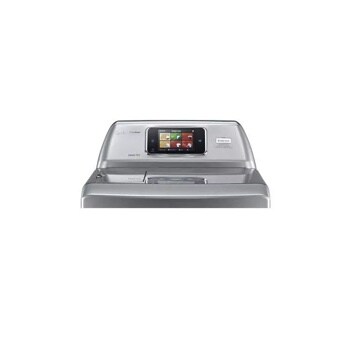

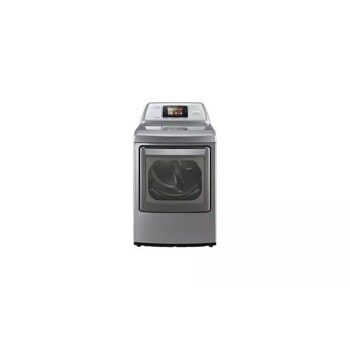

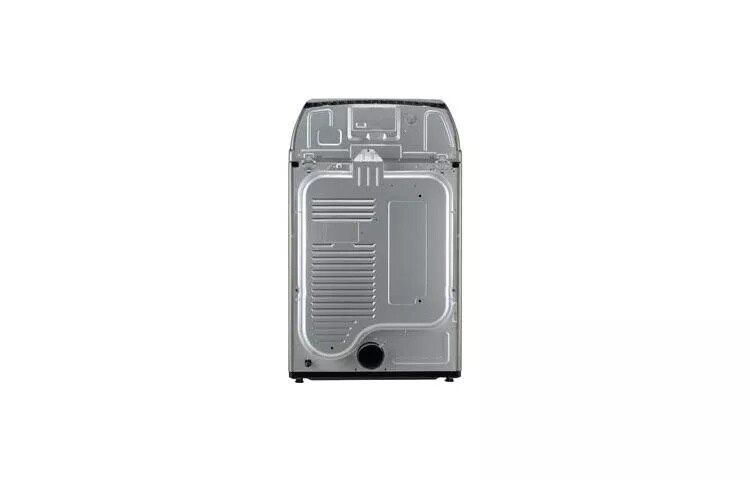

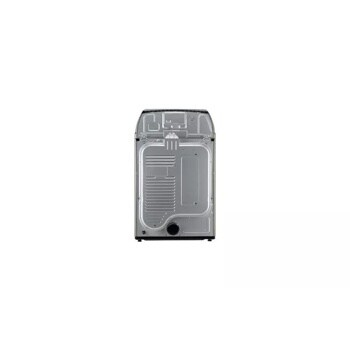

7.3 cu. ft. Ultra Large Capacity SteamDryer™ with Smart ThinQ™ Technology (Electric)

  • DLEX6001V

  • Graphite Steel
  • Discontinued Product

Key Features

  • Smart ThinQ™ Technology
  • 7.3 cu. ft. Ultra Large Capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
Dryer Type Electric
SteamDryer™ Yes
Capacity 7.3 cu. ft.
Design Look Rear Control

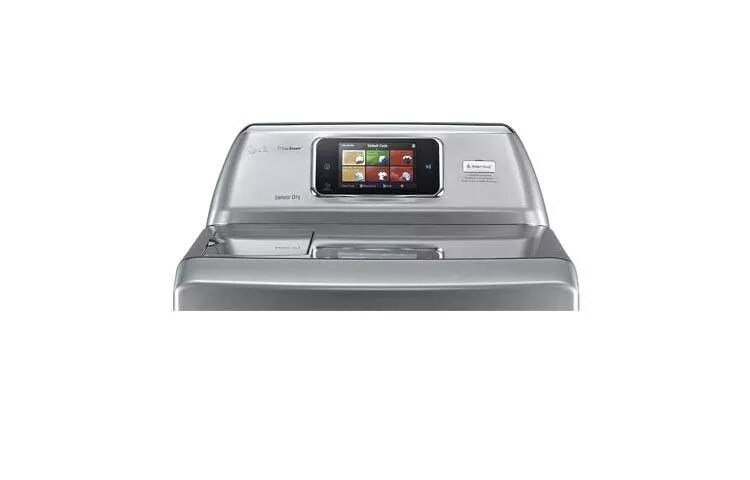

Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Programs (Manual Dry) Speed Dry, Air Dry, Rack Dry
No. of Options 9
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, EasyIron™, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
LoDecibel™ Quiet Operation Yes
SmartThinQ™ Technology Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes

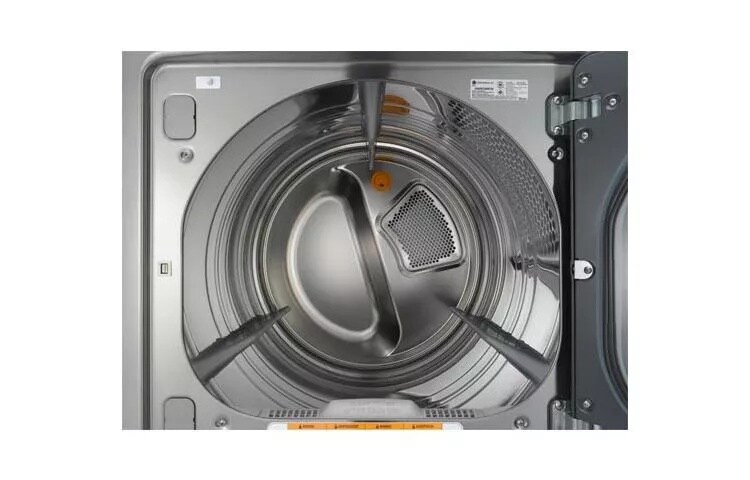

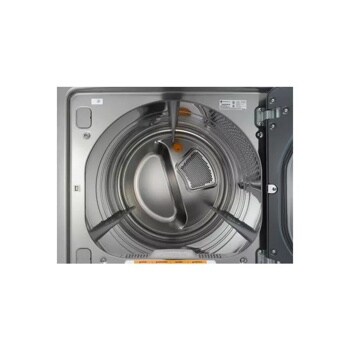

NeveRust™ Stainless Steel Drum Yes
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Transparent Glass Door Yes
Available Colors Graphite Steel
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
Product (WxHxD) 27" x 45 3/8" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2” x 48” x 31 1/4”
Weight (Product/Carton) 133.2 lbs./145.5 lbs.
Limited Warranty 1 Year Parts and Labor
UPC 048231 012270

What People Are Saying

Rated 5 out of 5 by from This dryer makes me happy Couldn't ask for a better dryer. My clothes are handled kindly and not beaten up. Everything dries quickly and quietly.
Date published: 2015-04-03
Rated 5 out of 5 by from Dry without Static This electric dryer works great. I especially like the "Reduce Static" feature. With this feature, my towels and blankets come out dry with NO static (With my previous 15yr-old machine, I would nearly get electrocuted when I reached in to pull those items out). The dryer is aesthetically appealing, easy to use, and has many neat features and drying options (including steam sanitary, air-dry, timed-dry, speed dry, Towels, Cotton/Normal, and more).
Date published: 2014-07-04
Rated 3 out of 5 by from Update to my previous review I did receive a call back stating that the problem is being worked on. I will send another review with adjusted rationg if and when this issue is resolved.
Date published: 2013-03-07
Rated 5 out of 5 by from FUN DRYER This dryer is great! I love it. It dries fast and is super easy to use. I love all the settings and highly recommend it to anyone. LOVE, LOVE, LOVE IT!
Date published: 2012-12-20
Rated 5 out of 5 by from Very innovative This dryer is awesome, and the rack for shoes and smaller items is great!
Date published: 2012-11-03
  • 2016-04-20T09:07CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_MD05015420, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 279ms

We're here to support you with our product.

View DLEX6001V Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Zigbee Module

Where can I get the ZigBee Module for this? None of my smartthinq appliances came with one.
Asked by: CntryDoe
We appreciate your interest in the operations of this washing machine. A ZigBee modem relates to different utility companies. The manufacturer does not supply this device. However, it may be possible to obtain them online, or at your local Radio Shack. It may also be possible that the utility company may carry them.
Answered by: NeilE
Date published: 2015-02-04

Why doesn't dryer door come straight down instead of opening from the side?

I have always liked dryers that have the door that comes straight down so I can then use it as a mini-folding table as the clothes come out of the dryer. It also prevents any problems with the door hitting anything as it does potentially with it opening from the side. Can this dryer door be adjusted to come straight down?
Asked by: ConsiderThis
I agree totally. I would have much preferred the door opening straight down --- as I used it as a mini-folding table also. Unfortunately however, it appears you can only modify the door to open from left-to-right or from right-to-left. The geometry of the door precludes it from opening straight down (That was one of the first things I checked before purchasing it). I purchased it anyway however, because you can't really find a high-quality machine whose door opens straight down anymore. I can tell you however, that after using the machine for a while, you get used to it. So, it's not really a big deal...but it would have been better had they designed it so the door had a straight down installation option in addition to its current configuration.
Answered by: DirtyNoMore
Date published: 2014-07-05

Do you have a SmartApp for Windows 8.1 phones, or is it just for iphones?

Looking to purchase a new dryer, but if the SmartApp does not work with Windows phones, I don't see a need to buy this feature. Thanks!
Asked by: Johnboy1966
To the best of my knowledge, the SmartApp features only work with Android-like phones. I have a Windows phone myself and therefore cannot use the SmartApp features. This, to me, is the biggest downside to the machine. Other than that however, it is the best dryer I have ever owned. I really like it.
Answered by: DirtyNoMore
Date published: 2014-10-04

Does this appliance work with straight wifi?

To restate the question, I read in the manual about Zigbee and utility provided smart grid. Then I read about wifi and the setup procedures look like I can just connect to my wifi. Is Zigbee and SmartGrid required to enjoy the connectivity features of this appliance?
Asked by: RickG

Difference between several models

I am having trouble finding the models from the website in local stores and getting a little confused. This is all for electric dryers. I looked at the dlex8500V, 8000v, 6001v and can not see difference in these as far as features. Is is because some were discontinued as I found out from Home Depot for the 8500? If so can you advise what years these model were manufactured and which model supersedes the next?
Asked by: JayMoorheadMN
