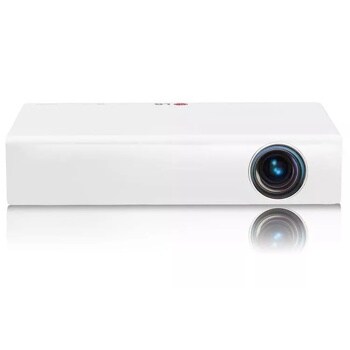

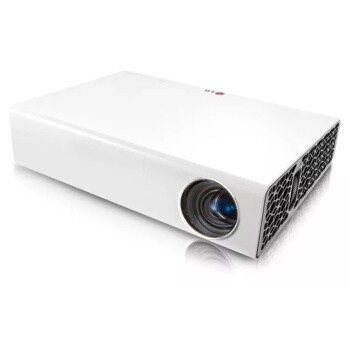

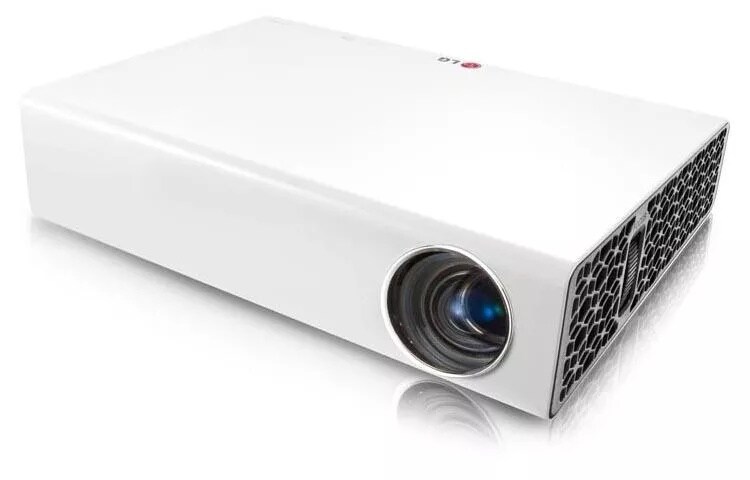

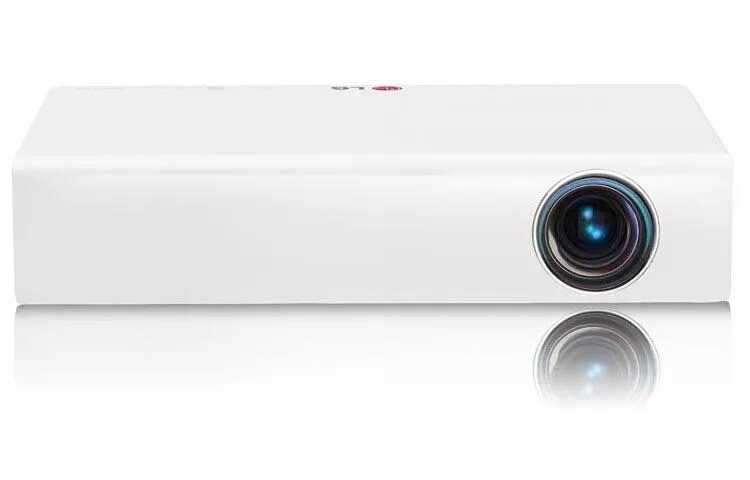

Portable LED Projector with Built-in Digital TV Tuner

  • PB63U

  • Discontinued Product

Key Features

  • LED Light Source
  • Wi-Fi Ready (Dongle Included)
  • Built-in Digital TV Tuner
  • WXGA (1280x800) Resolution
Projection
System DLP
Native Resolution WXGA (1280x800)
Aspect Ratio 4:3 and 16:9
Brightness (ANSI-Lumens) Up to 500 lumens
Contrast Ratio (FOFO) 15,000:1
Digital Keystone Correction Auto Keystone (Vertical)
Lamp (Type) LED RGB
Lamp Life Up to 30,000 hrs
3D Type DLP 3D Ready (PC XGA 120Hz)
Connectivity
DTV Tuner Yes
Wi-Fi® Ready Yes (Dongle Included)
Intel® Wireless Display (WiDi) Yes
USB Host (DivX®, MP3, Photo) Yes
Audio
Built-in Speakers 1W + 1W Stereo
Input / Output Terminals
RGB In 1
RGB(PC) Audio In 1
Composite (AV) In 1 (Phone to AV in)
Component (Y,Pb,Pr) 1 (RGB Component in)
Audio Out 1 (3.5mm)
HDMI® 1
USB (Service) 1 (Type A)
RF In 1
Power
Power Supply Adapter
Power Consumption 60W
Standby Mode 0.5W
Included Accessories
Carrying Pouch 1
Wi-Fi® Adapter 1
Ceiling Mount Ready (not included)
D-sub 15 1
Phone to AV (Composite) 1
Remote Control 1 (Card Type)
Dimensions/Weights
Dimensions (WxHxD) 6.22" x 1.30" x 4.05"
Shipping Dimensions (WxHxD) 10.43" x 4.72" x 12.60"
Weight 1.04 lbs
Shipping Weight 6.83 lbs
Warranty
Limited Warranty 2 Years Parts and Labor
