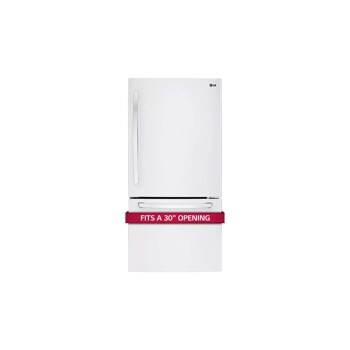

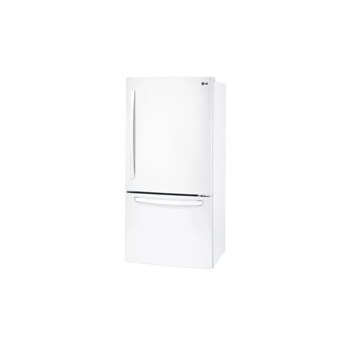

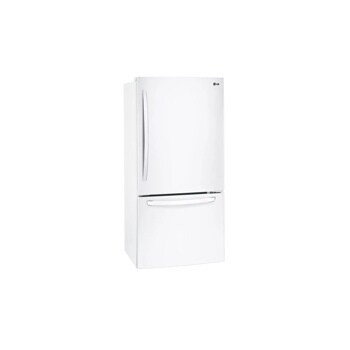

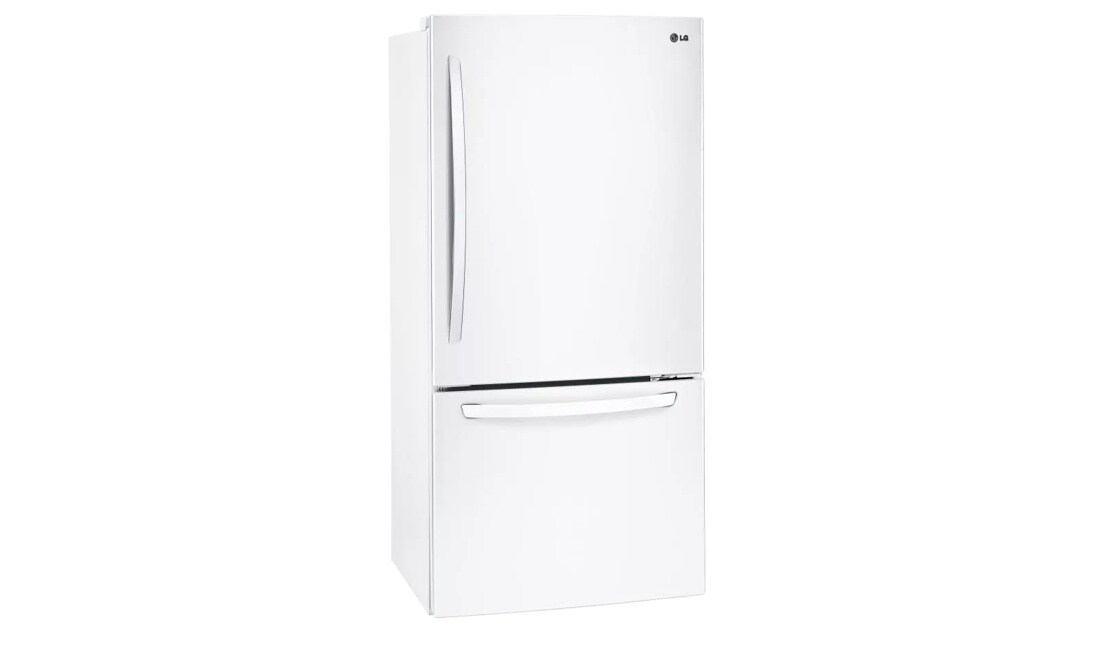

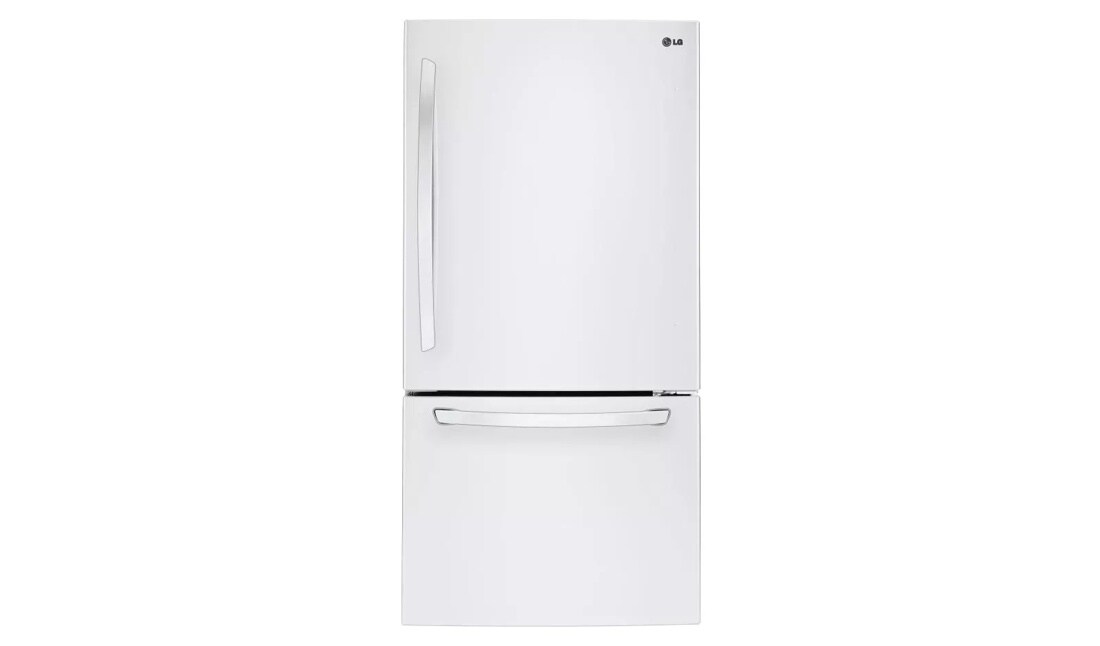

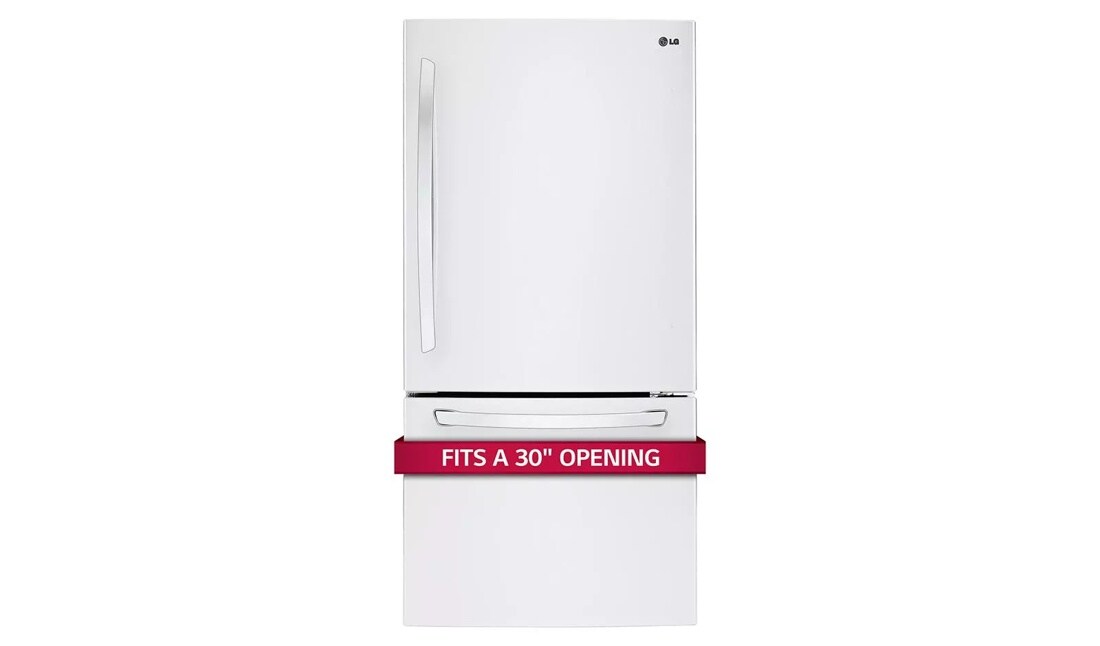

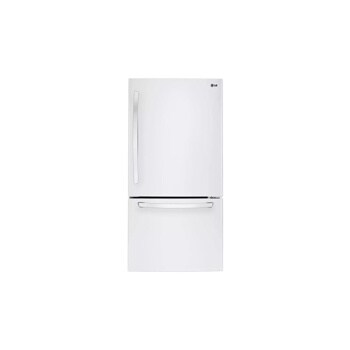

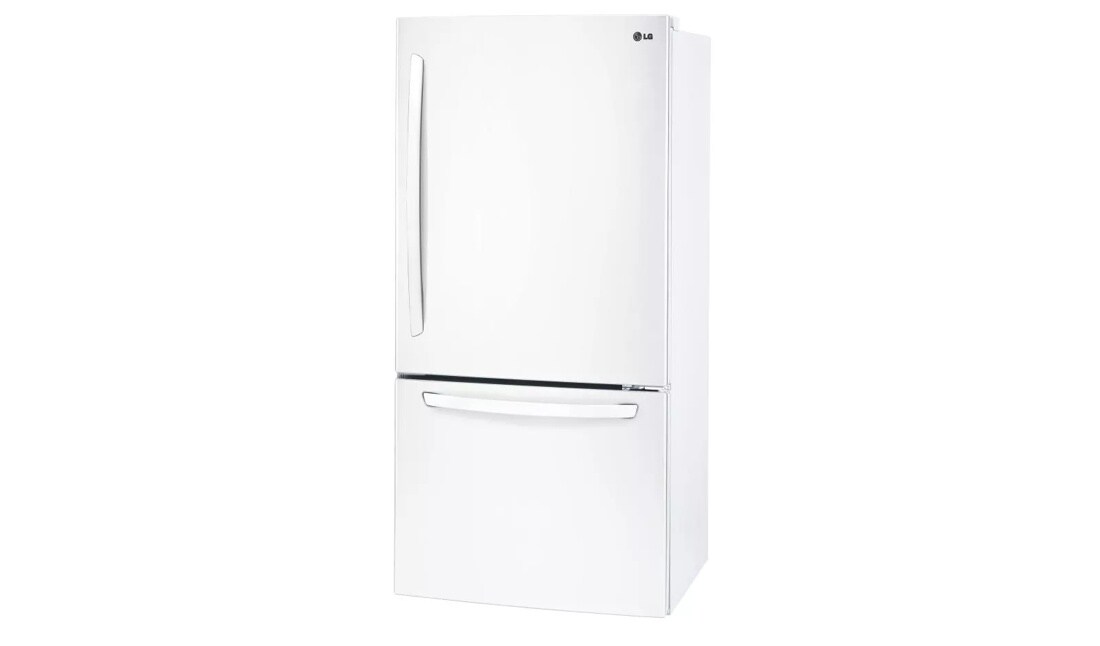

22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator

  • LDCS22220W

  • White

Key Features

  • 22 cu.ft., Largest Capacity
  • Smart Cooling® System
  • SmartDiagnosis™ System
  • 10-Year Manufacturer’s Limited Warranty on Linear Compressor
  • ENERGY STAR® Qualified


Get the space you need in a refrigerator that's right for your kitchen. With 22 cu. ft. of space, this largest capacity bottom mount refrigerator offers ample room to meet your storage needs.

Fresher is better.

Fresher is better.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Sophisticated style and Design.

Sophisticated style and Design.

Contoured doors, hidden hinges, and a host of great interior features like LED lighting give your refrigerator a look as sophisticated as it is functional.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Get wise

Get wise

If you ever experience an issue with your LG refrigerator, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Door Type Bottom Freezer
Refrigerator 14.80 cu. ft.
Freezer 7.30 cu. ft.
Total 22.1 cu. ft.
ENERGY STAR® Qualified Yes (589 kWh/Year)
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12 lbs
Smart Cooling® System Yes
Linear Compressor Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Display Type Membrane (Green LED)
Hidden Hinges Yes
Temperature Controls Electronic/Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
No. of Shelves 2 Full
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2 Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED
No. of Shelves/Bin 5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin Construction Clear
Dairy Corner Yes
Drawers 2-Tier Organization
Handle Vista
Ice Maker Yes
Ice Bin Yes
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), White (W)
Handles Matching Commercial Handles
Depth with Handles 34 7/8"
Depth without Handles 33"
Depth without Door 29"
Depth (Total with Door Open) 59 1/2"
Height to Top of Case 67 1/4"
Height to Top of Door Hinge 68 1/2"
Width 29 3/4"
Width (Door Open 90˚ with Handle) 33 1/2"
Width (Door Open 90˚ without Handle) 31 1/2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 235.4 lbs./255.4 lbs.
Carton Dimensions (WxHxD) 32" x 70" x 38 "
Limited Warranty 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
UPC 048231787925

What People Are Saying

Rated 5 out of 5 by from Awesome refrigerator We have had this refrigerator installed for about a month now. It has a lot of room and the LED lights make everything bright and clean. I also appreciate the way the crispers and Glide n' Slide drawer have hefty handles. This fridge is also very easy to move, not something I've ever been able to do with other brands. Overall, I'm extremely pleased with this appliance. By the way, the ice maker is a workhorse. We can't use the ice fast enough to empty the bin. Nice!!!!!
Date published: 2018-02-15
Rated 5 out of 5 by from Wasn't a need but a want !! Our current refrigerator was in good working condition, However after one day walking the aisle at our local Lowes, I fell in love with the look of the LG bottom freezer refrigerator. Now my only task was to build my case to my husband as to why we should get a new refrigerator when the old one was fine. With this LG it was so easy! All I had to do was point out all the great features, including the larger ice container and the extra space on top. Next thing I know we have bought it and it was even available for delivery 3 weeks ahead of time. So now our home looks updated and modern and the hubby gets a good fridge for his garage. Everyone is happy ! Thanks LG- as you say Life is Good!
Date published: 2018-02-14
Rated 4 out of 5 by from Good Fridge Overall, we like this refrigerator so far. It's spacious and modern looking. Unfortunately, the stainless steel does show fingerprints quickly. Also, I'm trying to figure out how to organize the bottom freezer as I've always had a top freezer before.
Date published: 2018-02-13
Rated 3 out of 5 by from After a lengthy wait to get our WHITE refrigerator, it arrived and delivery went well. We are happier with the capacity of the refrigerator than the freezer. This is our first bottom freezer and it seems to hold less and things get lost a bit. The refrigerator is bright and roomy however, A plus! The top of the unit is a problem. We keep our cereal up there, and there is a tall, wide lip (we think it may be the computer?) that makes this really challenging. I guess we didn't think ahead on that one! The doors take an effort to open. Overall, not a bad appliance. We'll hope that LG's reputation and ratings last in the long run to make the price worthwhile. (Why do sale prices have anything to do with color? No deal if you don't want stainless!)
Date published: 2018-02-07
Rated 5 out of 5 by from Well designed The new energy star rebates, and power savings encouraged us to replace our OLD refrigerator. This is our first freezer down below model and it’s proven so helpful to have the refrigerator contents so easy to view and get at. No regrets.
Date published: 2018-02-06
Rated 5 out of 5 by from I've had this refrigerator for a couple of months and am very happy with it. It is quiet and the ice maker works great. I would recommend this refigerator/freezer.
Date published: 2017-11-07
Rated 4 out of 5 by from Great fridge for a teeny tiny kitchen! After a few weeks with our new fridge, I can honestly say that I'm very happy we made this purchase. The obvious battle was with the fridge shelving, which doesn't allow for many tall objects, but we've learned to be compatible with it. I LOVE the wide drawer at the bottom - we've stuffed it full of cheese! I appreciate that all pieces in the fridge and freezer portion are removable for cleaning...this made things much easier. It's a good thing I can turn off the door alarm as my little dog barks at any such thing. I am concerned about the exterior finish as our toddler could wield a kitchen tool she's commandeered and dent it with one whack...but so far, so good. Overall, I would buy this fridge again and I would recommend it to others as well. Practicality is a must for me and this one fit the bill.
Date published: 2017-11-06
Rated 5 out of 5 by from Works perfectly for our family/looks gorgeous! Purchased at Best Buy after reviewing several different models. Functional and very pleased with overall look and quality.
Date published: 2017-10-19
  • y_2018, m_2, d_18, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_22
  • loc_en_US, sid_MD05784009, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 5ms

We're here to support you with our product.

View LDCS22220W Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I have a "base" that is 28" deep. Are there "feet" on the bottom or does it rest flat? If there's 1" of overhang, I'll be ok as long as it sits level within the area. Also, can this sit flush against the back wall?

Asked by: priestjay
The ENERGY STAR® Qualified LG 22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator, Model # LDCS22220S has two front leveling legs—one on the right and one on the left and two small wheels in the back. The recommended installation clearance spacing in the back is 1"...^IFV
Answered by: LGJoel
Date published: 2018-02-14

Is there a water filter on this unit

Asked by: Cindybrew
There is not a water filter on this refrigerator model number LDCS22220S. If you are in need of any assistance, have additional questions, or would just like to see our helpful tips, check us out on Twitter @LGUSSupport ^CP
Answered by: ChrisPSM
Date published: 2017-12-12

Ldcs2222os shown handle on left. Can it be on right?

Asked by: Jimbonj
Yes the LDCS22220S door handle can be reversed depending on preference. ^CP
Answered by: ChrisPSM
Date published: 2017-12-11

What causes the place where it tell the temperature to say CF on the freezer side and E on the refrigerator side

Asked by: Shuntay
Error codes can vary depending on numerous factors. We would recommend checking out the following troubleshooting guide in our help library: If you are still in need of assistance, we may be reached via Twitter @LGUSSupport via Facebook or via phone 800-243-0000.
Answered by: Shena
Date published: 2017-11-09

can the ice maker be removed. i'm trying to find a product with no ice maker - lg has been no help in answering this for me.

Asked by: rockandroll
Just keep it turned off and dont hook it up to the water line. But this one does have with or without ice maker.
Answered by: katinbrant
Date published: 2017-12-02

Does this refrigerator have a reversible door?

Asked by: Mett
The refrigerator door on the ENERGY STAR® Qualified LG 22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator, Model # LDCS22220S is reversible...^IFV
Answered by: LGJoel
Date published: 2017-09-11

Ice maker quit making ice

Asked by: Maw maw 03
We regret the trouble you have experienced with this refrigerator and its functions. If the ice maker no longer produces, then it would be suggested to check the freezer temperature, door gasket condition and water flow to the ice maker. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2017-05-31

What color is the refrigerator case on the stainless steel

Asked by: pattypatty123
The case on the LG 22 cu. ft. Large Capacity 30” Wide Bottom Freezer Refrigerator, Model # LDCS22220S is grey...^IFV
Answered by: LGJoel
Date published: 2017-04-20
