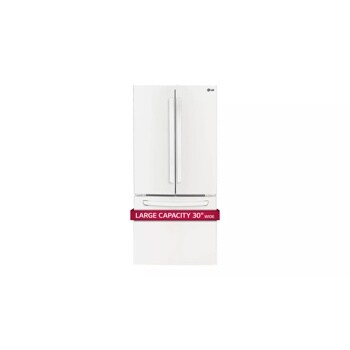

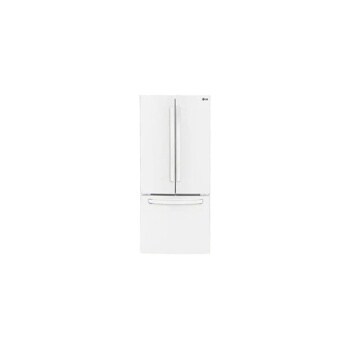

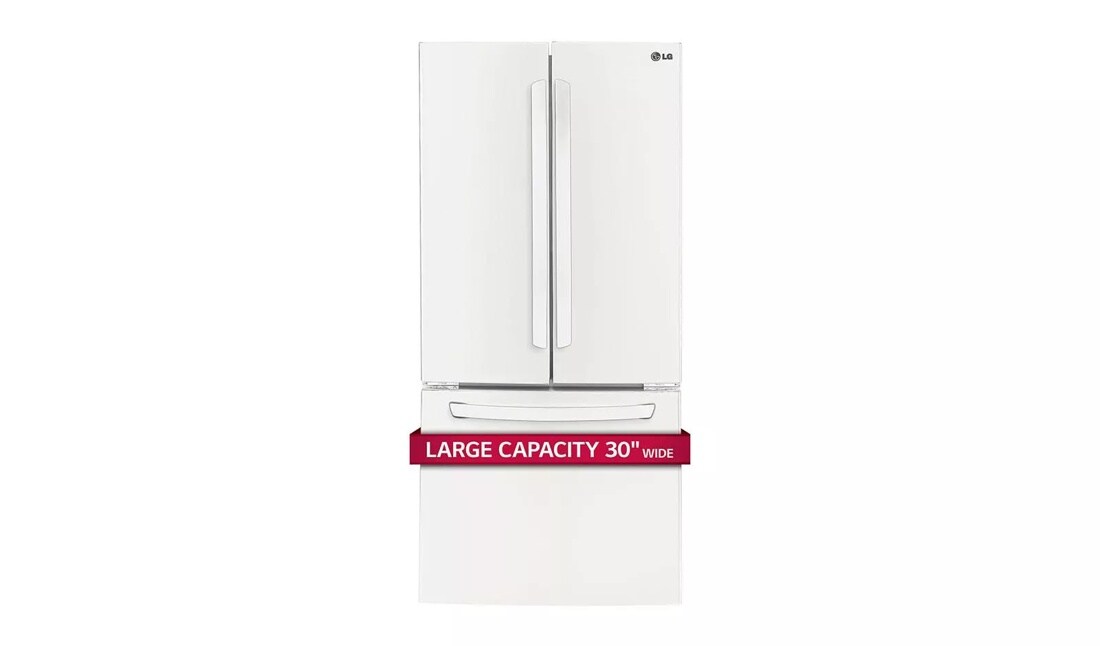

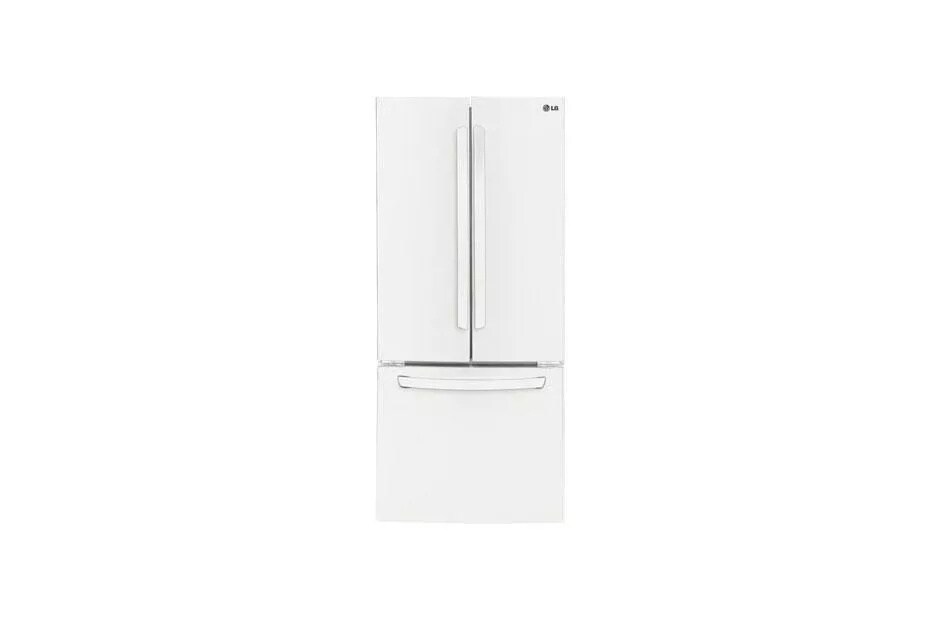

22 cu.ft. Largest Capacity 30" French Door

  • LFC22770SW

  • Smooth White

Key Features

  • 22 cu.ft., 30" Width
  • Premium LED Interior Lighting
  • 4 Spill Protector Tempered™ Glass Shelves
  • Smart Cooling System
Largest Capacity.*

Largest Capacity.*

Get the space you need in a refrigerator that's right for your kitchen. With 22 cu. ft.of space, this largest capacity bottom mount refrigerator offers ample room to meet your storage needs.

Fresher is better.

Fresher is better.

Smart Cooling system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Easy in. Easy out.

Easy in. Easy out.

The Smart Pull handle makes opening and closing the freezer quick and easy. All it takes is a simple lift of the handle for effortless access to your freezer.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Keep it crisp.

Keep it crisp.

Humidity-controlled crispers help maintain humidity levels, to help extend the life of your fruits and vegetables.

SUMMARY
Door Type French 3-Door
CAPACITY
Refrigerator 14.5 cu. ft.
Freezer 7.3 cu. ft.
Total 21.8 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (587 kWh/Year)
Dispenser Type Vertical
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12 lbs
Smart Cooling System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Linear Compressor Yes
Display Type Membrane (White 88 LED)
CONVENIENCE
Temperature Controls Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
Child Lock Yes
REFRIGERATOR
No. of Shelves 4 Split
Cantilevered Shelves Yes, Hybrid Cantilevered
Shelf Construction SpillProof™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve™ Drawer Yes
Refrigerator Light Premium LED (Recessed)
REFRIGERATOR DOOR
No. of Shelves/Bin 8 Total (5 Gallon Sized, 1 Dairy, 2 Half)
Door Bin Construction Clear, White Deco
Dairy Corner Yes
FREEZER
Drawers 2
Handle SmartPull™
Ice Bin Yes
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST), Smooth White (SW) and Smooth Black (SB)
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 35 1/2"
Depth including Door 29"
Depth without Handles 33"
Depth (Total with Door Open) 44 3/4"
Height to Top of Case 67 1/4"
Height to Top of Door Hinge 68 1/2"
Width 29 3/4"
Width (Door Open 90° with Handle) 38 1/4"
Width (Door Open 90° without Handle) 33 1/4"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 237 lbs. / 259 lbs.
Carton Dimensions (WxHxD) 31 1/2" x 69 3/8" x 37 3/4"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231784900

What People Are Saying

Rated 1 out of 5 by from Dead at 11 months I researched different brands and chose LG because they had good reviews so I feel compelled to warn others of my experience. This was part of a 3 appliance suite we bought in January of 2015. French door Fridge, Range and OTR micro. They replaced 17 year old appliances, the old fridge compressor was thumping so we decided to upgrade. Love the design and look of the appliances BUT micro stopped heating 10/3/15, warranty repair required parts that needed to be ordered and waited until 12/3 to have it finally fixed. As fate would have it the very next day the fridge compressor died and everything defrosted, now waiting for warranty repair again while living out of coolers and buying ice. I don't trust these appliances at all and would never buy again. Two out of three haven't lasted a year!! Now I will be forced to buy the extended warranties and have no faith they will last even 5 years. I'm retired and can't afford to replace major appliances every few years! Whatever happened to quality products?
Date published: 2015-12-12
Rated 5 out of 5 by from Great fridge! We bought this a year ago and couldn't be happier. The door shelves and storage are the best we have experienced and the ice maker/storage is absolutely the best we've ever had.
Date published: 2015-12-06
Rated 3 out of 5 by from hard to get to things in this fridge Although if has more interior cubic space than my previous fridge it is tough to get to things in the back without moving EVERYTHING on the shelf first. This is a real pain. The drawers are nice and handy, though shallow for the blocks of cheese I used to keep in the deli drawer. The shelves are not adjustable to the sizes I need and use so stuff ends up being stacked and stacked and stacked. I miss my old very adjustable interior that let me put the shelves where I need them The high point was this was one of the only refrigerators on the market that fit in the space I have available in an older kitchen.
Date published: 2682-11-01
Rated 5 out of 5 by from Excellant fridge Purchased like many others due to size, needed it to fit a limited space. Also was accustomed to a quality previous fridge that after 15 yrs didn't want to freeze any longer, ran almost nonstop. Another hard to find feature in the size I needed was to get it in white. Most that were in stock in white were either very small or " cheaply built ". The white finish is very smooth, surface and handles wipe down easily. I went to 5 appliance and home improvement stores before finding this one. Most had stainless as the in-stock option. I prefer traditional white, it was hard to find in a product of this quality. This however as well as being available , in-stock( didn't have to wait weeks to get) just had to come from a regional warehouse, was a size that fit without sacrificing quality. I needed the ability to make and store large amt of ice daily, the freezer ice maker does this just great. It did however take 2-3 days for it to start producing ice rather than the 24 hrs as stated in owner's manual. I did not want an in-door water dispenser / ice maker as it would not have been able to store the quantity used daily. They required dumping the ice container into a larger bin for quantity. Too much of a hassle if your filling small cooler daily. I have never owned a bottom freezer before but really like this one, I keep small items in top slide-out drawer, larger divided bottom drawer is huge and because divided it is easy to find what your looking for, I keep meats on one side and frozen veg, breads and ice cream on the other, still with plenty of room. Several people mentioned removing shelf in fridge for taller bottles. For the taller bottles, I positioned the left top shelf low enough to accommodate, next shelf just below it for short items, ( egg, left overs etc ). As others have stated it is very easy to see inside, the LED light is wonderful and bright. Everything is in easy view, and due to depth shelves store as much as my prev 33" GE upgrade model. Love the location of the 3 drawers, use the large party tray drawer for cheeses and deli, produce drawers up @ waist level make it easier to see what is still there, less waste from produce going bad because it was out of sight and forgotten. The only thing I would change that my previous top/bottom freezer/fridge had and this one does not is pull-out shelves. That one feature is helpful to retrieve items from rear of shelves. Since the unit has a lot of space though, I don't often have to move too many items to get what I need if in the back. Overall it is a great product, I spent more than I had planned when I started shopping for new fridge, however quickly discovered that in today's pricing, quality doesn't come cheap. Better to pay now and be happy and satisfied, than regret spending the money and living daily with a product that doesn't meet my needs. Over all very satisfied.
Date published: 2014-10-06
Rated 5 out of 5 by from Sleek, perfect size, & good quality I was so happy to find a stainless steel french door refrigerator for my kitchen renovation that met ALL of my strict criteria: 1) good quality with awesome reviews across different sites, b/c I don't want it to break on me after a short while, 2) narrower than your typical french door styles to fit in my small kitchen, 3) no fancy gadgets on the door, I like things simple & sleek, 4) stylish, and 5) got it during memorial day sale at a great, affordable price! I've had for a few months and I'm loving it, no issues so far.
Date published: 2015-08-29
Rated 5 out of 5 by from LFC22770st Love this product - NICE Features... Lots of space -- just Great! Giving it - All Around 5 STAR RATE! French Doors are Wonderful. Lots of Room in the Freezer - ....An All Around Please -er ! You made a great Product... WE made a great Deal - NOW - all We need - Is someone to cook the meal! .
Date published: 2015-08-23
Rated 4 out of 5 by from This product is very good. I like this refrigerator because it is quite silent and has enough space for a small family. It looks great - very sleek and stylish. The freezer section is also very spacious.
Date published: 2015-08-19
Rated 5 out of 5 by from Surprising Capacity We bought this refrigerator sight unseen on the strength of the high rating at Consumer Reports and we could not be more pleased. We were very constrained in our choices by the size of our space and this fits perfectly. The inside is much roomier than I had imagined and I was able to adjust the shelves to accommodate everything we keep on hand and I still have room for "extras". It's so quiet we can hardly hear it running. So far we're extremely pleased.
Date published: 2015-08-18
  • 2016-02-05T09:28CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_91
  • loc_en_US, sid_MD05098902, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFC22770SW Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

where is the best place to rough in the water connection ?

Asked by: alevans57
We appreciate your interest in this refrigerator. The water valve should be located near the bottom of the left of the cabinet, when looking at the front of the machine.
Answered by: NeilE
Date published: 2016-01-22

How do you change the air filter in this model?

Asked by: Missy0
We appreciate your interest in this refrigerator. This model does not appear to have an air filter available to be changed.
Answered by: NeilE
Date published: 2016-01-08

Is there a downloadable manual for this refrigerator available online?

Asked by: Noth
We appreciate your interest in this refrigerator. A copy of the owner’s manual can be downloaded from our website at http://www.lg.com/us/support-product/lg-LFC22770SW.
Answered by: NeilE
Date published: 2015-11-19

When I'll move the fridge from a house to another, many hours should past before I connect the fridge again?

Asked by: angieidontknow anything
The amount of time to reconnect the refrigerator is not a critical or exact timeframe. Be certain that the unit has been dried of any moisture, in order to prevent freezing or refreezing of the water. Also be certain that the refrigerator ships standing upright. If the unit is laid down, oil and coolant fluid can mix in the compressor and coolant lines, which will harm operations of the refrigerator. In these instances, the refrigerator should be allowed to stand upright for about 4 hours before plugging it into power.
Answered by: NeilE
Date published: 2015-09-22

my freezer door seems to be sticking when I try to open. Is there anything I can use to lubricate it so it glides like it use to?

Asked by: ShaunaR
If the gaskets are dirty or sticky, it is recommended to clean the gaskets and the surfaces to which they adhere. Rub a thin coat of appliance polish or kitchen wax onto the gaskets after cleaning. This information is listed on page 43 of the owner’s manual, in the Troubleshooting Guide.
Answered by: NeilE
Date published: 2015-09-10

Describe shelf configuration

Re; the LFC22770SW refrigerator, the description says there are 4 split shelves, but the photo looks like there are two shelves. Are each of the two shelves able to be split? Also, where is the closest place to me (area code 81301), where I could actually see one of these models. Also, does the freezer have bins or wire grids and is there a shelf in the freezer as well as the bins? Thank you.
Asked by: consumer9
4 shelves that can be positioned to meet your needs, yes you can split them. the freezer compartment is 2 large bins, and an above shallow drawer. all are removable for cleaning.
Answered by: Warden61
Date published: 2015-08-29

does the water for ice dispenser go thru the filter

like to get a water diagram of model LFX25973ST
Asked by: Jrc123
We appreciate your interest in this refrigerator. Regrettably, no water diagram is available for distribution. Yes, the ice dispenser water does pass through the water filter.
Answered by: NeilE
Date published: 2015-10-22

How to set the temperature of freezer and the refrigerator

Hi, The temperature of the freezer was inadvertently set at -6 and the refrigerator was set at 36. The Juice I had in the refrigerator was frozen. How do I set the temperature of the freezer back to default temperature which is 0 and 37 for the refrigerator? Please advise. Thanks. Best Regards, William Cheok
Asked by: myLG
Press the buttons next to the temperature that say "refrigerator" a and "freezer" and that will automatically change the temperature and when it gets to where you want you just stop pushing the buttons.
Answered by: Jay82305
Date published: 2015-11-03
