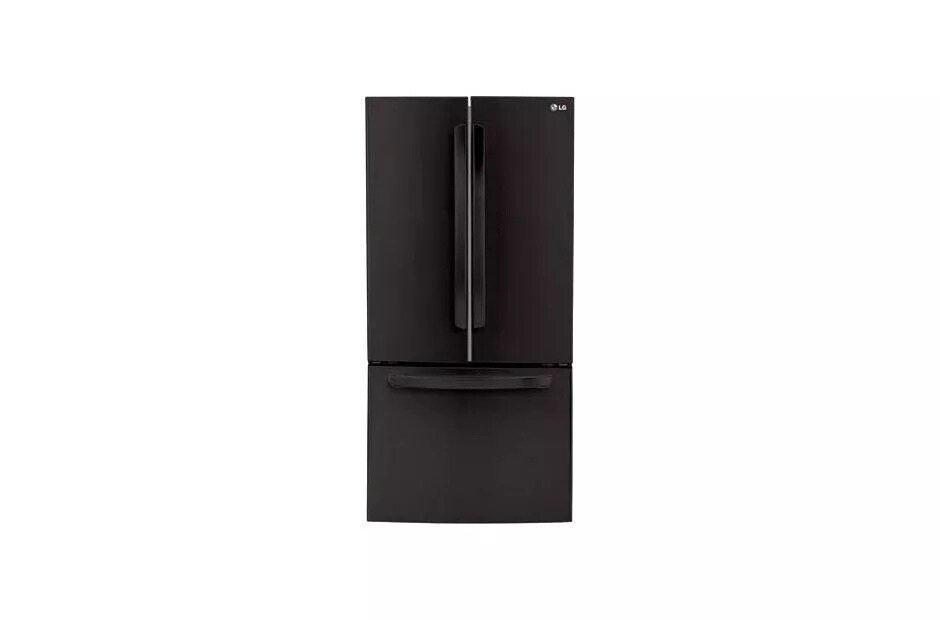

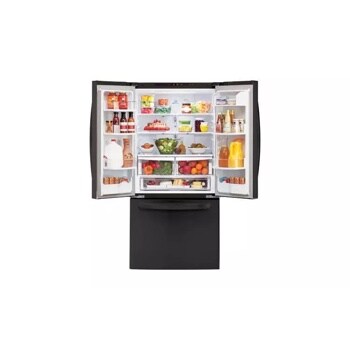

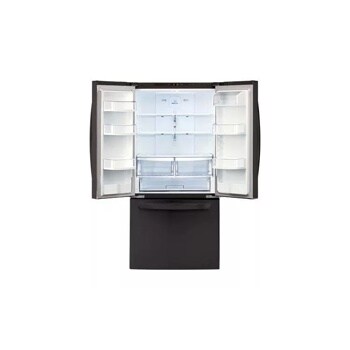

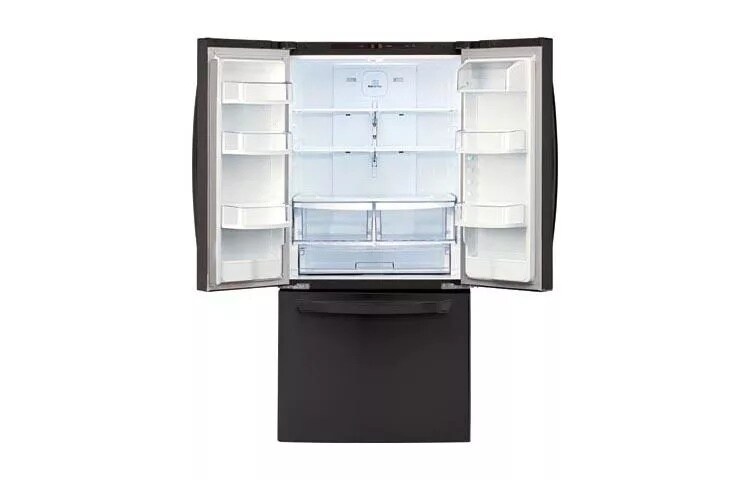

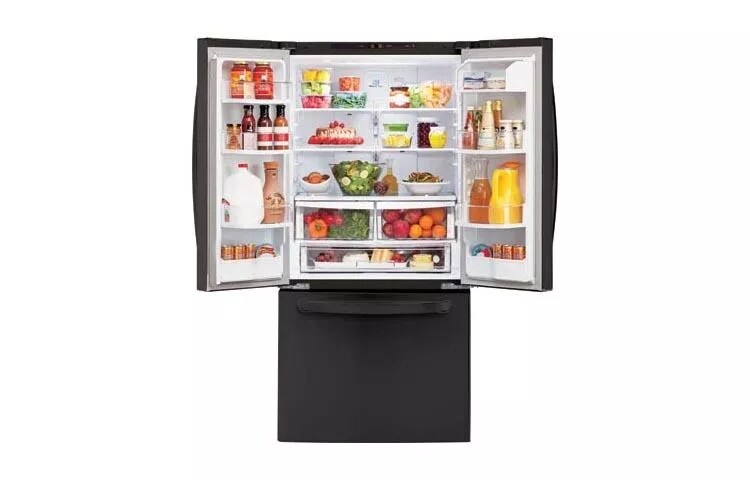

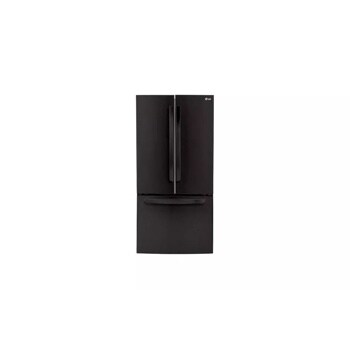

24 cu. ft. Ultra Capacity 3-Door French Door Refrigerator

  • LFC24770SB

  • Smooth Black

Key Features

  • 24 cu. ft. Capacity
  • Smart Pull® Handle
  • 4 Spill Protector™ Tempered Glass Shelves
  • Smart Cooling® System
Large Capacity for 33

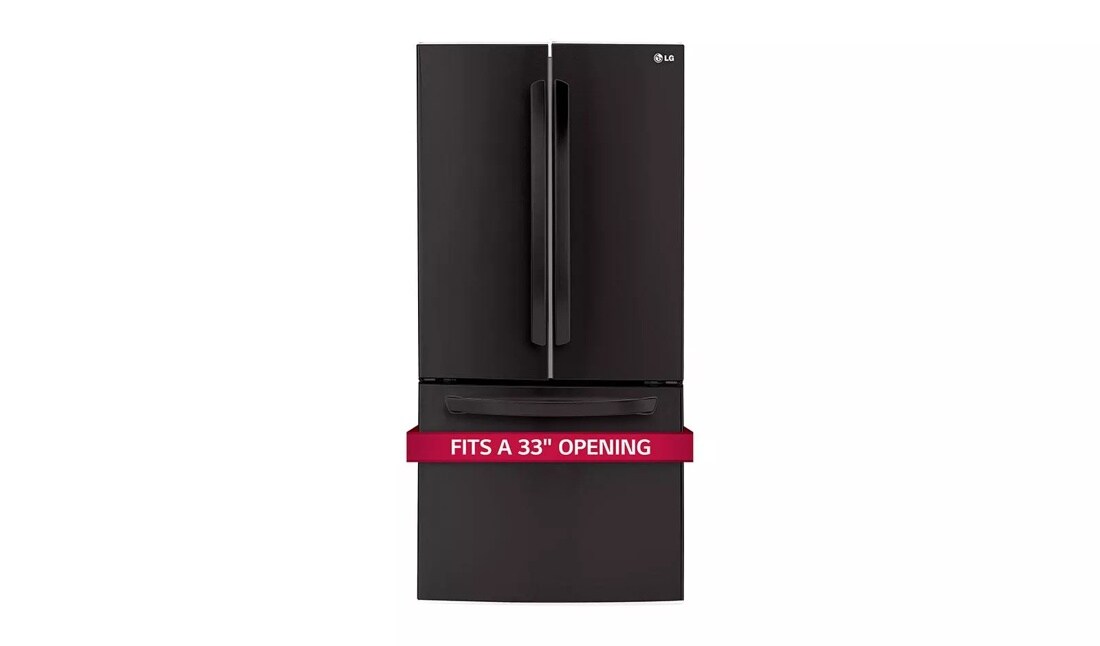

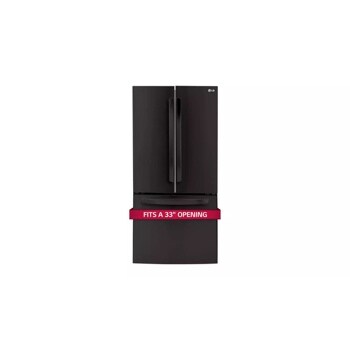

Large Capacity for 33" Width

If you feel like you never have enough space for your groceries, or find yourself cramming them in, it's time to discover the convenience of having a large capacity refrigerator. With 24 cu. ft. of space in a 33" wide refrigerator, you have plenty of room for plenty more.

FRESHER IS BETTER.

FRESHER IS BETTER.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Great Light.

Great Light.

LED panels in the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.

SUMMARY
Door Type French 3-Door
CAPACITY
Refrigerator 16.20 cu. ft.
Freezer 7.70 cu. ft.
Total 23.9 cu. ft.
FEATURES
ENERGY STAR® Qualified Yes (606 kWh/Year)
Ice System Factory Installed Ice Maker
Daily Ice Production 2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity 12 lbs
Smart Cooling® System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 4
Linear Compressor Yes
Display Type Membrane (Green LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split
Cantilevered Shelves Yes, Hybrid Cantilevered
Shelf Construction SpillProof™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve® Yes
Refrigerator Light Premium LED Lighting
REFRIGERATOR DOOR
No. of Shelves/Bin 8 Total (5 Gallon Sized, 1 Dairy, 2 Half)
Door Bin Construction 2 Piece (Clear+Opaque)
Dairy Corner Yes
FREEZER
Drawers 2
Handle Smart Pull® Freezer Handle
Ice Bin Icemaker & Ice bin in the freezer
Freezer Light Premium LED
Door Type Pull Drawer
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (ST), Smooth White (SW) and Smooth Black (SB)
Handles Matching Commercial Handles
SPECIFICATIONS
Depth with Handles 35 1/2"
Depth including Door 33"
Depth without Handles 29"
Depth (Total with Door Open) 46"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Width (Door Open 90° with Handle) 41 1/4"
Width (Door Open 90° without Handle) 36 1/4"
Door Edge Clearance with Handle 4 1/2"
Door Edge Clearance without Handle 2"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 253 lbs / 276 lbs
Carton Dimensions (WxHxD) 34 3/8" x 70 1/2" x 37 3/4"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231786072

What People Are Saying

Rated 5 out of 5 by from In love with this refrigerator! I have this refrigerator almost 2 months and love it!! It looks great, and the French doors are perfect for my small galley kitchen. It has so much room, I haven't filled it to capacity yet! The freezer is huge and so easily accessible? I replaced a top freezer model and its a huge difference! The lighting inside is really nice, and the ice maker holds tons of ice! I couldn't be happier. Thanks LG.
Date published: 2016-05-19
Rated 4 out of 5 by from Very Nice refrigerator I bought this last November - it works great, I am very happy
Date published: 2016-05-17
Rated 5 out of 5 by from Great for smaller space We bought this refrigerator three months ago and are so pleased with it. This 33 inch model just fits in our 1970's house space allotted for the frig. We didn't think we had room for a stylish frig! There is good available space inside on the shelves, in the door shelves, the veggie/fruit drawers, and in the freezer. All shelves are adjustable for a custom fit. We especially like the "Glide N' Store" drawer for cold cuts, cheese, tortillas, etc. This model is very quiet overall, just the sound of water running when the ice maker is on. It maintains the recommended cold temp very well. Another feature we like is the way the freezer drawer acts as if it has a soft close mechanism when it is pushed shut. It is also very handy to be able to access only one side door or the other, thereby maintaining temperature inside. We purposely waited to review this product until we had used it for a while. We have found it to be a quality product and would highly recommend it.
Date published: 2016-05-13
Rated 5 out of 5 by from Great Features and options This is our second LG, we had to leave our old one when we sold our home. Our new home had another model and it died less than a month after we moved in. It was a "no brain er" on what we were going to replace it with. All the features we wanted, especially the bottom freezer and pull out drawers and built in ice maker.The staggered shelves are great.
Date published: 2016-04-18
Rated 5 out of 5 by from Love the french doors and bottom freezer. We love the frig. but, when we got it the ice maker stop-arm didn't work. LG quickly had it replaced but, it made 1 load of ice and stopped working and started leaking out of the supply tube in back. LG sent an LG rep. out and he found that the supply tube hadn't been fed all the way into the ice maker when made. He corrected that and it's been working fine since. He said to keep an eye on it for a few days and if we had any problems with it again to call and they'd be back. It's been 6 days and no problems. There's nothing we don't like about the frig. except for those first problems. It's quiet and well designed. There's plenty of room inside and that's why we didn't want the in-door ice dispenser.
Date published: 2016-03-12
Rated 5 out of 5 by from Great Fridge Ive had this fridge for 2 months and so far and its awesome. We love the clean exterior looks and has pleanty of space. We do wish the internal shelving had the ability to move up and down to fit taller items on the shelfs. Very quite operation. Great choice for all 33" applications.
Date published: 2015-12-20
Rated 5 out of 5 by from The diamond of our kitchen! This is hands down the nicest appliance we have ever owned. We've only had it a month but so far we are in love. Quite,spacious and beautiful!
Date published: 2015-10-11
Rated 5 out of 5 by from Maximize space I bought this a month ago and love it! I researched many brands and this exceeded my expectations; maximizing space allowed, great warranty, terrific price, Energy Star certified, extremely convenient access to interior, adjustable shelves and trays.
Date published: 2015-09-11
  • 2016-05-24T13:51CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.1
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_69
  • loc_en_US, sid_MD05091260, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFC24770SB Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I would like to order an owners manual for this refrigerator.  How can I get one?

Asked by: Tonkie
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2016-04-13

I accidentally changed the tempt. To F and I would like to change it back to C.  Please advise

Asked by: Tonkie
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ca_en/index.jsp. You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2016-04-13

I accidentally turned the temperature on the refrigerator down too low but I am now unable to return it to its original settings. It seems the buttons only allow me to turn the temp down. Please advise.

Asked by: DCuser2356
We appreciate your interest in this refrigerator. The temperature settings are on loop control. Continue pressing the REFRIGERATOR button until it reaches its lowest setting. Press it again, and the setting should jump to its HIGHEST setting.
Answered by: NeilE
Date published: 2016-02-16

I need to replace the clear flip up cover on the glide & serve drawer. I cannot find it anywhere. I would like to know where to get it and the part number.

Asked by: Jim1229
We regret the trouble you have experienced with this refrigerator. Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for the flip up cover on the glide and service drawer is ACW74118101.
Answered by: ShenaS
Date published: 2016-02-11

How do you level the refrigerater

Asked by: declem
The LG Ultra Capacity 3 Door French Door Refrigerator, Model # LFC24770ST has two front leveling legs, one on the right and one on the left that you can adjust to alter the tilt from front-to-back or side-to-side by simply turning the leveling leg to the left to raise that side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg to adjust the tilt of the refrigerator using a nut wrench which works best, or an open end wrench. Do not over-tighten the legs while adjusting. You can find the instructions on how to adjust the legs for leveling on page 24 of your owner's manual for the refrigerator...^IFV
Answered by: LGJoel
Date published: 2015-11-20

Can the ice maker be shut off if we're on vacation? Our old refrigerator had a handle that you could move up or down if you wanted ice made or not.

Asked by: Doug123
We appreciate your interest in this refrigerator. The Automatic Icemaker is designed with a POWER toggle switch on its narrow end, which will allow the device to be deactivated. This should perform such as that manner that has been described.
Answered by: NeilE
Date published: 2016-04-22

What is the peak amperage for this appliance?

Asked by: danny35
The Underwriters Laboratories (UL) requires manufacturers to run a series of tests to determine the Maximum Continuous Amps (MCA) before the overload trips. Once that has been determined, UL says to divide the MCA by a prescribed factor to determine the rated Loaded Amps (RLA) which is a mathematical calculation that RLA that determines at what amperage draw the compressor overload will trip, and to determine the fuse/circuit breaker size and the wire size. That information can be found in the data compliance tag attached to the ENERGY STAR® Qualified LG Ultra Capacity 3 Door French Door Refrigerator, Model # LFC24770ST. The running amps of a compressor are determined by the evaporator temperature, condensing temperature and the line voltage. If it is listed on the data compliance tag, the Locked Rotor Amps, (LRA) , also referred to as the starting inrush is the amount of current that the motor can be expected to draw under starting conditions when full voltage is applied. The Full Load Amps (FLA) would be the maximum amount of current that the motor is designed for fore it to operate in special conditions...^IFV
Answered by: LGJoel
Date published: 2015-10-30

Food in the back of our refrigerator is becoming frozen.  It is very irritating when you go to cook something and find out it is frozen.

Asked by: kitkatmi
We regret the trouble you have experienced with this refrigerator. The description suggests that the items may be sitting too close to the ventilation bringing cool air into the refrigerator compartment. If correcting this matter does not resolve the situation, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2015-10-30
