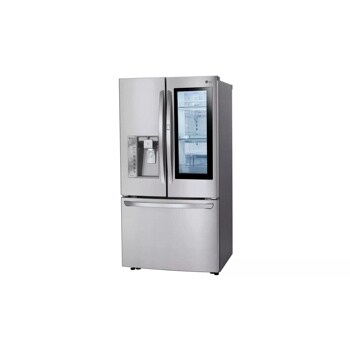

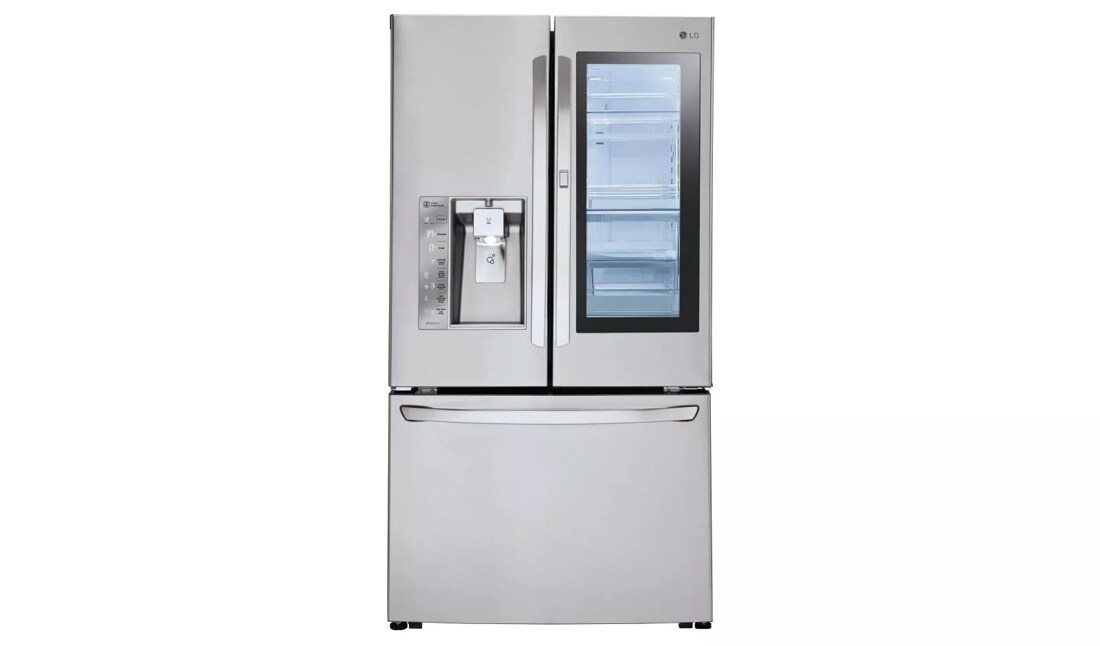

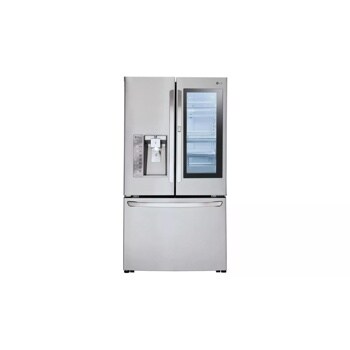

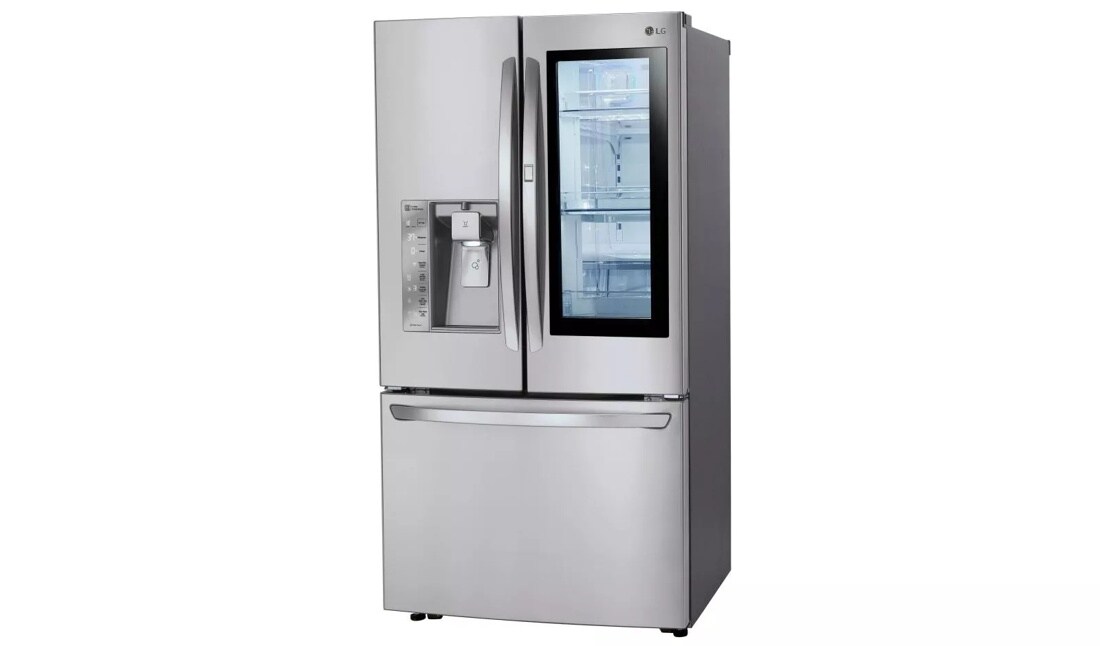

24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator

  • LFXC24796S

  • Stainless Steel

Key Features

  • 24 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • Easy-to-Clean Finish
  • SmartThinQ™ Technology
  • ColdSaver™ Panel
  • Counter-Depth

J.D. Power Award Winner

“Highest in Customer Satisfaction with French Door Refrigerators”

Raid the Fridge
Without Losing Your Cool

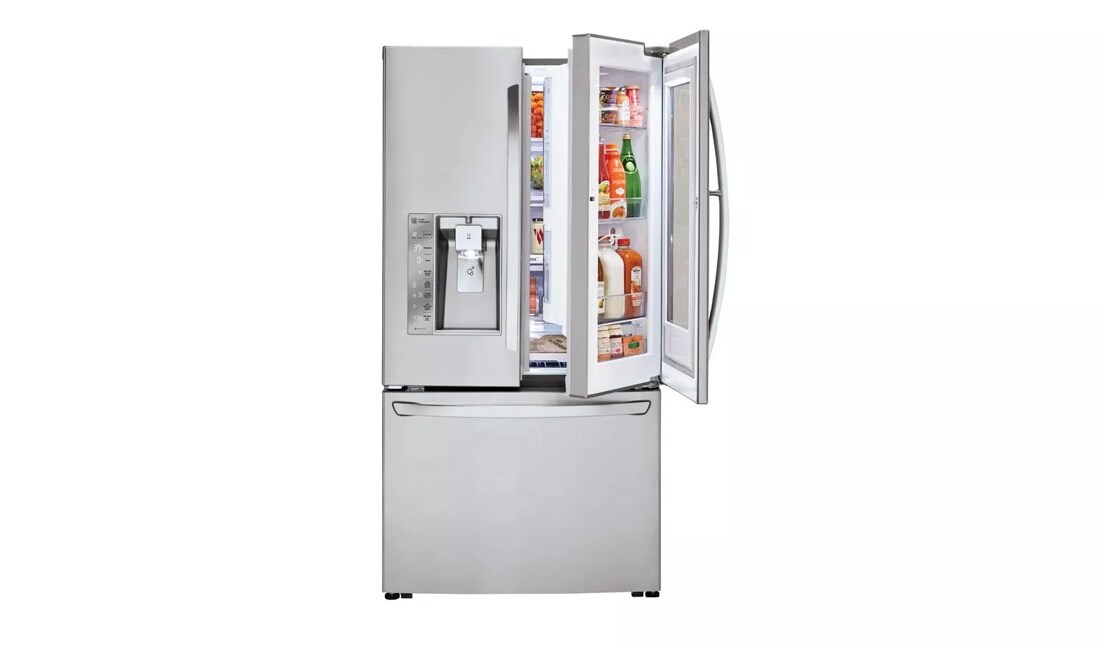

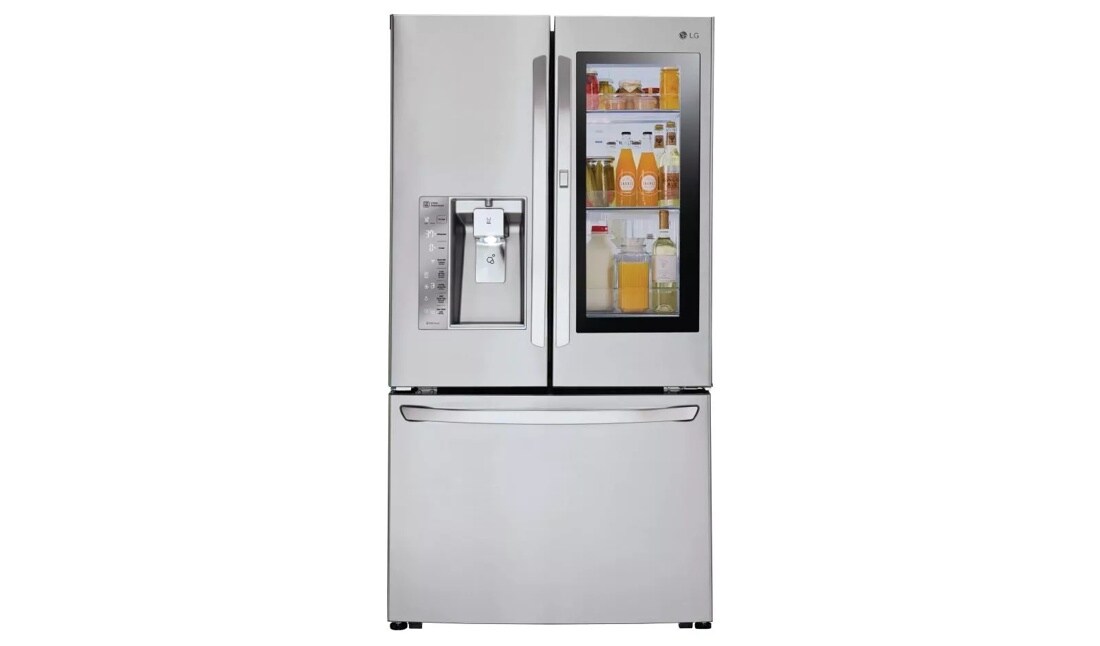

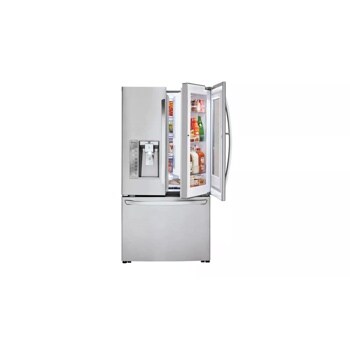

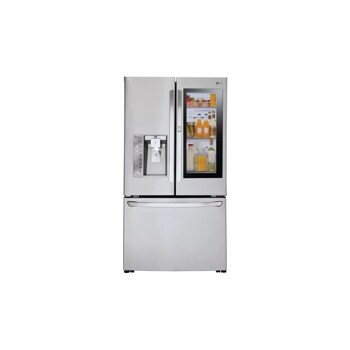

InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.

Think you’ll run out of ice? ThinQ Again.

Think you’ll run out of ice? Think Again.

From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG SmartThinQ™ app to control key features and get important notifications from anywhere. It even works with the Google Assistant, so you can operate smart features with your voice.

What Is Counter-Depth?

LG counter-depth refrigerators align with countertops and cabinetry for a uniform profile, creating a sophisticated built-in look without the high-end price tag.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Smart Cooling® Plus technology is designed to maintain superior conditions within the refrigerator. The Linear Compressor and Dual Evaporators react quickly to humidity and temperature levels and help keep your food fresher, longer. Strategically-placed vents in every section help surround your food with cool, fresh air.

SAVE MONEY. SAVE ENERGY.

SAVE MONEY. SAVE ENERGY.

This ENERGY STAR® certified LG refrigerator exceeds new 2016 federal energy standards to positively impact your energy bill and your energy consumption.

SUMMARY
Door Type French 3-Door
Refrigerator Type InstaView™ Door-in-Door®
Color Stainless Steel
Counter Depth (in.) Yes
SmartThinQ™ Yes
TYPE
Type 3-Door Counter Depth French Door
CAPACITY
Refrigerator 15.60 cu. ft.
Freezer 7.90 cu. ft.
Total 23.5 cu. ft.
FEATURES
Door-in-Door® Yes
InstaView™ Door-in-Door® w/ ColdSaver™ Panel Yes (w/ Glass Panel)
ENERGY STAR® Qualified Yes (716 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 4.5 lbs
Ice Storage Capacity 3.0 lbs + 2.5 lbs
Smart Cooling Plus System Yes
Multi Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes
Dual Evaporator Yes
Display Type Smooth Touch Control (White LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Humidity Crispers/1 Bonus Drawer
Glide N’ Serve® Drawer Yes
Refrigerator Light Premium LED (Ceiling and Side)
REFRIGERATOR DOOR
No. of Shelves/Bin 7 Total (Including Door-in-Door®)
Door Bin Construction 3 Piece (Clear+Opaque+Spray Deco)
Dairy Corner Yes
FREEZER
Door Type Pull Drawer
Handle SmartPull® Freezer Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin Yes (1 Extra Ice Bin)
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S)
Handles Matching Commercial Handles
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles 30 7/8"
Depth without Handles 28 3/8"
Depth without Door 24 1/8"
Depth (Total with Door Open) 42 3/4"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90˚ with Handle) 44 1/4"
Width (Door Open 90˚ without Handle) 40"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 333 lbs / 383 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 33"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
UPC 048231788847

What People Are Saying

Rated 5 out of 5 by from Just absolutely love the door for drinks.. We looked at this refrigerator for quite awhile..I knew this is the one I wanted.. the ice maker was a big decision Maher for me too, because it doesn't take up freezer space
Date published: 2018-01-09
Rated 1 out of 5 by from Very poor products .lekar pachhta rahe h. I bought double door freeze 2015.compressor is damage.poor product's. LG kabhi nahi kareedna.
Date published: 2017-12-07
Rated 5 out of 5 by from STILL LOVE IT We bought this refrigerator back in January 2017 and it has been fantastic. Love the door in door feature. LOVE the knock for inside light features - this saves my 3 teen boys from standing in front of an option refrigerator!!! The finish hides finger prints and cleans easily. We bought the counter depth model - if you have not used a counter depth model before, know that you loose cubic feet (depth) with this type of model. This is true of ALL counter depth refrigerators.
Date published: 2017-11-30
Rated 5 out of 5 by from I like the look and the interior space even though it is the smaller counter depth, it seems to have as much room as our previous side by side. And the "knock, knock" feature is fun!
Date published: 2017-11-22
Rated 4 out of 5 by from Great features & appearance We really like the "Door in Door" design and the Slim SpacePlus ice maker in the door. Disappointed that it didn't come with the Bypass Plug for the water filtration system which the owners manual says to hang on to in case you need to run it without the water filter. Several communications with the customer service department still didn't get me the plug. They don't seem to know what it is. Sent me a filter instead.
Date published: 2017-11-10
Rated 2 out of 5 by from Pretty but not functionally satisfactory. Not happy with inside storage. The drawers are too small for vegetables and fruit. No drawer for just meat.
Date published: 2017-11-09
Rated 5 out of 5 by from Love the larger water dispenser and the tap window door. My only complaint is the sliding shelve isn't large enough to hold many large bottles. I know I can adjust the shelves!
Date published: 2017-11-09
Rated 5 out of 5 by from excellent design I bought it about a month ago. I am very happy with all the modern features. It is also very quiet. The draws are convenient to organize every thing.
Date published: 2017-11-07
  • y_2018, m_1, d_15, h_11
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_49
  • loc_en_US, sid_MD05790873, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LFXC24796S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I have a scratch on my fridge. Do you sell touch up paint? If so, can you please tell me what it is and where I can buy it? Thank you!

Asked by: JennLo
I apologize, but no; we do not carry touch-up paint for any of our black stainless steel items.
Answered by: NeilE
Date published: 2017-10-03

What type of filter does this fridge have for the water/ice? If there any information on how much and which types of contaminants it filters out?

Asked by: Tubs11
The ENERGY STAR® Qualified LG 24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LFXC24796S uses the LG 6 month / 200 Gallon Capacity Replacement Refrigerator Water Filter, Model # LT1000P. The filter has been tested and certified by NSF International NSF/ANSI Standard 42, Standard 53 and Standard 401 for the reduction of Chlorine Taste and Odor (≥ 50.00%), Nominal Particulate Class I, ≥ 0.5 to < 1.0 μm (≥ 85.00%), Asbestos (≥ 99.00%), Atrazine ((NA), Benzene (NA), Carbofuran (NA), Lindane (NA), P-Dichlorobenzene (NA), 2,4-D (NA), Lead @ pH 6.5 (NA), Lead @ pH 8.5 (NA), Mercury @ pH 6.5 (NA), Mercury @ pH 8.5 (NA), Cyst (Based on the use of Cryptosporidium parvum oocysts- NA), Atenolol (NA), Carbamazepine (NA), DEET (NA), Trimethoprim (NA), Linuron (NA), Phenytoin (NA), Ibuprofen, (NA), Naproxen (NA), Estrone (NA), Bisphenol A (NA), Nonyl Phenol (NA)...^IFV
Answered by: LGJoel
Date published: 2017-09-29

Is this model fingerprint resistant?

Asked by: Tammyrf
The Stainless Steel on the ENERGY STAR® Qualified LG 24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LFXC24796S is not fingerprint or smudge resistant...^IFV
Answered by: LGJoel
Date published: 2017-09-29

I got a LG  refrigerator can I just buy the third glass door

Asked by: Frank 1
We appreciate your interest in this refrigerator. While it is certainly possible to purchase the door, it is recommended to have the installation performed professionally, as improper installation can result in air leaks around the seals. Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2017-04-11

We just got our fridge. The water dispenses the very fast, which is fine, but it splashes everywhere and we have to keep liking every time we get water.  Any suggestions on this?

Asked by: Sue1973
We regret the trouble you have experienced with this refrigerator. If the dispenser is splashing water, then it may be suggested to utilize a taller container from which the water will not so readily splash. It may also be possible to reduce the water pressure from the water valve by decreasing the water flow from the valve in the wall.
Answered by: NeilE
Date published: 2017-03-10

Where do I get touch up paint for my LG black stainless steel refrigerator model LFXC24796D?

Asked by: McCaff
Is there still no touch-up paint available? This series scratches way to easy. I would not recommend this product due to this issue.
Answered by: alwilc
Date published: 2017-02-23

The.  Air.     Filter.  Has to be.  Power.  O. No

Asked by: Lokillo
HI Lokillo. Thank you for your interest in the ENERGY STAR® Qualified LG 24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LFXC24796S. Regrettably, we are not clear on your inquiry and would need some clarification. Please re-submit your inquiry so we can provide you with the proper response...^IFV
Answered by: LGJoel
Date published: 2017-02-15

Which.   Is the. Right.  Temperature.  For.    Refrigerate.

Asked by: Lokillo
The right temperature for your ENERGY STAR® Qualified LG 24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LFXC24796S is dependent on several factors. LG recommends 37°F for the refrigerator compartment and 0°F for the freezer compartment. Ideally, the refrigerator should be installed in an area where the temperature is between 55°F (13°C) and 110°F (43°C). If the temperature around the appliance is too low or high, cooling ability may be adversely affected. If there is not a lot of food in the compartment, the doors are not opened very often, or the ambient temperature is cool, then the unit does not need to be set as cold. Most LG Refrigerators default to 37°F for the refrigerator compartment and 0°F for the freezer compartment, but you may need to make adjustments according to the aforementioned factors...^IFV
Answered by: LGJoel
Date published: 2017-02-13
