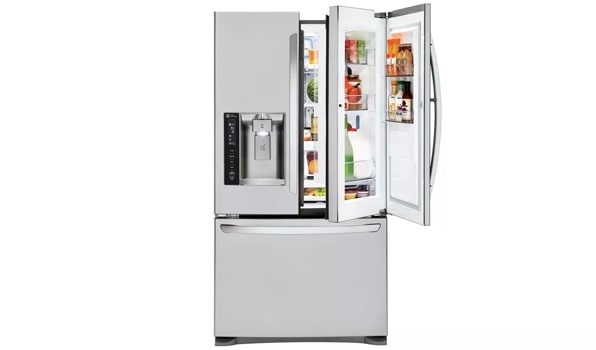

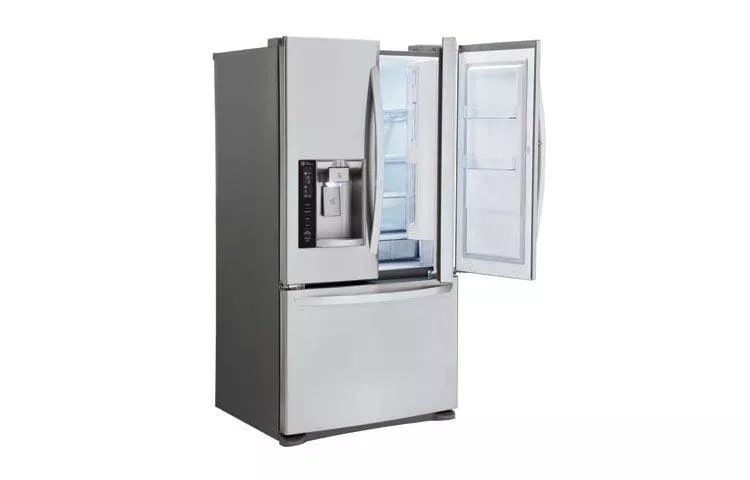

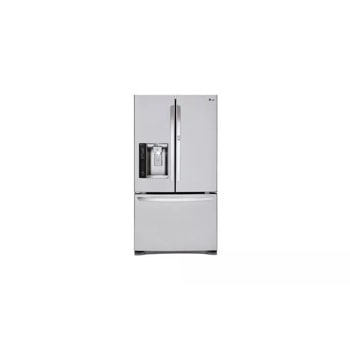

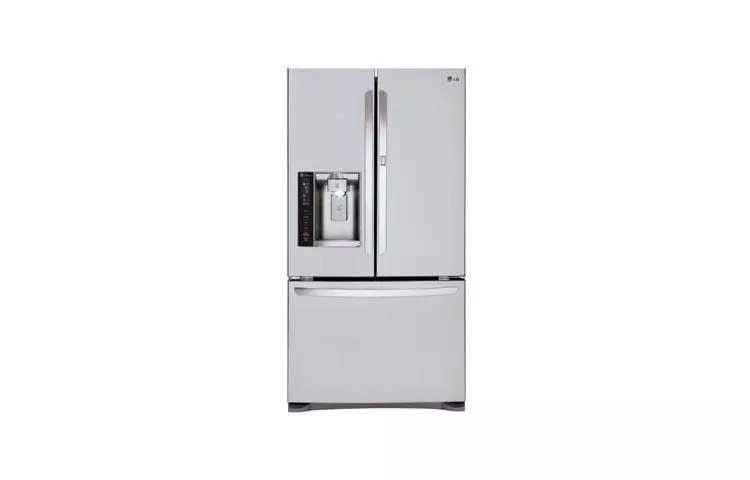

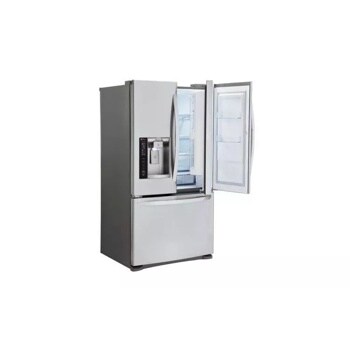

24 cu. ft. Large Capacity 3-Door French Door Refrigerator w/ Door-in-Door®

  • LFXS24566S

  • Stainless Steel

Key Features

  • 24 cu. ft. Capacity
  • Door-in-Door®
  • 4 Split SpillProtector™ Tempered Glass Shelves
  • Smart Cooling®

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Fresher is better.

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Refreshment on hand

Refreshment on hand

A convenient water and ice dispenser keeps ice and water close at hand, saving you from opening the door every time you want water or ice. Keeping the door closed means the temperature inside stays more consistent, saving you money and helping keep your food fresh.

Measure First

You found the LG refrigerator that fits your lifestyle- now make sure it fits in your kitchen. Certain types of LG refrigerators may be larger than others, measure to ensure your purchase can be successfully delivered and installed.

Door Type French 3-Door
Refrigerator 16.20 cu. ft.
Freezer 7.70 cu. ft.
Total 23.9 cu. ft.
Door-in-Door® Yes
Ice & Water Dispenser Yes
Dispenser Type Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 3.5 lbs/3.8 IcePlus
Ice Storage Capacity 2.8 lbs
Water Filtration System LT500P
Dispenser Light Yes
Smart Cooling® System Yes
Multi-Air Flow Cooling Yes
Temperature Sensors 6
Linear Compressor Yes
Display Type Membrane / White LED
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
Auto Closing Door Hinge Yes
ADA Compliant Yes
No. of Shelves 4 Split (3 Fixed / 1 Folding)
Folding Shelf 1
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2 Humidity Crispers
Refrigerator Light Premium LED
No. of Shelves/Bin 9 (inlcuding Door-in-Door®)
Door Bin Construction Clear Bins with Deco
Dairy Corner Yes
Door Type Pull Drawer
Drawers 2
Handle Matching Commercial Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Freezer Light 60W
Contour Door Yes
Hidden Hinges Yes
Toe Grille Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S)
Handles Matching Commercial Handles
Depth with Handles 34 1/4"
Depth without Handles 31 3/4"
Depth without Door 27 7/8"
Depth (Total with Door Open) 46 1/2"
Height to Top of Case 68 3/8"
Height to Top of Door Hinge 69 3/4"
Width 35 3/4"
Width (Door Open 90° with Handle) 44 1/4"
Width (Door Open 90° without Handle) 39 1/4"
Door Edge Clearance with Handle 4 1/2"
Door Edge Clearance without Handle 1 3/4"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 324 lbs./349 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 36"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231 786492

What People Are Saying

Rated 2 out of 5 by from Good design but mechanical problems Door in door is great as is general layout of fridge but 2 months in and already having to call for repair services due to problems with door around ice machine. Purchased an LG suite of 4 appliances - 1 had to be completely replaced, 2 require repair. Would not recommend LG products.
Date published: 2016-05-24
Rated 4 out of 5 by from Beautiful I bought this as a part of a new kitchen suite for my new home. Very sleek and beautiful, could not be happier with the entire purchase. Only downfall is the water dispenser, as it is not very user friendly. 99.9% of my guests place the glass under the ice dispenser and press the water button only to have the water shoot out on their hand and on the floor. It is nothing like the typical water dispenser on every other fridge out there.
Date published: 2016-04-13
Rated 3 out of 5 by from Nice features but tricky to use. Bought this refrigerator about a month ago as part of a kitchen suite of appliances. We were initially drawn to the door in door feature that allows you to access drinks and other items without having to open the refrigerator door. Unit was easy to install and looks great. The closure mechanism on the door in door feature is a bit weak and requires a lot of pressure to latch. We have had the door alarm go off every day since we bought it to let us know the door was not completely closed.
Date published: 2016-03-30
Rated 2 out of 5 by from Bad door and drawers design; spits water Would be a perfect refrigerator, if not some major door design issues: Doors will not close completely when gently pushed, they will bounce back, leaving a small gap. The door-in-door needs to be slammed really hard to get closed. The door sensors are useless and will not alert when doors are not closed completely. The right drawer cannot be open without opening both doors. The lower drawer will not come all the way out unless both doors are wide (more than 90 degrees) open. Also it literally spits water, so that it goes all over the cup and out...
Date published: 2015-11-23
Rated 5 out of 5 by from excellent capacity and great looks! I bought it 3 months ago and i love almost everything about the fridge! Extremely spacious. Cools very well! keeps veggies very fresh! Cons: Magnets dont stick on stainless steel :( also i got a dent in the water dispenser! not sure how, need to contact LG about it.
Date published: 2015-11-19
Rated 3 out of 5 by from Inner door The inner door keeps swinging open when I open the door, afraid it will break off
Date published: 2015-09-05
Rated 5 out of 5 by from Just the right size. Purchased this refrigerator a few months ago. Love the door-in-door feature. Very convenient. Only complaint is that the ice cubes form large lumps in the canister which clog the dispenser
Date published: 2015-08-06
Rated 2 out of 5 by from Not the quality I expected. Bottom freezer slide out door is cheap and flimsy, and comes off track all the time. Ice maker jams to often and the door in a door is too small an narrow.
Date published: 2015-07-20
  • 2016-05-27T14:13CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.1
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_30
  • loc_en_US, sid_MD05135142, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 4ms

We're here to support you with our product.

View LFXS24566S Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I have new lg refrigerator started work .for how long time i wait to get ice

Asked by: Mody52
We appreciate your interest in this refrigerator and its features. According to page 28 of the owner’s manual, it takes about 12 to 24 hours for a newly installed refrigerator to begin making ice. Wait for 72 to hours for full ice production to occur.
Answered by: NeilE
Date published: 2016-03-01

ice maker not giving ice but water dispenser works

Asked by: Natalie L
We regret the trouble you have experienced with this refrigerator. It is recommended to check to ensure that the ICE ROOM is of a sufficient temperature to produce ice, and that the ice maker is, in fact, operational. If this does not resolve the matter, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2015-12-19

Bought this refrigerator in March and having trouble with the ice making shutting down on its own, I have to turn it off and leave it off for 24  hrs then it may come back on. Any hints, tips or resolutions.

Asked by: robert kingrey
We regret the trouble you have experienced with this refrigerator. It is difficult to determine the cause of this lack of operation without additional information relating to other operations and temperature settings of the refrigerator and freezer. Please contact our Customer Interactive Center at 800-243-0000 for additional assistance.
Answered by: NeilE
Date published: 2015-11-11

Can you pull the right drawer all the way out - in order to clean?

I asked this question yesterday - I and a couple other people that I met while shopping for LG fridges are waiting for your answer!! We had all read the same reviews - and don't know if the reviewers had a problem because they did not open the door far enough - or if, in fact, you cannot pull the right drawer all the way out. A different reviewer said when she tried to pull out a drawer, it shattered - so, we don't know if that is part of the same issue (i.e. the drawer was not made to come out#. We wonder if having door-in-door causes this drawer not to come out. If so - in model #LFX25974ST #not door-in-door) will the drawer come out. Please answer - as I/we would like to purchase a fridge!!
Asked by: IrvineShopper
I wrote this question - and was thinking that a LG staff person could answer it for me. Thanks -
Answered by: IrvineShopper
Date published: 2015-07-10

meat and cheese drawer

I have purchased this refrigerator and LOVE it - however, there is no traditional meat and cheese drawer. What are people doing as a substitute? Is there ann accessory?
Asked by: RobinH
Hello RobinH, thank you for purchasing the LG 24 cu.ft. Large-Capacity 3 Door French Door Refrigerator w/ Door-in-Door®, Model # LFXS24566S. We're are thrilled that you "LOVE it"! It is a great refrigerator. On the inside of the outer door, the top bin is what is designed as the Cheese and Butter Bin. The Glide 'N' Serve Drawer provides storage space that keeps the compartment at a different temperature from the rest of the refrigerator and is a convenient place to store sandwiches or meat that is to be cooked, otherwise, you can store the meat in any of the drawers in the freezer section...^IFV
Answered by: LGJoel
Date published: 2016-03-12

how do you keep the side panel light on the exterior on?

Asked by: 312210
Hello 312210, the dispenser light on the LG 24 cu.ft. Large-Capacity 3 Door French Door Refrigerator w/ Door-in-Door®, Model # LFXS24566S does not stay on. It only comes on when you press the LIGHT button on the panel then goes off when you stop pressing it...^IFV
Answered by: LGJoel
Date published: 2015-06-03

Is there a door open adjustment on Model #LFXS24566S.

We just purchased the LG Model #LFXS24566S refrigerator. We noticed that the r.h. door (the one with the door in a door) does not open as wide as the l.h. door (the one with the ice maker). Looking at the photos on the LG site, it looks as though that is the case. Is that so? Is there an adjustment?
Asked by: cspurr
We regret the trouble you have experienced with this refrigerator. Both doors should be able to open equally. The actual door within the door may not open as wide as the left door, but both right doors opening together should have no difficulty. For additional questions or concerns with this matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2015-06-03

lg door in door model

I recently purchased the new Lg Door in door model fridge 4months ago and i absolutely love it. But one problem i had was i went to remove bottom glass shelf to wipe and clean and when i pulled it out, it shattered into a million pieces. It never bumped into anything so I'm Not sure why. So I am in need of a new piece of glass for my poor fridge. Where can i get this and why do you think it shattered? Thanks
Asked by: kporter05
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at
Answered by: NeilE
Date published: 2014-12-31
