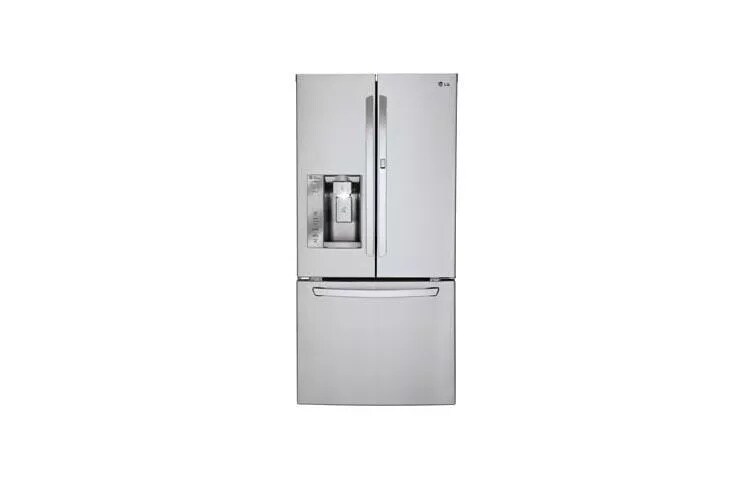

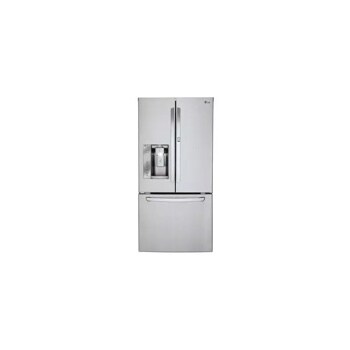

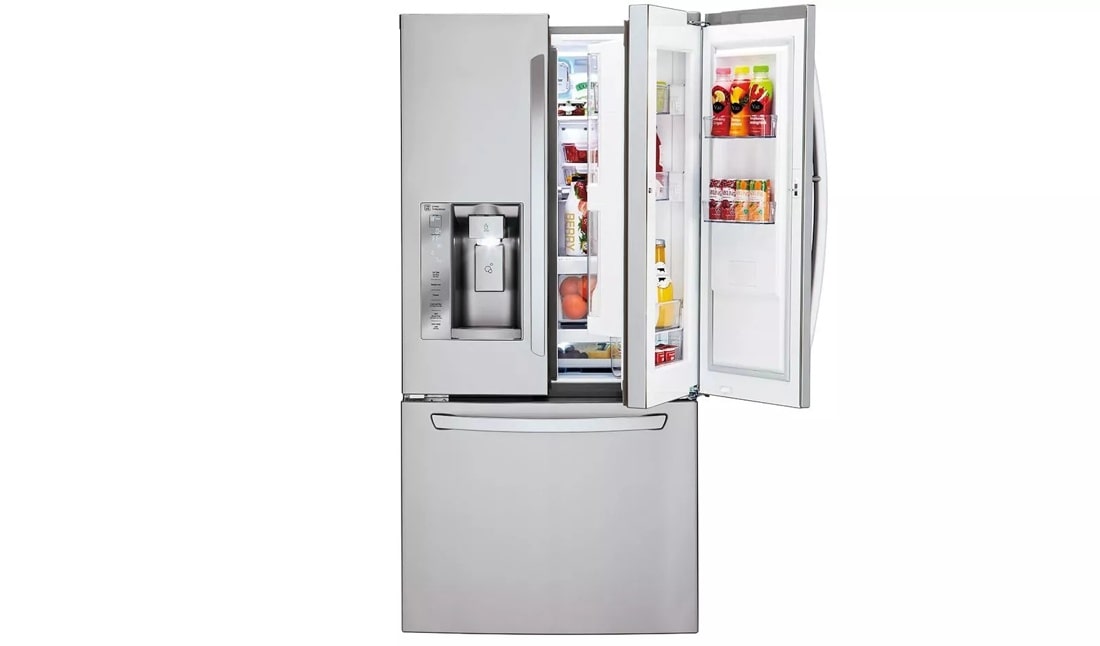

24 cu.ft. 33" Wide Ultra-Capacity 3 Door French Door Refrigerator w/ Door-in-Door™

  • LFXS24663S

  • Stainless Steel

Key Features

  • 24 cu.ft. Capacity, 33" Wide
  • Door-in-Door™
  • Extra Door Bins and Shelf Space
  • 10 Year Limited Manufacturer’s Warranty on Linear Compressor
Large Capacity for 33

Large Capacity for 33" Width

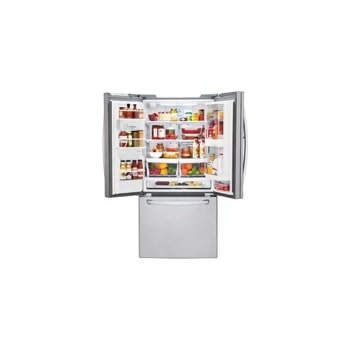

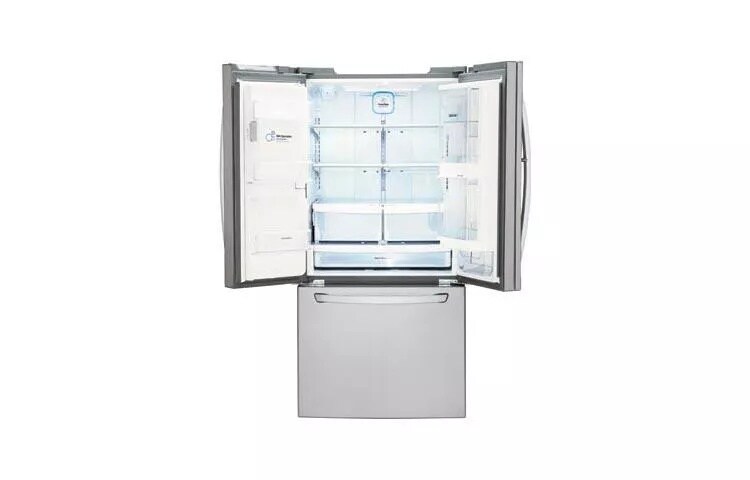

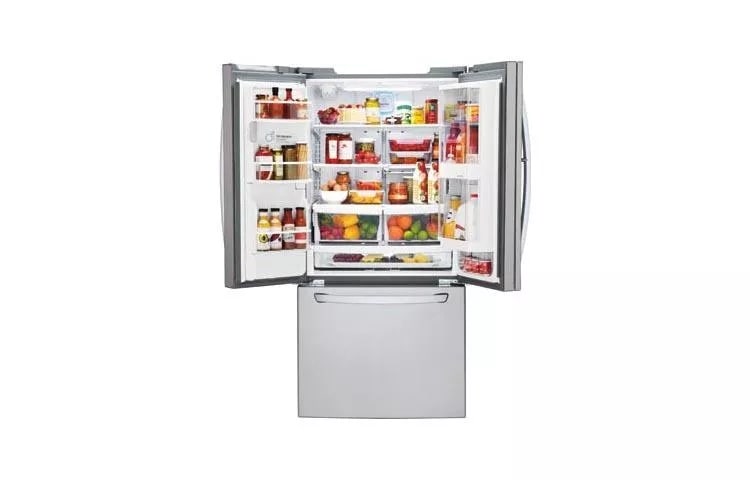

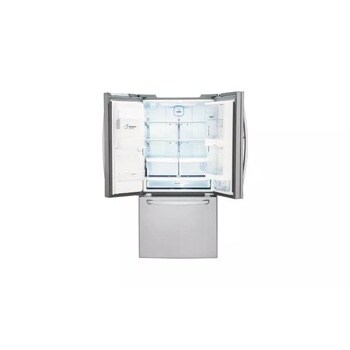

If you feel like you never have enough space for your groceries, or find yourself cramming them in, it's time to discover the convenience of having a large capacity refrigerator. With 24 cu. ft. of space in a 33" wide refrigerator, you have plenty of room for plenty more.

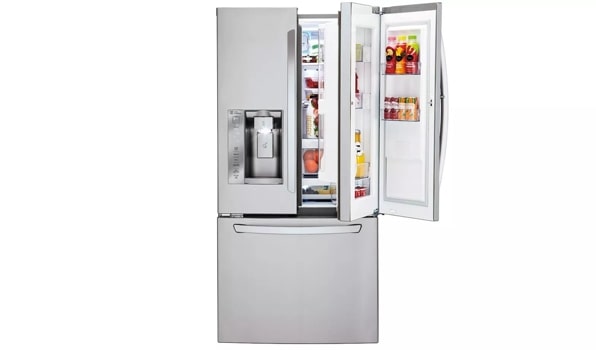

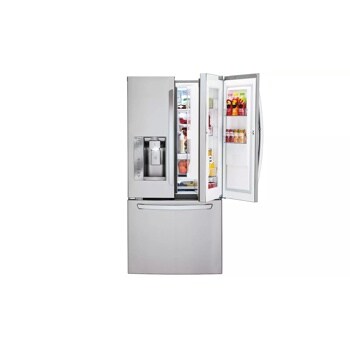

For those fly-by visits to the refrigerator, the Door-in-Door™ feature allows you to get in and get out providing easy access to beverages and snacks. Also, the additional shelf space gives you yet another way to keep your refrigerator organized.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Fresher is better.

Smart Cooling system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

Door Type French 3-Door
Refrigerator 16.4 cu. ft.
Freezer 8 cu. ft.
Total 24.4 cu. ft.
Door-In-Door® with ColdSaver™ Panel Yes
ENERGY STAR® Qualified Yes (690 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Dispenser
Ice System Slim SpacePlus®
Daily Ice Production 2.4 lbs/2.5 IcePlus
Ice Storage Capacity 2.2 lbs
Water Filtration System Compact Filter LT700P
Temperature Sensors 7
Linear Compressor Yes
Display Type White LED
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
No. of Shelves 4 Split (3 Fixed / 1 Folding)
Folding Shelf 1
Cantilevered Shelves Yes
Shelf Construction SpillProtector™ Tempered Glass
Crisper Bins 2-Humidity Crispers
Glide N’ Serve™ Drawer Yes
Refrigerator Light Premium LED
No. of Shelves/Bin 9 (Including Door-in-Door®)
Door Bin Construction Clear Bins
Dairy Corner Yes
Door Type Pull Drawer
Drawers 2
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Ice Bin Yes
Freezer Light Premium LED
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal, Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S)
Handles Matching Commercial Handles
Depth with Handles 35 3/8"
Depth without Handles 32 7/8"
Depth without Door 29"
Depth (Total with Door Open) 46 1/8"
Height to Top of Case 68 5/8"
Height to Top of Door Hinge 69 7/8"
Width 32 3/4"
Width (Door Open 90° with Handle) 41 1/8"
Width (Door Open 90° without Handle) 36 1/4"
Door Edge Clearance with Handle 4 1/2"
Door Edge Clearance without Handle 1 3/4"
Installation Clearance Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton) 327 lbs./358 lbs.
Carton Dimensions (WxHxD) 35" x 73" x 38"
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231 786614

What People Are Saying

Rated 5 out of 5 by from Very nice refridgerator. The only one I could find that was French Door and only 33" wide as my wall cabinet above is only 33 inch wide. I did extend my wall cabinet end panel 1 extra inch just so I would not have a hard time moving the fridge in and out for yearly cleaning. Beware of damage to the LOWER SKIRT underneath the fridge Part# 5070JJ3004D. I had two units delivered and both were damaged in the process of uncrating. It's almost impossible to get the fridge off the pallet without damaging the LOWER SKIRT. It's about 15" long made of plastic and vinyl. I think it segreates air flow underneath the bottom louvers between intake air to condenser and exhaust air flow from condenser?? Have not had any issues with the ice maker yet. Nice small cubes that everyone seems to like and no jambs.
Date published: 2015-10-09
Rated 5 out of 5 by from Exceeded my expectations and anticipated my needs Decided to buy an LG Refrigerator because I am so satisfied with the LG washer and Dryer I purchased 2 years ago. The refrigerator is so well designed. I love the water and ice dispenser. The water dispenses swiftly and the small Ice cubes go directly into the glass. The tray beneath the dispenser can be moved for larger containers and removed for easy cleaning. The refrigerator keeps everything at the perfect temperature. I find that my fresh fruit and vegetables stay fresher longer. Even raspberries.The display on the outside of the door shows you the temperature of the freezer and refrigerator, if filters need replacement, etc. The air and water filters are in an easy to reach spot for changing. The filtered water is so sweet and the air filters keep food odors to themselves. I was worried about the small Ice maker, but so far, for daily living, it has not been an issue. Inside the refrigerator is very easy to organize and well lit. It is very easy to find everything, even if it is packed with food. The drawers can be regulated for fruit, meat, deli, or vegetables. It is large enough for the occasional party platter and one shelf can be split to accommodate extra tall items. My previous refrigerator was a side by side and I was worried there would not be enough room in the freezer. What I have found is that it is very easy to organize and food is easy to get to quickly. I don't use the "ices basket" on a daily basis. I can see where it could be useful for parties or for extra organization in the freezer. I am not easily satisfied, but I can recommend this refrigerator with no reservations.
Date published: 2015-09-12
Rated 5 out of 5 by from After 2 months we're still happy We like the bottom freezer and drawer layout. The 2 piece door helps us get to most-used items while reducing the loss of cold air. The slide-back shelf helps us fit the taller items into the refrigerator with ease. We're quite happy with the performance so far.
Date published: 2015-08-21
Rated 5 out of 5 by from Loving It Required a 33 inch wide due to a wall on one side. This size works perfect allowing to open both doors wide open. It is quite, can hear a hum sometimes. Love the door n door. Cleans easy.
Date published: 2015-08-09
Rated 4 out of 5 by from Love the door in door feature! This is a beautiful looking refrigerator. I love the door in door feature however I wish there were more room on the door for condiments. Also, I have to be careful in shutting the left door as it slams. It's probably from the weight of the ice maker. The water dispenser is a bit difficult to access as there is not much space between the spigot and the button. I love the LED lighting and space inside.
Date published: 2015-08-07
Rated 4 out of 5 by from One problem The latch for the door within the door is not dependable. Need to have some way to adjust the latch.
Date published: 2015-07-05
Rated 5 out of 5 by from "Pleased as Punch!" Great Product Went from a side by side to this new door in a door French style and love it. Doors open wide enough to easily puts things in and get them out. The "door in a door" feature is wonderful. I'm diabetic and I can get to my insulin easily without opening the entire frige. The quiet operation is great. You don't know it is there. We love it and have recommended it to many of our friends and will continue to do so.
Date published: 2015-06-26
Rated 5 out of 5 by from How do I say What I Like about my new French Door Stainless Steel is attractive. It is spacious, had to order 24 cu. ft. to fit the width in my kitchen - 33". LOVE, Door-In-Door, Glide and Serve inside drawer, Fold Back Shelf, Quiet Operation, Filtered water in Ice and Water dispenser. Food seems to be staying fresher in the Crisper Bins than in my old refrigerator. Friends and Family impressed with this LG Refrigerator. Enjoy showing it off.
Date published: 2015-06-24
  • 2015-11-29T07:27CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_20
  • loc_en_US, sid_MD05132781, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 8ms

We're here to support you with our product.

View LFXS24663S Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Does milk stay cold if stored on the door?

Asked by: jdembow
We're quite happy with how well the milk stays cold in the door. We use the door for milk and my protein shakes mostly, and it works well.
Answered by: JeepDon
Date published: 2015-08-24

The right side door on my french door in door model LFXS24663S

The left side closes automatically but the right side which has door in door requires a pretty hard push to close. This seems to be a problem. Refrigerator is level.
Asked by: Patc
We regret the trouble you have experienced with this refrigerator. There is no indication that this door should be difficult to close. It is recommended to check to see if there is any obstruction to the door closing path, and that the Door-in-Door and the inner cover is closed properly. If this operation is causing a problem, to where you believe it to be operating improperly, then the unit may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2015-08-14

ice maker not working on my new french door refrigerator

New refrigerator French door Model LFXS24663S ice maker not working. Waited 24 hours after it was set up but nothing. It does dispense water so line is ok.
Asked by: Patcol
We regret the trouble you have experienced with this refrigerator and its features. It is recommended to make sure that the ice maker has been activated, and that the Ice Room is at a temperature capable of freezing ice. If the unit is still not working, then it may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2015-08-14


Do the doors come completely off this unit? How much space is needed to get thru the front door? thank you
Asked by: genevieve
My delivery men took my front door off, I also have a tight kitchen space opening and they hoisted over the Island with removing the bottom drawer.
Answered by: Crackers
Date published: 2015-08-09

Stainless Steel Cleaner

Got new refrig today. Bought Stainless Steel spray cleaner for front. Leaves a smear look. What do you recommend? Also, can't believe magnets don't adhere to front. Why? LFXS24663S French door refrigerator
Asked by: Barburr
Magnets do not stick to stainless steel. Use rubbing alcohol to clean the stainless surface.
Answered by: VAchipper
Date published: 2015-06-26

Quiet refergerator?

THis is going in a open concept kitchen. How quiet is this model?
Asked by: deancoug
Extremely Quiet
Answered by: Barburr
Date published: 2015-06-24

Does this french door/door in door 33" model come in white?

Asked by: oaxacadoc
Hi oaxacadoc. Regrettably, the LG 24 cu.ft. 33" Wide Ultra-Capacity 3 Door French Door Refrigerator w/ Door-in-Door®, Model # LFX24663S only comes in the Stainless Steel finish...^IFV
Answered by: LGJoel
Date published: 2015-08-08

How to I switch from crushed ice to ice cubes?

I want ice cubes but the ice comes as crushed and I don't know how to change it.
Asked by: Mardie
Hi - if you just push where the display says Ice Type, it will alternate between ice cubes and crushed ice.
Answered by: CoffeekissMom
Date published: 2015-02-26
