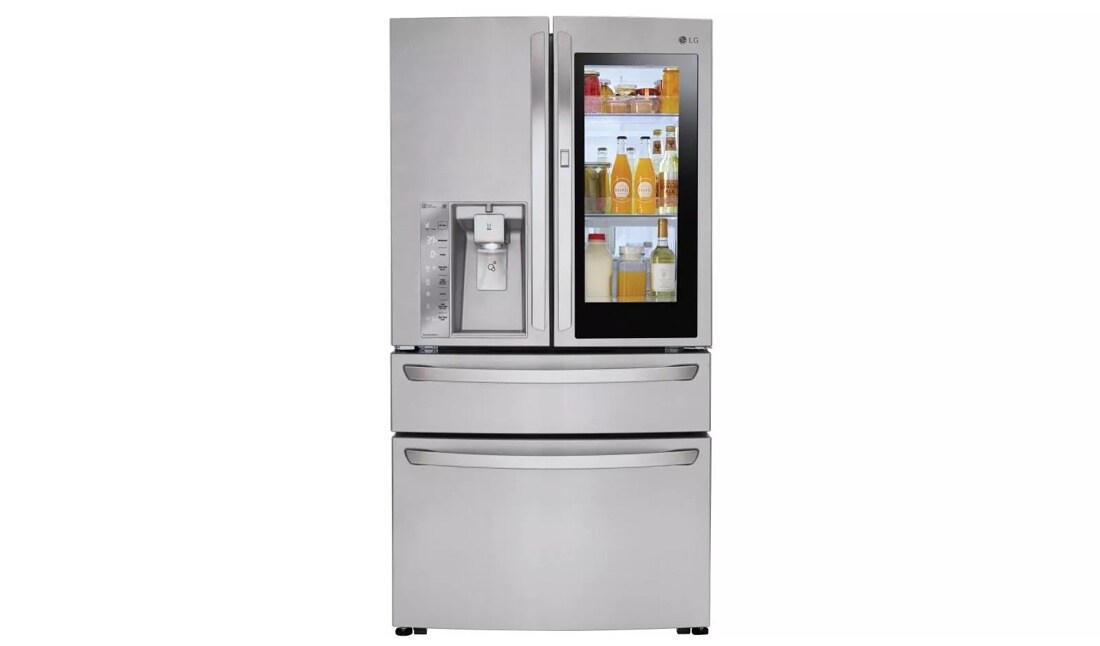

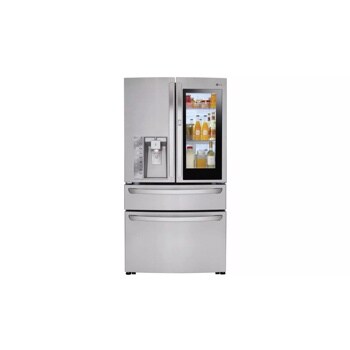

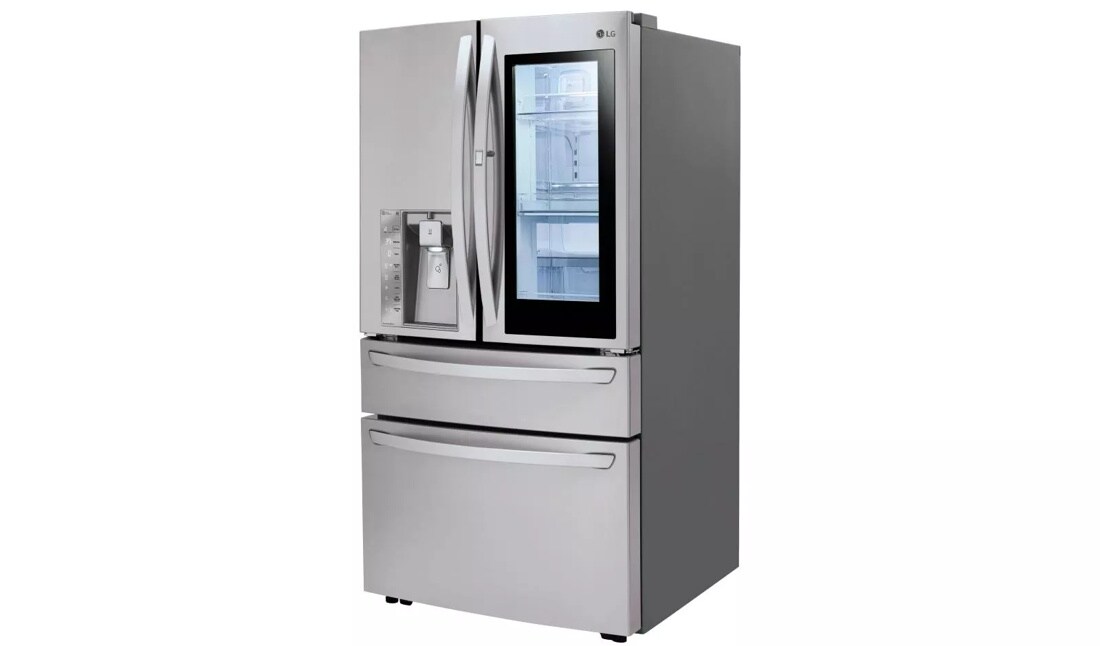

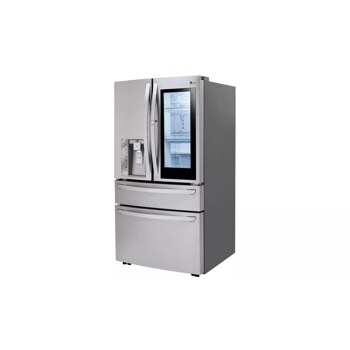

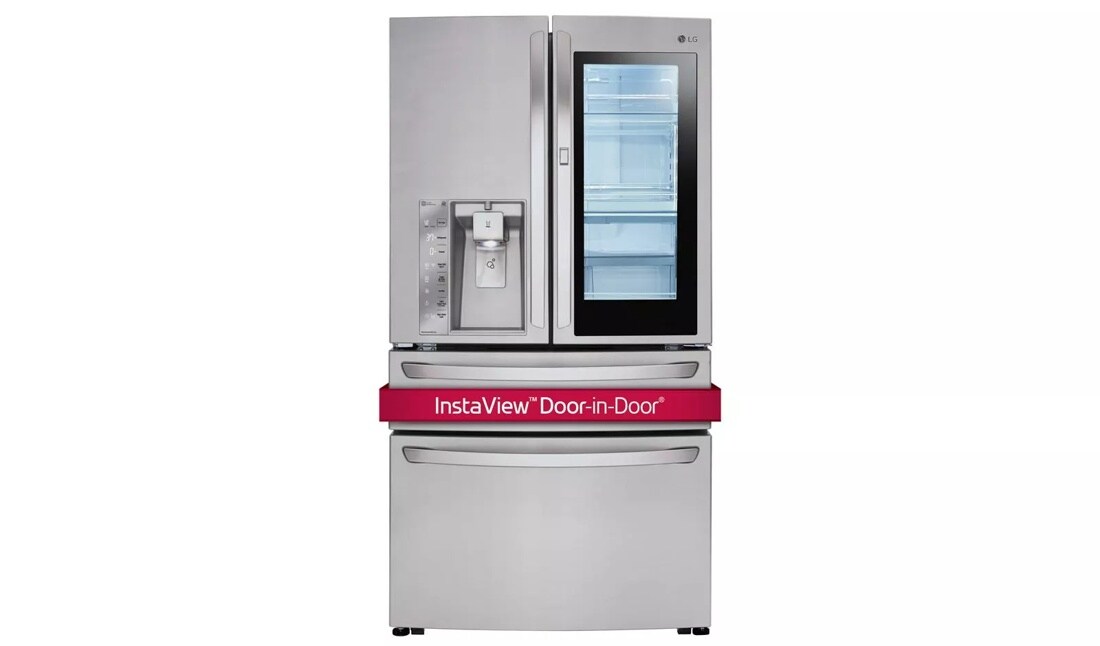

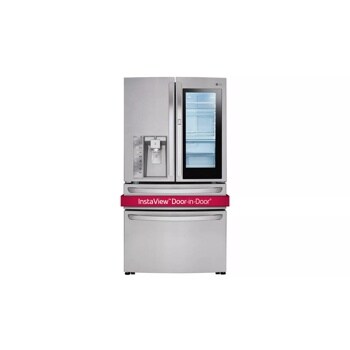

30 cu. ft. InstaView™ Door-in-Door® Refrigerator

  • LMXS30796S

  • Stainless Steel

Key Features

  • 30 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • ColdSaver™ Panel
  • Slim SpacePlus® Ice System

Raid the Fridge Without Losing Your Cool

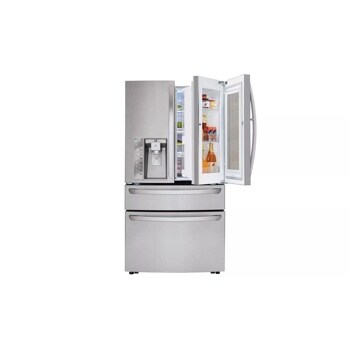

InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Fresher is better.

Smart Cooling® Plus technology is designed to maintain superior conditions within the refrigerator. The Linear Compressor and Dual Evaporators react quickly to humidity and temperature levels and help keep your food fresher, longer. Strategically-placed vents in every section help surround your food with cool, fresh air.

SAVE MONEY. SAVE ENERGY.

SAVE MONEY. SAVE ENERGY.

This ENERGY STAR® certified LG refrigerator exceeds new 2016 federal energy standards to positively impact your energy bill and your energy consumption.

SUMMARY
Door Type French 4-Door
Refrigerator Type InstaView™ Door-in-Door®
Color Stainless Steel
CAPACITY
Refrigerator 17.10 cu. ft.
CustomChill® Drawer 3.80 cu. ft.
Freezer 8.80 cu. ft.
Total 29.7 cu. ft.
FEATURES
Door-in-Door® Yes
InstaView™ Door-in-Door® w/ ColdSaver™ Panel Yes (w/ Glass Panel)
CustomChill® Drawer Yes
ENERGY STAR® Qualified Yes (776 kWh/Year)
Ice & Water Dispenser Yes
Dispenser Type Integrated Tall Ice & Water Dispenser®
Ice System Slim SpacePlus®
Daily Ice Production 3.5 lbs / 3.8 (IcePlus™)
Ice Storage Capacity 3.0 lbs
Smart Cooling Plus System Yes
Multi Air Flow Cooling Yes
Temperature Sensors 8
Linear Compressor Yes
Fresh Air Filter Yes
Dual Evaporator Yes
Display Type Smooth Touch Control (White LED)
CONVENIENCE
Temperature Controls Electronic/Digital
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
Wi-Fi Enabled (Smart Grid Available) Yes
REFRIGERATOR
No. of Shelves 4 Split (3 Fixed/1 Folding)
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2 Crispers/1 Bonus Drawer
Glide N' Access® Shelf Yes
EasyReach® Bin 2
Refrigerator Light Premium LED (Ceiling and Side)
REFRIGERATOR DOOR
No. of Shelves/Bin 6 Total (2 Gallon Sized, 1 Regular, 3 Half)
Door Bin Construction Clear , Opaque, Silver Deco
Dairy Corner Yes
CUSTOMCHILL™ DRAWER
Dividers 2
Temperature Range 29˚, 33˚, 37˚, 42˚ F
Handle SmartPull®
FREEZER
Door Type Pull Drawer
Drawers 3-Tier Organization®
Handle SmartPull® Freezer Handle
DuraBase™ Solid Drawer Base Yes
Drawer Divider Yes
Freezer Light Premium LED
MATERIALS AND FINISHES
Contour Door Yes
Hidden Hinges Yes
Surface Coated Metal
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel
Handles Matching Commercial Handles
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles 39 1/8"
Depth without Handles 36 5/8"
Depth without Door 31 3/4"
Depth (Total with Door Open) 51"
Height to Top of Case 68 7/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90˚ with Handle) 45"
Width (Door Open 90˚ without Handle) 40"
Door Edge Clearance with Handle 4 5/8"
Door Edge Clearance without Handle 2 1/4"
Installation Clearance Sides 1/8", Top 1", Back 2"
Weight (Unit/Carton) 404 lbs / 437 lbs.
Carton Dimensions (WxHxD) 38" x 73" x 40"
WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor
UPC 048231788854
LIMITED WARRANTY
Limited Warranty 1 Year Parts and Labor, 7 Years on the Sealed System, 10 Years on Linear Compressor

What People Are Saying

Rated 5 out of 5 by from Great Looking My new refrigerator was just delivered yesterday. So far I love it. It's roomy and easy to place my food in. I love the Door-in-Door. Easy to reach my water bottle and milk.
Date published: 2017-05-26
Rated 5 out of 5 by from Slik look and great inside layout! It has been a month since we bought this refrigerator and I can not be happier with it! My family loves having a separate pullout draw for fruits and vegetables. Over one year it will save us some money just because we can spread fresh produce and see what we have, instead of putting everything on top of each other and throw away too much food.
Date published: 2017-05-12
Rated 5 out of 5 by from Awesome features! I bought this about 2 months ago and absolutely love it!
Date published: 2017-05-03
Rated 4 out of 5 by from Great Features The door that allows you to see inside, also opens from the other side. The opposite door shows the temperature also open on the other side which allow access to ice compartment. Love the fact this refrigerator and freezer hold more items but the outer part is compact and takes up less room than my old one.
Date published: 2017-05-03
Rated 5 out of 5 by from Love the appearence and the utility Although we're still learning all the features, we love it already. The refrigerator looks great, runs super and offers all the features we need. We're very happy with the product.
Date published: 2017-05-02
Rated 5 out of 5 by from Perfect Performance A year ago we saw this fridge and fell in love with it. Problems we're that we had all perfectly good white appliances and it didn't come in white. We visited the floor model periodically and frequently checked for it's release in white to match our other appliances - to no avail. Finally, we succumbed to our desires and ordered the door-in-door/ four door in black stainless, along with all the other kitchen appliances to match. Couldn't be more pleased. Optimal convenience and appearance. Well organized and versatile beyond the latest concepts imaginable.
Date published: 2017-05-02
Rated 5 out of 5 by from Looks great! Gonna get this! LG is so reliable and sleek!
Date published: 2016-08-25
  • y_2017, m_6, d_23, h_24
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_MD05794489, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LMXS30796S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

How long does it take to fill the ice bin?

Asked by: Sewcreative
The Ice Maker in the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LMXS30796S will produce 70~182 cubes in a 24-hour period depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions like the water pressure. The water pressure must be 40~120 psi or 276~827 kPa or 2.8~8.4 kgf/cm² to produce the normal amount of ice and size of cubes. When full, the in-door ice bin holds approximately 6 to 8 (12~16 oz or 340~455 cc) glasses of ice...^IFV
Answered by: LGJoel
Date published: 2017-06-16

LoDecibelTM Quiet Operation?

Asked by: JGMRZ
Our offices, in the United States, do not have product information for Spain. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/es/support/contact/support-here-to-help.jsp.
Answered by: NeilE
Date published: 2017-05-09

When will the  LMXS30796S Stainless Steel be available to purchase?

Asked by: AnnieOh
Thank you for your interest in the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LMXS30796S. LG has not yet made any public announcements on the pricing nor the releases date for this refrigerator. You can stay tuned for such announcements by clicking on the "Press Releases" link that can be found on the right-most column of any product page on the www.lg.com/us site...^IFV
Answered by: LGJoel
Date published: 2017-02-13

We love the new three door side by side refrigerators.    We need one of these in black to match our other appliances.  Please advise which models are available in black.  We have black appliances and the black stainless will not work for us. Ty

Asked by: Ben G48
Hi Ben G48. Thank you for your interest in our 3 Door French Door InstaView™ Door-in-Door® Refrigerators. Regrettably, the InstaView™ Door-in-Door® series Refrigerators are only available in Stainless Steel or Black Stainless Steel...^IFV
Answered by: LGJoel
Date published: 2017-01-25

WHEN WILL IT BE AVAILABLE FOR PURCHASE IN SAN ANTONIO AND WHERE.

Asked by: Cheryl Fierros
On the product page for the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LMXS30796D on the company site, www.lg.com/us, next to the MSRP is a 'Where to Buy' buttonn. Clicking on that button will open a page on which you can enter your zip code in the appropriate field and another page will open up to show which retailers in your area or online retailers are carrying this model...^IFV
Answered by: LGJoel
Date published: 2016-10-17

Is this refrigerator available when

Asked by: Thimothy
Pirch in Oak Brook, IL has it. Give them a call.
Answered by: Foodie4u
Date published: 2016-10-01

Is the french door,door in door satainless steel color smudge/finger proof like the black stainless color?

Asked by: Vanessa Strain

How wide is the refrigerator it doesn't say all the dimensions are blank

Asked by: Yankeefan0706
