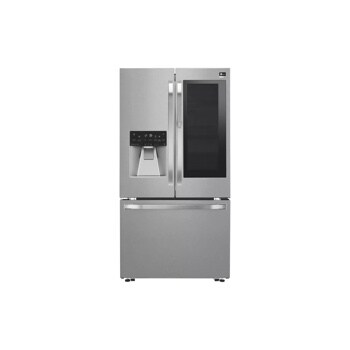

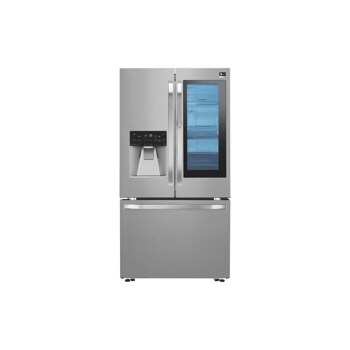

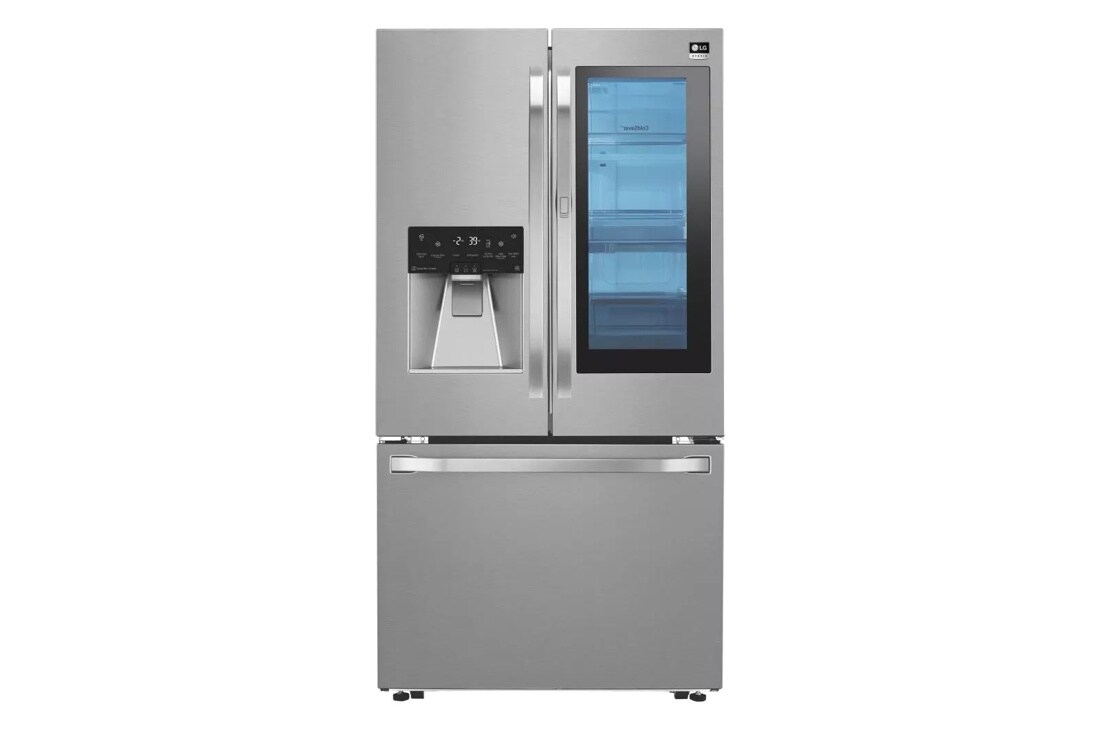

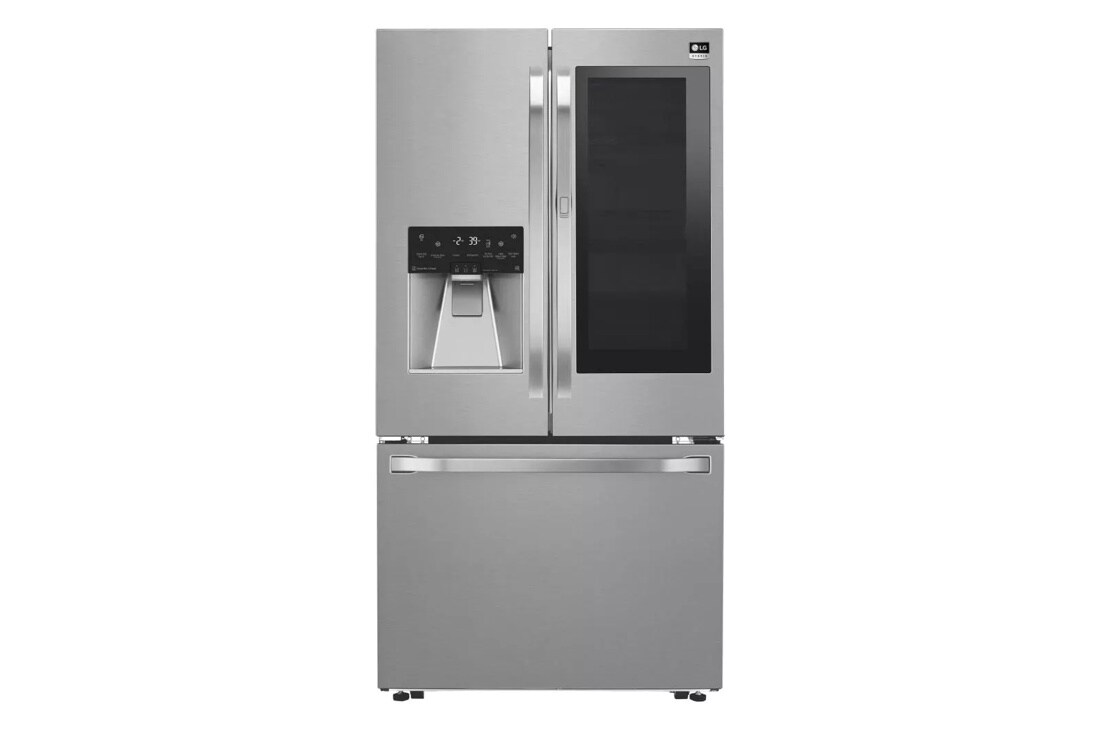

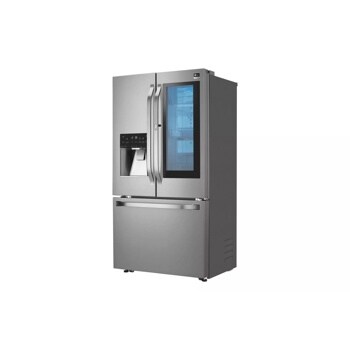

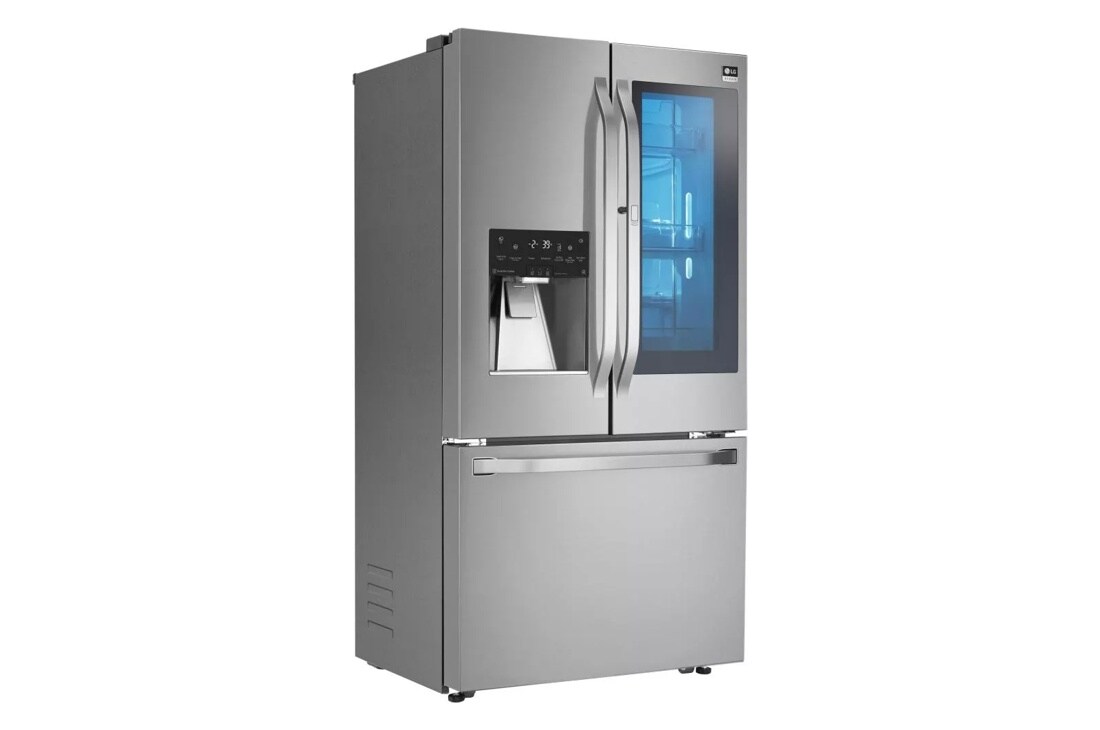

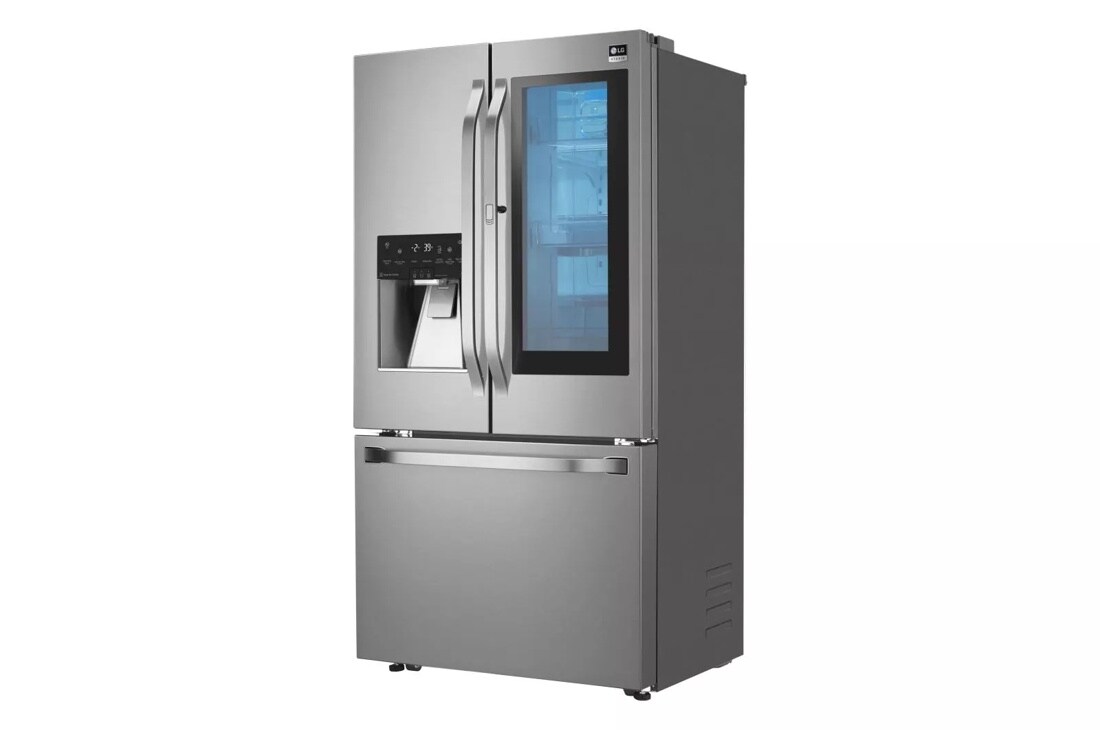

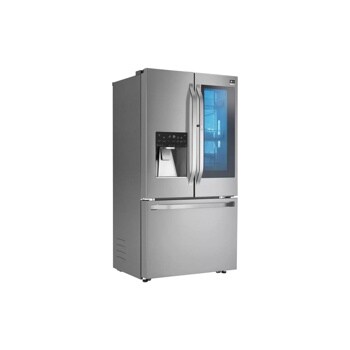

LG STUDIO - 24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator

  • LSFXC2496S

  • Stainless Steel

Key Features

  • Pro-Style Design inspired by Nate Berkus
  • 24 cu. ft. Large Capacity
  • InstaView™ Door-in-Door®
  • Slim SpacePlus® Ice System
  • Tall Ice & Water Dispenser®
Timeless, Pro-Style Design

Timeless, Pro-Style Design

Make a statement in any kitchen, enhancing the look of your home with timeless sophistication. Inspired by our artistic advisor, Nate Berkus, LG STUDIO appliances boast premium design details.

Kitchen design for a refined palate.

Use the LG STUDIO Virtual Designer to create and share your perfect kitchen.

FREE 1-Year Supply*
of LG Water
& Air Filters

With Purchase of any LG InstaView™
Refrigerator! Valid 7/9 – 8/22

Raid the Refrigerator Without Losing Your Cool.

Bringing innovation and distinctive design together, LG’s new refrigerator with InstaView™ Door-in-Door® will enhance even the most beautifully crafted kitchen. The mirrored glass panel illuminates with two quick knocks, allowing you to see inside the easy access compartment without ever opening the door.

Large Capacity

With the large counter depth refrigerator at 23.5 cu. ft., you can store more food than ever before. And keep it all fresher, longer.

Most shelf space.*

Ice makers are great, but not if it means you can't fit all of your food in the fridge. The Slim SpacePlus® Ice System provides more shelf space and allows even more space for door bins.

*Standard width french door refrigerator, excludes other LG manufactured products

Tall Ice & Water Dispenser®

The Ice & Water Dispenser® in this LG refrigerator is one of the tallest around in its class, measuring in at 9.2 inches. From pitchers to pint glasses, finally an ice and water dispenser that can accommodate just about any container.

Peace of Mind

Peace of Mind

When you buy a refrigerator, you don't want to worry that it won't last. All LG STUDIO appliances are backed by LG's exclusive 2-year warranty. Because LG's proprietary Linear Compressor uses fewer moving parts and operates more efficiently, LG confidently backs the Linear Compressor with a 10-year limited warranty.

SUMMARY
LG STUDIO Yes
Door Type French 3-Door
Refrigerator Type InstaView™ Door-in-Door®
Counter Depth (in.) Yes
TYPE
Type 3-Door Counter Depth French Door
CAPACITY
Refrigerator 15.6 cu. ft.
Freezer 7.9 cu. ft.
Total 23.5 cu. ft.
FEATURES
InstaView™ Door-in-Door® w/ ColdSaver™ Panel Yes
Energy Rating ENERGY STAR® Qualified
Energy Consumption 716 kWh/Year
Ice & Water Dispenser Yes
Dispenser Type External Ice & Water Dispenser
Smart Grid Ready Yes
Ice System Slim SpacePlus® Ice System
Water Filtration System LT1000P
Smart Cooling Plus System Yes
Temperature Sensors 10
Linear Compressor Yes
IcePlus™ Yes
Cooling System Multi-Air-Flow™ Technology
CONVENIENCE
Temperature Controls SmoothTouch External (White LED)
Door Alarm Yes
Child Lock Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
Auto Closing Door Hinge Yes
REFRIGERATOR
No. of Shelves 4 Split
Folding Shelf Yes
Cantilevered Shelves Yes
Shelf Construction Spill Protector™ Tempered Glass
Crisper Bins 2-Humidity Crispers, 1 Condiment Box
Glide N’ Serve® Drawer Yes (Digital Control)
Refrigerator Light Premium LED
REFRIGERATOR DOOR
No. of Shelves/Bin R : 6ea (2 Half, 1 Gallon, 1 Kids, 2 Small), L : 3ea (Small)
Door Bin Construction R : 2 Piece (Clear+STS Bar), L : 3 Piece (Clear+Opaque+Spray Deco)
FREEZER
Door Type Pull Drawer
Drawers 3
DuraBase™ Solid Drawer Base Yes
Ice Bin Yes
Freezer Light Premium LED
No. of Door Bins/Drawers/Construction 3-Tier Organization
MATERIALS AND FINISHES
Contour Door Flat
Hidden Hinges Yes
Surface Stainless Steel
Back Flush & Metal Cover Over Mechanical Parts
Available Colors Stainless Steel (S), Black Stainless Steel (D)
Handles LG STUDIO Style Handles
DIMENSIONS / CLEARANCES / WEIGHTS
Depth with Handles 30 7/8"
Depth without Handles 28 3/8"
Depth without Door 24 1/8"
Depth (Total with Door Open) 42 3/4"
Height to Top of Case 68 3/8"
Height to Top of Door Hinge 70 1/4"
Width 35 3/4"
Width (Door Open 90˚ with Handle) 44 1/4"
Width (Door Open 90˚ without Handle) 40"
Door Edge Clearance with Handle 4 1/4"
Door Edge Clearance without Handle 2 1/8"
Weight (Unit/Carton) 330 lbs./370 lbs.
Installation Clearance Sides 1/8", Top 1", Back 1"
Carton Dimensions (WxHxD) 38" x 73" x 33"
WARRANTY
Limited Warranty 2 Year Parts & Labor, 7 Years on the Sealed System 10 Years on Linear Compressor
UPC 048231794589

What People Are Saying

Rated 5 out of 5 by from Nice Frig. I just had this installed in our new kitchen this week and I love the features and the look!!
Date published: 2017-08-11
Rated 5 out of 5 by from Luxury Item with Many Conveniences This LG 23.5 cu. ft. French Door Refrigerator with InstaView Door-in-Door in Black Stainless Steel Counter Depth has many useful and convenient features. The feature that we have found most useful thus far is the Cold Saver Door-in-Door partition. It is basically a mini-fridge within the door that you can access directly from a mini-door on the right or from the inside of the refrigerator. The door on the right side can be opened to the entire refrigerator or by pushing a button on the handle to the Cold Saver partition. This feature makes it convenient to access commonly-used items thus saving energy. When you open the mini-door, the items are at a convenient height. How do you know if what you want is in this compartment? This is where the InstaView Knock-on feature is needed. If you knock on the dark outside window twice, a light comes on inside the Cold Saver so that you can see what it contains so that you know whether you need to open the entire door or just the Cold Saver. Initially, I thought that the InstaView was just a gimmick to impress your friends but had little practical value. However, it is necessary if you what to see what is in the Cold Saver compartment without opening the door unless you have an ironclad memory. If an overhead light is on in the room, you can still see through the window without knocking on it but only faintly. The window does not allow you to view the items on the bottom shelf of the Cold Saver. Other useful features include easily adjustable half shelves. The front of one half shelf can be retracted so that you can place taller items on a shelf below it. It has three crisper drawers two of which can be set for either fruits or vegetables. A drawback in getting to the middle crisper is that both refrigerator doors must be opened. We have liked the convenience of the icemaker for an assortment of tasks from filling a glass to filling a pitcher to getting crushed ice or a glass of cold water. The water that enters the icemaker is filtered. You can easily access the ice bin in the door to empty it into the freezer bin or a cooler if you wish. One inconvenience is that you need to use the ice maker frequently or else you need to empty the bin and turn if off. That is a must when on vacation. The freezer compartment is well designed with a large tray and a pullout drawer and a large bin with an adjustable separator allowing the bin to be divided into two sections. All the items are readily accessible. The freezer compartment is lit. The color is black stainless. My wife does not like black appliances which seem to be in vogue. Henry Ford once said that you can have any color car you want as long as it is black. What goes around comes around - at least to appliances. Black stainless is a good compromise between the darkness of black and the starkness of stainless. It is also smudge proof which is an advantage. , Magnets will not stick to the front of this refrigerator.
Date published: 2017-07-18
Rated 4 out of 5 by from Stylist multi-feature refrigerator I purchased my refrigerator in February 2017 and thus far my wife and I are quite pleased with the many features and style. The Instaview door-in-door is our favorite feature. We also love the modern style and great functionality of this appliance. The only issue we have is that the black stainless steel paint/finish will easily crack and peel if you accidently hit it with a hard object. Just like a new car, I recommend that you provide a touch-up paint kit since the finish is very fragile.
Date published: 2017-05-02
  • y_2017, m_8, d_18, h_11
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_MD05829531, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 82ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LSFXC2496S Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

what is fridge energy consumption per year in kwh

Asked by: moon1972
The Estimated Yearly Electricity Use for this ENERGY STAR® Qualified LG LG STUDIO - 24 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LSFXC2496S is 716 kWh. This information an be found in the product's Technical Specifications on its product information page on the company site (Energy Rating) and on the Energy Guide (Download Energy Guide)...^IFV
Answered by: LGJoel
Date published: 2017-07-14

What side is the inlet on for wthe water supply line? We just purchased one and need to know for the plumbers

Asked by: Alexk
We appreciate your interest in this refrigerator. The water inlet valve is on the LEFT side of the cabinet, when viewing the refrigerator from the front of it.
Answered by: NeilE
Date published: 2017-06-09

Is there an optional cover for the see through panel. Quite honestly my refrigerator can sometimes be sloppy and unorganized, but always clean. I don't particularly want guests to see into my frige. I don't have glass doors on my cabinets either.

Asked by: BG123
I apologize, but no; this refrigerator does not appear to have been developed with a cover for the door panel. This model was made specifically so that one would be able to see through the door.
Answered by: NeilE
Date published: 2017-08-13

Is this refrigerator ever coming out in stainless steel
